UAP-IW-HD

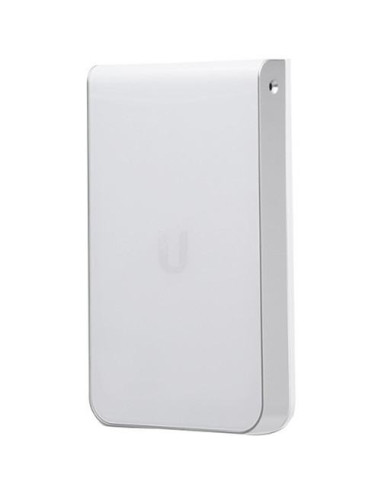

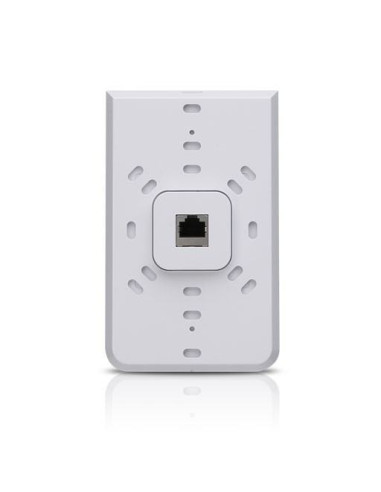

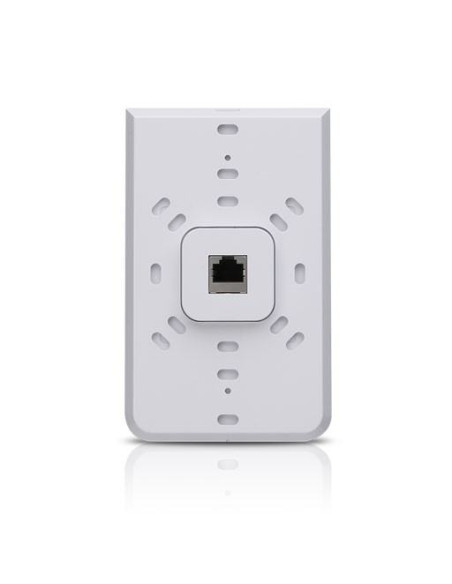

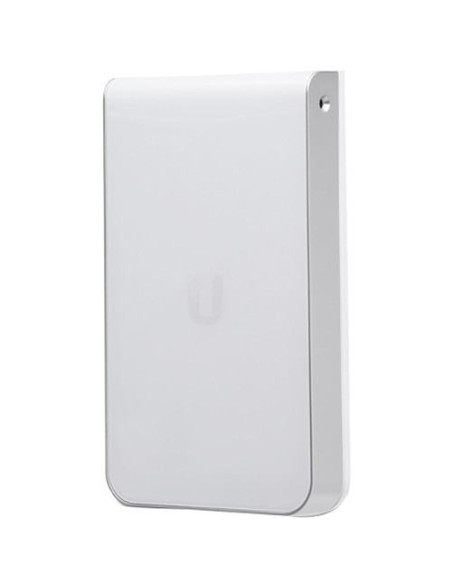

The UniFi UAP-IW-HD in wall high density access point by Ubiquiti Networks transforms an Ethernet wall connection into a dual-band 802.11AC WiFi Access Point. This model provides simultaneous dual-band 4x4 MIMO technology and features (5) Gigabit Ethernet ports, one of which delivers 802.3af power over Ethernet.
4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2 MIMO on 2.4GHz (300Mbps max PHY rate). 802.3af for base functionality. 802.3at required if using PoE passthrough. 1x4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE passthrough (port 1 only).
PoE Options
UAP-IW-HD - Ubiquiti UniFi IW HD Dual Band 4x4 In-Wall Access Point
Technical Specifications:
- Dimensions: 139.7 x 86.7 x 25.75mm
- Weight: 210g
- Networking Interface: (5) 10/100/1000 Ethernet Ports
- Buttons: Reset
- Power Method: 802.3af PoE, 802.3at PoE+
- Supported Voltage: Range 44 to 57VDC
- Power Supply: UniFi Switch (PoE)
- PoE Out 48V Passthrough (Pins +1, 2; -3, 6)
- Power Save: Supported
- Beamforming: Supported
- Maximum Power Consumption: 11W (23W with PoE Passthrough)
- TX Power: 2.4GHz 23dBm, 5GHz 26dBm
- Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w/PMF
- BSSID: Up to 8 per Radio
- Mounting: 1-Gang Electrical Wall Box (Not Included)
- Operating Temperature: -10 to 60C (14 to 140F)
- Operating Humidity: 5 to 95% Noncondensing
- Antenna Gain (dBi)
- 6
- Device Type
- Access Point
- Device Features
- Mountable
- MIMO
- 2x2
4x4 - Wireless System
- 2.4GHz
5GHz - Power Over Ethernet
- 48V 15W (802.3af)
- Ethernet Ports
- 5
