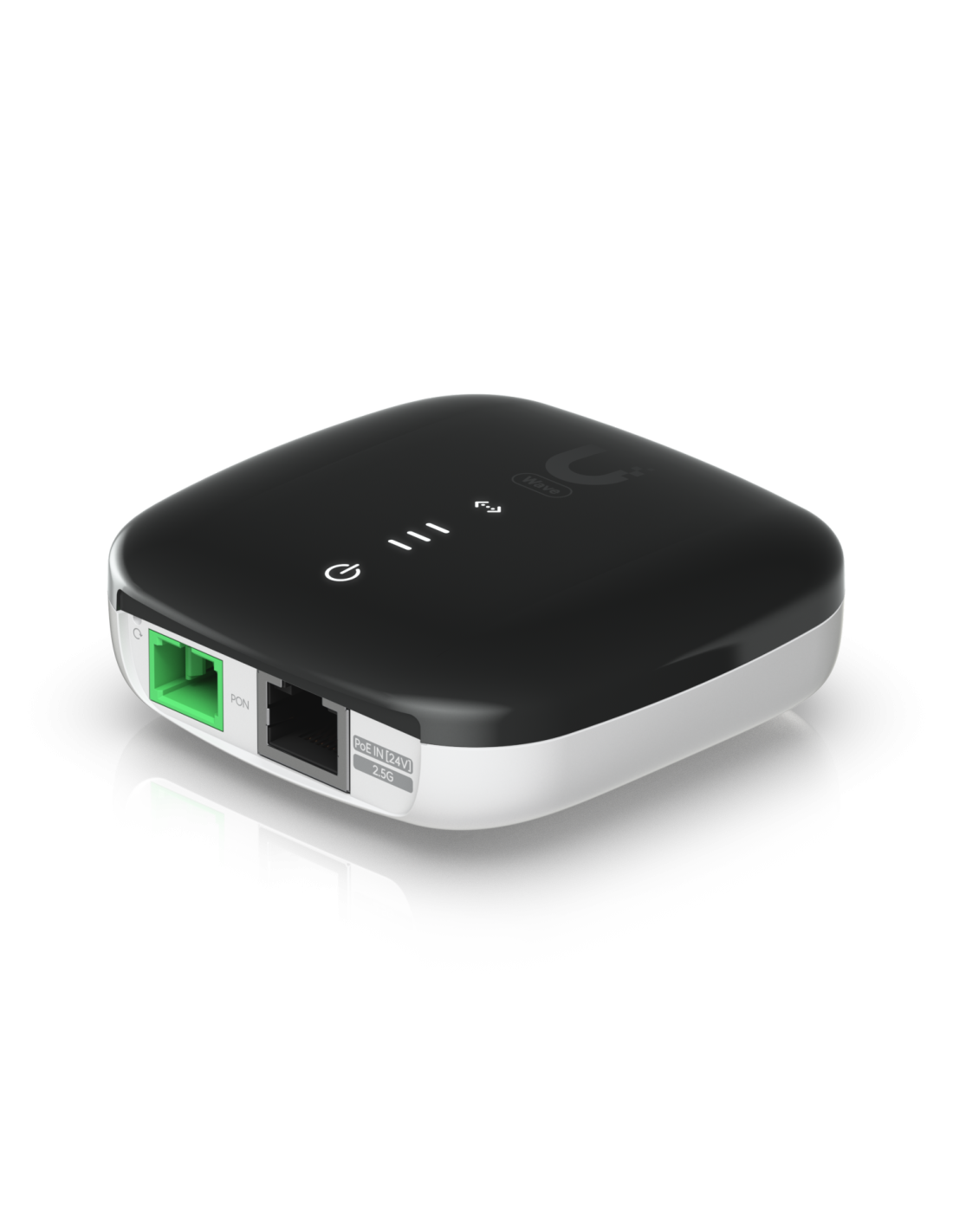

Ubiquiti wave-fiber-ONU GPON Optical Network Unit with 2.5 GbE Port

wave-fiber-ONU
In Stock
$99.00
Tax included
Ubiquiti wave-fiber-ONU

Ubiquiti WaveFiber ONU

The Ubiquiti WaveFiber ONU is a GPON optical network unit featuring a 2.5 GbE LAN port for high-speed fiber connectivity. It delivers up to 2.488 Gbps downstream and 1.244 Gbps upstream GPON throughput over distances of up to 20 km. Powered via 24V passive PoE, the device is designed for use with compatible UISP Fiber OLT platforms. Its durable polycarbonate enclosure supports operation in temperatures ranging from -15°C to 45°C, making it suitable for residential and business GPON deployments.

Key Features

  • ✓GPON optical network unit with 2.5 GbE LAN Por
  • ✓Up to 2.488 Gbps Downstream and 1.244 Gbps Upstream GPON line rate
  • ✓Supports Fiber Connections up to 20 km
  • ✓PDesktop or Wall Mount Installation
  • ✓LED indicators for GPON link status and Ethernet activity

Related Products & Accessories



Ubiquiti wave-fiber-ONU GPON Optical Network Unit with 2.5 GbE Port

Ubiquiti wave-fiber-ONU
Ubiquiti wave-fiber-ONU view 2Ubiquiti wave-fiber-ONU view 3

The Ubiquiti WaveFiber ONU is a compact GPON optical network unit designed to provide high-speed GPON fiber connectivity. Featuring a 2.5 GbE RJ45 LAN port and an SC/APC GPON optical interface, it supports GPON throughput of up to 2.488 Gbps downstream and 1.244 Gbps upstream over fiber distances of up to 20 km.

Powered via 24V passive PoE, the WaveFiber ONU is designed for use with compatible Ubiquiti GPON OLT platforms, including the UF-OLT, UF-OLT-4, and UISP-FIBER-OLT-XGS. It supports ITU-T G.984 GPON standards and utilizes 1310 nm upstream and 1490 nm downstream wavelengths for optical communication.

The compact polycarbonate enclosure measures 76.5 × 76.5 × 26.4 mm and supports both desktop and wall-mounted installation. Operating in temperatures ranging from -15°C to 45°C and humidity levels of up to 90% non-condensing, the unit is designed for reliable deployment in GPON environments.

Integrated LED indicators provide status information for power, PON link status, and Ethernet connectivity. The device supports monitoring, diagnostics, remote firmware upgrades, VLAN support, and GPON management functions for integration into UISP fiber deployments.

Technical Specifications

Specification Value
Networking Interface (1) SC/APC, ITU-G.984 GPON WAN Port
(1) 1/2.5 GbE RJ45 LAN Port
Management Interface

Ethernet In-Band

PON
Power Method PoE, 0.3A
Power Supply 24V Passive PoE 2-Pair (4,5+; 7,8-)
Supported Voltage Range 20–28V DC
Max. Power Consumption 5W
GPON Line Rate Downstream: 2.488 Gbps
Upstream: 1.244 Gbps
Optical Module Power Range TX: 1.5 to 5 dBm
RX: -8 to -28 dBm
Mounting Options Desktop, Wall
Button (1) Factory Reset
Operating Temperature -15°C to 45°C (5°F to 113°F)
Operating Humidity 10% to 90% Non-Condensing
Certifications FCC, IC, CE
PON Status LEDs (3) Signal LEDs
All OFF: Bootup
1x Red: Signal Too Low (< -28 dBm)
1x White: Signal Low (≥ -28 dBm)
2x White: Signal Good (≥ -25 dBm)
3x White: Signal Strong (≥ -11 dBm)
1x Red + 2x White: Signal Too Strong (≥ -8 dBm)
3x Red: No Signal
Alternating Red and Signal Indicator: No Authority
Ethernet LED Steady White: Link Up
Blinking White: Activity
OFF: Link Down
Power LED White: ON
Operating Mode ONU/ONT Layer 2/3 Ethernet Switch
Services Web Server, Telnet, NAT, Bridging & Routing, Firewall Features, Application Passthrough
Utilities Dashboard, Monitoring, Alarms, Logs
Security GEM Port Encryption
Additional Features Remote Reset, Remote Reboot, Remote Firmware Upgrade, VLAN Support
Operating Wavelength TX: 1310 nm
RX: 1490 nm
Line Code Scrambled NRZ
Optical Interface Bit Rate Downstream: 2488.32 Mbit/s
Upstream: 1244.16 Mbit/s
Physical Reach 20 km
