Ubiquiti UACC-SFP-Wizard SFP Wizard Optical Module Programmer and Diagnostic Tool

Ubiquiti UACC-SFP-Wizard |Ubiquiti UACC-SFP-Wizard SFP Wizard Optical Module Programmer and Diagnostic Tool| WISP Australia

Ubiquiti UACC-SFP-Wizard SFP Wizard Optical Module Programmer and Diagnostic Tool

Name: Ubiquiti UACC-SFP-Wizard SFP Wizard Optical Module Programmer and Diagnostic Tool
Brand: Ubiquiti
SKU: UACC-SFP-Wizard
Price: 108.9 AUD
Availability: InStock

Reference UACC-SFP-Wizard

In Stock

$108.90

Tax included

Ubiquiti SFP Wizard

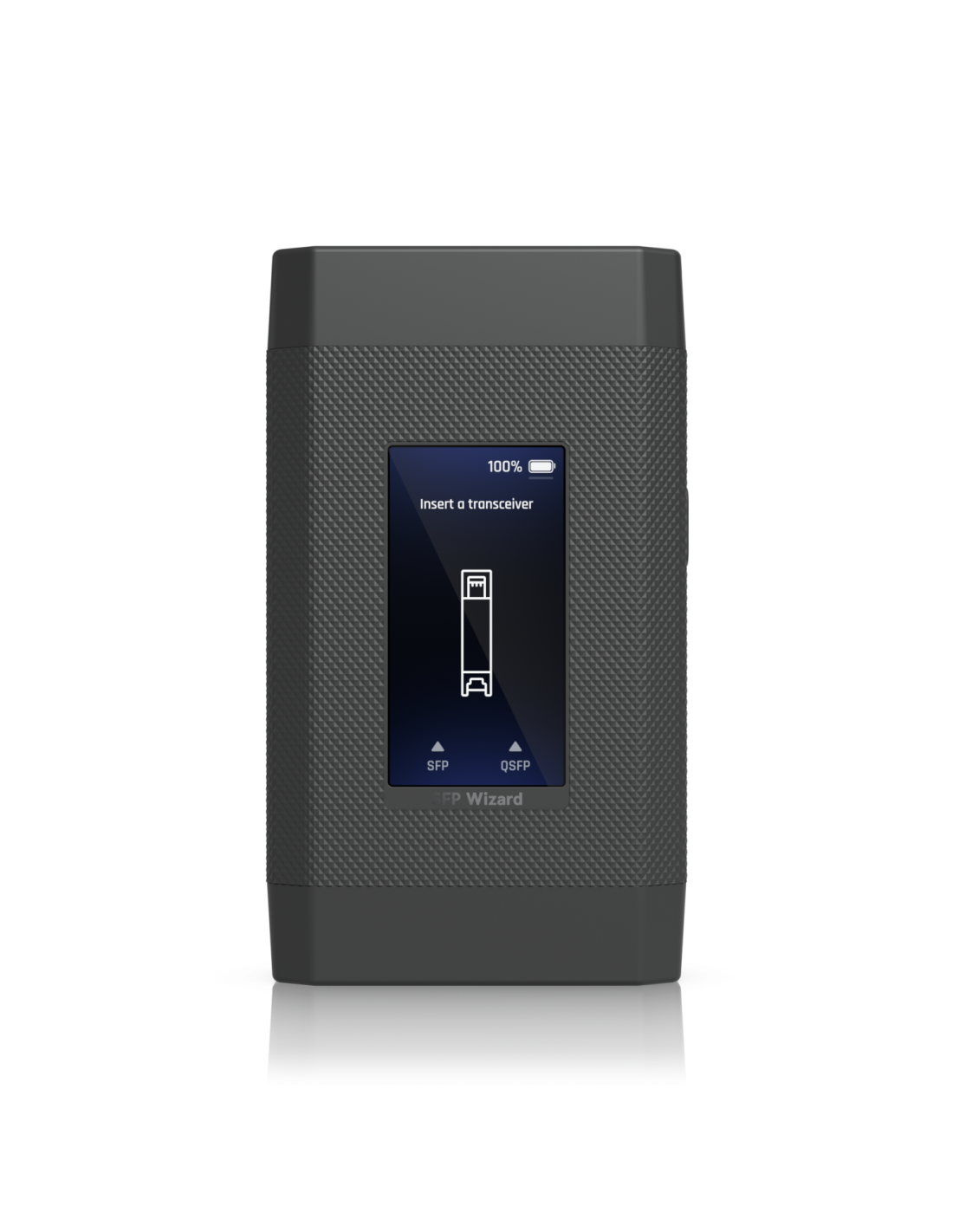

The Ubiquiti UACC-SFP-Wizard is a compact, battery-powered tool designed for testing, diagnosing, and programming SFP and QSFP transceivers. It enables users to copy optical module profiles, write or restore profiles to compatible Ubiquiti optical modules, and monitor real-time Digital Diagnostic Monitoring (DDM) data.

Featuring a 1.9-inch touchscreen display, Bluetooth Low Energy (BLE) connectivity, and UniFi mobile app integration with OTA firmware updates, the SFP Wizard supports SFP, SFP+, SFP28, QSFP+, and QSFP28 transceiver form factors in a portable design.

Key Features

✓Copy optical module profiles
✓Write or restore profile to Ubiquiti optical module instantly
✓Monitor optical module health in real time via DDM

SFP Modules

	Ubiquiti UACC-CM-RJ45-1G 1G SFP to 1GbE RJ45 Module $37.44
	UACC-OM-SFP28-SR Ubiquiti UniFi 100m 25Gbps SFP28 Multi-Mode Optical Module $94.70
	Ubiquiti UACC-OM-SM-1G-S-2 Bidirectional Single-Mode SFP Module $49.50
	UACC-OM-SM-10G-D-2 PAIR Ubiquiti UFiber SFP+ Single-Mode Fiber Module 10 Gbps 10km $167.67
	UACC-OM-MM-1G-D-2 Pair Ubiquiti 1G Multi-mode, duplex, Fiber transceiver module $36.00
	UACC-OM-MM-10G-D-20 Ubiquiti Multi-mode 10G up to 300m -20 pack $674.30

Ethernet Patch Cable

	UACC-DAC-SFP28-0.5M Ubiquiti 25G Direct Attach Cable $48.46
	UACC-DAC-SFP10-0.5M Ubiquiti 10G Direct Attach Cable $35.00
	Ubiquiti UACC-DAC-QSFP28-0.5M 100G QSFP28 Direct Attach Cable 0.5m $77.00

Description
Product Details

Ubiquiti UACC-SFP-Wizard SFP Wizard Optical Module Programmer and Diagnostic Tool

Equipped with a 1.9-inch touchscreen display, the SFP Wizard provides a standalone interface for managing supported optical transceivers. Its portable design and rechargeable battery allow convenient operation without the need for an external power source.

Bluetooth Low Energy (BLE) connectivity and UniFi mobile app integration enable device management and over-the-air (OTA) firmware updates. Supporting SFP, SFP+, SFP28, QSFP+, and QSFP28 form factors, the UACC-SFP-Wizard offers a versatile solution for programming, diagnostics, and monitoring of compatible optical modules.

Technical Specifications

Specification	Value
Dimensions	90.8 x 52.1 x 20.2 mm (3.6 x 2.1 x 0.8")
Weight	84 g (3 oz)
Enclosure Material	Polycarbonate
Networking Interface	BLE
Power Method	Li-ion Battery
Battery Life	Up to 75 minutes of continuous SFP transceiver diagnostics with laser on, or 35 minutes with QSFP transceivers
Power Supply	Rechargeable Li-ion Battery, 3.7V DC, 300mAh
Supported Voltage Range	USB-C: 5V DC / 0.5A
Max. Power Consumption	0.6W
Supported Form Factors	SFP, SFP+, SFP28, QSFP+, QSFP28
Display	1.9" Touchscreen LCM
Buttons	(1) Power
Operating Temperature	0 to 40°C (32 to 104°F)
Operating Humidity	10% to 90% Non-Condensing
NDAA Compliant	✓
Certifications	FCC, IC, CE
Mobile App Requirements	UniFi iOS™ Version 10.29.1 and Later UniFi Android™ Version 10.30.2 and Later

MPN UACC-SFP-Wizard
