Ubiquiti UXG-Fiber High-Performance 10G Gateway with Integrated 2.5 GbE Switch & Advanced Security

UXG-Fiber
In Stock
$535.70
Tax included

UXG-Fiber

Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.

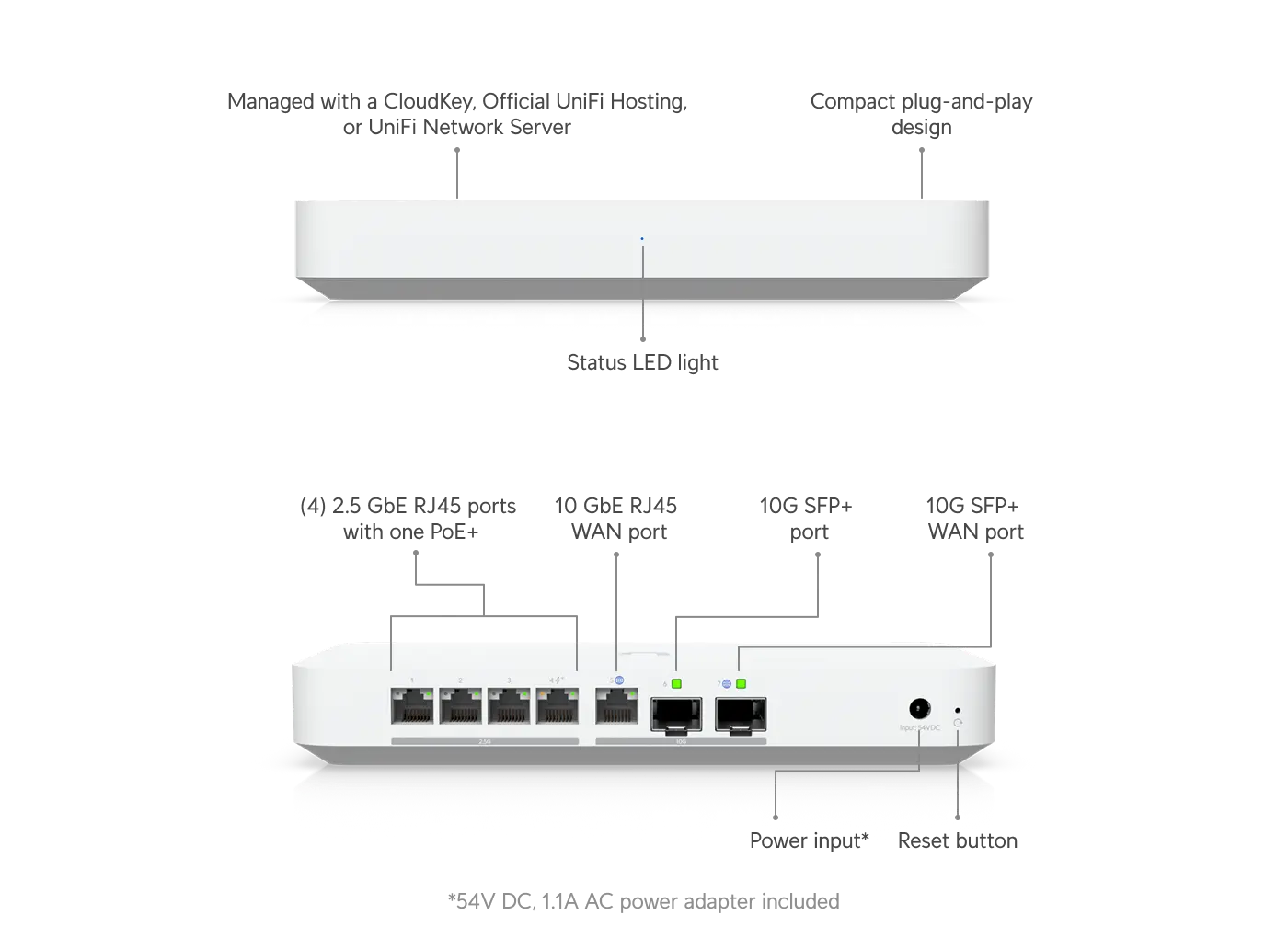

Key Features:

  • Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
  • 5 Gbps routing with IDS/IPS
  • (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
  • (1) 10G SFP+ LAN port
  • Integrated 4-port switch with (1) PoE+ port

*Note: The 5-year UI Care service must be applied before the product is opened and activated. FOR NEW SALES ONLY!

Related Products & Accessories



UXG-Fiber, Ubiquiti High-Performance 10G Gateway with Integrated 2.5 GbE Switch & Advanced Security

Product Specifications

Specification Details
Dimensions 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")
Max. WAN Port Count 6
Default WAN Ports (1) 10G SFP+, (1) 10 GbE RJ45

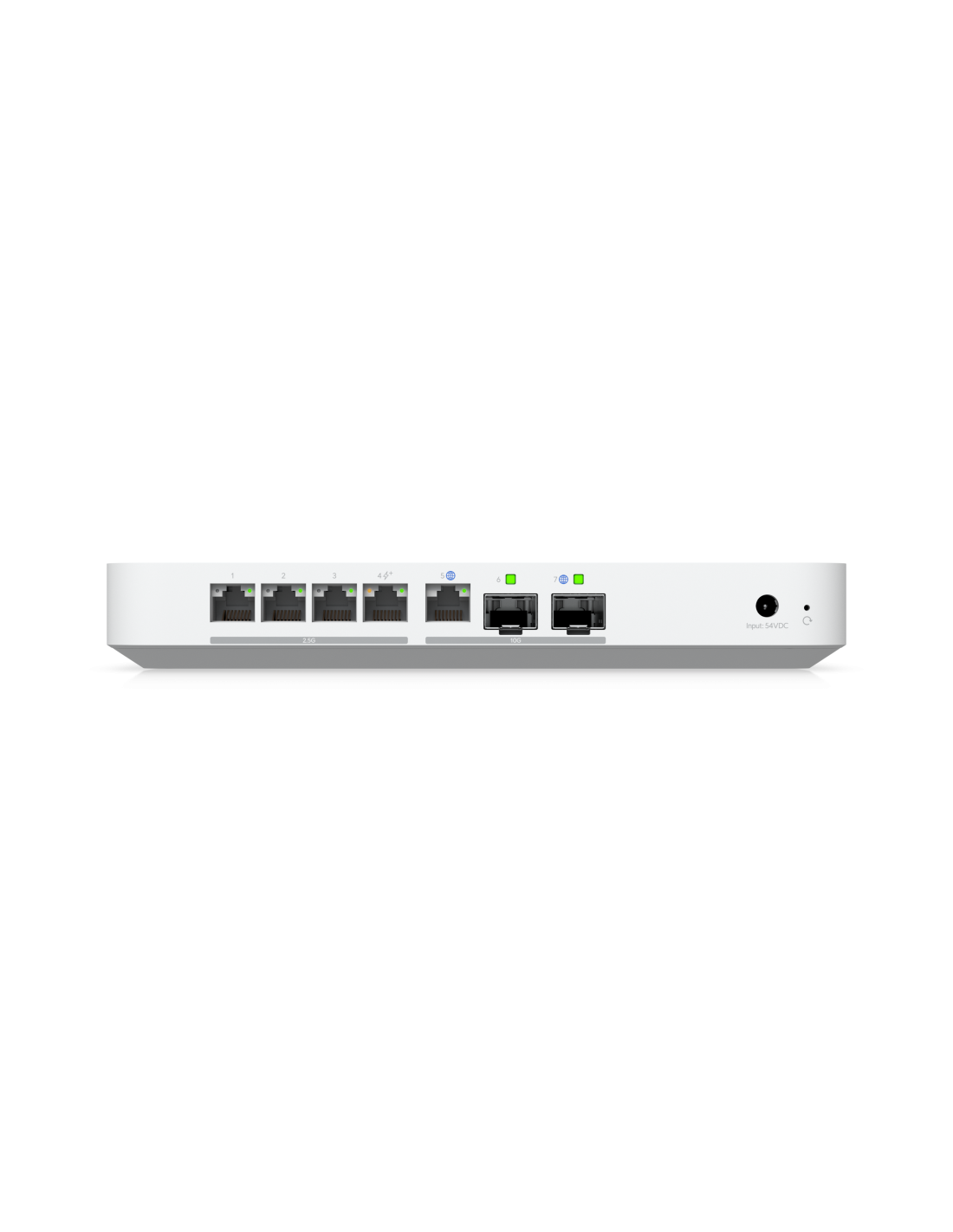

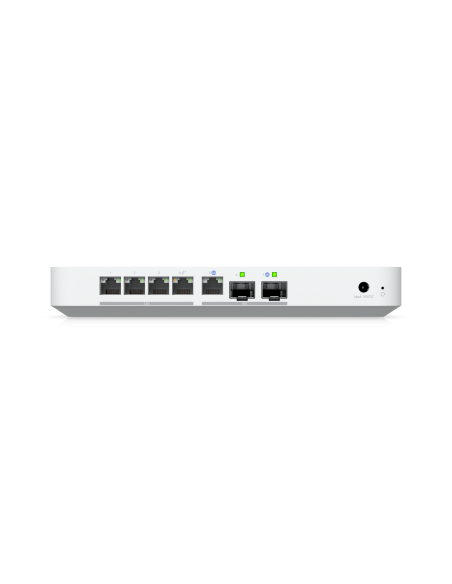

Port Layout 2.5 GbE RJ45: 4 (2.5G/1G/100M/10M), 10 GbE RJ45: 1 (10G/2.5G/1G), 10G SFP+: 2 (10G/1G)
IDS/IPS Throughput 5 Gbps
Form Factor Compact desktop
Stateful Firewall ✓
Application-Aware Layer 7 Firewall ✓
DPI & Traffic Identification ✓
Zone-Based Firewall Advanced Filtering ✓
Content Filtering ✓
Intrusion Prevention (IPS/IDS) ✓
Ad Blocking ✓
IDS/IPS Signatures 55,000+
With CyberSecure License-Free SD-WAN ✓
Site-to-Site VPN Site Magic ✓, IPsec ✓, OpenVPN ✓
VPN Server Teleport Zero-Configuration VPN ✓, WireGuard ✓, OpenVPN ✓, L2TP ✓
VPN Client OpenVPN ✓, WireGuard ✓
Multi-WAN Load Balancing ✓
Dynamic Routing OSPF ✓
Advanced QoS ✓
Multicast DNS (mDNS) ✓
Advanced NAT SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT ✓
Integrated RADIUS Server ✓
RADIUS over TLS (RadSec) ✓
Additional Internet Failover with UniFi LTE Backup ✓
Internet Quality and Outage Reporting ✓
MAC Address Table Size 4,000
PoE Budget 30W
Max. PoE Wattage per Port by PSE PoE+: 30W
Voltage Range PoE Mode 50—57V
Max. Power Consumption 25W (Excluding PoE output)
Power Method DC jack (54V DC/1.1A)
Power Supply 54V DC/1.1A (Adapter included)
Supported Voltage Range 100—240V AC
Processor Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory 2 GB
Weight 605 g (1.3 lb)
Enclosure Material Polycarbonate
Management Ethernet, Bluetooth
LEDs Ethernet ✓, SFP+ ✓, System ✓
Button (1) Factory-reset
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC
