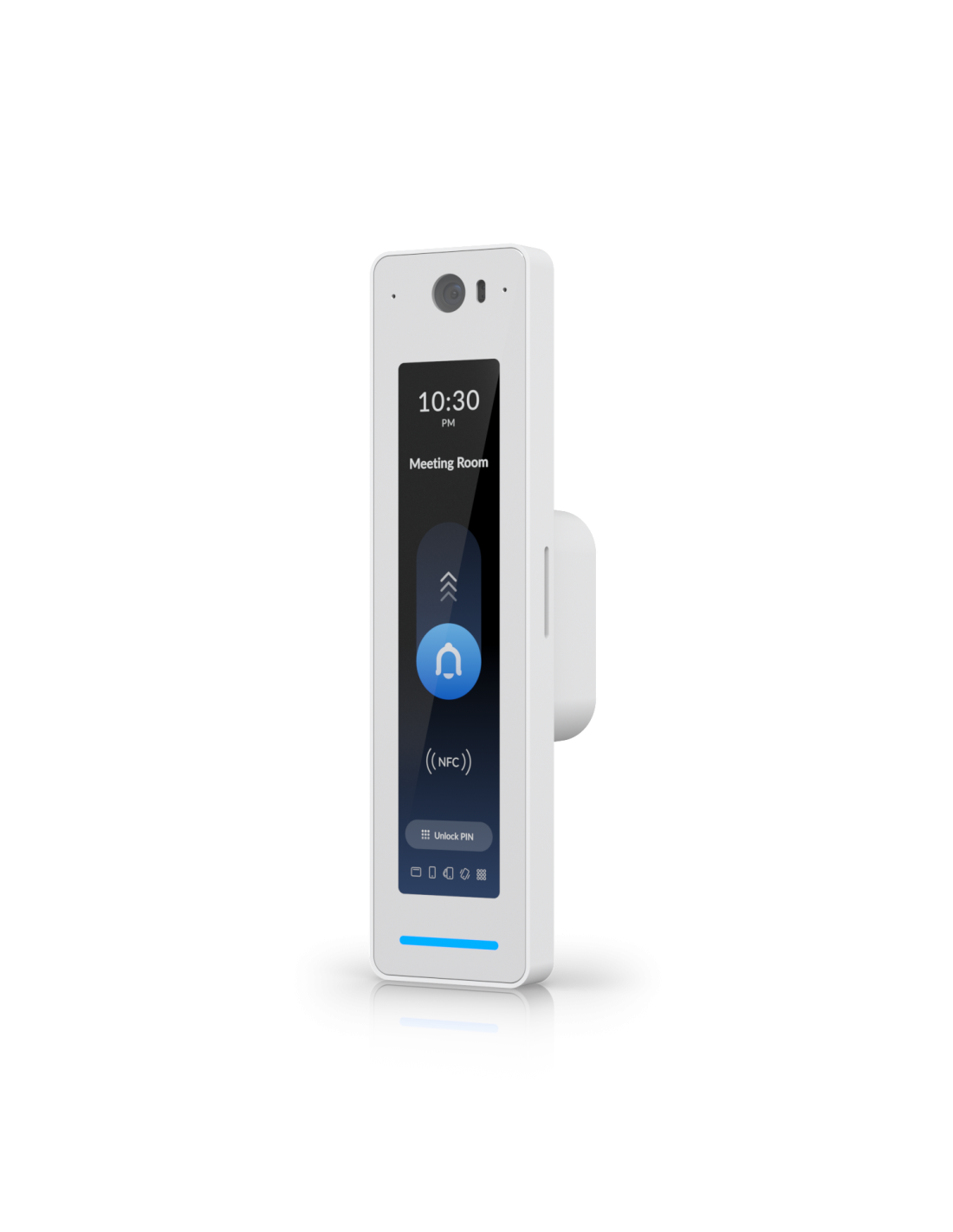

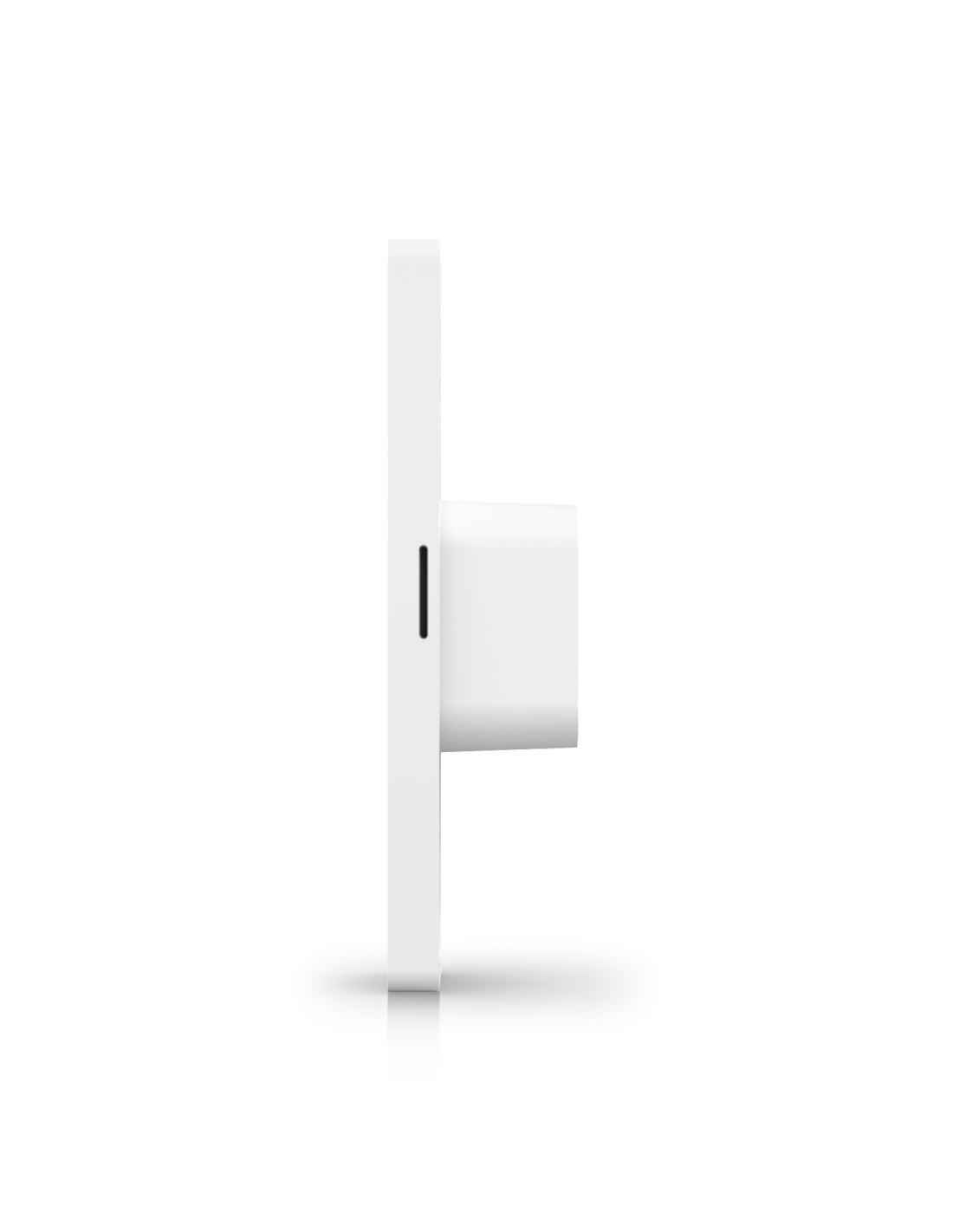

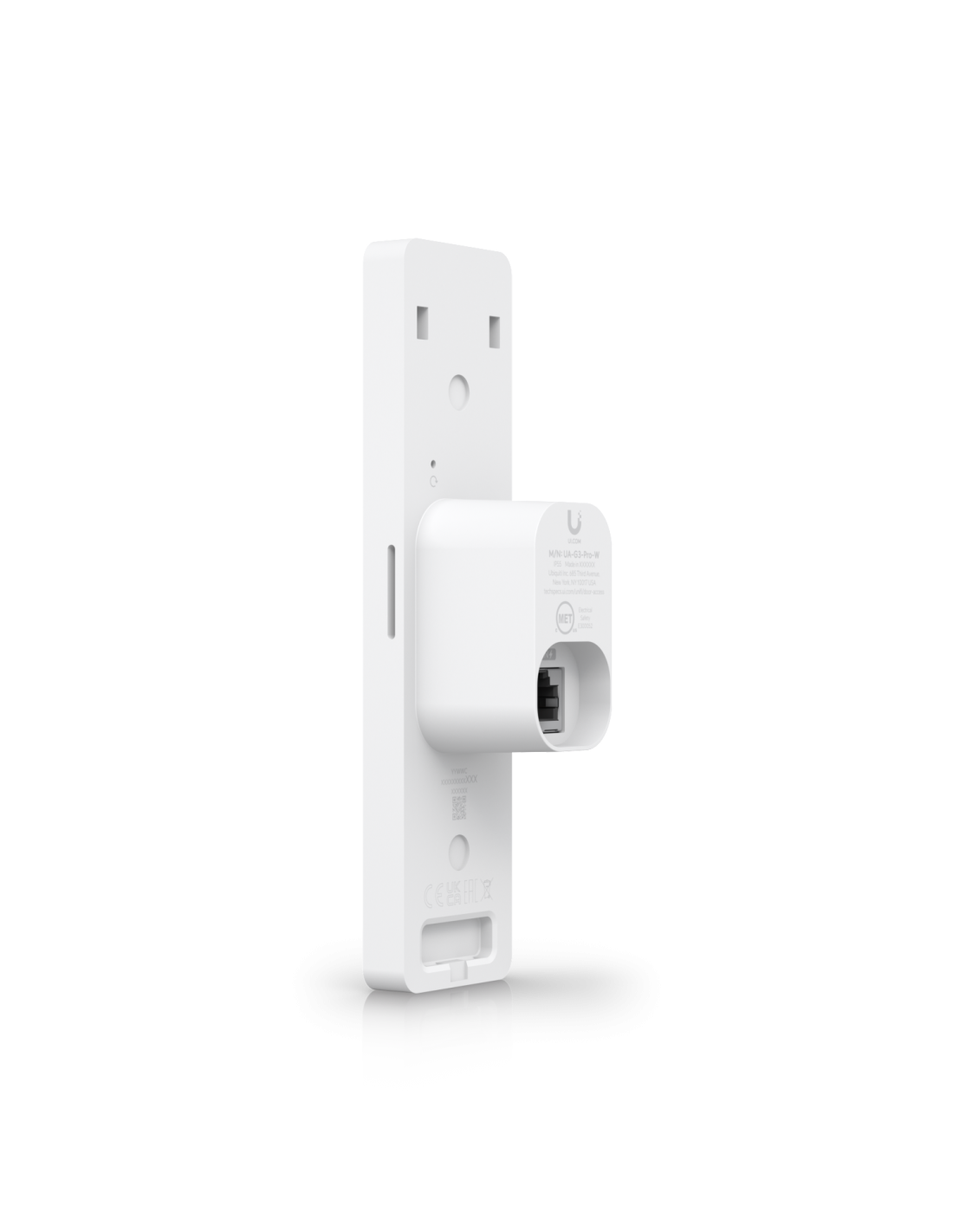

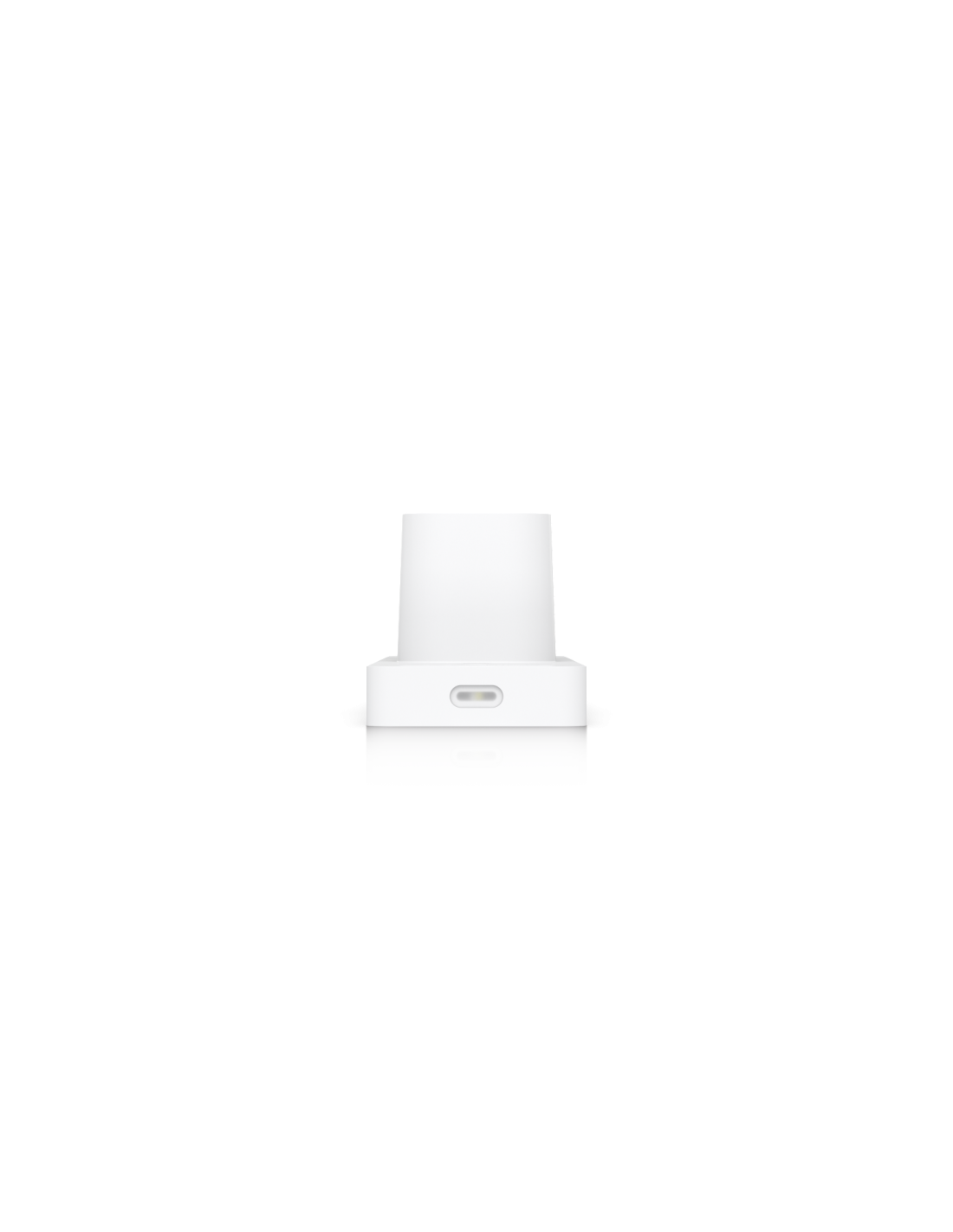

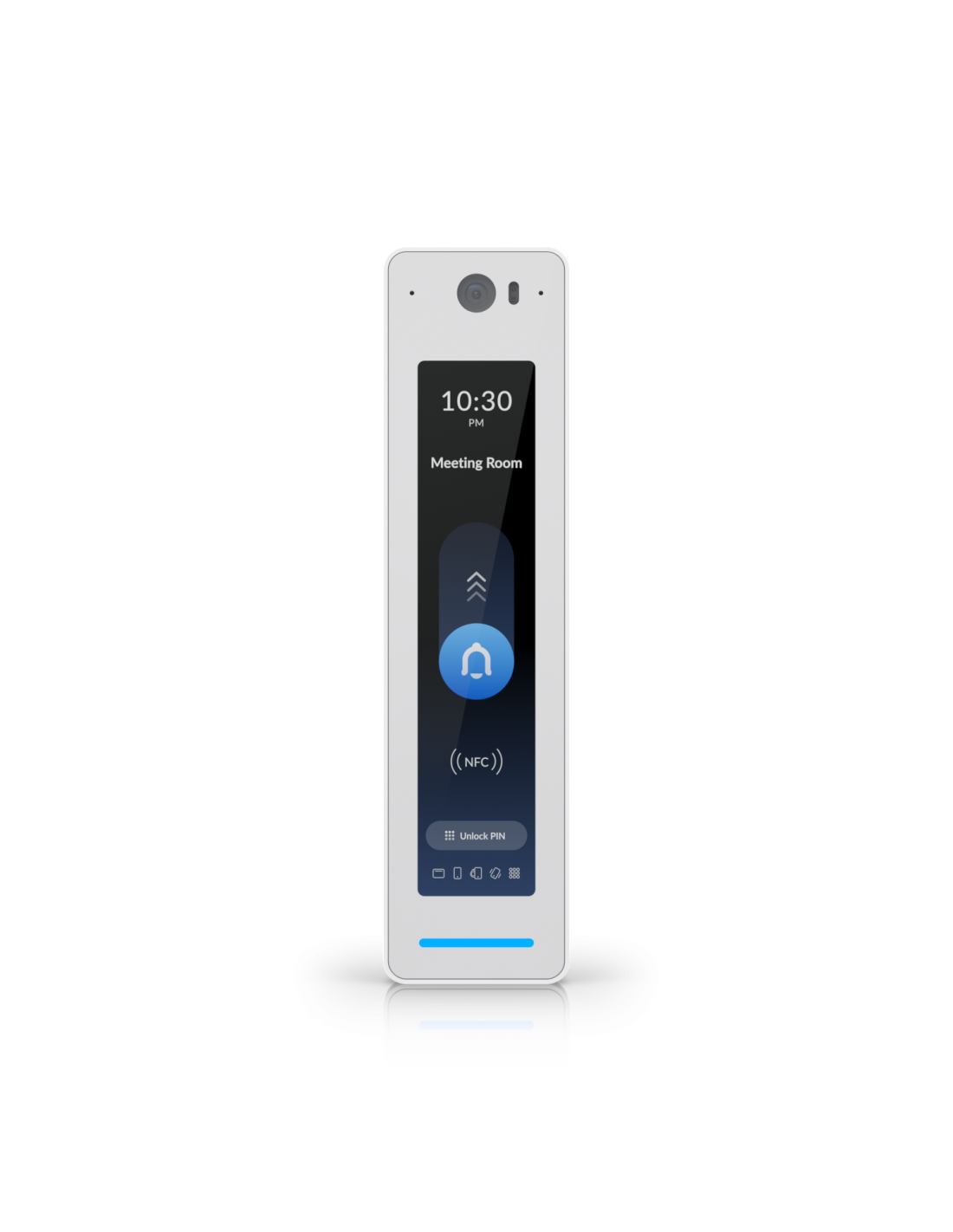

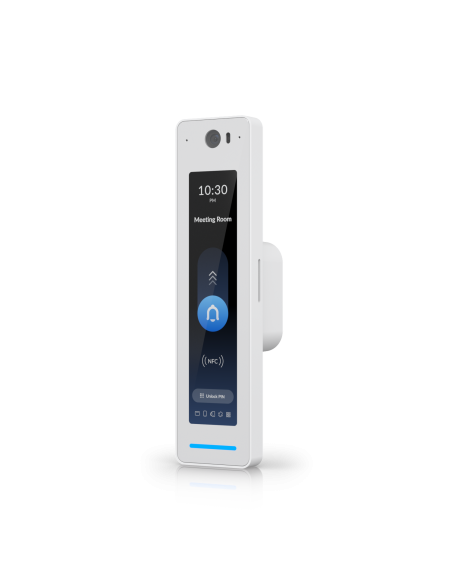

Ubiquiti UniFi UA-G3-Pro-W Access Reader G3 Professional with Touch Pass Intercom NFC & PoE

UA-G3-Pro-W
Last items in stock
$740.30
Tax included

UA-G3-Pro-W

Third-generation, indoor/outdoor NFC reader and intercom with Touch Pass support.

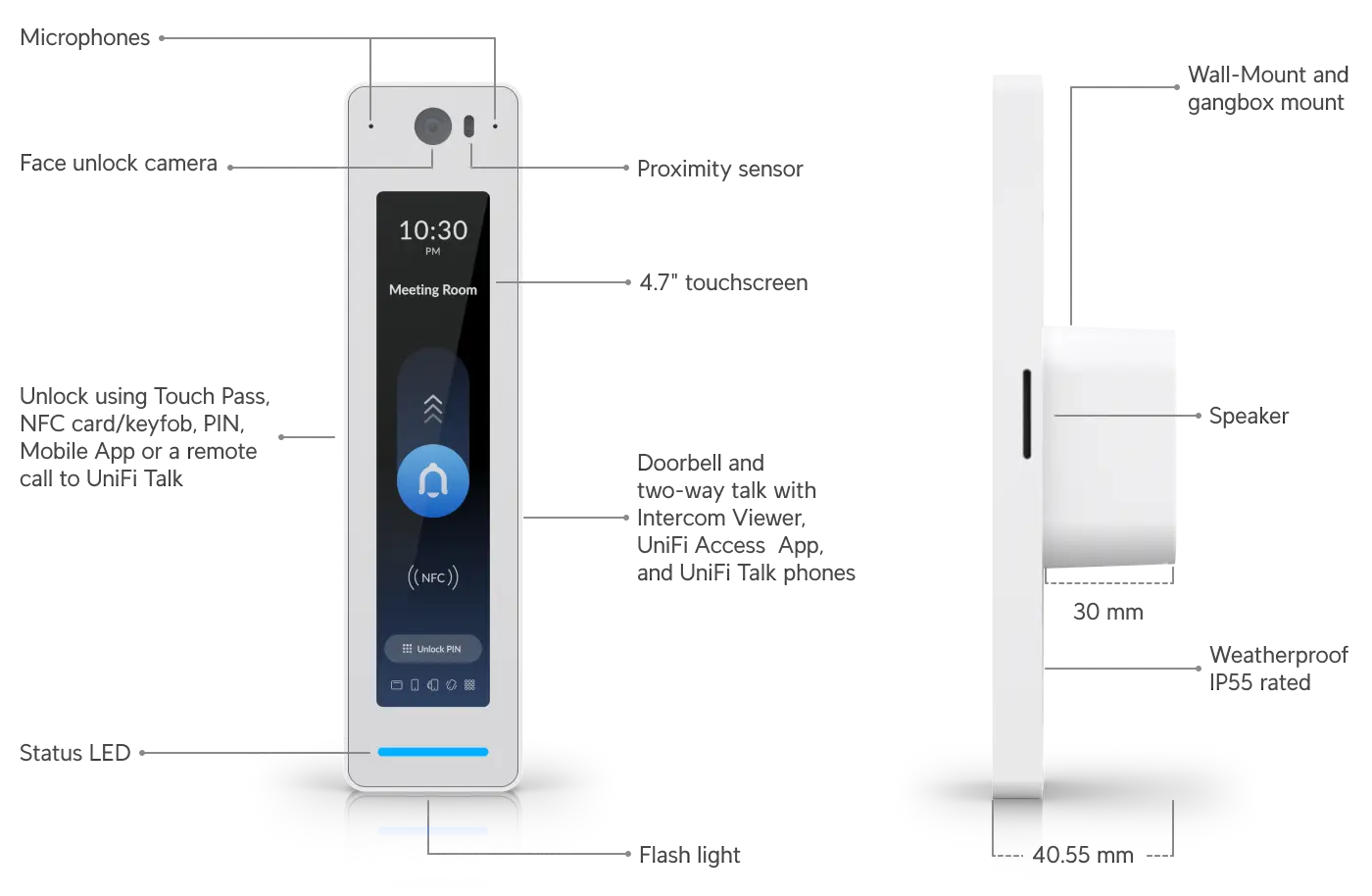

Key Features:

  • Supports unlocking via NFC cards, PIN codes, the UniFi Identity app, facial recognition, and Touch Pass gestures
  • Includes a built-in doorbell function with visitor video preview and two-way audio communication
  • Camera and display optimized for ADA-compliant mounting heights
  • Durable IP55-rated enclosure, built to withstand temperatures from -10°C to 45°C
  • Power and connectivity provided via PoE to the UniFi Access Hub



UA-G3-Pro-W Access Reader G3 Professional with Touch Pass Intercom NFC & PoE

Product Specifications:

Dimensions 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
Integrated Camera
NFC Card & Keyfob Access
PIN Access
Apple/Google Wallet
Mobile Unlock
Two-Way Intercom & Doorbell Access
NDAA Compliant
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weatherproofing IP55
Weight 136 g (4.8 oz)
Enclosure Material Polycarbonate, glass
Mount Material Aluminum alloy

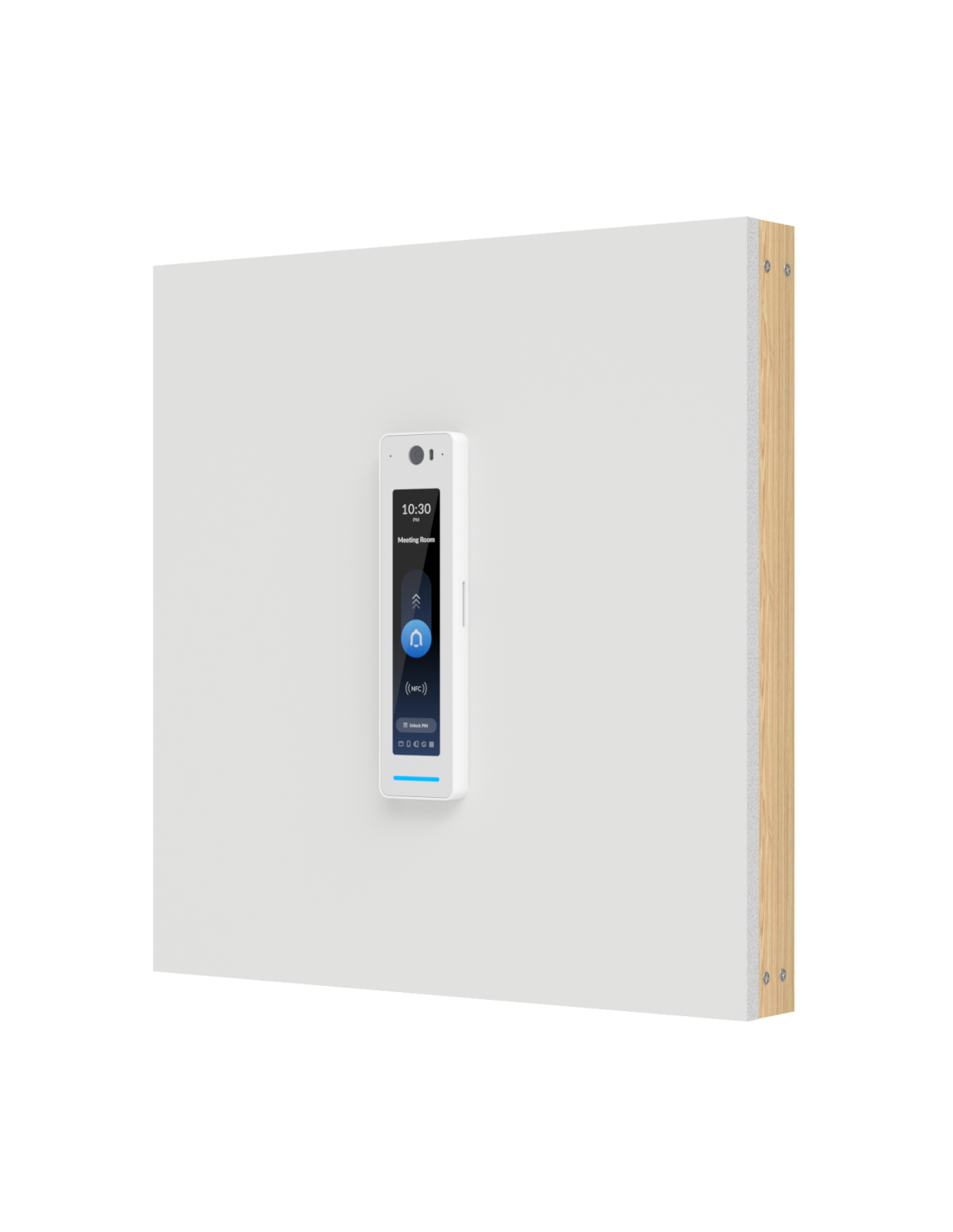

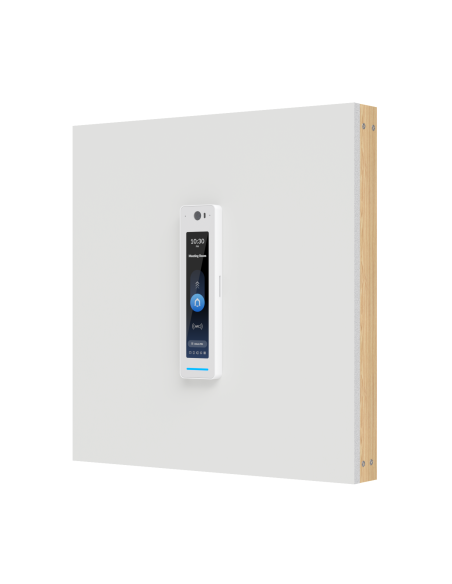

Mounting Wall, gang-box mount (Included)
Angle mount, junction box (Optional)
Indoor and Outdoor Use Yes
Ambient Operating Temperature Device: -30 to 45° C (-22 to 113° F)
Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity 5 to 90% noncondensing

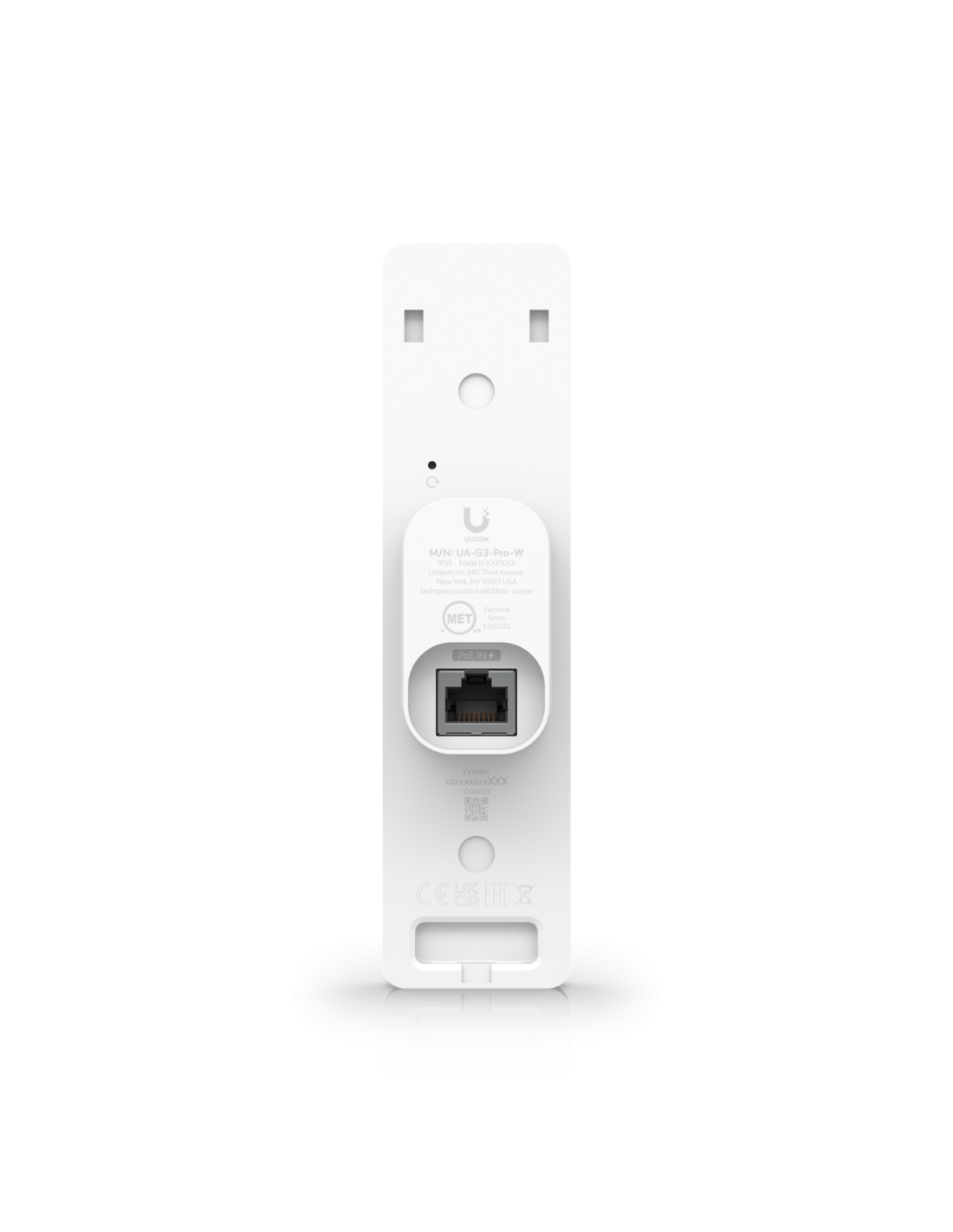

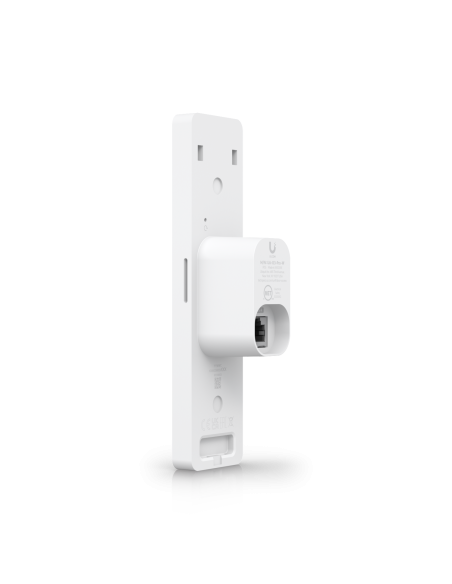

Networking Interface (1) GbE RJ45 port
Connectivity BLE 4.2, NFC
Power Method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption 6W
Supported Voltage Range 48V DC
ESD/EMP Protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Display 120 mm (4.7") diagonal
Touch Screen Technology Capacitive touch
Display Luminance 480 nits (Typical)
Screen Orientation Portrait
Resolution 1280 x 286 px
Microphone
Speaker
LEDs R/G/B/W/Amber
Button (1) Factory-reset
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm (1.18")
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T–T5T
ECP 2.0
PoE Cabling Requirements Cat 5e minimum. Match performance to site speed.
26 AWG for patch cords; 24 AWG for horizontal/riser cable.
UL 294 Statement Compliance with IEEE 802.3 not verified in UL 294.
Intended to comply with ANSI/NFPA 70,
