Overview

All-in-one kit for access control at a vehicle gate with support for an additional side door. The system combines a Gate Hub with a G3 Intercom, PoE++ power, and 2-wire retrofit extenders to simplify installation. Setup and management are handled in UniFi, with Touch Pass credentials (Apple/Google Wallet), NFC cards/keyfobs, PIN, and mobile unlock.

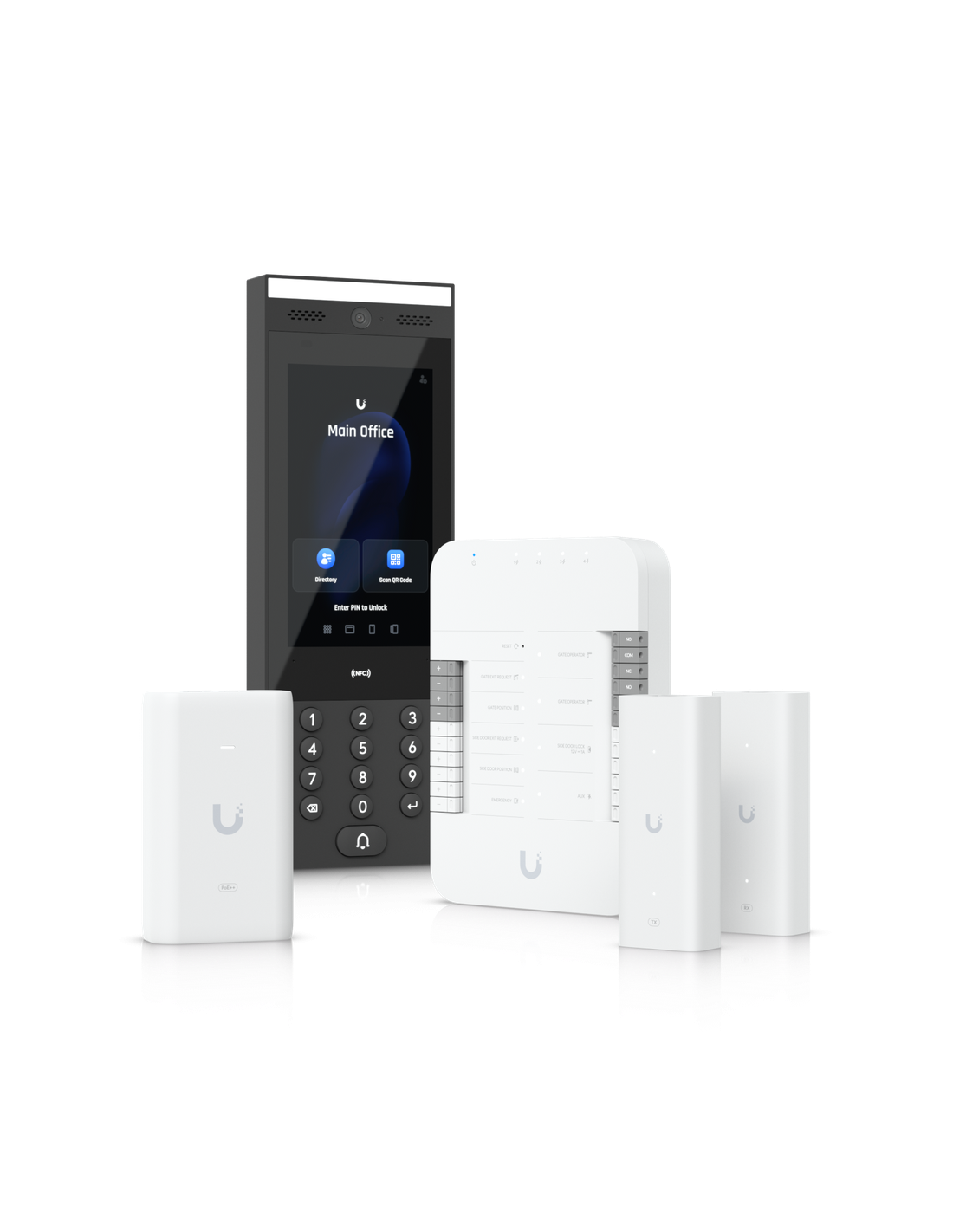

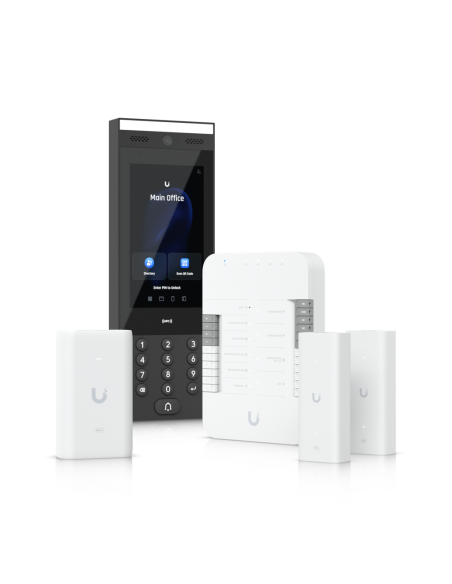

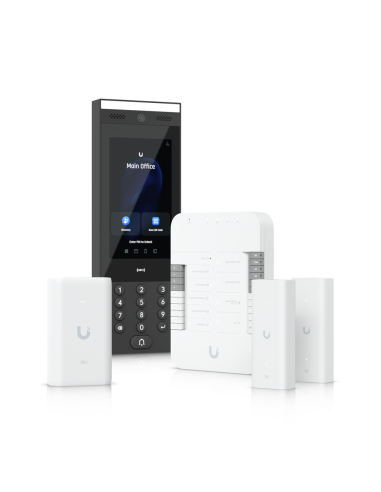

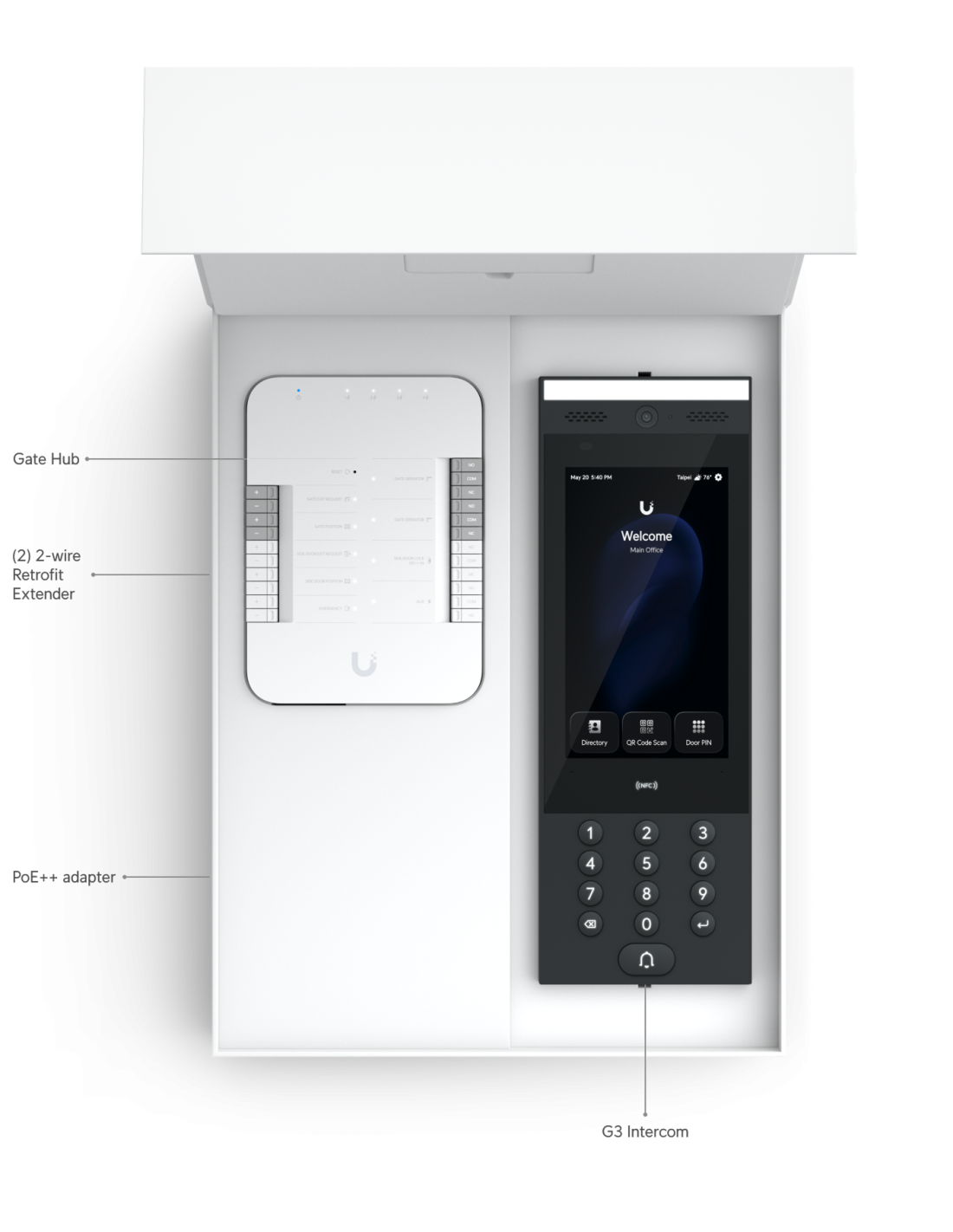

What’s in the box

• (1) Gate Hub (DIN-rail mount)
• (1) G3 Intercom (7" capacitive touchscreen, IP65)
• (1) PoE++ Adapter
• (2) 2-Wire Retrofit Extenders (for twisted pair or coax)
• 10 free 1-year Touch Passes

Key features

• Access methods: Touch Pass (Apple/Google Wallet), NFC card/keyfob, PIN, mobile app, two-way intercom/doorbell.
• Gate Hub I/O & power: PoE++ input with four PoE outputs; relays for powered or dry-contact locks; 12 V output for side-door locks.
• Intercom: Integrated camera, 7" high-brightness display, IP65 weather resistance.
• Retrofit friendly: PoE over 2-wire/coax extenders to reuse existing cabling.
• Security & compliance: UL 294 Level I, NDAA compliant.
• UniFi ecosystem: Managed in UniFi; can be paired with supported UniFi cameras for LPR-assisted workflows.

Technical highlights (selected)

• Gate Hub: (1) PoE++ input; (4) PoE outputs (up to 28 W each); max 22 W (without PoE) / 50 W (with PoE); indoor (outdoor with waterproof box).
• G3 Intercom: PoE; IP65; BLE 4.2 + NFC; 7" display up to 1000 nits; typical 13 W.
• 2-Wire Extenders: PoE++ in → PoE+ out; 10/100 MbE + HomePlug AV link.
