Ubiquiti UniFi UA-G3-SK-Pro G3 Starter Kit Pro
Ubiquiti UniFi UA-G3-SK-Pro G3 Starter Kit Pro
Ubiquiti UniFi UA-G3-SK-Pro G3 Starter Kit Pro
Ubiquiti UniFi UA-G3-SK-Pro G3 Starter Kit Pro

Ubiquiti UniFi UA-G3-SK-Pro G3 Starter Kit Pro

UA-G3-SK-Pro
In Stock
$982.30
Tax included

UA-G3-SK-Pro

Starter kit that provides complete entry and exit control for a single door with two readers and Touch Pass support.

*Note: The 5-year UI Care service must be applied before the product is opened and activated. FOR NEW SALES ONLY!

Related Products & Accessories



UA-G3-SK-Pro - Ubiquiti UniFi G3 Starter Kit Pro

Technical Specifications – UniFi Access G3 Starter Kit Pro (UA-G3-SK-Pro)
Overview

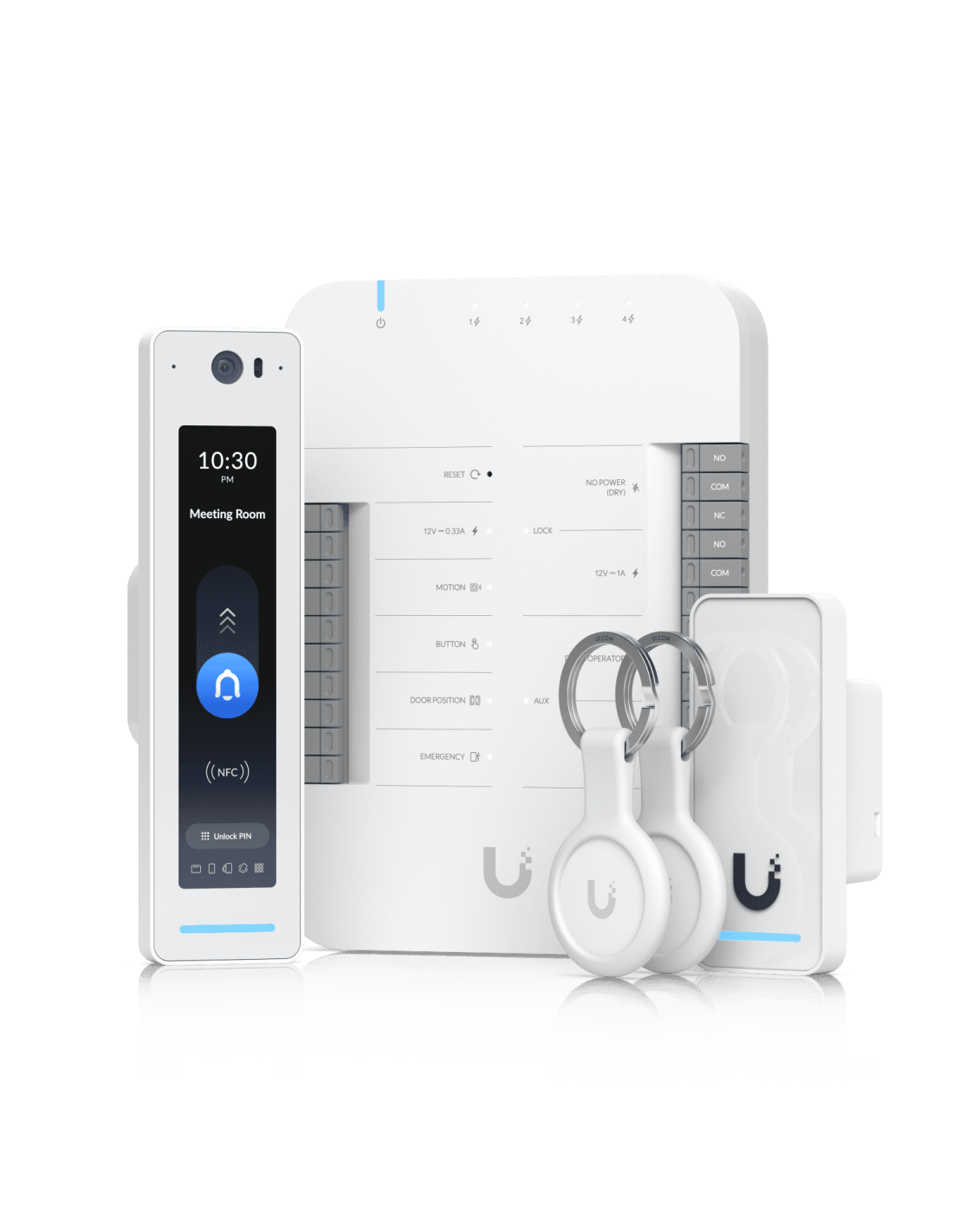

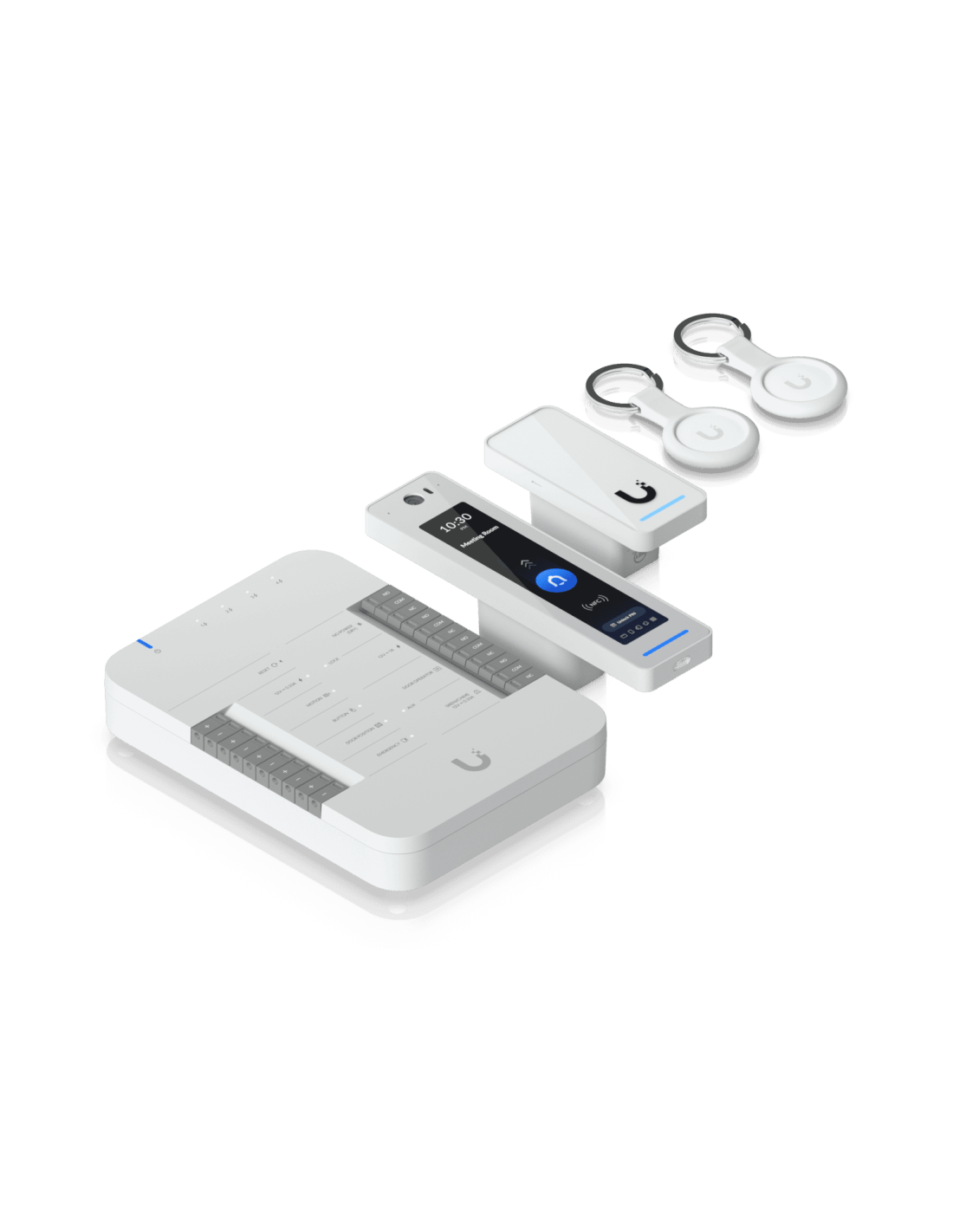

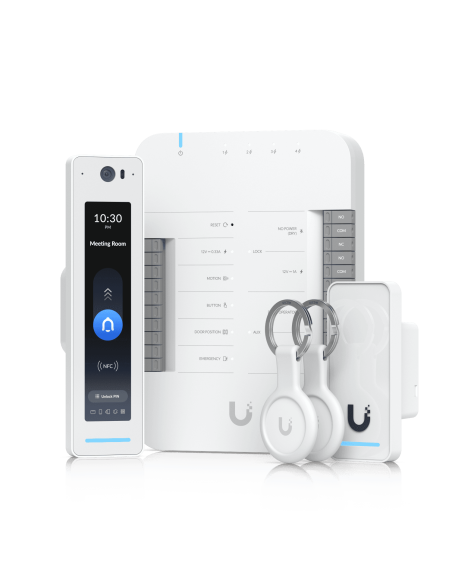

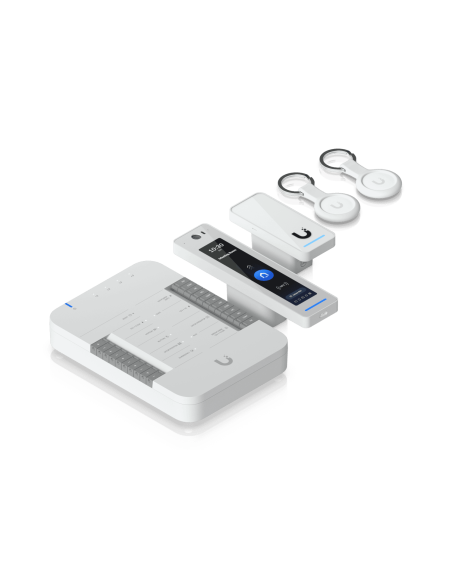

In the Box (1) Door Hub
(1) G3 Reader Pro
(1) G3 Reader
(2) Pocket Keyfobs
Touch Pass 10 free 1-year Touch Passes included
Door Hub
Dimensions 174.9 x 126 x 32.9 mm
(6.9 x 5 x 1.3")
Supported Doors 1
Input Terminals (2) Door exit request
(1) Door position
(1) Emergency
Power Method PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight 363 g (12.8 oz)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Mounting DIN-rail (Included)
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
Networking interface (5) 10/100/1000 Base-T
PoE Interface (1) PoE++ input, 50V DC, 1A
(4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated)
Max. Power Consumption 30W (Without PoE output)
50W (With PoE output)
Digital Input Request to exit, request to enter, remote release, door position sensor
Dry Output Relay Lock: 30V DC, 1A
Aux: 30V DC, 1A
Powered Output Relay Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A
LEDs B/W
Button (1) Factory-reset
Recommend Max. Cable Length
UA-Lock-Electric
(400mA)		 24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA) 24 AWG length: 20 m (66 ft)
22 AWG length: 32 m (105 ft)
20 AWG length: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA) 24 AWG length: 12 m (29 ft)
22 AWG length: 20 m (98 ft)
20 AWG length: 30 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks
(1A)		 24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended.
The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall
be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code,
ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: 1
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-Hub-Door002, V01
Software Information The software version can be checked at https://unifi.ui.com
G3 Reader Pro
Dimensions 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
Integrated Camera ✓
NFC Card & Keyfob Access ✓
PIN Access ✓
Apple/Google Wallet ✓
Mobile Unlock ✓
Two-Way Intercom & Doorbell Access ✓
Weatherproofing IP55
NDAA Compliant ✓
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight 136 g (4.8 oz)
Enclosure Material Polycarbonate, glass
Mount Material Aluminum alloy
Mounting Wall, gang-box mount (Included)
Angle mount, junction box (Optional)
Indoor and Outdoor Use ✓
Ambient Operating Temperature Device: -30 to 45° C (-22 to 113° F)
Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (1) GbE RJ45 port
Connectivity BLE 4.2
NFC
Power Method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption 6W
Supported Voltage Range 48V DC
ESD/EMP Protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Display 120 mm (4.7") diagonal
Touch Screen Technology Capacitive touch
Display Luminance 480 nits (Typical)
Screen Orientation Portrait
Resolution 1280 x 286 px
Microphone ✓
Speaker (1) Yes, 1.5W
LEDs R/G/B/W/Amber
Button (1) Factory-reset
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm (1.18'')
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category
utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD
shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70,
Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC,UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-G3-Pro-W/UA-G3-Pro-B, V01
Software Information The software version can be checked at https://unifi.ui.com
G3 Reader
Dimensions 93 x 40 x 36.5 mm
(3.7 x 1.6 x 1.4")
NFC Card & Keyfob Access ✓
Apple/Google Wallet ✓
Mobile Unlock ✓
Handwave Request to Exit ✓
Weatherproofing IP55
NDAA Compliant ✓
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight 82 g (2.9 oz)
Enclosure Material Polycarbonate, glass
Mount Material Aluminum alloy
Mounting In-wall, gang box (Included)
Junction box (Optional)
Indoor and Outdoor Use ✓
Ambient Operating Temperature -30 to 45° C (-22 to 113° F)
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
NFC
Power Method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption 5W
Supported Voltage Range 48V DC
ESD/EMP Protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Speaker (1) Yes, 0.7W
LEDs R/G/B/W
Button (1) Factory-reset
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm (1.18'')
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category
utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD
shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70,
Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-G3, V01
Software Information The software version can be checked at https://unifi.ui.com
Pocket Keyfob
Dimensions 84 x 39 x 7.4 mm
(3.3 x 1.5 x 0.29")
Weight 16 g (0.56 oz)
Enclosure Material Polycarbonate, stainless steel, silicone rubber
Weatherproofing IP54
NDAA Compliant ✓
Ambient Operating Humidity 10 to 90% noncondensing
Ambient Operating Temperature -10 to 45° C (14 to 113° F)
NFC Frequency 13.56 MHz
NFC Technology ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary Security Protocol
Certification CE
