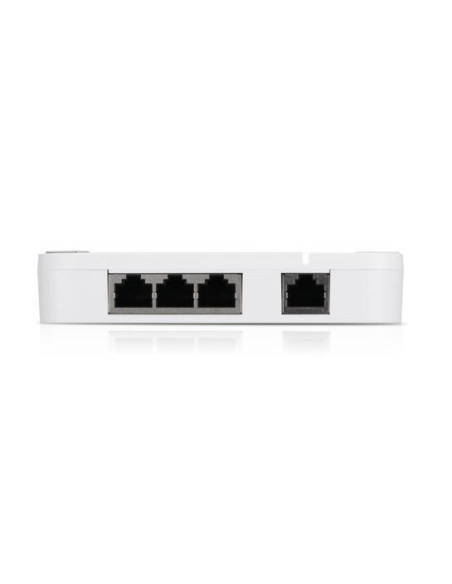

Ubiquiti UA-Hub UniFi Acces Hub

UA-Hub
Last items in stock
$399.00
Tax included

UA-Hub UniFi Acces Hub

The UniFi Access Hub supports various electric locks, 12V access accessories (like motion sensors and alarms), and has PoE-powered reader interfaces, reducing wiring needs. It can integrate with a UniFi G3-Flex camera for enhanced security. The system is managed through the UniFi Access application, which offers a user-friendly browser interface to control users, visitors, schedules, and access policies.

Features:

  • (2) Lock terminals (12V and Dry)
  • (2) AUX terminals for an external siren and automatic door opener
  • (4) Additional inputs (sensors and buttons)
  • Connect and power using PoE++
  • Connect to two UniFi Access readers and one UniFi Protect camera or UniFi Protect Chime

Related Products & Accessories



UA-Hub

A single-door mechanism that provides complete entry and exit control via connected Access Readers.

Technical Specification

Mechanical
Dimensions 190 x 126 x 30.5 mm (7.5 x 5 x 1.2")
Weight 457 g (1 lb)
Enclosure material Plastic enclosure with metal mount plate
Mounting options DIN rail
Hardware
Networking interface (4) 1 GbE
PoE interface (3) PoE (Pins 1, 2+; 3, 6-)
Power method PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range 48V DC
Max. power consumption 51W
Total available PoE 60W
Max. PoE wattage per port 15.4
Voltage range PoE mode 44–57V DC
Input terminals REX: request to exit
REN: request to enter
REL: remote release
DPS: door position sensor
Dry output relay Lock: rated 30V DC, up to 1A
Aux: rated 30V DC, up to 1A
Powered output relay Lock: 12V DC, up to 1A
Aux: 12V DC, up to 0.33A
Line: 12V DC, up to 0.33A
Button (1) Factory reset
Recommend max. cable length
18 AWG
UACC-Cable-DoorLockRelay length		 20
AWG length

22
AWG length

24
AWG length

UA-Lock-Electric
(400mA)		 100 m
(328 ft)		 66 m
(217 ft)		 42 m
(138 ft)		 25 m
(82 ft)
UA-Lock-Magnetic-270kg
(800mA)		 46 m
(151 ft)		 30 m
(98 ft)		 20 m
(66 ft)		 12 m
(29 ft)
UA-Lock-Magnetic-540kg
(500mA)		 80 m
(262 ft)		 51 m
(167 ft)		 32 m
(105 ft)		 20 m
(66 ft)
Other locks
(1A)		 36 m
(118 ft)		 24 m
(79 ft)		 15 m
(49 ft)		 9 m
(30 ft)
Operating environment Indoor use only
Ambient operating temperature 0 to 40° C (32 to 104° F)
Ambient operating humidity 5 to 90% noncondensing
UL 294 level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-Hub, Ver 02
LEDs
PoE in Steady white: Pending adoption
Steady blue: Adopted
Alternating white/blue: Firmware updating
PoE out Blinking white: Active signal
Input terminals Blinking white: Active signal
Output relays Blinking white: Relay triggered
Software
Management application UniFi Access: Version 1.22.17 and later

POE Ports
3
PoE Output
60W total available, up to 15.4W per port
Networking Interface
4x 1 Gbps Ethernet ports
817882029117
