Ubiquiti UniFi UA-Intercom-Viewer Access Intercom Viewer Two-way audio Instant live view

UA-Intercom-Viewer
In Stock
$291.50
Tax included

UA-Intercom-Viewer

Display that pairs with the Access Intercom for visitor screening and remote access control, to mount in multiple locations throughout your building.

  • Two-way audio
  • Instant live view
  • 5" touch display
  • Connect and power using a PoE switch



UA-Intercom-Viewer - Ubiquiti UniFi Access Intercom Viewer Two-way audio Instant live view

Deployment

Technical Specification

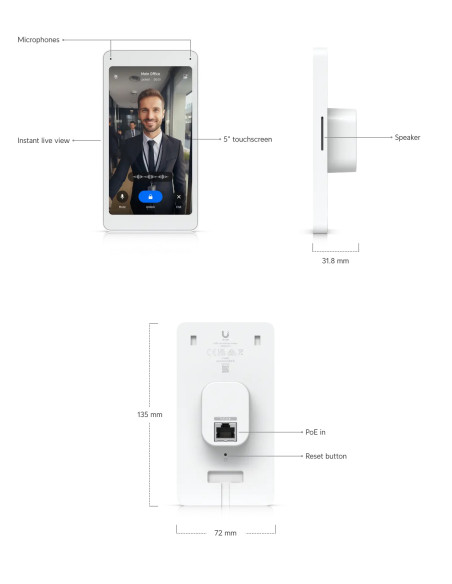

Mechanical
Dimensions 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3")
Weight 168 g (5.9 oz)
Enclosure materials Glass, polycarbonate
Mount material Aluminum alloy
Mounting Wall (Included)
Gang box mount (Gang box not included)
Hardware
Networking interface (1) 10/100 Mbps RJ45 port
Management interface Ethernet
Power method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range 44–57V DC
Max. power consumption 5W
Display 127 mm (5") diagonal
Resolution 720 x 1280 (9:16)
Display luminance 300 nits (typical)
Touch screen technology Capacitive multi-touch
Screen orientation Portrait
Microphone Yes
Speaker Yes
Button Factory reset
Ambient operating temperature 0 to 40° C (32 to 104° F)
Operating environment Indoor use only
Ambient operating humidity 5 to 95% noncondensing
Software information The software version of a product can be checked at https://unifi.ui.com
UL 294 level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-Intercom-Viewer, V01
Software
Management application UniFi Access: Version 1.22.17 and later

POE Ports
1
Ethernet Ports
1
Operating Temperature
0 to 40ºC
0810084693216
UA-Intercom-Viewer
