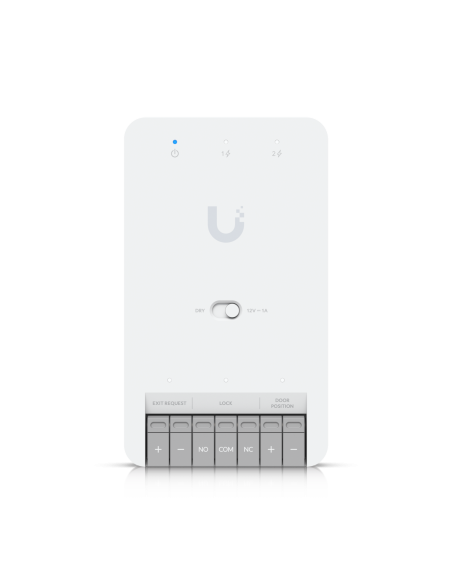

UA-Hub-Door-Mini Compact Access Control Hub for a single door.

Ubiquiti UA-Hub-Door-Mini| Ubiquiti UA-Hub-Door-Mini Compact Access Control Hub for a single door | WISP Australia

Ubiquiti UA-Hub-Door-Mini Compact Access Control Hub for a single door.

Name: Ubiquiti UA-Hub-Door-Mini Compact Access Control Hub for a single door.
Brand: Ubiquiti
SKU: UA-Hub-Door-Mini
Price: 218.9 AUD
Availability: InStock

Reference UA-Hub-Door-Mini

In Stock

$218.90

Tax included

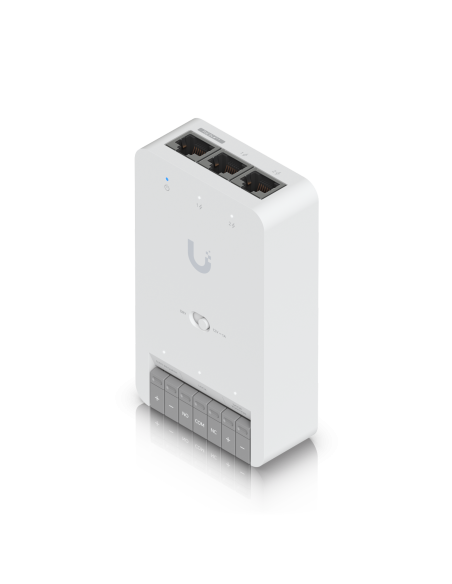

Door Hub Mini

The UA-Hub-Door-Mini from Ubiquiti is a small and easy-to-install access control device made for one door. It works perfectly with the UniFi Access system and is a great choice for small to medium setups like offices or shops. Thanks to its compact design and Power-over-Ethernet (PoE) support, installation is simple with fewer cables. It supports different ways to unlock doors, including RFID cards, mobile apps, and keypads.

Features:

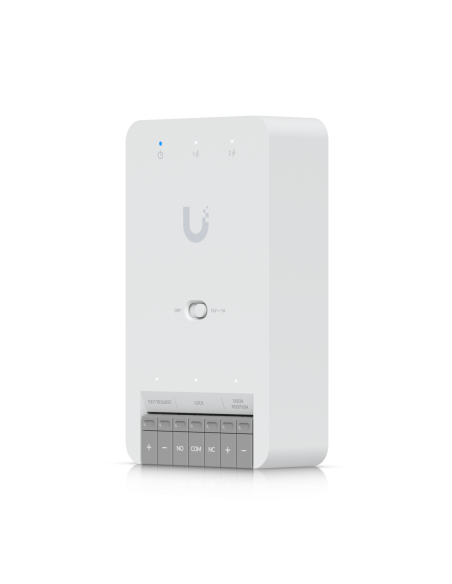

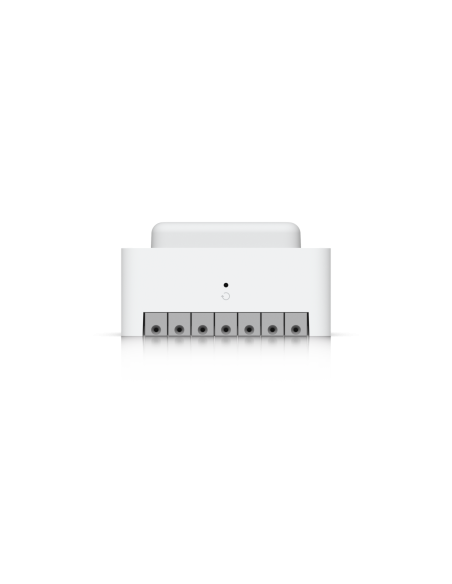

(1) Lock terminals (12V and Dry switchable)
(2) Additional inputs (sensors and buttons)
Connect and power using PoE++
Connect up to two UniFi Access readers or UniFi Protect camera
Supports RFID, mobile, and keypad credentials

Door Hub Mini

Compact Access Control Hub for a single door.

Technical Specification
Dimensions	113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
Supported Doors	1
Input Terminals	(1) Door exit request (1) Door position
Power Method	PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Weight	190 g (6.7 oz)
Enclosure Material	Polycarbonate, metal

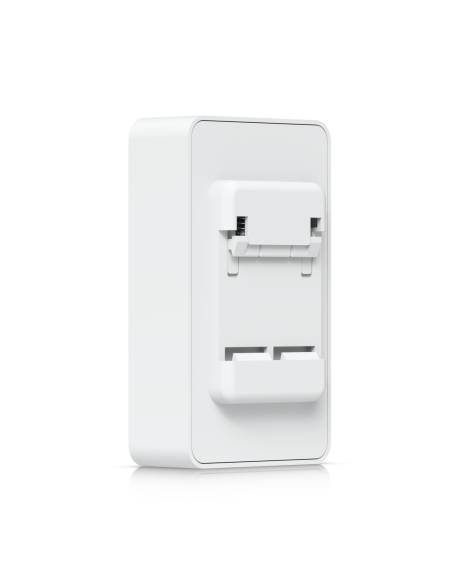

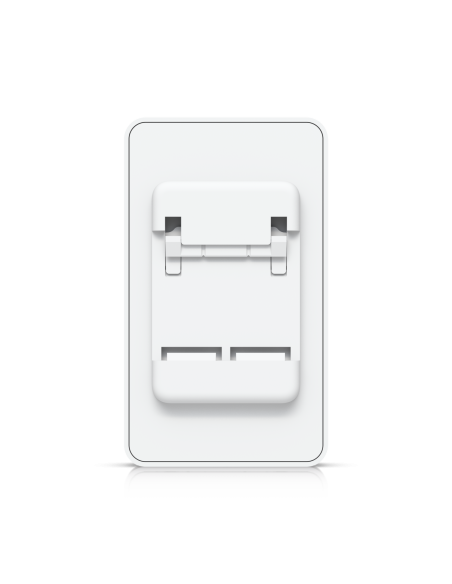

Mounting	DIN-rail (Included)
Indoor/Outdoor Use	Indoor only
Operating Temperature	0 to 40°C (32 to 104°F)
Operating Humidity	5 to 90% noncondensing

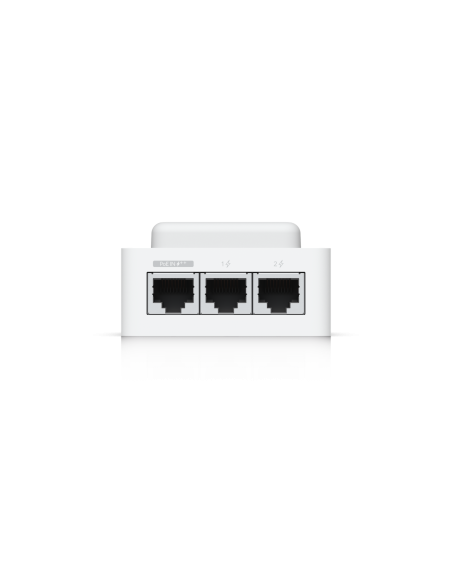

Networking Interface	(3) GbE RJ45 ports
PoE Interface	(1) PoE++ input, 50V DC, 1A (2) PoE outputs, total 31W
Max. Power Consumption	19W (Without PoE output) 50W (With PoE output)
Dry Output Relay	30V DC, 1A
Wet Output Relay	12V DC, 1A
LEDs	W/B Learn More
Buttons	(1) Factory-reset (1) Dry/Wet switch
Recommended Max. Cable Length (UA-Lock)	UA-Lock-Electric (400mA) 24 AWG: 25 m (82 ft) 22 AWG: 42 m (138 ft) 20 AWG: 66 m (217 ft) 18 AWG: 100 m (328 ft) UA-Lock-Magnetic-540kg (500mA) 24 AWG: 12 m (29 ft) 22 AWG: 20 m (66 ft) 20 AWG: 30 m (98 ft) 18 AWG: 46 m (262 ft) UA-Lock-Magnetic-270kg (800mA) 24 AWG: 12 m (29 ft) 22 AWG: 20 m (98 ft) 20 AWG: 30 m (167 ft) 18 AWG: 46 m (151 ft) Other locks (1A) 24 AWG: 9 m (30 ft) 22 AWG: 15 m (49 ft) 20 AWG: 24 m (79 ft) 18 AWG: 36 m (118 ft)
PoE Cabling Requirements	Cat 5e minimum. For patch cords: 26 AWG min. For riser/horizontal cable: 24 AWG min.
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement	Compliance with IEEE 802.3 was not verified as part of UL 294. Designed to comply with NEC, ANSI/NFPA 70, Article 725.121.
CAN/ULC-60839-11-1 Grade	Grade I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document Version	UA-Hub-Door-Mini, V01
NDAA Compliant	Yes
Management Application	Access

Device Type: Door Access
POE Ports: 3

MPN UA-Hub-Door-Mini
