Ubiquiti UA-Hub-Gate UniFi Access Gate Hub

Name: Ubiquiti UA-Hub-Gate UniFi Access Gate Hub
Brand: Ubiquiti
SKU: UA-Hub-Gate
Price: 640 AUD
Availability: InStock

Reference UA-Hub-Gate

Last items in stock

$640.00

Tax included

UA-Hub-Gate

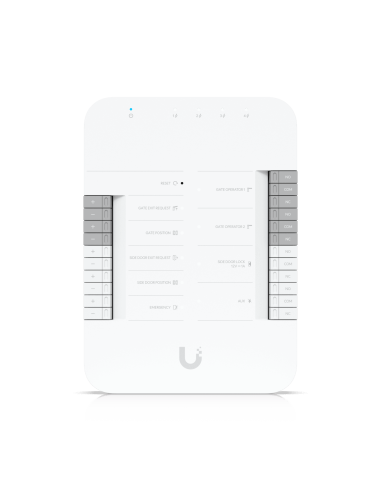

An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.

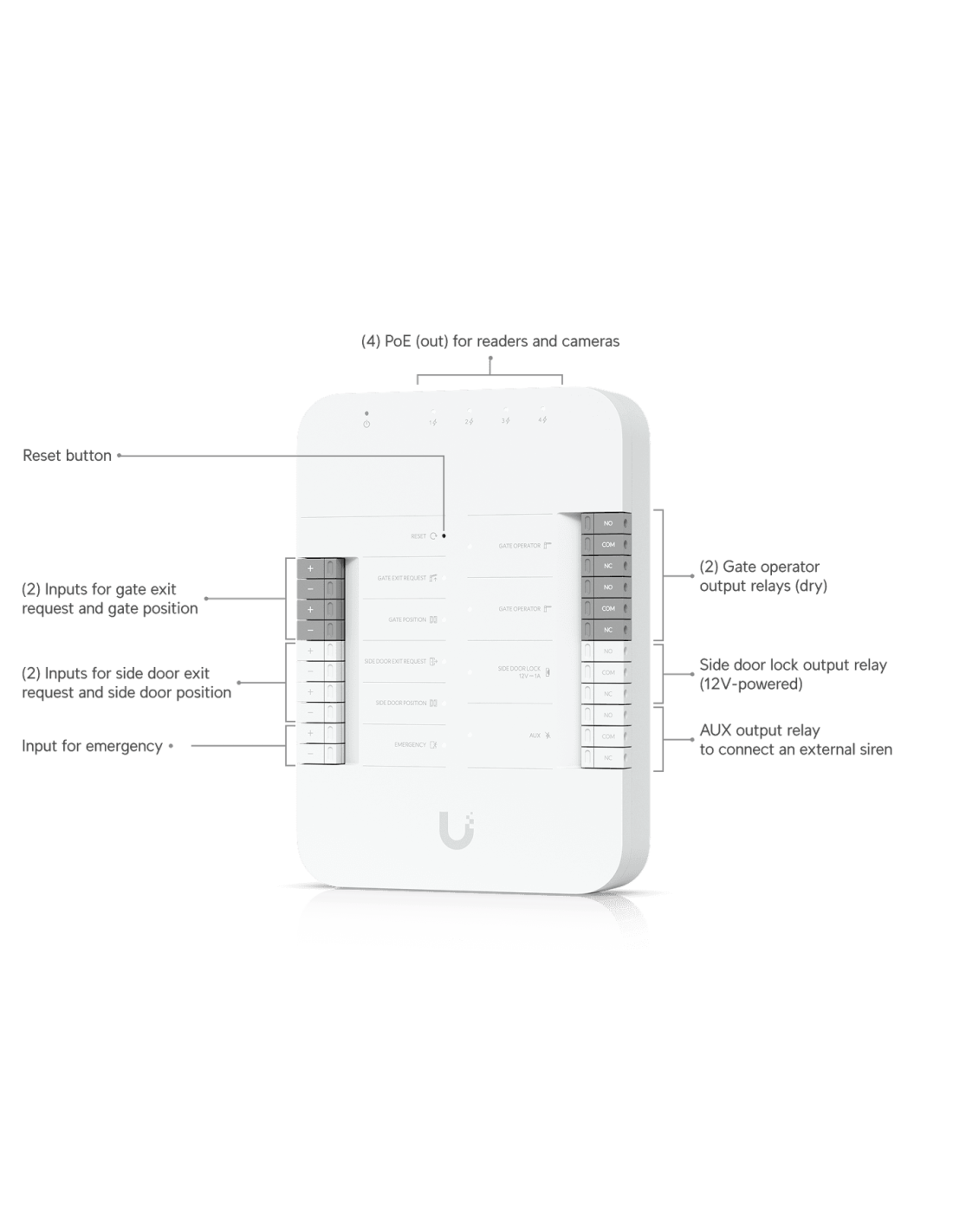

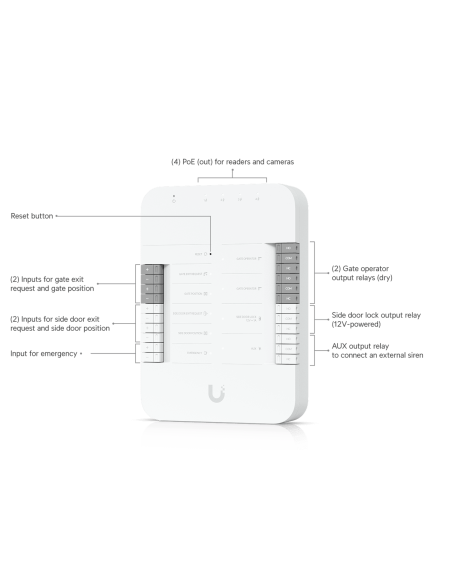

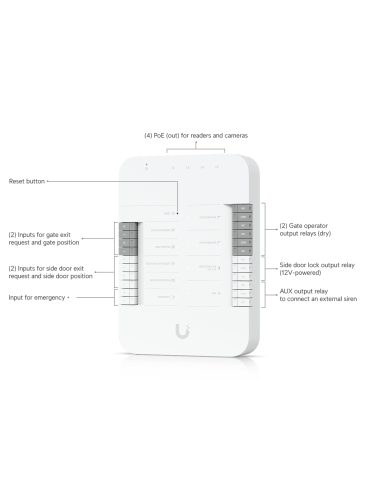

Features:

(4) PoE (out) for readers and cameras
(2) Inputs for gate exit request an gate position
(2) Inputs for side door exit request and side door position
(2) Gate operator output relays (dry)
Input for emergency
Side door lock output relay (12V-powered)
AUX output relay to connect an external siren
Reset button

UA-Hub-Gate - Ubiquiti UniFi Access Gate Hub

A single-door mechanism that provides complete entry and exit control via connected Access Readers.

Technical Specifications

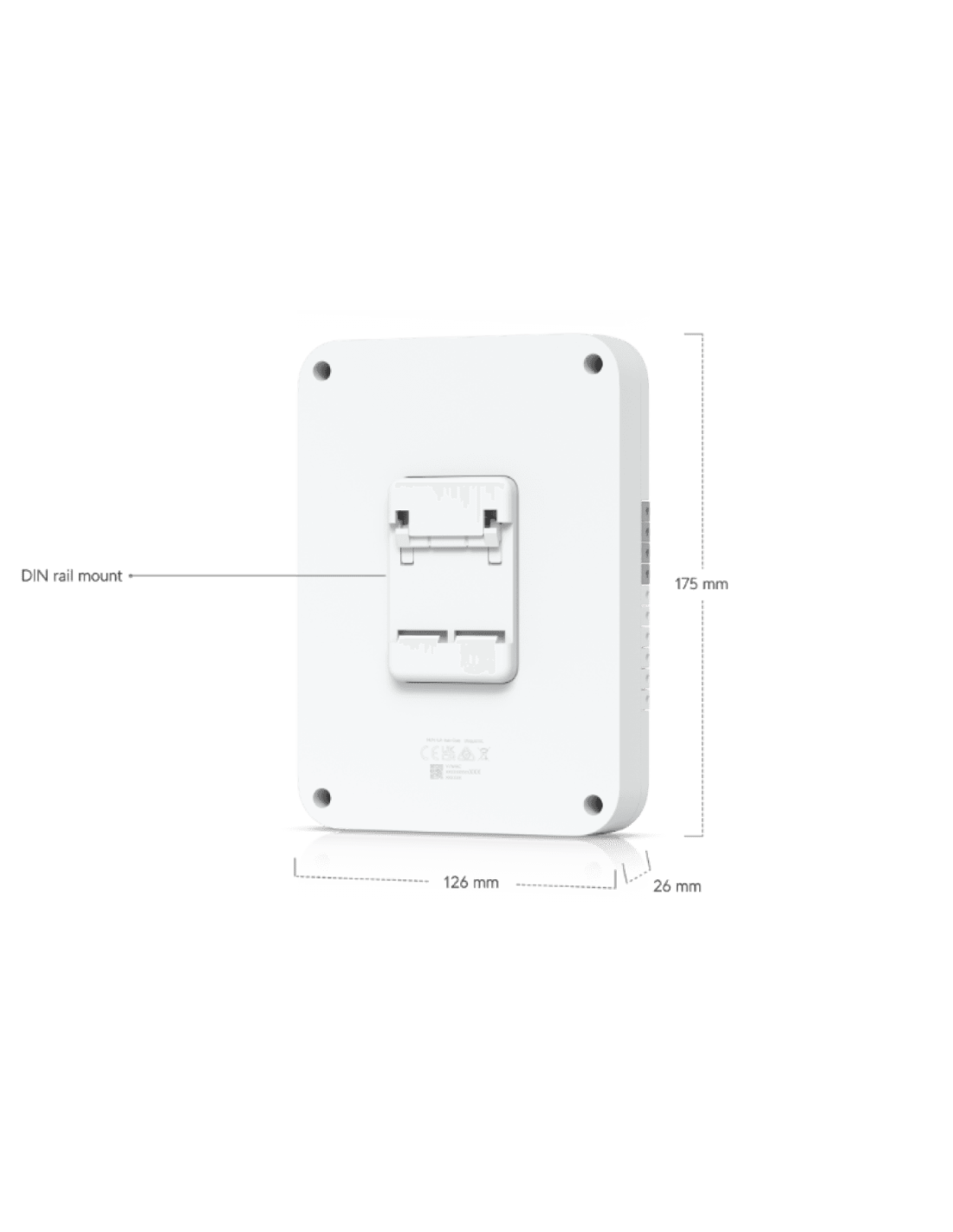

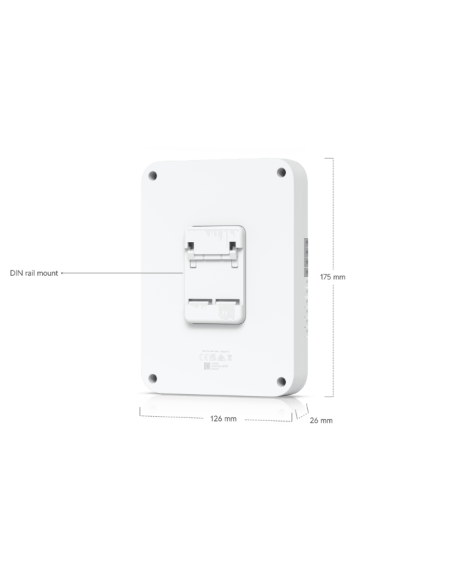

Dimensions

175 x 126 x 26 mm (6.9 x 5 x 1")

Supported Doors

1 gate, 1 side door

Input Terminals

(1) Gate exit request (1) Gate position (1) Side door exit request (1) Side door position (1) Emergency

Power Method

PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

NDAA Compliant

✓

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Weight

460 g (1 lb)

Enclosure Material

Polycarbonate

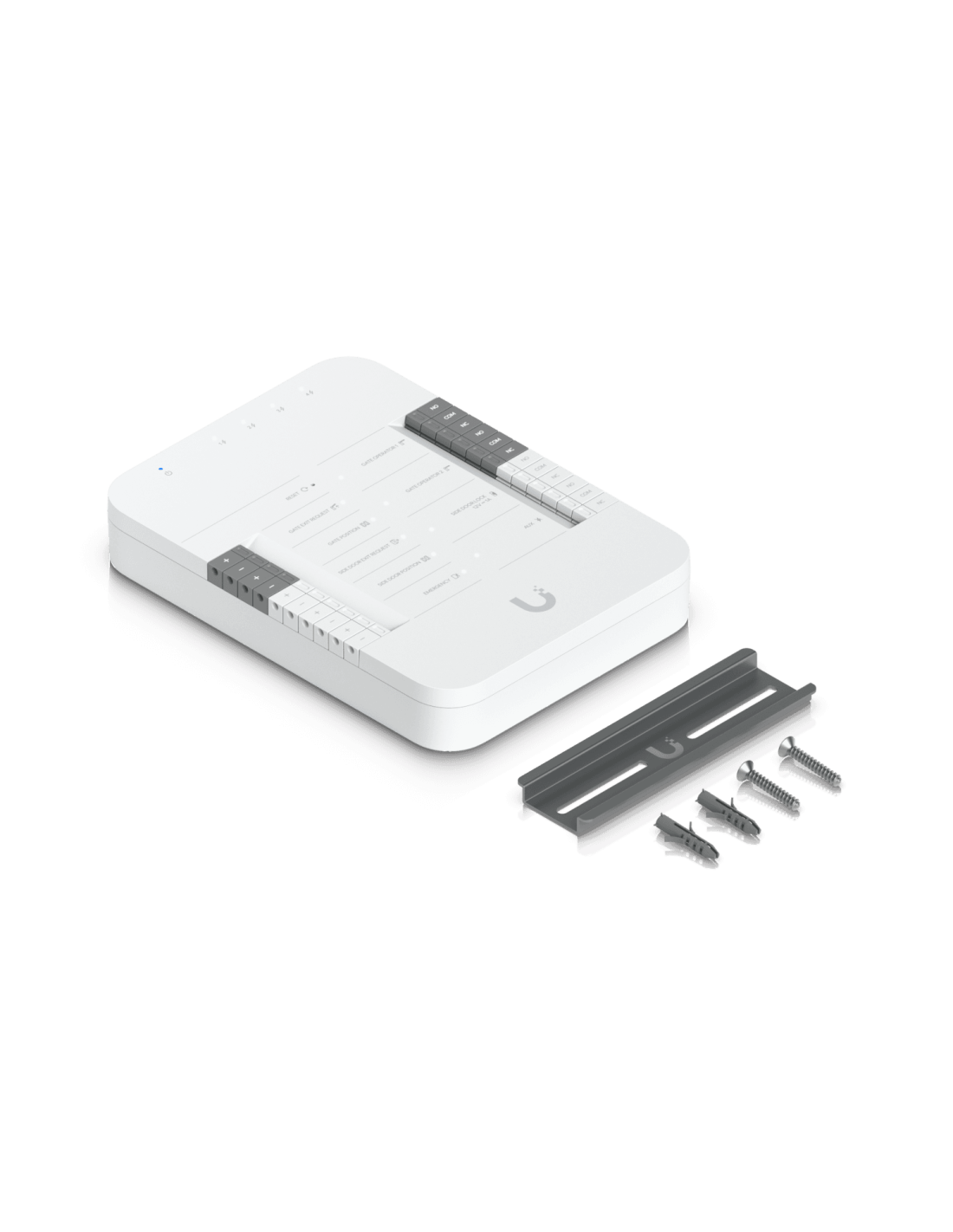

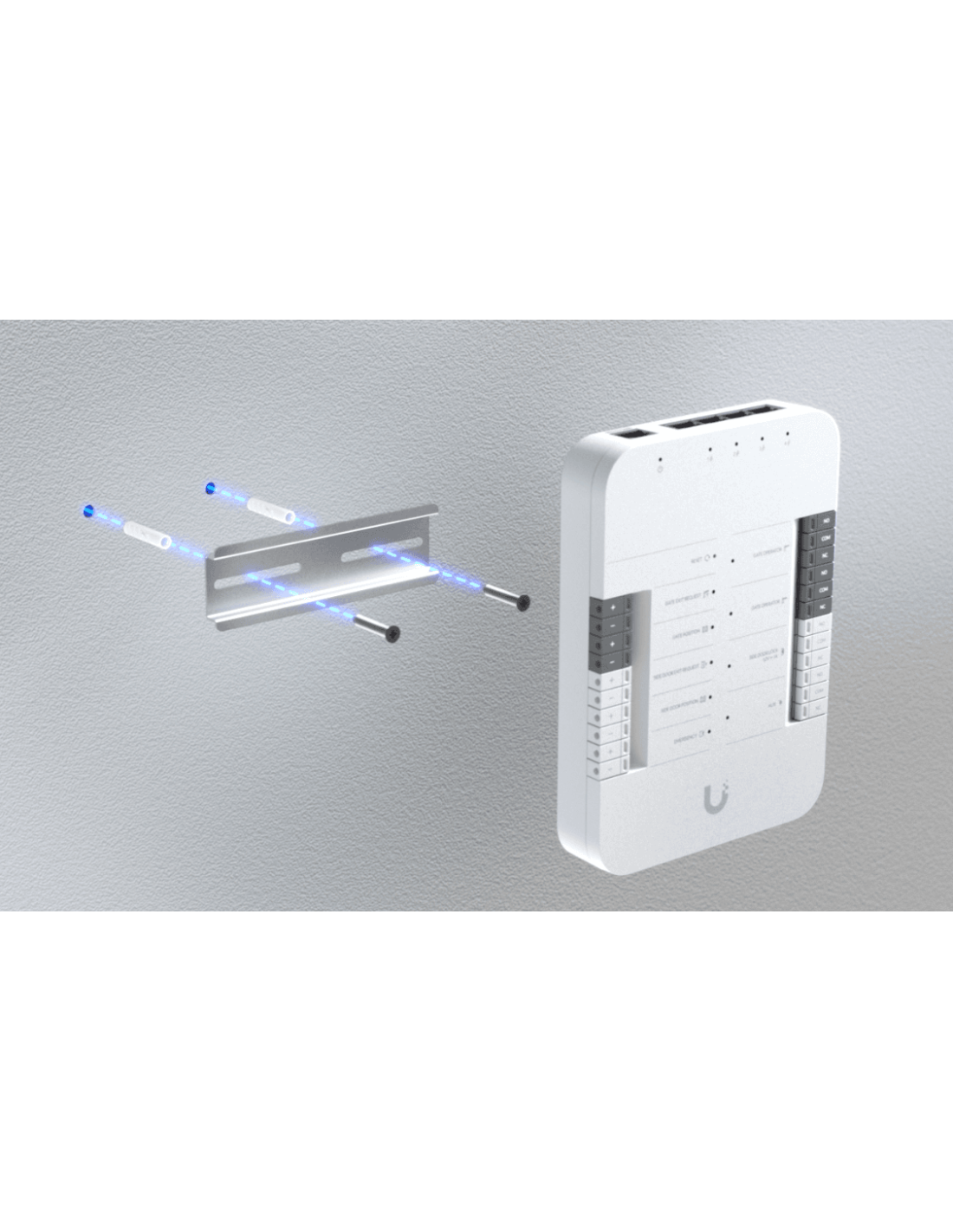

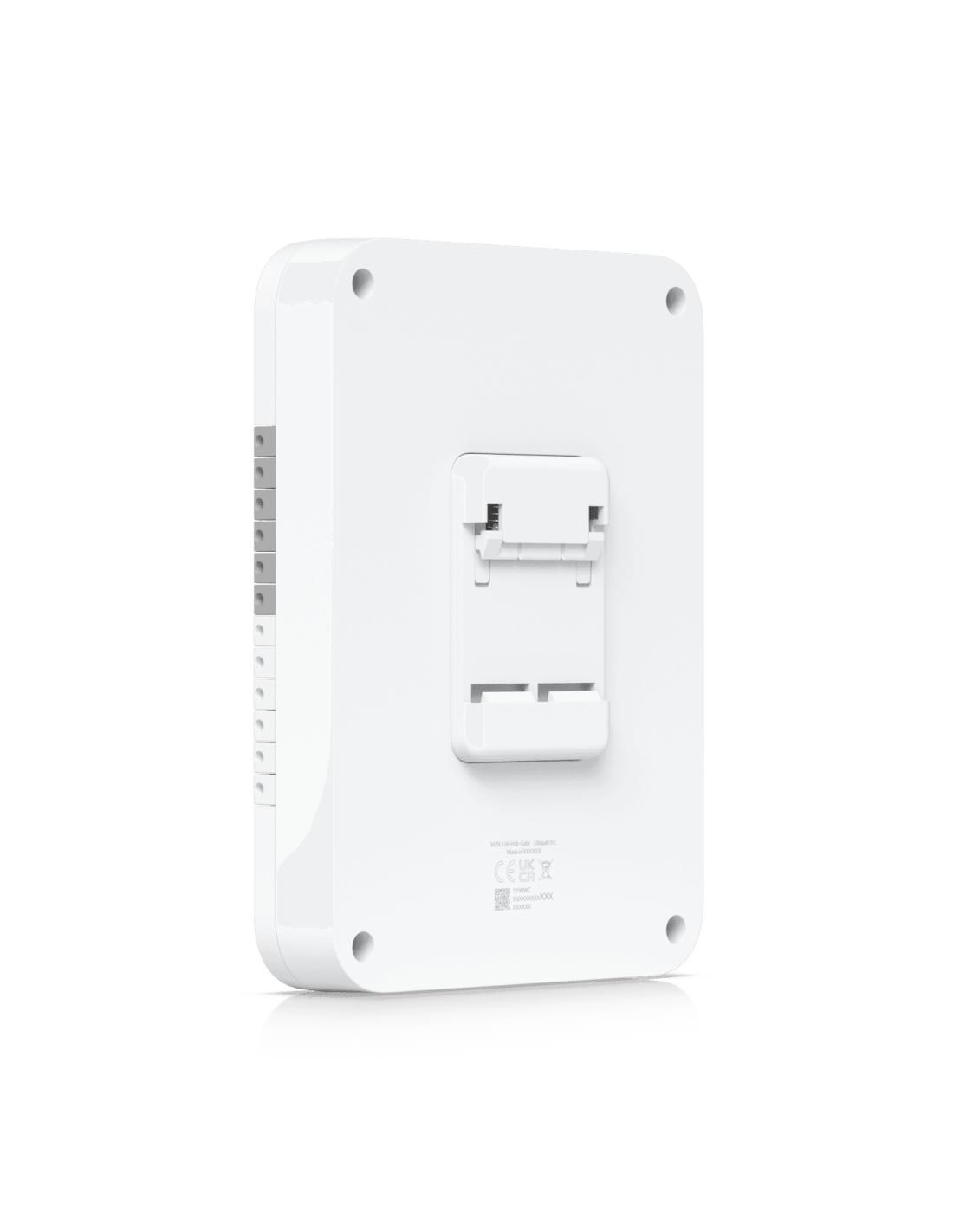

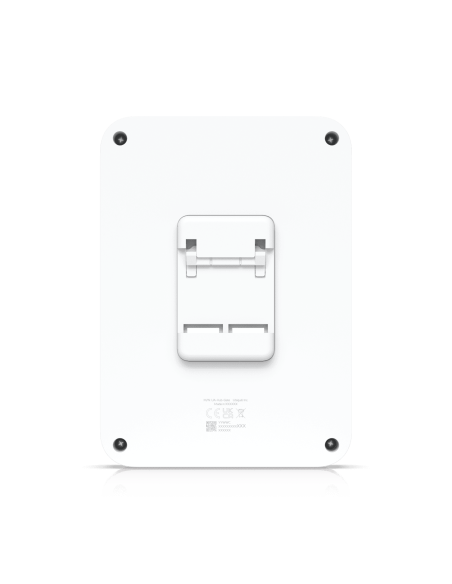

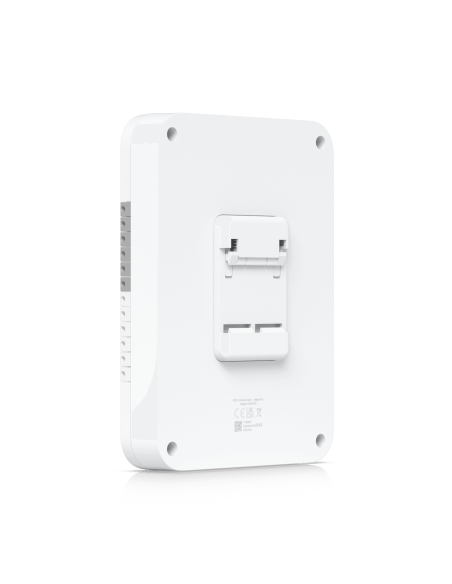

Mounting

DIN-rail (Included)

Digital Input

Gate exit request, gate position, side door exit request, side door position, emergency

Dry Output Relay

(2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A

Powered Output Relay

Side door lock: 12V DC, up to 1A

Indoor and Outdoor Use

Indoor only: device itself Outdoor: with waterproof junction box

Ambient Operating Temperature

-30 to 60° C (-22 to 104° F)

Ambient Operating Humidity

5 to 90% noncondensing

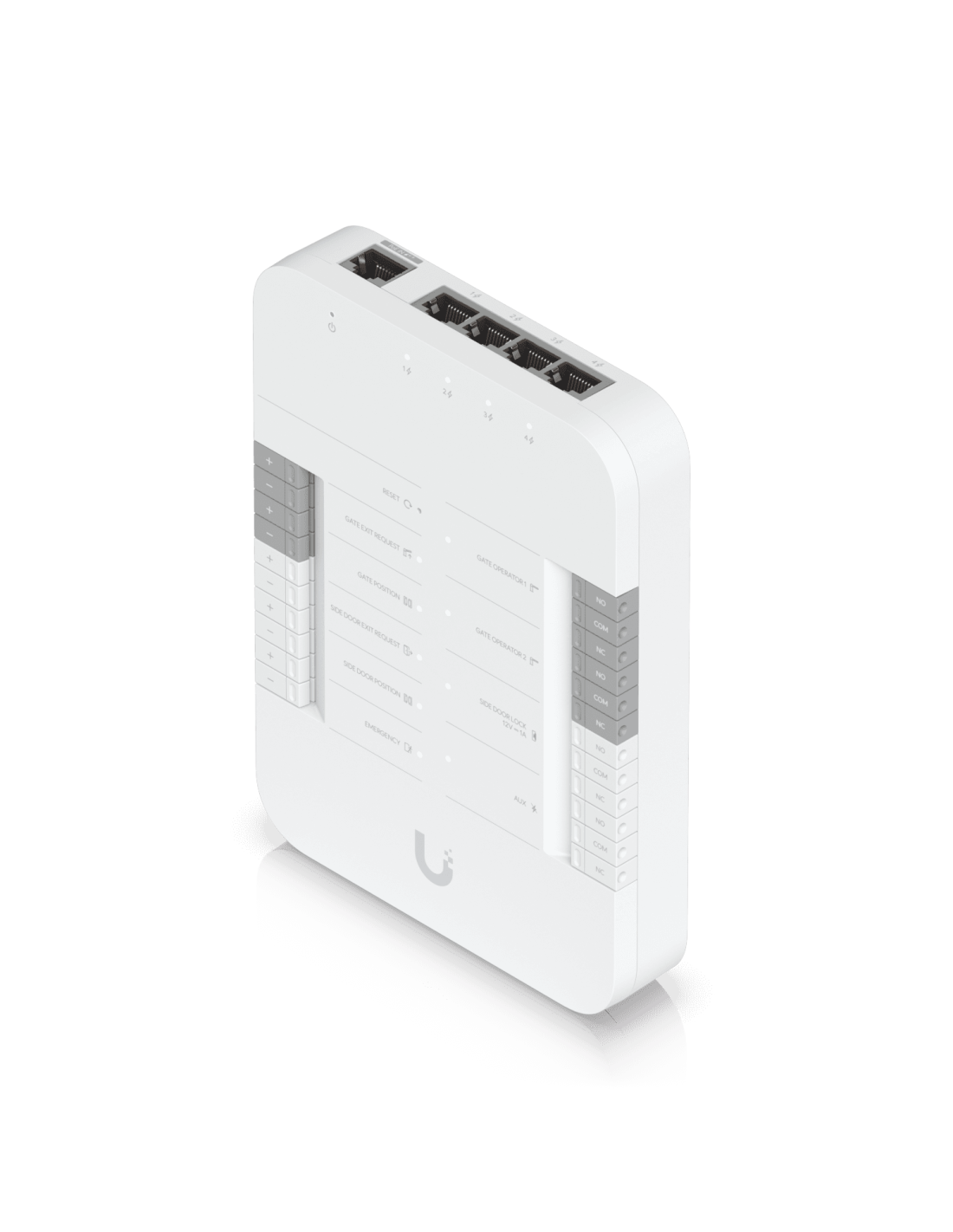

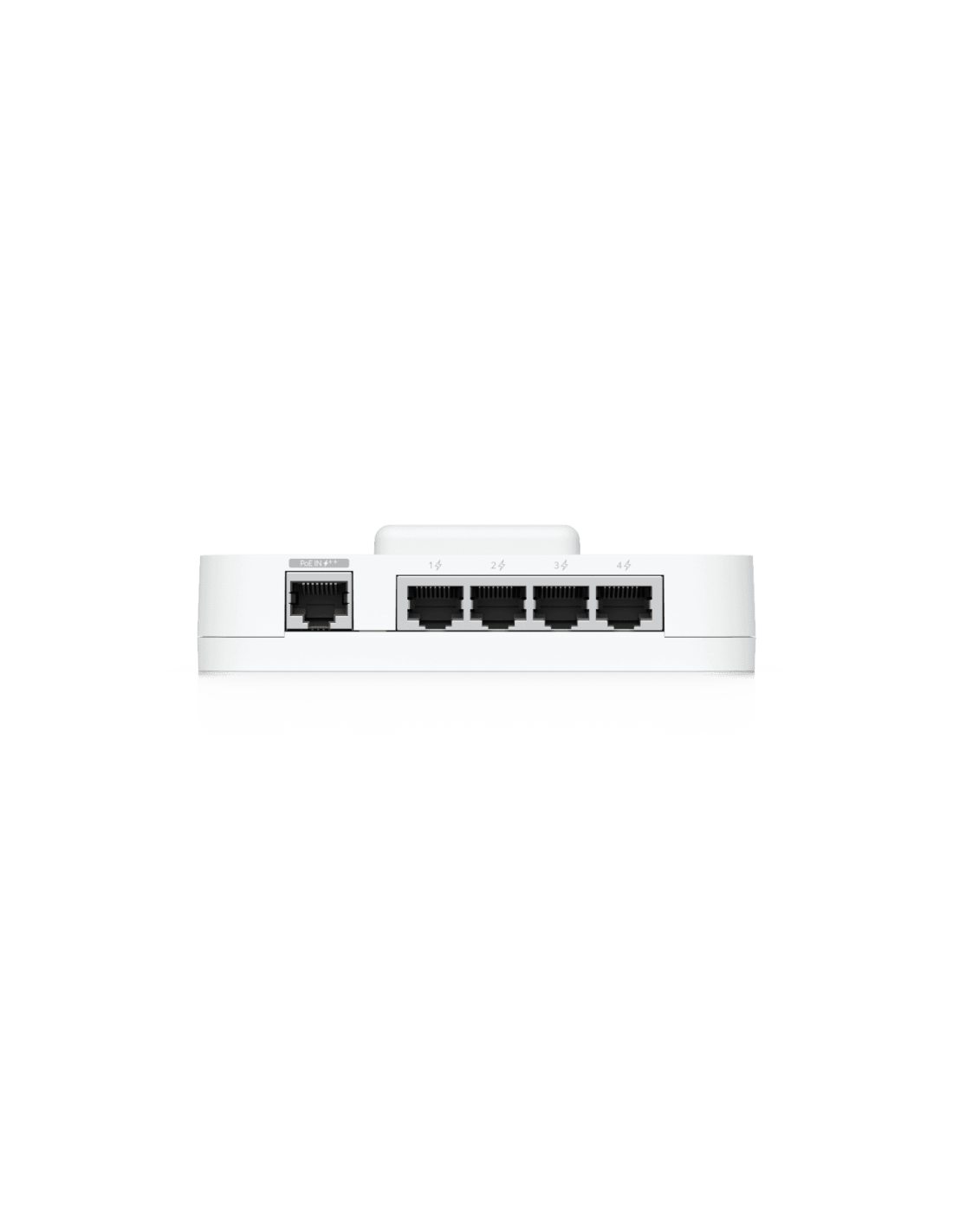

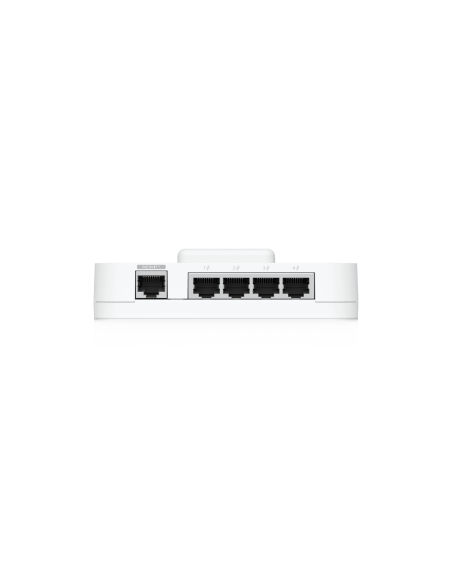

Networking Interface

(5) 10/100/1000 Base-T

PoE Interface

(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, Max. 28W

Max. Power Consumption

22W (Without PoE output) 50W (With PoE output)

LEDs

W/B

Buttons

(1) Factory-reset

Recommend Max. Cable Length

UA-Lock-Electric (400mA)

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

UA-Lock-Magnetic-540kg (500mA)

24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

UA-Lock-Magnetic-270kg (800mA)

24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Other locks (1A)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-Hub-Gate, V01

Management Application

Access

Software Information

The software version can be checked at https://unifi.ui.com

POE Ports: 4
Ethernet Ports: 5
PoE Output: 60W total available, up to 15.4W per port

EAN13 0810084699997

MPN UA-Hub-Gate
