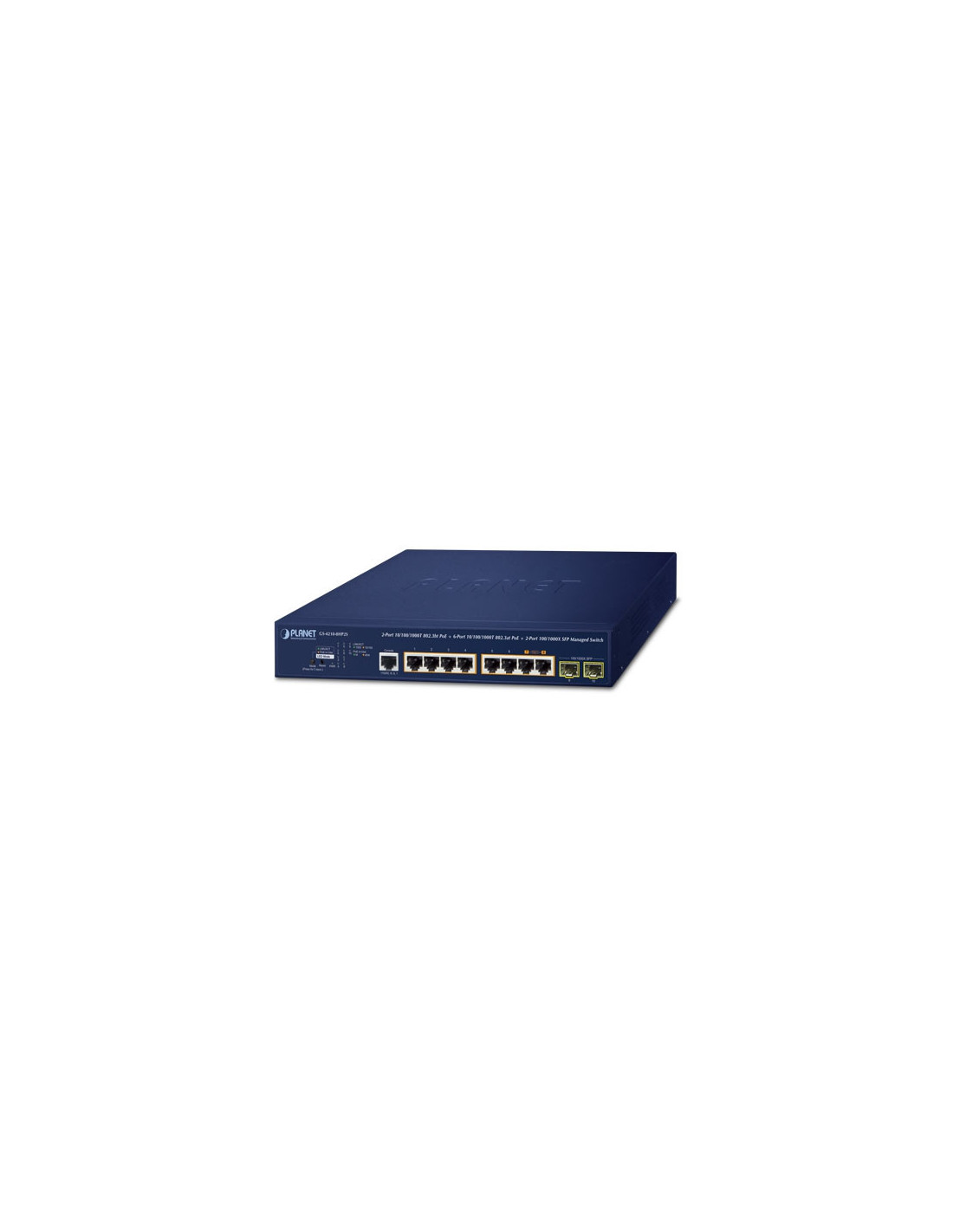

Planet GS-4210-8HP2S 2-Port 10/100/1000T 802.3bt PoE + 6-Port 802.3at PoE + 2-Port 100/1000 x SFP managed gigabit switch

GS-4210-8HP2S
Last items in stock
$473.00
Tax included

GS-4210-8HP2S 2-Port 802.3bt PoE + 6-Port 802.3at PoE 2 x SFP managed gigabit switch

IEEE 802.3bt PoE++ Managed Switch with Advanced L2/L4 Switching and Security

PLANET GS-4210-8HP2S is a cost-optimized 1U Gigabit IEEE 802.3bt PoE++ Managed Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 2 10/100/1000BASE-T ports featuring 95-watt 802.3bt PoE++, 6 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+ and 2 100/1000BASE-X SFP ports. With a total power budget of up to 240 watts for different kinds of PoE applications, the GS-4210-8HP2S provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises.

Features:

  • 515/240-watt PoE budget
  • IEEE 802.1w/1s Spanning Tree Protocol
  • IEEE 802.1Q VLAN, Voice VLAN and private VLAN,Q-in-Q
  • IGMP snooping v2 and v3
  • QoS, bandwidth control, storm control, Layer 3/4 access control list
  • IPv6/IPv4 Web, Telnet,SNMP v1/v2c, SSH/TLS management



GS-4210-8HP2S 2-Port 802.3bt PoE + 6-Port 802.3at PoE 2 x SFP managed gigabit switch

Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

Redundant Ring, Fast Recovery for Critical Network Applications

The GS-4210-8HP2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.

IEEE 802.3bt PoE++ Solutions

The GS-4210-8HP2S supports the 802.3bt standard, supplying up to 95 watts per 802.3bt port for increased requirements of devices. It can offer more PoE applications, such as:

  • PoE PTZ speed dome cameras
  • Any network device that needs higher PoE power to work normally
  • Thin-client
  • AIO (All-in-One) touch PC
  • Remote digital signage display

Built-in Unique PoE Functions for Powered Devices Management

Being the managed PoE switches for surveillance, wireless and VoIP networks, the GS-4210-8HP2S features the following special PoE management functions:

  • PD alive check
  • Scheduled power recycling
  • PoE schedule
  • PoE usage monitoring
  • PoE extension

Intelligent Powered Device Alive Check

The GS-4210-8HP2S can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the GS-4210-8HP2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

Scheduled Power Recycling

The GS-4210-8HP2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

PoE Schedule for Energy Savings

Under the trend of energy savings worldwide and contributing to environmental protection, the GS-4210-8HP2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or Enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.

PoE Usage Monitoring

Via the power usage chart in the web management interface, the GS-4210-8HP2S enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.

PoE+ Power and Ethernet Data Transmission Distance Extension

In the “Extend” operation mode, the GS-4210-8HP2S operates on a per-port basis at 10Mbps duplex operation but can support 23- or 85-watt PoE power output correspondingly over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GS-4210-8HP2S provides an additional solution for 802.3af/at PoE distance extension, thus saving the cost of Ethernet cable installation.

Environment-friendly, Smart Fan Design for Silent Operation

The GS-4210-8HP2S features a desktop-size metal housing, a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-4210-8HP2S is able to operate reliably, stably and quietly in any environment without affecting its performance.

IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the GS-4210-8HP2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

Robust Layer 2 Features

The GS-4210-8HP2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-8HP2S allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Efficient Traffic Control

The GS-4210-8HP2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.



Powerful Security

The GS-4210-8HP2S offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based user authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.



Advanced IP Network Protection

The GS-4210-8HP2S also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.



Efficient Management

For efficient management, the GS-4210-48P4S is equipped with Command line, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the GS-4210-48P4S offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.

Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS) and CloudViewer/CloudViewerPro app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer/CloudViewerPro app, all kinds of businesses can now be speedily and efficiently managed from one platform

Flexibility and Extension Solution

The two mini-GBIC slots built in the GS-4210-8HP2S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.



Intelligent SFP Diagnosis Mechanism

The GS-4210-8HP2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

Hardware Specifications

Copper Ports 8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
SFP Slots 2 x 100/1000BASE-X SFP interface
Supports 100/1000Mbps dual mode and DDM
PoE Injector Port 6 ports with 802.3at PoE+ injector function (Ports 1 to 6)
2 ports with 802.3bt PoE++ injector function (Ports 7 to 8)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
LED Indicators PWR, LNK/ACT, PoE-in-Use, LED Mode
Power Requirements 100~240V AC, 50/60Hz, auto-sensing
Dimensions (W x D x H) 280 x 229 x 44 mm, 1U height
ESD Protection Contact Discharge 6KV DC
Air Discharge 8KV DC
Enclosure Metal
Weight 1920g
Power Consumption/Dissipation 280 watts (max.)/2013.2 BTU
Fan 1 x smart fan
Supports fanless mode

Switch Specifications

Switch Architecture Store-and-Forward
Switch Fabric 20Gbps/non-blocking
Switch Throughput@64Bytes 14.88Mpps
Address Table 8K entries
Shared Data Buffer 4.1 megabits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10K bytes

Power over Ethernet

PoE Standard IEEE 802.3af/at PoE+ PSE (Ports 1 to 6)
IEEE 802.3bt PoE++ PSE (Ports 7 to 8)
PoE Power Supply Type End-span (Ports 1 to 6)
End-span/Mid-span/802.3bt (Ports 7 to 8)
PoE Power Output Ports 1 to 6:
Per PoE+ port 54V DC, max. 30 watts
Ports 7 to 8:
802.3bt mode, maximum 95 watts
End-span mode: maximum 30 watts
Mid-span mode: maximum 30 watts
Power Pin Assignment End-span: 1/2 (-), 3/6 (+)
Mid-span: 4/5 (+), 7/8 (-)
802.3bt: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)
PoE Power Budget 240 watts with standard mode
100 watts with fanless mode
PoE Ability PD @ 12.5 watts 8 units with standard mode
8 units with fanless mode
PoE Ability PD @ 25 watts 8 units with standard mode
4 units with fanless mode
PoE Ability PD @ 51 watts 2 units with standard mode
1 units with fanless mode
PoE Ability PD @ 71 watts 2 units with standard mode
1 units with fanless mode

PoE Management Functions

Active PoE Device Detection Yes
PoE Power Recycling Yes, daily or predefined schedule
PoE Schedule 4 schedule profiles
PoE Extend Mode Yes, max. up to 250 meters
PoE Port Management Port Enable/Disable/Schedule
PoE mode control
 802.3bt
 802.3at End-span
 802.3at Mid-span
Port Priority

Layer 2 Functions

Port Mirroring TX/RX/both
Many-to-1 monitor
Up to 4 sessions
VLAN 802.1Q tag-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Link Aggregation IEEE 802.3ad LACP and static trunk
Supports 2 groups of 2-port trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups
MLD Snooping MLD (v1/v2) snooping, up to 256 multicast groups
QoS 8 mapping IDs to 8 level priority queues
 Port number
 802.1p priority
 802.1Q VLAN tag
 DSCP field in IP packet
Traffic classification based, strict priority and WRR
Ring Supports ERPS, and complies with ITU-T G.8032

Security Functions

Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL
Port Security IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC Security IP-MAC port binding
MAC filter
Static MAC address
Enhanced Security DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard

Management Functions

Basic Management Interfaces Web browser; Telnet; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMP v3
System Management Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System and CloudViewer app
Event Management Remote/Local Syslog
System log
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (v2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB

Standards Conformance

Regulatory Compliance FCC Part 15 Class A, CE, LVD
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC 768 UDP
RFC 783 TFTP
RFC 793 TCP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU G.8032 ERPS Ring

Environment

Operating Temperature 0~40 degrees C (Fanless mode enabled)
0~50 degrees C (Default)
Storage Temperature -20 ~ 70 degrees C
Humidity 5 ~ 95% (non-condensing)

Standard Accessories

Packet Contents Managed Switch x 1
QIG x 1
RS232 to RJ45 Console Cable x 1
Rubber Feet x 4
Rack-mounting Package x 1
Power Cord x 1
SFP Dust Caps x 2

Device Type
Network Switch
Device Features
TAA Compliant
POE Ports
8
SFP Ports
2 Ports
Power Input
AC
Power Over Ethernet
802.3bt PoE
SFP
Yes, 1G SFP
Ports
8 10/100/1000TX + 2 100/1000X SFP
Type
Managed
PoE Standard
6 x 802.3at PoE+, 2 x 802.3bt PoE++
Operating Temperature
0 to 50°C
Throughput
14.88Mpps@64Bytes
