PLANET GS-4210-24HP2C 4-Port 802.3bt PoE + 20-Port 802.3at PoE + 2-Port Gigabit TP/SFP Combo Max. 590W Managed Switch

GS-4210-24HP2C
Last items in stock
$970.00
Tax included

GS-4210-24HP2C

The GS-4210-24HP2C is a cost-optimized, 1U, Gigabit IEEE 802.3bt PoE++ Managed Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications.



GS-4210-24HP2C - PLANET 4-Port 10/100/1000T 802.3bt PoE + 20-Port 10/100/1000T 802.3at PoE + 2-Port Gigabit TP/SFP Combo Max. 590W Managed Switch

Product Features

  • Ports: 26 10/100/1000TX Shared 2 100/1000X SFP
  • PoE Ports: 24
  • Type: Managed
  • Standards: 20 x 802.3at PoE+, 4 x 802.3bt PoE++
  • Power Consumption: Max. 590W/ 2013.2BTU
  • Switch Throughput: 38.69Mpps@64Bytes
  • Operating Temperature: 0° to 50°C
  • TAA Compliant

802.3bt PoE Switch

A New Generation IEEE 802.3bt PoE++ Managed Switch with Advanced L2/L4 Switching and Security
PLANET GS-4210-24HP2C is a cost-optimized, 1U, Gigabit IEEE 802.3bt PoE++ Managed Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 4 10/100/1000BASE-T ports featuring 95-watt 802.3bt PoE++, 20 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 2 additional Gigabit TP/SFP combo ports. With a total power budget of up to 515 watts for different kinds of PoE applications, the GS-4210-24HP2C provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises.


IEEE 802.3bt PoE++ Solutions
The GS-4210-24HP2C supports the 802.3bt standard, supplying up to 95 watts per 802.3bt port for increased requirements of devices. It can offer more PoE applications, such as:

  • PoE PTZ speed dome cameras
  • Any network device that needs higher PoE power to work normally
  • Thin-client
  • AIO (All-in-One) touch PC
  • Remote digital signage display



Built-in Unique PoE Functions for Powered Devices Management
Being the managed PoE switches for surveillance, wireless and VoIP networks, the GS-4210-24HP2C features the following special PoE management functions:

  • PD alive check
  • Scheduled power recycling
  • PoE schedule
  • PoE usage monitoring
  • PoE Extension

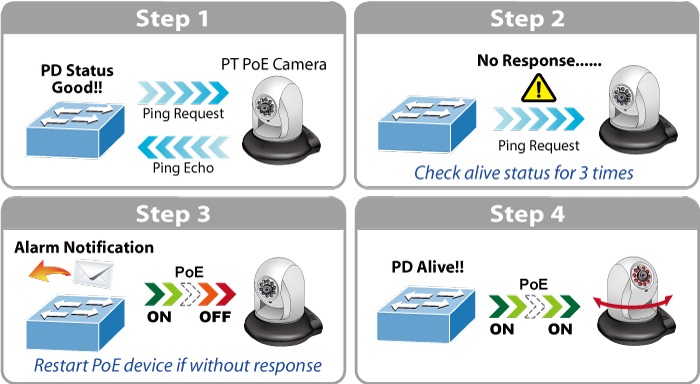

Intelligent Powered Device Alive Check
The GS-4210-24HP2C can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the GS-4210-24HP2C will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

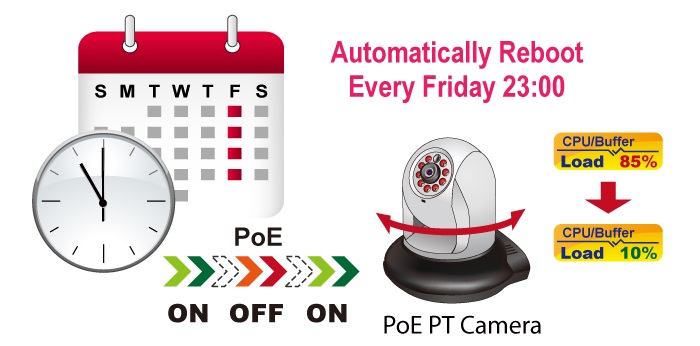

Scheduled Power Recycling
The GS-4210-24HP2C allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

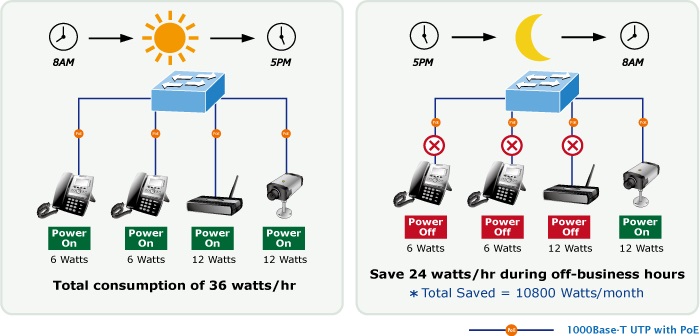

PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection, the GS-4210-24HP2C can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or Enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.



PoE Usage Monitoring
Via the power usage chart in the web management interface, the GS-4210-24HP2C enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.


PoE Power and Ethernet Data Transmission Distance Extension
In the “Extend” operation mode, the GS-4210-24HP2C operates on a per-port basis at 10Mbps duplex operation but can support 23- or 85-watt PoE power output correspondingly over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GS-4210-24HP2C provides an additional solution for 802.3af/at PoE distance extension, thus saving the cost of Ethernet cable installation.

Environment-friendly, Smart Fan Design for Silent Operation
The GS-4210-24HP2C features a metal housing, a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-4210-24HP2C is able to operate reliably, stably and quietly in any environment without affecting its performance.

Cybersecurity Network Solution to Minimize Security Risks
The cybersecurity feature that virtually needs no effort and cost to have includes the protection of the switch management and the enhanced security of the mission-critical network. Both SSHv2 and TLS protocols are utilized to provide strong protection against advanced threats.

IPv6/IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the GS-4210-24HP2C helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

Robust Layer 2 Features
The GS-4210-24HP2C can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-24HP2C allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Efficient Traffic Control
The GS-4210-24HP2C is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

Powerful Security
PLANET GS-4210-24HP2C offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port.

Advanced Network Security
The GS-4210-24HP2C also provides DHCP snooping, IP source guard and dynamic ARP inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

User-friendly and Secure Management
For efficient management, the GS-4210-24HP2C is equipped with web, Telnet and SNMP management interfaces. With the built-in web-based management interface, the GS-4210-24HP2C offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard SNMP, the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet. Moreover, the GS-4210-24HP2C offers secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.

Flexibility and Long-distance Extension Solution
The two mini-GBIC slots built in the GS-4210-24HP2C support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/40/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism
The GS-4210-24HP2C supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

Hardware Specifications
Copper Ports 26 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
SFP Slots 2 x 100/1000BASE-X SFP interface shared with port-25 to port-26
Supports 100/1000Mbps dual mode and DDM
PoE Injector Port 20 ports with 802.3at PoE+ injector function with port-1 to port-20
4 ports with 802.3bt PoE++ injector function with port-21 to port-24
Switch Architecture Store-and-Forward
Switch Fabric 52Gbps/non-blocking
Switch Throughput@64Bytes 38.69Mpps
Address Table 8K entries
Shared Data Buffer 4.1 megabits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10K bytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
LED Indicators PWR, LNK/ACT, PoE-in-Use, LED Mode
Power Requirements 100~240V AC, 50/60Hz, auto-sensing
Dimensions (W x D x H) 440 x 330 x 44 mm, 1U height
ESD Protection Contact Discharge 6KV DC
Air Discharge 8KV DC
Enclosure Metal
Weight 4410g
Power Consumption/Dissipation 590 watts (max.)/2013.2 BTU
Fan 2 x smart fan
Supports fanless mode
Power over Ethernet
PoE Standard IEEE 802.3af/at PoE+ PSE (Port 1-20)
IEEE 802.3bt PoE++PSE (Port 21-24)
PoE Power Supply Type End-span/Mid-span (Port 1-20)
802.3bt/UPoE/Legacy (Port 21-24)
PoE Power Output Port 1-20:
Per PoE+ port 54V DC, max. 36 watts

Port 21-24:
802.3bt mode, maximum 90 watts
UPoE mode, maximum 95 watts
Force-mode, maximum 60 watts
End-span mode: maximum 36 watts
Mid-span mode: maximum 36 watts

Power Pin Assignment End-span: 1/2 (-), 3/6 (+)
Mid-span: 4/5 (+), 7/8 (-)
802.3bt/UPoE: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)
PoE Power Budget 515 watts with standard mode
180 watts with fanless mode
PoE Ability PD @ 12.5 watts 24 units with standard mode
14 units with fanless mode
PoE Ability PD @ 25 watts 17 units with standard mode
7 units with fanless mode
PoE Ability PD @ 51 watts 4 units with standard mode
3 units with fanless mode
PoE Ability PD @ 71 watts 4 units with standard mode
2 units with fanless mode
PoE Management Functions
Active PoE Device Detection Yes
PoE Power Recycle Yes, daily or predefined schedule
PoE Schedule 4 schedule profiles
PoE Extend Mode Yes, max. up to 250 meters
PoE Port Management Port Enable/Disable/Schedule
PoE mode control
802.3bt
UPoE
802.3at End-span
802.3at Mid-span
Force mode
Port Priority
Layer 2 Functions
Port Mirroring TX/RX/both
Many-to-1 monitor
Up to 4 sessions
VLAN 802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Link Aggregation IEEE 802.3ad LACP and static trunk
Supports 2 groups of 2-port trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups
MLD Snooping MLD (v1/v2) snooping, up to 256 multicast groups
Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL
QoS 8 mapping IDs to 8 level priority queues
– Port number
– 802.1p priority
– 802.1Q VLAN tag
– DSCP field in IP packet
Traffic classification based, strict priority and WRR
Security IEEE 802.1X port-based authentication
Built-in RADIUS client to cooperate with RADIUS server
RADIUS/TACACS+ user access authentication
IP-MAC port binding
MAC filtering
Static MAC address
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management Interfaces Web browser; Telnet; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMP v3
System Management Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Remote/Local Syslog
System log
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET UNI-NMS central management software
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (v2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE, LVD
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
Environment
Operating Temperature 0~40 degrees C (Fanless mode enabled)
0~50 degrees C (Default)
Storage Temperature -20 ~ 70 degrees C
Humidity 5 ~ 95% (non-condensing)
Standard Accessories
Packet Contents Managed Switch x 1
QIG x 1
RS232 to RJ45 Console Cable x 1
Rubber Feet x 4
Rack-mounting Package x 1
Power Cord x 1
SFP Dust Caps x 2

Device Features
Managed
Power Input
AC
Device Type
Network Switch
POE Ports
24
SFP Ports
2
Power Over Ethernet
802.3at PoE, 802.3bt PoE, PoE++
SFP
Yes, 1G SFP
Ethernet Ports
26
