Ubiquiti UniFi 6 Lite Dual Band 2x2 Access Point
Ubiquiti UniFi 6 Lite Dual Band 2x2 Access Point
Ubiquiti UniFi 6 Lite Dual Band 2x2 Access Point
Ubiquiti UniFi 6 Lite Dual Band 2x2 Access Point

Ubiquiti UniFi 6 Lite Dual Band 2x2 Access Point

U6-Lite
Out Of Stock
$185.00
Tax included

Wi-Fi 6 Access Point with dual-band 2x2 MIMO in a compact design for low-profile mounting.

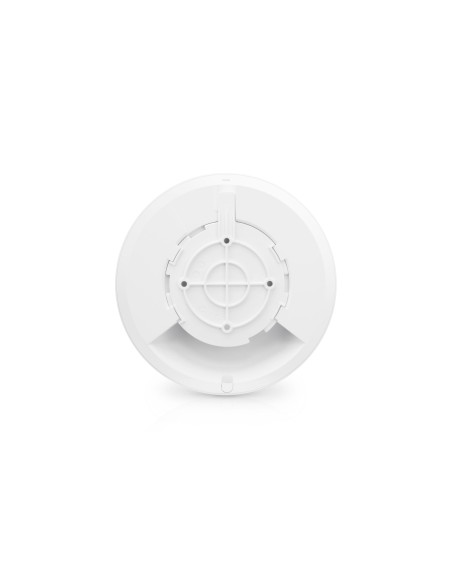

UniFi 6 Lite is a 2x2 Wi-Fi 6 access point that delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios. Mount UniFi 6 Lite horizontally in the ceiling to cover a high-density environment, or mount it vertically on the wall to extend its range. UniFi 6 Lite has a compact and nano-sized design, so it can use nanoHD covers and mounting accessories.

Features:

  • 2x2 high-efficiency Wi-Fi 6
  • 5 GHz band 2x2 MU-MIMO and OFDMA with radio rate of 1.2 Gbps
  • 2.4 GHz band 2x2 MIMO with radio rate of 300 Mbps
  • Gigabit Ethernet, powered with 802.3af PoE (PoE injector not included)

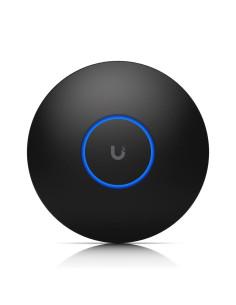

  • Compatible with UAP-nanoHD covers and recessed mounting bracket

Managed by UniFi Network Controller version: 5.14.3 or higher

Related Products & Accessories



U6-Lite - Ubiquiti UniFi 6 Lite Dual Band 2x2 Access Point

Mechanical
Dimensions Ø160 x 32.65 mm (Ø6.3 x 1.3")
Weight Without Mount: 300 g (10.6 oz)
With Mount: 315 g (11.1 oz)
Enclosure Characteristics Polycarbonate 110 and ADC12 Die Casting
Mounting Characteristics Polycarbonate, SGCC Steel
Hardware
Processor Specs 880 MHz MIPS 1004 KEc
Memory Information 256 MB
Management Interface Ethernet In-Band
Networking Interface (1) 10/100/1000 Mbps Ethernet RJ45
Buttons Factory Reset
LEDs White/Blue
Power Method 802.3af PoE, Passive PoE (48V)
Power Supply 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)
Supported Voltage Range 44 to 57VDC
Max. Power Consumption 12W
Max. TX Power
2.4GHz
5GHz
23 dBm
23 dBm
MIMO
2.4GHz
5GHz
2 x 2
2 x 2
Throughput Speeds
2.4GHz
5GHz
300 Mbps
1201 Mbps
Antenna Gain
2.4GHz
5GHz
2.8 dBi
3 dBi
Operating Temperature -30 to 60° C (-22 to 140° F)
Operating Humidity 5 - 95% Noncondensing
Certifications CE, FCC, IC
Software
Wi-Fi Standards 802.11a/b/g
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)

*Supported With Upcoming Controller Versions
BSSID 8 per Radio
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Trafc Isolation Supported
Concurrent Clients 300+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11ac (Wi-Fi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11ax (Wi-Fi 6) 6.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)

Antenna Gain (dBi)
3
Device Type
Access Point
Device Features
Mountable
MIMO
2x2
Wireless System
2.4GHz
5GHz
Wi-Fi 6
Ethernet Ports
1 Eth port
810010073341
U6-Lite
No reviews

Related Products & Accessories

Ubiquiti UniFi Cloud Key Gen2 Plus Controller
Out Of Stock
Setup & Management

Ubiquiti UniFi Cloud Key Gen2 Plus Controller

Ubiquiti
UCK-G2-PLUS
$417.01
UCK-G2-PLUS Manage your UniFi networking and video devices simultaneously with the new multi-application UniFi Cloud Key G2 Plus. Designed for easy deployment, the Cloud Key G2 Plus can be quickly configured over Bluetooth using the UniFi mobile application. The front panel display shows vital system stats for your UniFi networking hardware and UniFi...
View
Ubiquiti U-POE-AF PoE Injector
In Stock
Wired Networking

Ubiquiti U-POE-AF PoE Injector

Ubiquiti
U-POE-AF
$23.65
Ubiquiti U-POE-AF Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices: Surge protection Clamping protection Maximum surge discharge Peak pulse current AC cable with earth ground Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD...
Ubiquiti UniFi 6 Pro Dual Band 4x4 5.3 Gbps Access Point
In Stock
Indoor Wireless Devices

Ubiquiti UniFi 6 Pro Dual Band 4x4 5.3 Gbps Access Point

Ubiquiti
U6-Pro
$331.10
U6-Pro Indoor, dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate. The Access Point WiFi 6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MIMO) and...
Ubiquiti UniFi 6 Dual Band 4x4 Long Range Access Point
In Stock
Indoor Wireless Devices

Ubiquiti UniFi 6 Dual Band 4x4 Long Range Access Point

Ubiquiti
U6-LR
$370.68
U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments. It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment and is capable of being mounted in indoor...
Ubiquiti UniFi Indoor/Outdoor 4x4 WiFi 6 Access Point Mesh
Last items in stock
Indoor Wireless Devices

Ubiquiti UniFi Indoor/Outdoor 4x4 WiFi 6 Access Point Mesh

Ubiquiti
U6-Mesh
$365.61
U6-Mesh Indoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications. The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with...
Ubiquiti UniFi 6 Enterprise Multi-Band 4x4 10.2 Gbps 2.5GbE RJ45 PoE+ Access Point
In Stock
Indoor Wireless Devices

Ubiquiti UniFi 6 Enterprise Multi-Band 4x4 10.2 Gbps 2.5GbE RJ45 PoE+ Access Point

Ubiquiti
U6-Enterprise
$551.71
Unifi U6-Enterprise Multi-Band 4x4 10.2 Gbps 2.5GbE RJ45 PoE+ Access Point Powerful, ceiling-mounted WiFi 6E access point designed for seamless multi-band coverage in high-density networks. Product Features: WiFi 6 support (2.4/5/6 GHz bands) 10.2 Gbps aggregate throughput rate (1) 2.5GbE RJ45 port (PoE In) Powered with PoE+
Ubiquiti UniFi U6-IW Access Point U6 In-Wall
In Stock
Indoor Wireless Devices

Ubiquiti UniFi U6-IW Access Point U6 In-Wall

Ubiquiti
U6-IW
$379.92
U6-IW Wall-mounted WiFi 6 access point with a built-in PoE switch.Features: WiFi 6 support (2.4/5 GHz bands) 5.3 Gbps aggregate throughput rate (1) GbE RJ45 port (PoE In) (4) GbE RJ45 ports, including one that supports PoE output* *PoE+ input required.

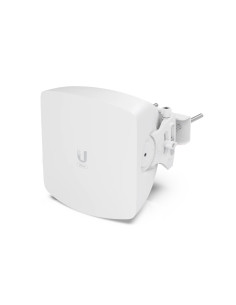

Ubiquiti Wave-AP| Buy Wave-AP Ubiquiti UniFi Wave AP Access Point | WISP Australia
In Stock
Wireless Networking

Ubiquiti UniFi Wave AP 60GHz 5.4Gbps 2.5 GbE 10G SFP+ WAN 15 client GPS Bluetooth...

Ubiquiti
Wave-AP
$971.58
Wave-AP 60 GHz 5.4 Gbps max. throughput (2.7 Gbps duplex) main radio 30° sector coverage 5 GHz 800+ Mbps weather-resilient backup radio (1) 2.5 GbE and (1) 10G SFP+ WAN ports 15 client capacity:— Wave Long-Range (8 km link range)— Wave Nano (5 km link range) Integrated GPS & Bluetooth Wave-AP
Ubiquiti U6-Enterprise-IW | Buy Ubiquiti UniFi 6 Enterprise In-Wall Dual-Band WiFi6E 4x4 MIMO 1xRJ45 2.5GbE PoE+ 4xRJ45 1000Mb/
*** Out of stock ATM, Available On Backorder ***
Wireless Networking

Ubiquiti UniFi U6-Enterprise-IW In-Wall Dual-Band WiFi6E 4x4 MIMO 1xRJ45 2.5GbE PoE+...

Ubiquiti
U6-Enterprise-IW
$605.67
U6-Enterprise-IW Sleek, wall-mounted WiFi 6E access point with an integrated four-port switch designed for high-density office networks. 115 m² (1,250 ft²) coverage 600+ connected devices WiFi6E (4x4 MIMO) Powered using PoE+/PoE++* (4) GbE ports with (1) PoE output 2.5GbE uplink *PoE++ required for the use of PoE output.
Ubiquiti U7-Pro | Buy U7-Pro Ubiquiti UniFi 7 Pro WiFi 7 tri-radio 6 GHz PoE+ 2.5 GbE Access Point | WISP Australia
Last items in stock
Wireless Networking

Ubiquiti UniFi 7 Pro WiFi 7 tri-radio 6 GHz PoE+ 2.5 GbE Access Point

Ubiquiti
U7-Pro
$352.00
U7-Pro Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments. Features: WiFi 7 tri-radio with 6 GHz 6 spatial streams 140 m² (1,500 ft²) coverage 300+ connected devices Powered using PoE+ 2.5 GbE uplink PoE adapter (not included)
U6-Mesh-PRO Wi-Fi 6 Mesh Pro Indoor/Outdoor 4 x 4 UniFi
Last items in stock
Wireless Networking

U6-MESH-PRO

Ubiquiti
U6-Mesh-Pro
$414.41
U6-Mesh-Pro Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and gigabit passthrough port.
Ubiquiti UniFi U7-Pro-Max
In Stock
Wireless Networking

Ubiquiti UniFi U7-Pro-Max WiFi 7 High Capacity Indoor Access Point, 8 spatial streams,...

Ubiquiti
U7-Pro-Max
$518.10
U7-Pro-Max Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments. Features:  WiFi 7 with 6 GHz support  8 spatial streams  Real-time spectral analysis for enhanced channel selection*  160 m² (1,750 ft²) coverage  500+ connected...

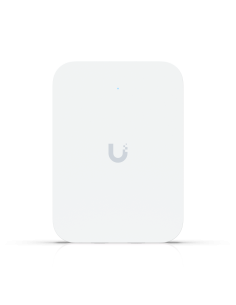

U7-IW
