    Industrial 4-Port 10/100/1000T 802.3at PoE+ w/ 2-Port 100/1000X SFP Ethernet Switch

    The PLANET IGS-624HPT is an Industrial Gigabit 802.3at PoE+ Switch providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment.

    Industrial 4-Port 10/100/1000T 802.3at PoE+ w/ 2-Port 100/1000X SFP Ethernet Switch

    The PLANET IGS-624HPT is an Industrial Gigabit 802.3at PoE+ Switch providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It provides 4-port 10/100/1000Base-T copper with 802.3af/at PoE injector and 2 extra 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGS-624HPT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.

    High Power PoE for Security and Public Service Applications

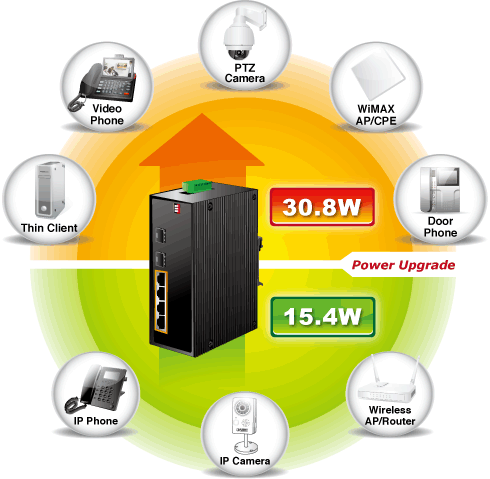

    To fulfill the demand of High Power PoE for network applications, the IGS-624HPT provides 4 10/100/1000Mbps ports featuring both IEEE 802.3af and IEEE 802.3at Power over Ethernet Plus (PoE+) that combine up to 30-watt of power output and data per port over one Cat.5E / 6 Ethernet cable. With totally 120-watt PoE output capability on the whole system, the IGS-624HPT is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel (802.11a / b / g / n) outdoor wireless LAN access points and other PoE network devices by providing double PoE power, rather than the current conventional 802.3af PoE.

    Intelligent LED Indicator for Real-time PoE Usage

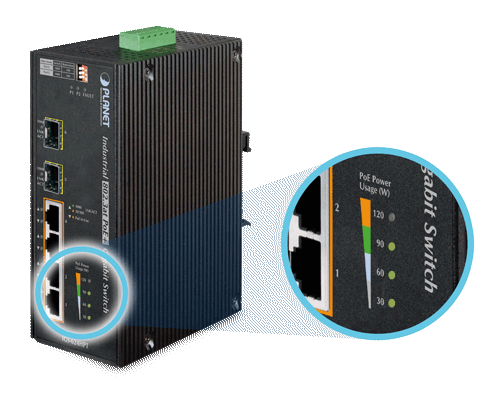

    The IGS-624HPT helps users to monitor current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 30W, 60W, 90W and 120W of PoE power usage.

    Convenient and Reliable Power System

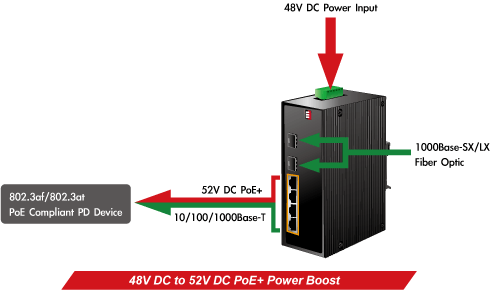

    To facilitate the 802.3at High Power PoE usage with the commonly used 48V DC power input in transportation and industrial-level applications, the IGS-624HPT adopts 48V DC to 52V DC power boost technology to solve power source issue which is not required for special power supplies to achieve the level of High Power PoE+ output. To enhance the operation reliability and flexibility, the IGS-624HPT is equipped with two DC power input connectors for redundant power supply installation.

    High Power Budget for PoE Extension

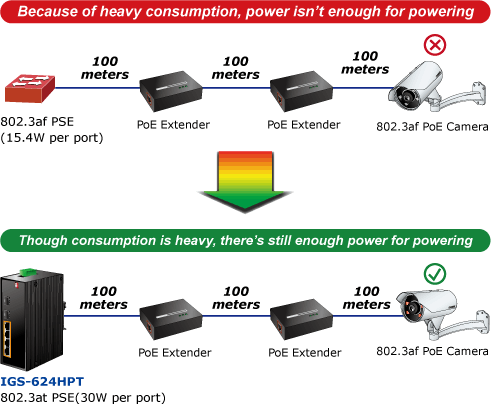

    With 30-watt PoE output capability, the IGS-624HPT can extend much longer distance by using PLANET PoE Extender for powering up the IEEE 802.3af PoE PD devices which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.

    Environmentally Hardened Design

    The IGS-624HPT is equipped with the rugged IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGS-624HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-624HPT can be placed in almost any difficult environment. The IGS-624HPT also allows either DIN rail or wall mounting for efficient use of cabinet space.

    Fiber-Optical Link Capability Extend the Range of Network Deployment

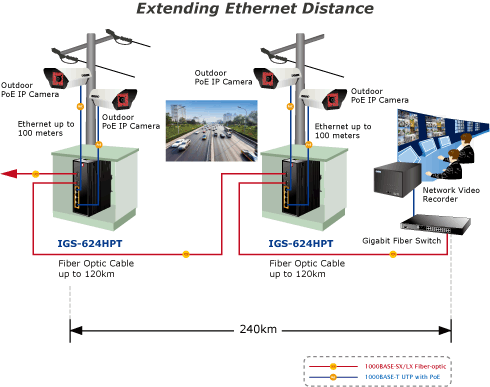

    The two SFP slots are compatible with 100Base-FX or 1000Base-SX / LX / WDM through SFP (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optical uplink capability guarantees the throughput to all nodes hooked into the network and the Gigabit Ethernet distance can be extended from 550 meters (Multi-Mode fiber cable) up to 10/20/30/40/50/70/120 kilometers (Single-Mode fiber or WDM fiber).

    Adjustable 6-Port Switch Mode or 4 + 2 Fiber Redundant Mode

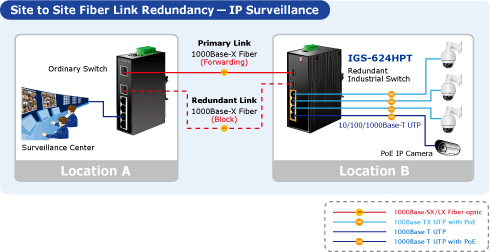

    Via the built-in DIP switch, the IGS-624HPT can be configured as 6-port Ethernet switch or 4+2 fiber redundant mode. With the 6-port switch mode, the IGS-624HPT can operate in Store-and-Forward mechanism with high performance; on the other hand, when in the 4+2 fiber redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link down, it will forward the packet to the other port of the backup pair.


    Hardware Specifications
    Copper Ports4 x 10/100/1000Base-T RJ-45 TP
    Auto-MDI/MDI-X, Auto-Negotiation
    SFP / mini-GBIC Slots2 x SFP interfaces
    Supports 1000Base-SX/LX and 100Base-FX SFP transceivers
    DIP SwitchDIP-1: SFP Port 5 1000Base-X (default) / 100Base-FX
    DIP-2: SFP Port 6 1000Base-X (default)/ 100Base-FX
    DIP-3: Switch mode / Fiber Redundant mode
    ConnectorRemovable 6-pin terminal block
    Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
    AlarmProvides one relay output for power fail
    Alarm Relay current carry ability: 1A @ DC 24V
    LED3 x LED for System and Power:
    â–  Green: DC Power 1
    â–  Green: DC Power 2
    â–  Green: Power Fault
    2 x LED for Per Copper Port (Port-1~Port-4):
    â–  Green: 1000 LNK/ACT, Orange:100 LNK/ACT
    â–  Orange: PoE In-use
    1 x LED for Per mini-GBIC interface (Port-5 and Port-6):
    â–  Green: LNK/ACT
    4 x LED for PoE Power Usage (W):
    â–  Orange: 30, 60, 90 and 120W
    ESD Protection6KV DC
    EFT Protection6KV DC
    EnclosureIP30 aluminum metal case
    Installation TypeDIN rail kit or wall mount
    Dimensions (W x D x H)152 x 107x 72 mm
    Power Requirements48V DC, 5A max.
    Redundant power with polarity reverse protection function
    Power Consumption / Dissipation15.1 watts / 52 BTU (System loading without PoE)
    135.1 watts / 461 BTU (Full loading with PoE function)
    Power over Ethernet
    PoE StandardIEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
    PoE Power Supply TypeEnd-Span
    Power Pin Assignment1/2(+), 3/6(-)
    PoE Power OutputPer port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af)
    Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at)
    Max. number of Class 4 PD4
    Switch Specification
    Switch Processing SchemeStore-and-Forward
    Address Table1K entries
    Flow ControlBack pressure for half duplex
    IEEE 802.3x Pause Frame for full duplex
    Switch fabric12Gbps
    Throughput (packet per second)8.93Mpps@64bytes
    Maximum Transmit Unit9216 bytes
    SpeedSX/LX: 2000Mbps (full-duplex)
    FX: 200Mbps (full-duplex)
    TP: 10/20Mbps, 100/200Mbps, 2000Mbps
    Standards Conformance
    Standards ComplianceIEEE 802.3 Ethernet / 10Base-T
    IEEE 802.3u Fast Ethernet / 100Base-TX
    IEEE 802.3ab Gigabit Ethernet / 1000Base-T
    IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX
    IEEE 802.3x Full-Duplex Flow Control
    IEEE 802.3at High Power over Ethernet
    IEEE 802.3af Power over Ethernet
    Regulation ComplianceFCC Part 15 Class A, CE
    Stability TestingIEC60068-2-32(Free fall)
    Operating:-40~75 degree C
    Storage:-40~75 degrees C
    Operating:5~95% (Non-condensing)
    Storage:5~95% (Non-condensing)
    SFP Ports
    Device Type
    Network Switch, Power Over Ethernet
    Device Features
    Industrial, Unmanaged
    POE Active (48V)
    15W (802.3af), 30W (802.3at)
    Yes, 1G SFP
