IGS-1020PTF-12V
Last items in stock
$539.59
Tax included

IGS-1020PTF-12V

Cost-effective Full PoE+ Power and Gigabit Extension Solution Ideal for Hardened Environment

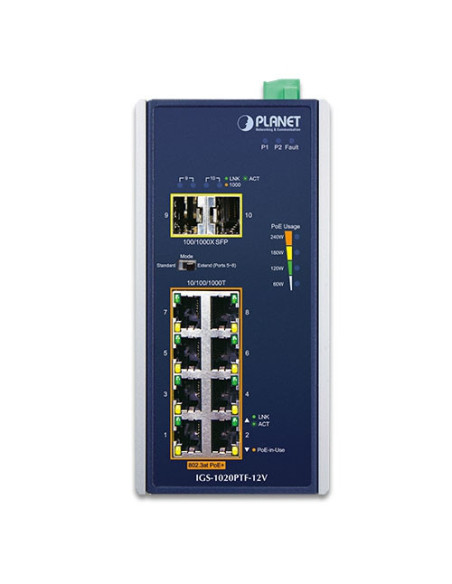

Featuring Plug and Play designed to be installed in heavy industrial demanding environments, PLANET IGS-1020PTF-12V is an Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch with eight 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and two 100/1000BASE-X fiber optic interfaces for uplink connection.

Related Products & Accessories



IGS-1020PTF-12V - PLANET Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch w/ 12V Booster (-40~75 degrees C)

Specifications

Hardware Specifications
Copper Ports 8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE Injector Ports 8 ports with 802.3at PoE+ injector function (Ports 1 to 8)
SFP Slots 2 1000BASE-SX/LX/BX SFP interfaces (Ports 9 to 10)
Compatible with 100BASE-FX SFP

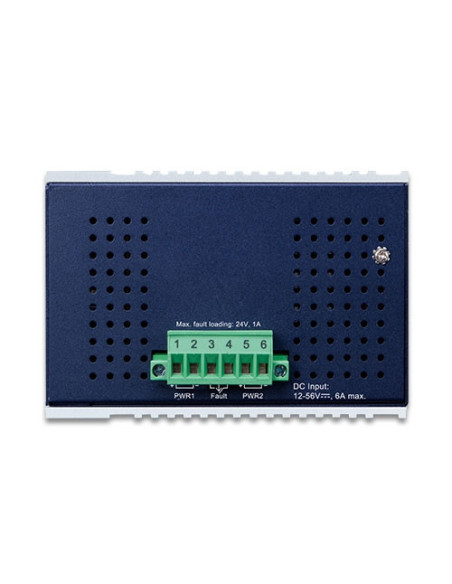

Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
DIP Switch Standard/Extend mode (Extend mode for Ports 5 to 8 only)
LED Indicators 3 x LED for System and Power:
Green: DC Power 1
Green: DC Power 2
Red: Power Fault Alarm
8 x LED for PoE Copper Port (Ports 1 to 8):
Green: LNK/ACT (10/100/1000Mbps)
Amber: PoE-in-Use
2 x LED for 100/1000X Fiber Port (Ports 9 to 10):
Green: LNK/ACT (100/1000Mbps)
Amber: 1000Mbps
4 x LED for PoE Usage
Amber: 60W, 120W, 180W and 240W
Power Requirements 12~56V DC, 6A (max.)
Power Consumption Max. 5.6 watts/19BTU@56V DC input (System)
Max. 8.4 watts/29BTU@56V DC input (Ethernet Full Loading)
Max. 252.1 watts/860BTU@56V DC input (Ethernet + PoE Full Loading)
Dimensions (W x D x H) 77 x 106 x 152mm
Weight 1164g
Enclosure IP30 aluminum case
Installation DIN-rail/ wall-mount
ESD Protection 6KV
Switch Specifications
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps
Throughput (packet per second) 14.8Mpps@64bytes
Address Table 8K entries
Buffer Memory 4M bits on-chip buffer memory
Jumbo Frame 9Kbytes
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Output Per port 54V DC
Max. 30 watts
PoE Power Budget (max.) 240W maximum @54V DC
120W maximum@24V DC
60W maximum@12V DC
Max. Number of Class 3 PDs@25W 8
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~85 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)

Device Type
Network Switch
Device Features
Industrial
POE Ports
8
SFP Ports
2 Ports
Power Input
DC
SFP
Yes, 1G SFP
Installation Type
DIN-rail
Wall-mount
Power Boost
Yes
Ports
8 10/100/1000T + 2 100/1000X SFP
Type
Unmanaged
PoE Standard
802.3at PoE+
Operating Temperature
-40 to 75° C
Power Requirement
12~54V DC, 7A (max)
Max. Watts per port
30
4711605284950
