IGS-604HPT-M12
Last items in stock
$924.58
Tax included

IGS-604HPT-M12

Suitable for Industrial Environment

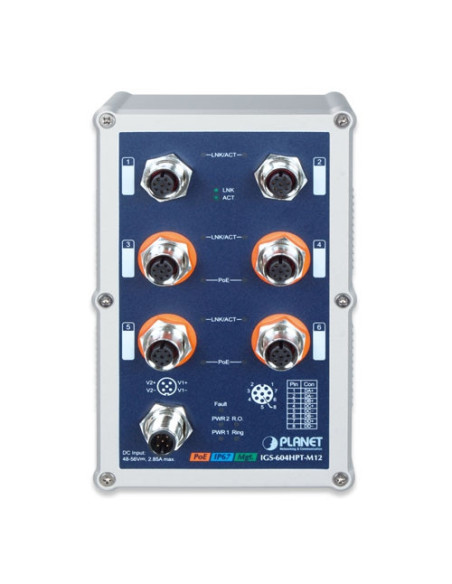

PLANET IGS-604HPT-M12, an Industrial Layer 2+ Managed Ethernet Switch, comes with an IP67-rated industrial case, 4-port 10/100/1000T 802.3at PoE, 2-port 10/100/1000T, and static Layer 3 routing, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. The IGS-604HPT-M12 can be easily mounted on a DIN rail or wall taking up less space. Each of the four Gigabit PoE+ ports provides 36 watts of power, which means a total power budget of up to 144 watts can be utilized simultaneously without considering the different types of PoE applications being employed. It also provides a quick, safe, and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.



IGS-604HPT-M12 - PLANET Industrial IP67 Rated 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Managed Ethernet Switch

Hardware Specifications
Copper Ports 6 x M12, 8-pin A-Coded female connector, 10/100/1000BASE-T auto-MDI/MDI-X ports
PoE Injector Port 4 ports with 802.3at/af PoE injector function (Port-3 to Port-6)
Power Connector 1 x M12, 5-pin A-Coded male connector
Switch Architecture Store-and-Forward
Switch Fabric 12Gbps/non-blocking
Throughput 8.9Mpps@64bytes
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 4M bits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9K bytes
Dimensions (W x D x H) 103 x 68.2 x 163 mm
Weight 1069g
Enclosure IP67 aluminum case
Installation Wall-mount kit and DIN rail kit
LED System:
PWR1 (Green), PWR2 (Green), Fault ( Red )
Ring (Green), R.O. (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 2):
LNK/ACT (Green)
10/100/1000T RJ45 Interfaces (Port 3 to Port 6):
LNK/ACT (Green)
PoE-in-Use (Orange)
Power Consumption Max. 165.3 watts/563.7 BTU
Power Requirements Dual 48~56V DC (>53V DC for PoE+ output recommended)
ESD Protection 6KV DC
Power over Ethernet
PoE Standard IEEE 802.3af/802.3at PoE/PSE
PoE Power Supply Type End-span
PoE Power Output IEEE 802.3af Standard
- Per port 48V~53V DC (depending on the power supply), max. 15.4 watts

IEEE 802.3at Standard
- Per port 53V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 144 watts max. (depending on power input)
PoE Ability PD @ 7 watts: 4 units
PD @ 15.4 watts: 4 units
PD @ 30.8 watts: 4 units
Layer 2 Management Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port Status Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
VLAN 802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
3 groups with 2 ports per trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
QoS Traffic classification based strict priority and WRR
8-level priority for switching:
- Port number
- 802.1p priority
- 802.1Q VLAN tagging
- DSCP/ToS field in IP packet
IGMP Snooping IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD Snooping MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Access Control List IP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth Control Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
Layer 3 Functions
IP Interfaces Max. 8 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 software static routing
IPv6 software static routing
Management
Basic Management Interfaces Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSH/SSL, SNMP v3
SNMP MIBs RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Power over Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Railway Traffic *EN50155
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az EEE (Energy Efficient Ethernet)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS (Ethernet Ring Protection Switching)
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Standard Accessories
Packet Contents 1 x 8-pin A-code M12-to-RJ45 UTP cable, 2m
1 x M12 5-pin A-coded female connector power cable, 1.2m
1 x Wall-mount kit
1 x DIN-rail kit
1 x Quick Installation Guide
6 x M12 Female Dust Cap
1 x M12 Power Waterproof Cap

Device Features
Industrial
TAA Compliant
POE Ports
4
PoE Power Budget
144W (max.)
Installation Type
Wall-mount
Ports
6 10/100/1000TX M12 Shared 4 10/100/1000T PoE+
Type
Managed
PoE Standard
802.3at/af PoE/PSE
Operating Temperature
-40 to 75° C
Supports
IEEE 1588v2 Transparency, ERPS Ring, DIDO
Console Port
No
