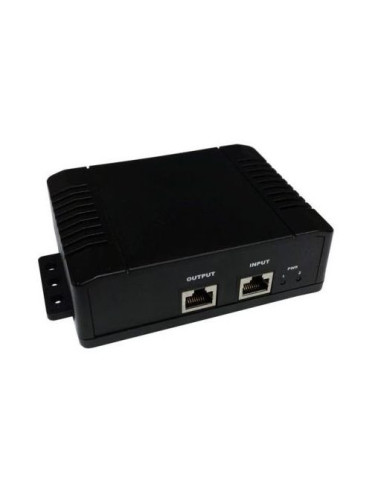

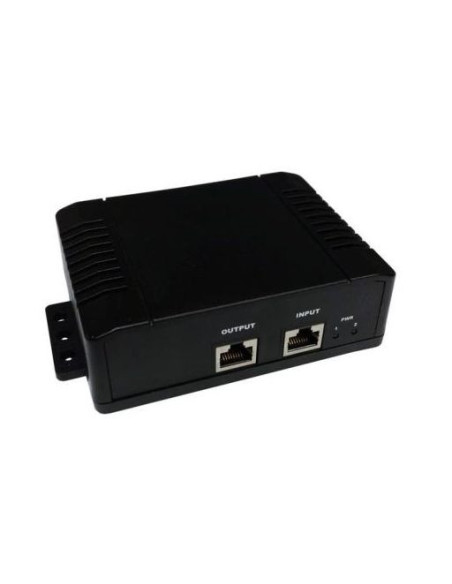

TYCON 12VDC to 56VDC 70W 802.3bt G Inserter

In Stock
Tax included


The 10G compatible Tycon Power TP-DCDC-1256GD-BT is a 802.3at/bt compatible high power DC to DC converter/PoE inserter designed for operation in industrial environments. This inserter conforms to the new IEEE802.3bt Power Over Ethernet standards for industry compatibility. The PoE inserter supplies 56VDC PoE power on all 8 Ethernet wires (4 Pair). It is backward compatible with 802.3at so it will safely power 802.3at and 802.3af devices in addition to the new 802.3bt devices.

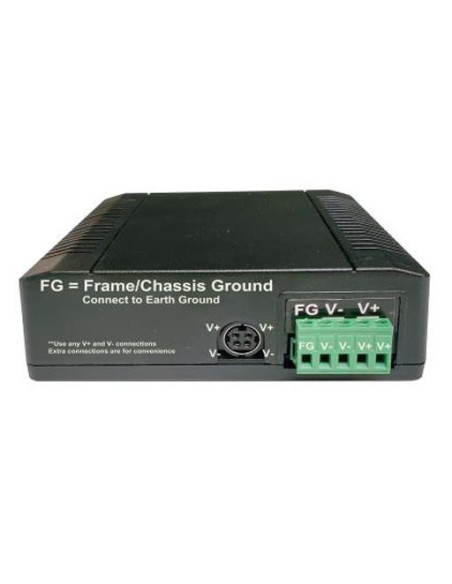

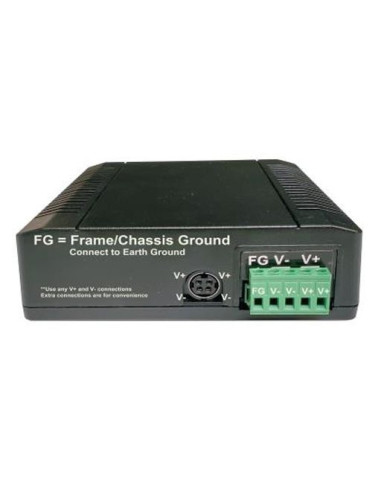

The wide input voltage range (10VDC to 60VDC) of the TP-DCDC-1256GD-BT makes this unit universal in battery powered applications. The input and output are isolated so they work in a negative ground or positive ground system. The Tycon Power TP-DCDC-1256GD-BT has two DC inputs for connecting 2 power sources, like a primary and backup power source. It has various protections for low voltage, surge, short circuit and overload.


TP-DCDC-1256GD-BT - TYCON 12VDC to 56VDC 70W 802.3bt G Inserter

Product Features
• Input Voltage 10VDC to 60VDC
• 8 wire (4 Pair) 56VDC 802.3bt PoE Output
• High Power Output to 70W
• Dual DC Inputs for connecting 2 Power Sources
• 10G Data Throughput up to 80m
• Low Voltage Disconnect Feature
• Short Circuit, Over Current and Reverse/Over Voltage Protection
• Industrial Temperature Range -40 to 70C

• 12VDC / 24VDC Remote Power Systems
• 48VDC or -48VDC Remoter Power Systems
• 802.3bt PoE 4 Pair Powered Cameras and Radios
• 802.3at PoE Powered Devices

Product Specifications
• POE Specification: IEEE 802.3bt (4 Pair); backward compatible with 802.3at and 802.3af
• Input Voltage: ± 10VDC - 60VDC
• Output Voltage (±2.5%): 56VDC
• Data Throughput:
• CAT6A or better cable: 10G @ 80M, 5G @ 100M
• CAT5E Cable: 5G @ 100M
• Data in & Data/POE Output Connector: RJ45 (shielded)
• Output Current (max): 1.25A Total
• Output Power (max): 70W Total
• Self Consumption Power: 2W
• Efficiency (min): 80%
• Low Voltage Protection: <9V Turn off Input
• Surge Protection: 30kV (IEC 61000-4-2,-4,-5)
• Line Regulation, Ripple, Noise: 1%
• Load Regulation: 5%
• EMC Standards: FCC Class B EN55022 Class B
• Safety Standards: CSA 22.2 &TUV EN60950
• Operating Temperature: -40 to +70°C (-40 to +158°F)
• Operating Humidity: 5% - 90%
• Storage Temperature: -40 to +85°C (-40 to +185°F)
• Mean Time Between Failure (MTBF): 68,278 Hours
• Dimensions: 90 x 118 x 40 mm (3.5 x 4.6 x 1.57 in)
• Weight: 335g (11.8oz)
• Warranty: 3 Years
• LED Function:
• LED#1 Mode A Pins 1,2,3,6
• LED#2 Mode B Pins 4,5,7,8
• Green = Handshake Valid, PoE On
• Red = Pwr On, No Device Detected

Power Over Ethernet
8 wire (4 Pair) 56VDC 802.3bt PoE Output
