Tycon TP-DC-12BT60-10G+ 60W 10G PoE++ DC-to-DC Injector with Overload Protection & Wide Temperature Range

TP-DC-12BT60-10G
ETA Before Xmas
$82.50
Tax included

TP-DC-12BT60-10G

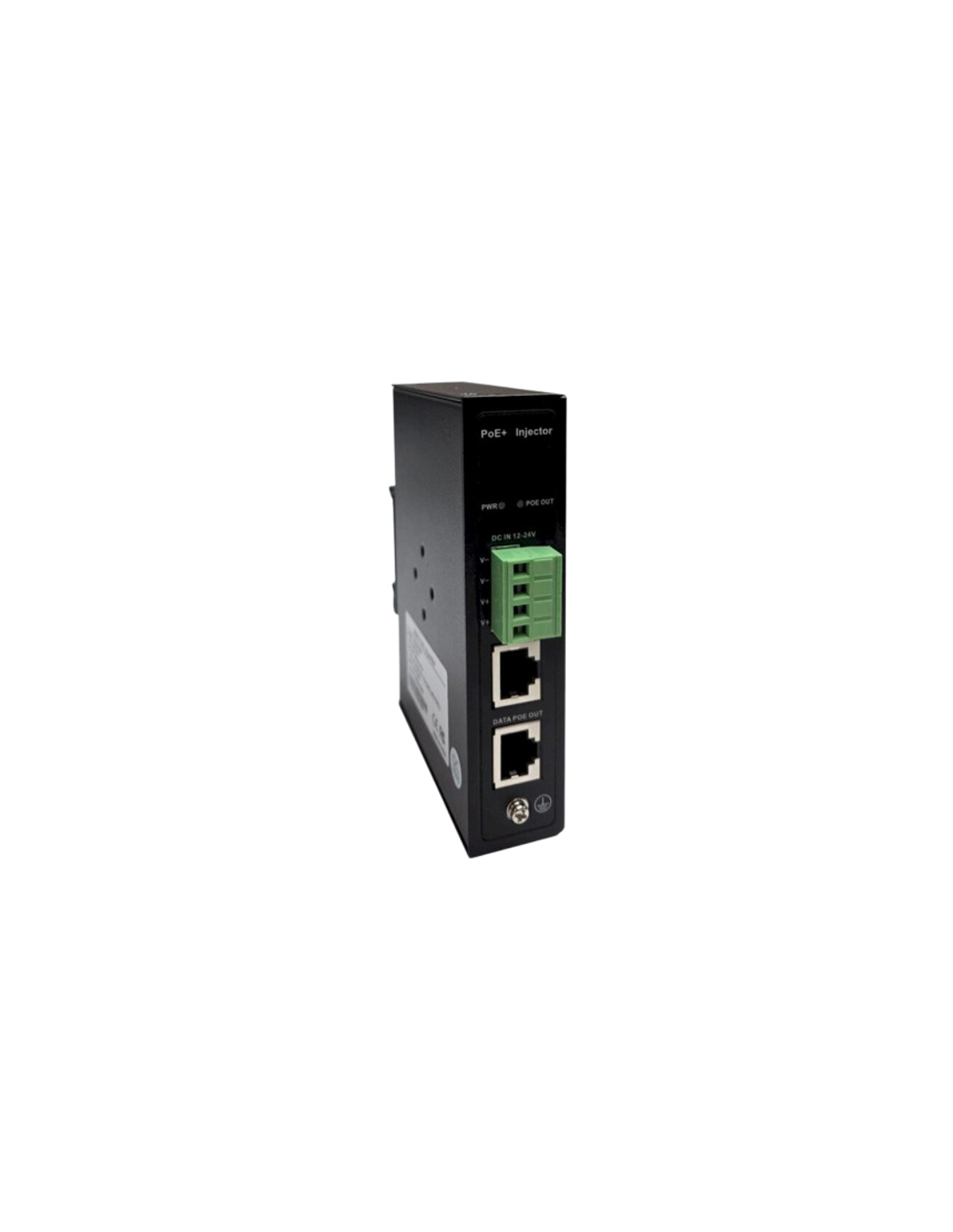

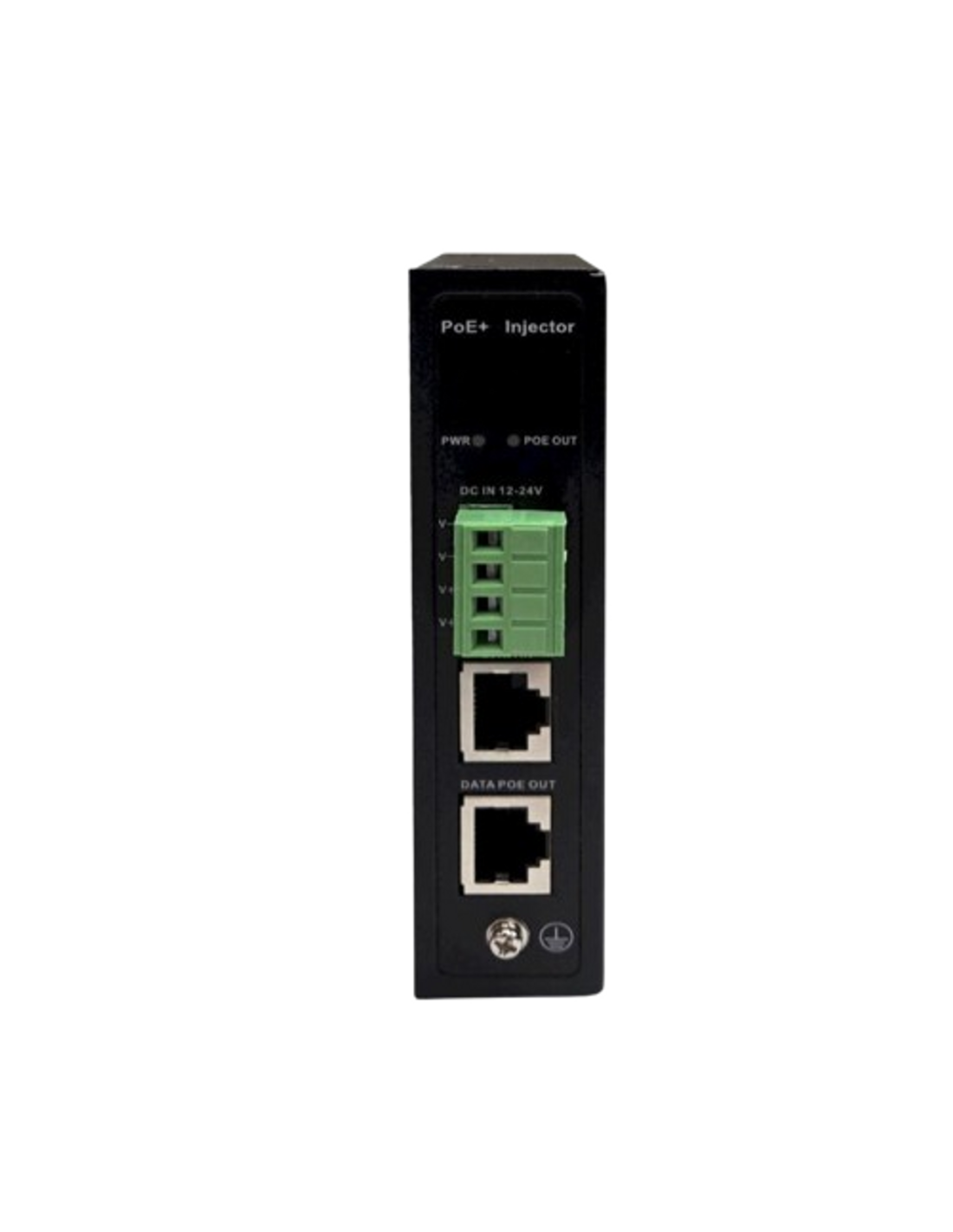

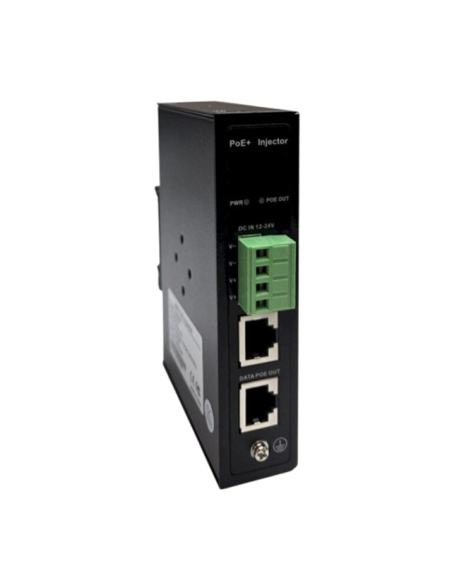

 The TP-DC-12BT60-10G is a DC-to-DC PoE++ inserter designed for reliable performance in battery-powered systems, accepting a 12-24VDC input. It supports data speeds from 10/100Mb to 10G, making it ideal for modern, high-speed networks. The durable metal enclosure comes with brackets for easy DIN rail or wall mounting.

Built-in protections safeguard against overloads, overheating, and Low Voltage Detect (LVD). With an operating temperature range of -20°C to +60°C, this inserter ensures dependable operation in challenging environments.

Key Features

  • 12-24VDC to 54VDC Efficient DCDC Converter
  • 802.3bt 54V 60W Class 6 PoE++ Output
  • 4 Pair Power Delivery
  • 10/100/1000Mb/2.5G/5G/10G Compatible

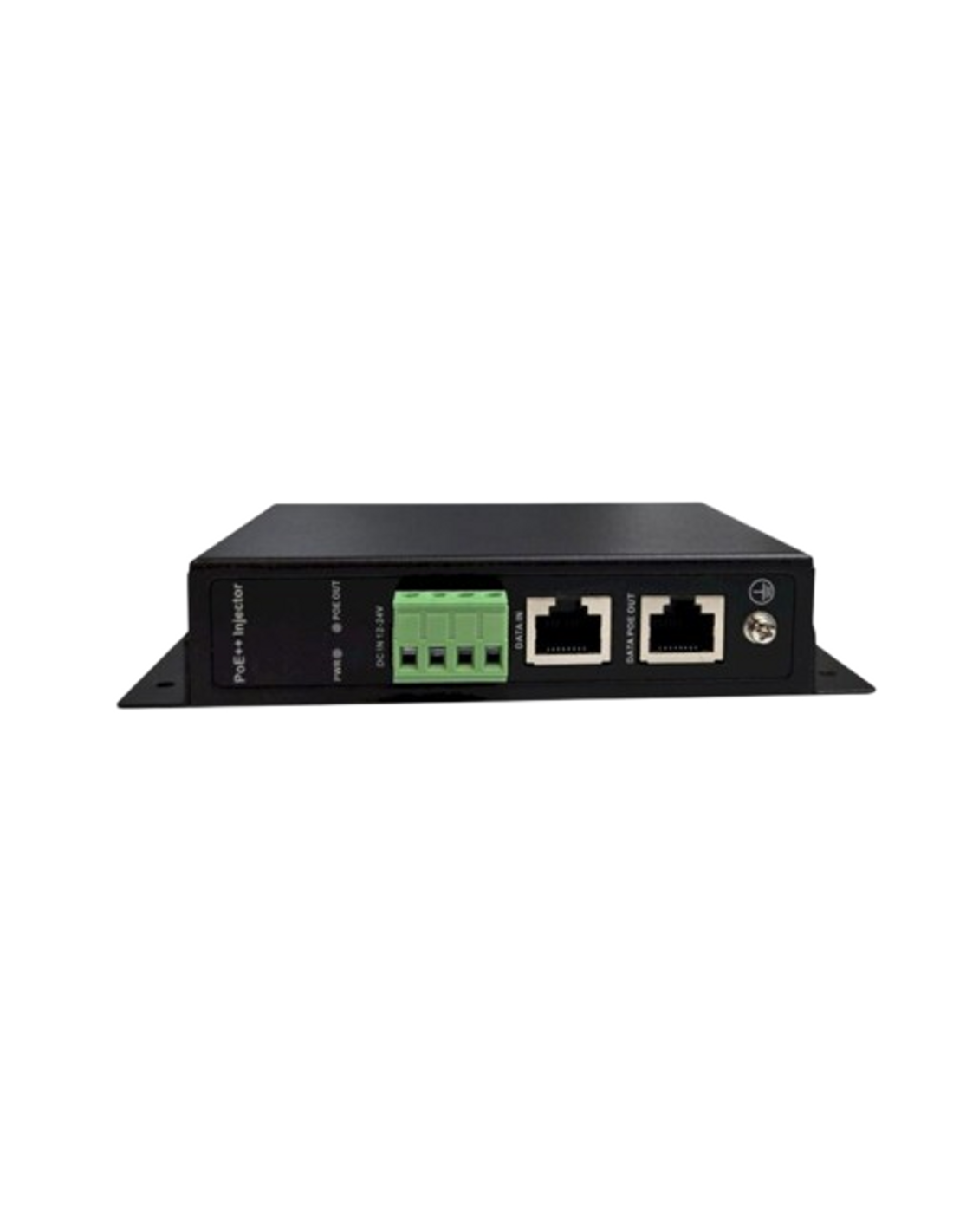

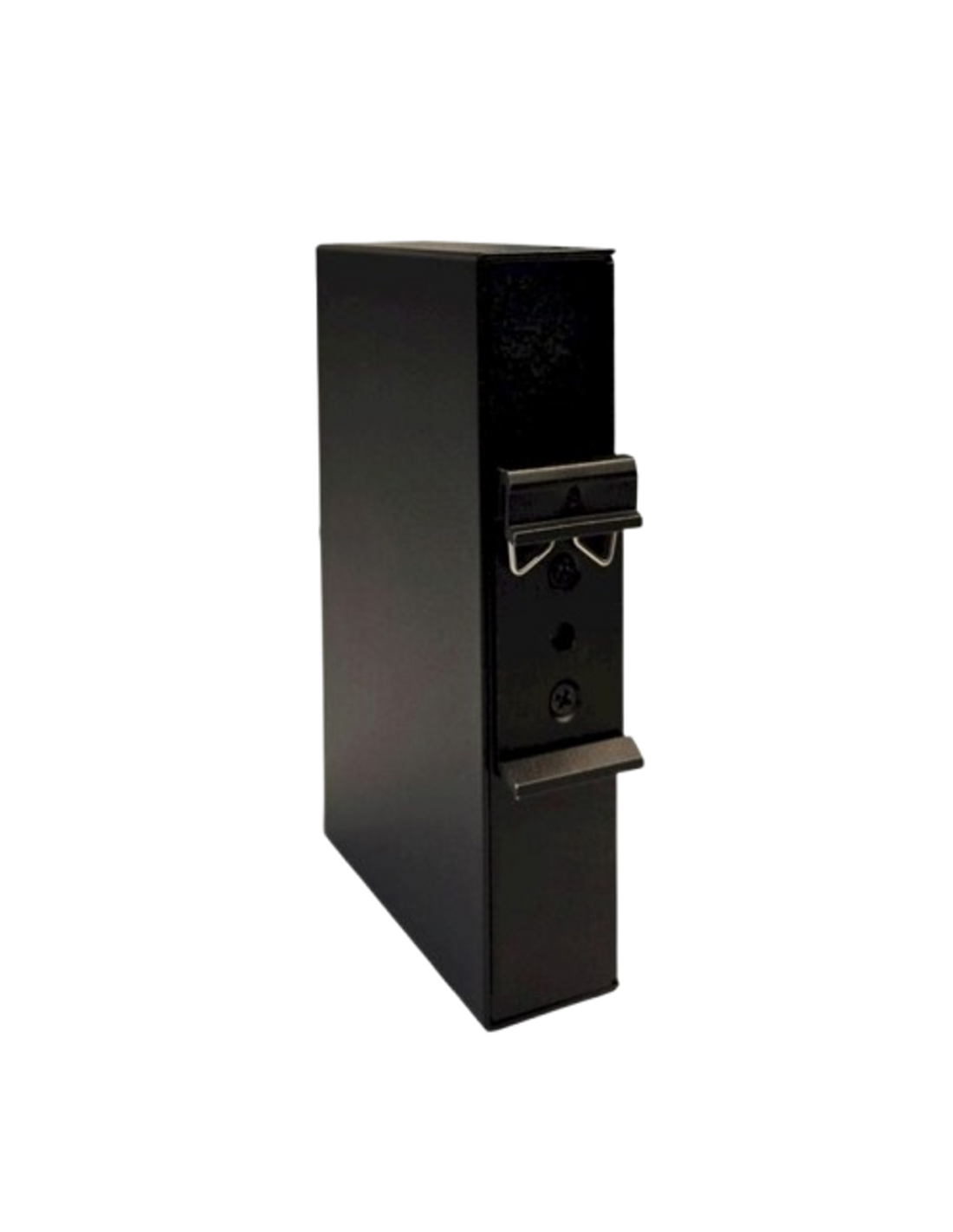

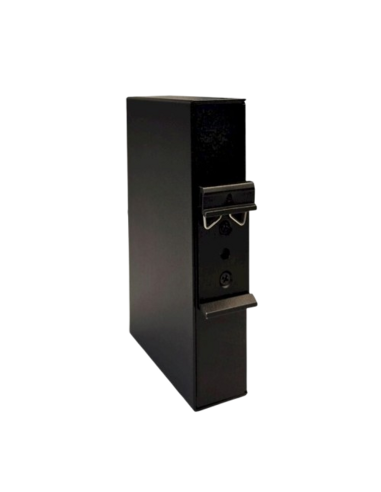

  • DIN Rail or Wall Mount (Brackets Included)
  • Over Current, Over Temperature, LVD Protections
  • Metal Housing, Removeable Wire Terminal Connector
  • Wide Temperature Operation: -20C to +60C

Applications

  • Solar Battery Systems
  • Vehicular and Marine Applications
  • Wireless Equipment
  • Security Systems

Related Products & Accessories



TP-DC-12BT60-10G Tycon 60W 10G PoE++ DC-to-DC Injector with Overload Protection & Wide Temperature Range

Product Specifications
Input Voltage @ Current 11-29VDC @ 7A
Input Connector Removeable Wire Terminal (up to 12AWG)
Output Power Over Ethernet (PoE) 54VDC 60W, 802.3af/at/bt Class 6, PoE++
PoE Pinout 1,2(V+) 3,6(V-) 4,5(V+) 7,8(V-)
Output Connectors Shielded RJ45 for Data IN and PoE OUT
Ethernet Speed 10/100/1000Mb/2.5G/5G/10G
Efficiency 80% Min
LED Function Power (Green) = Power is Stable
PoE Out (Green) = PoE Out is delivering PoE Power to a device
Protections Over Current, Overload, Over Voltage, Anti-Interference, Low Voltage Detect (LVD)
International Standards FCC Class B, EN55032 Class B, EN 61000-3-2, EN 62368-1
Operating Temperature -20 to +60°C (-4F to +140°F)
Operating Humidity (RH) 5% - 80% non-condensing
Storage Temperature -40 to +70°C (-40 to +158°F)
Dimensions (L x W x H) 119 x 85.5 x 28mm (4.7 x 3.4 x 1.1”)
Weight 380g (13.4oz)
Warranty 2 Years
