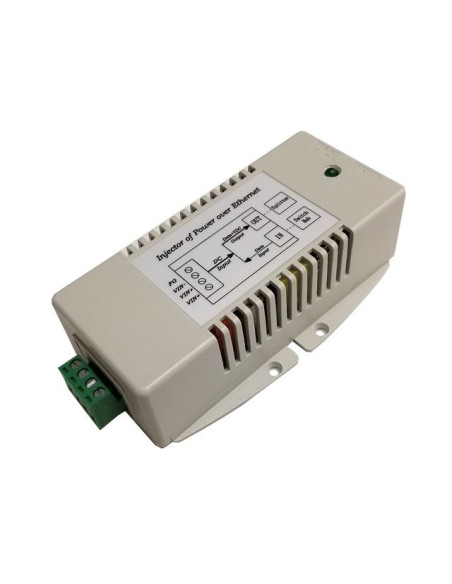

TYCON 10-15V IN 24V 35W OUT Pasv PoE Inj DCDC

TP-DCDC-1224-HP - TYCON 10-15V IN 24V 35W OUT Pasv PoE Inj DCDC

Product Features:

• Input Voltage 12VDC, 24VDC or 48VDC
• Passive PoE Output voltage 24VDC or 56VDC
• IEEE802.3at Model Available
• High Power up to 35W
• Integrated PoE Inserter
• Low self consumption power
• Short Circuit, Over Current and Reverse/Over Voltage Protection
• High Temperature Operation

Applications:

• 12V, 24V and 48V Battery Systems
• Wireless Access Points and Client Devices
• IP Phone and Security Camera Systems

Product Specifications:

• Input Voltage: +/- 10VDC to 15VDC
• DC Input Connector: Removeable Screw Type Compression Wire Terminal (12 AWG Max)
• POE Specification: Passive
• Output Voltage (+/-2.5%): 24VDC
• Data in & Data/POE Output Connector: RJ45 (Shielded)
• Output Current (max): 1.46A
• Output Power (max): 35W
• Self Consumption Power: 2W
• Efficiency (min): 75%
• Line Regulation: 1%
• Load Regulation: 5%
• Ripple: 1%
• Noise: 1%
• EMC Standards: FCC Class B NE55022 Class B
• Safety Standards: CSA 22.2 &TUV EN60950
• Operating Temperature: -30 to +60°C (-22 to +140°F)
• Operating Humidity (RH): 5% - 90%
• Storage Temperature: -40 to +80°C (-40 to +176°F)
• MTBF (Mean Time Between Failure): 106,924 Hours
• Dimensions (LxWxH): 125 x 75 x 38mm (4.9 x 3 x 1.5”)
• Weight: 300g (10.6oz)
