PLANET Industrial L3 16-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch

IGS-20160HPT
Last items in stock
$1,276.00
Tax included

Advanced Manageable PoE Solution for Hardened Environment

PLANET IGS-20160HPT L3 Industrial Managed PoE+ Switch, featuring 16 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, and 100/1000/2500BASE-X SFP ports in an IP30 rugged metal case, can be installed in any difficult environment. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions, Layer 3 OSPFv2 dynamic routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability and PLANET intelligent PoE functions for controlling the PoE outdoor IP surveillance and wireless network applications. It is able to operate reliably, stably and quietly in the temperature range from -40 to 75 degrees C.



PLANET IGS-20160HPT

Hardware Specifications
Copper Ports 18 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 1000/2500BASE-X SFP interfaces (Port-19 and Port-20)
Compatible with 100BASE-FX SFP
PoE Injector Port 16 ports with 802.3at/af PoE injector function with Port-1 to Port-16
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
ESD Protection 6KV DC
Enclosure IP30 aluminum case
Installation DIN-rail kit and wall-mount kit

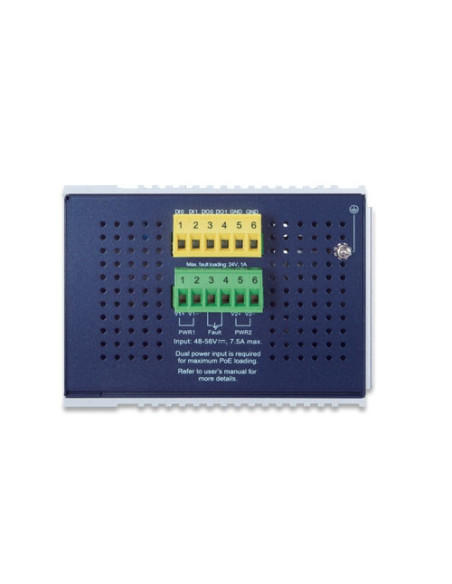

Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Switching
Switch Architecture Store-and-Forward
Switch Fabric 46Gbps/non-blocking
Throughput (packet per second) 34.2Mpps@ 64 bytes packet
Address Table 32K entries, automatic source address learning and aging
Shared Data Buffer 32Mbits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10K bytes
Power Over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output IEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 51V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 48V Power input
- 240W maximum (depending on power input)
52~56V Power input
- Single power input: 240W maximum (depending on power input)
- Dual power input: 320W maximum (depending on power input)
※Dual power input must be the same as DC voltage, like dual 56V
Max. Number of Class 2 PDs 16
Max. Number of Class 3 PDs 16
Max. Number of Class 4 PDs 10
Layer 3 Functions
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 128 routing entries
Routing Protocols IPv4 hardware static routing
IPv6 hardware static routing
IPv4 OSPFv2 dynamic routing
Layer 2 Function
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring TX / RX / Both
Many-to-1 monitor
VLAN 802.1Q tag-based VLAN, up to 4K VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 10 trunk groups with 4 ports per trunk group
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Up to 255 multicast groups
MLD Snooping IPv6 MLD (v1/v2) snooping
IPv6 MLD querier mode support
Up to 255 multicast groups
Bandwidth Control Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
- MAC Address
- IP Address
- Ethertype
- Protocol Type
- VLAN ID
- DSCP
- 802.1p Priority
Up to 256 entries
Security Port Security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level
AAA RADIUS client
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Switch Management
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMP v3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
Event Management Remote syslog
Local system log
SMTP
ONVIF ONVIF device discovery
ONVIF device monitoring
Floor Map
SNMP MIBs RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
IEEE 1588 PTPv2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
Power Input
DC
Device Type
Power Over Ethernet, Network Switch
Device Features
Industrial
POE Ports
16
Power Over Ethernet
48V 15W 802.3af, 48V 30W 802.3at
Ethernet Ports
16
Environment Temperature
-40℃~75℃
No reviews

Hardware Specifications
Copper Ports 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE Injector Ports Four ports with 802.3at PoE+ injector function (Port-1 to Port-4)
SFP Slots N/A
Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Power Requirements 12~56V DC, 7A (max.)
Redundant power with reverse polarity protection function
Power Consumption Max. 7.02 watts/24BTU
(Ethernet Full Loading)
Max. 132 watts/450BTU
(Ethernet + PoE Full Loading)
Dimensions (W x D x H) 50 x 87 x 135 mm
Weight 605g
Enclosure IP40 metal case
Installation DIN-rail kit and wall-mount kit
ESD Protection 6KV
Switch Specifications
Switch Architecture Store-and-Forward
Switch Fabric 10Gbps
Throughput (packet per second) 7.4Mpps@64bytes
Address Table 4K entries
Buffer Memory 1M bits on-chip buffer memory
Jumbo Frame 9Kbytes
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Output Per port 54V DC, max. 36 watts
PoE Power Budget (max.) 60W@12V DC input
90W@24V DC input
120W@48V-56V DC input
Max. Number of Class 4 PDs 4
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
IEEE 802.1p Class of Service
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
