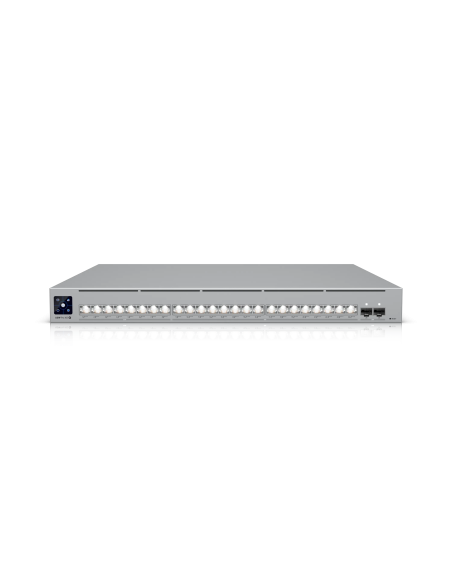

Ubiquiti UniFi USW-Pro-XG-24-PoE 24-Port 10G/2.5G PoE+++ Layer 3 Switch with 25G SFP28

USW-Pro-XG-24-PoE
Last items in stock
$3,003.00
Tax included
ubiquiti USW-Pro-XG-24-PoE

Pro XG 24 PoE

The Ubiquiti UniFi USW-Pro-XG-24-PoE is a 24-port Layer 3 switch featuring 16 × 10GbE and 8 × 2.5GbE PoE+++ ports, 2 × 25G SFP28 uplinks, and a 720W PoE budget, designed for high-performance enterprise networks.

Key Features

  • 24-port switch (16 × 10GbE + 8 × 2.5GbE PoE+++)
  • TUp to 90W PoE per port (PoE+++)
  • 720W total PoE budget
  • 2 × 25G SFP28 uplink ports
  • 460 Gbps switching capacity
  • 342 Mpps forwarding rate
  • Advanced Layer 2/3 features (VLAN, QoS, LACP, IGMP, routing)
  • 1.3" touchscreen display

*Note: The 5-year UI Care service must be applied before the product is opened and activated. FOR NEW SALES ONLY!



Ubiquiti USW-Pro-XG-24-PoE 720W Managed Switch

ubiquiti USW-Pro-XG-24-PoE
ubiquiti USW-Pro-XG-24-PoE view 2ubiquiti USW-Pro-XG-24-PoE view 3ubiquiti USW-Pro-XG-24-PoE view 4

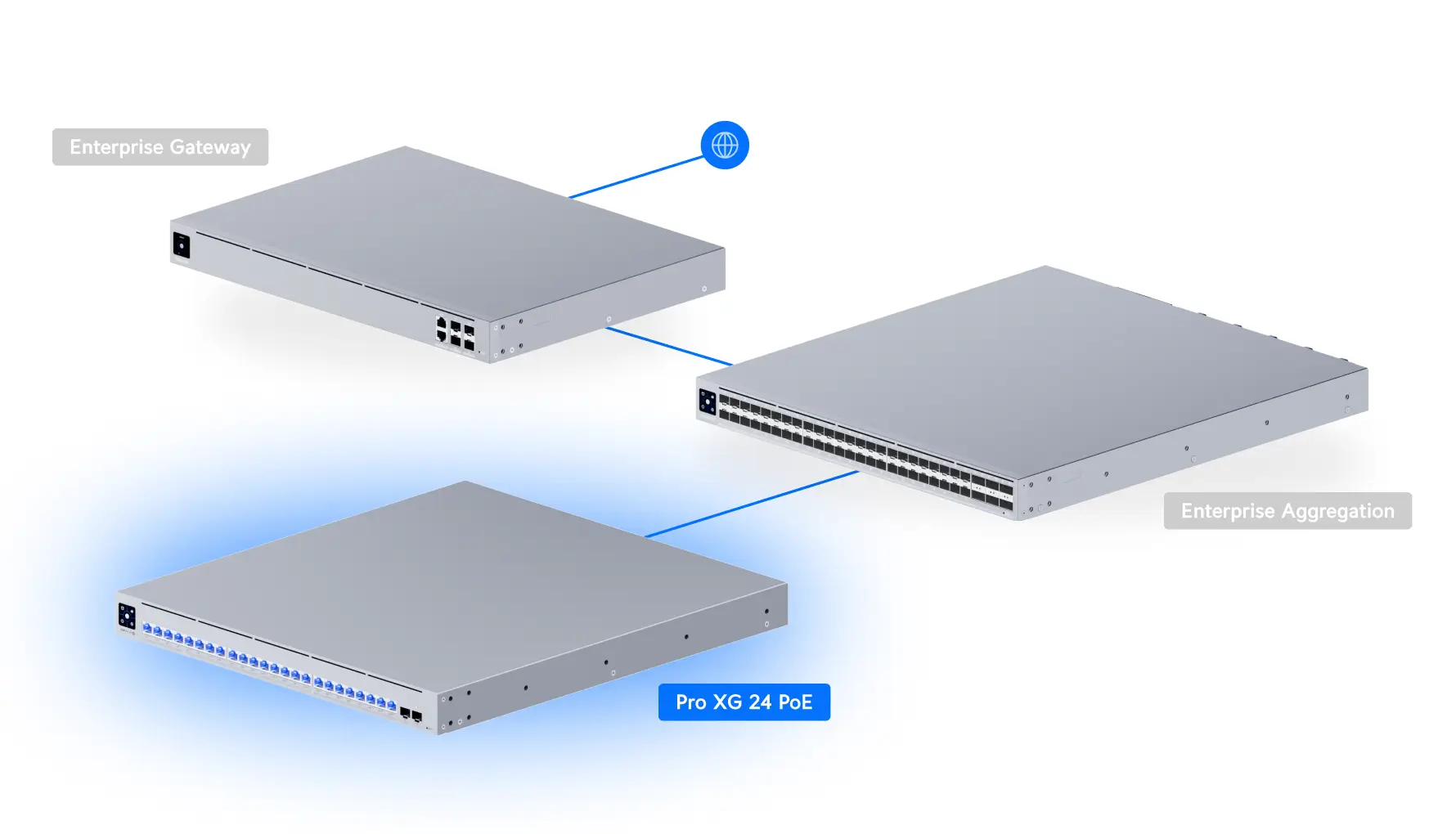

The Ubiquiti USW-Pro-XG-24-PoE 720W Managed Switch is engineered for enterprise environments requiring robust PoE+++-enabled connectivity. With 16x10GbE and 8x2.5GbE ports, it supports power delivery to high-demand devices such as IP cameras, access points, and VoIP phones, eliminating the need for additional power infrastructure. The inclusion of two 25G SFP28 ports allows for seamless integration into high-speed backbone networks, ensuring future-proof performance. Its 720W power budget (up to 90W per port) makes it ideal for deployments with demanding power requirements.

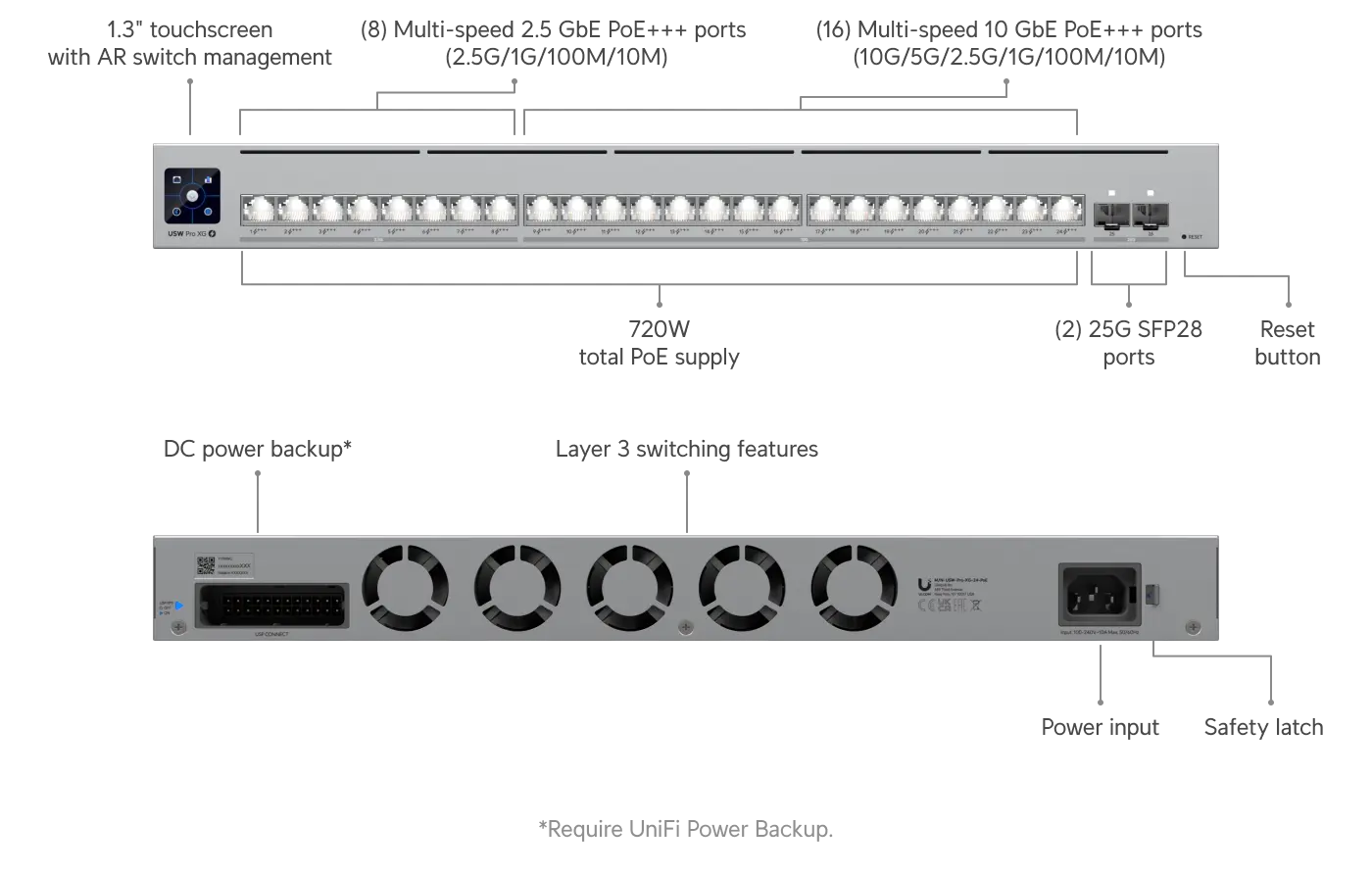

This switch delivers 460Gbps of non-blocking switching capacity and a 342Mpps forwarding rate, ensuring minimal latency even under heavy traffic. Advanced layer 3 capabilities, including static routing, DHCP server, and inter-VLAN routing, enable sophisticated network segmentation and management. The 1.3-inch touchscreen provides intuitive access to system diagnostics, configuration, and monitoring. Dual power input (100-240V AC and USP RPS DC) ensures uninterrupted operation during power outages, enhancing network reliability. Compatibility with UniFi Network v9.1.120+ and support for Etherlighting on both copper and fiber ports further enhance its versatility for enterprise deployments.

Technical Specifications

Specification Value

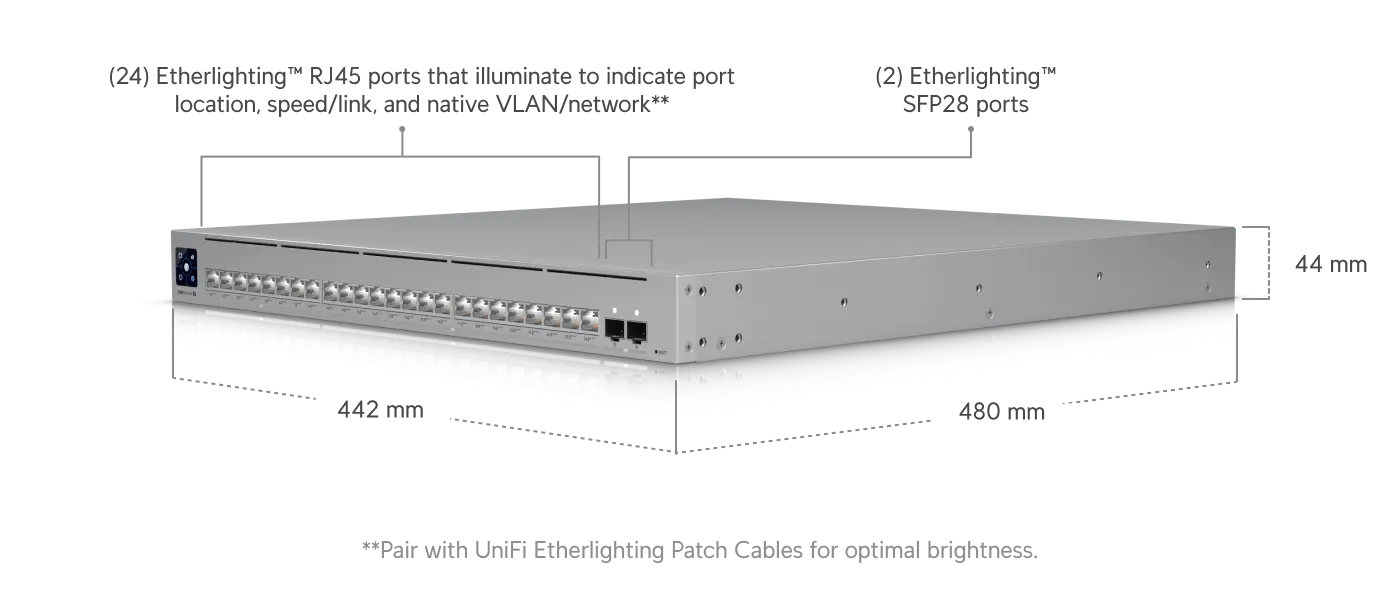

Dimensions 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
Port Layout - 2.5 GbE 8 (PoE+++) (2.5G/1G/100M/10M)
Port Layout - 10 GbE 16 (PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28 2 (25G/10G/1G)
Max. PoE Output Up to PoE+++
Total PoE Availability 720W
Redundancy DC Power Backup (USP RPS)
Layer 3
Form Factor Rack mount (1U)
Switching Capacity 460 Gbps
Total Non-Blocking Throughput 230 Gbps
Forwarding Rate 342 Mpps
Supported VLANs 1,000
MAC Address Table Size 32,000
IPv4 Static Routes 512
Packet Buffer Size 8 MB
Access Lists IPv4: 256
MAC: 256
DHCP Server
DHCP Relay
Inter-VLAN Routing
Static Routing
LACP
STP / RSTP
QoS (DSCP)
Pro AV Profiles Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron
IGMP (Advanced + Snooping)
802.1X
Security Features MAC ACLs, DHCP Snooping, Port Isolation, Storm Control, Rate Limiting, Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
PoE Ports 24 (PoE+++)
Max PoE per Port PoE: 15.4W
PoE+: 30W
PoE++: 60W
PoE+++: 90W
Max Power Consumption 150W (no PoE)
870W (with PoE)
Power Supply Internal AC/DC, 870W
Management Ethernet (UniFi Network)
Weight 7.9 kg / 8 kg
Enclosure SGCC steel

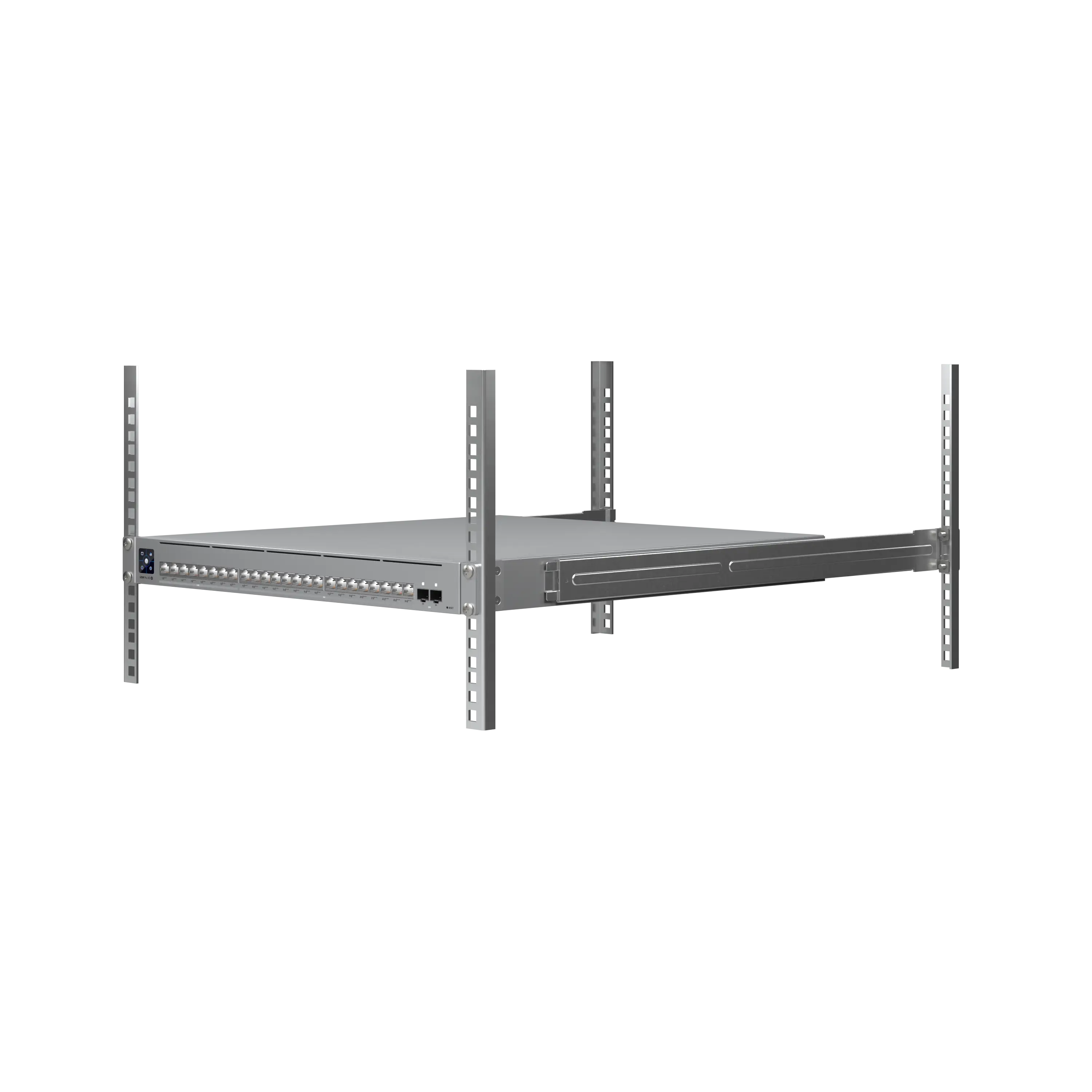

Rack Compatibility 19" racks, depth 600–1066 mm
Display 1.3" touchscreen
Operating Temperature -5°C to 40°C
Humidity 10–90% non-condensing
Certifications CE, FCC, IC, Anatel
Application UniFi Network 9.1.120+
USW-Pro-XG-24-PoE
