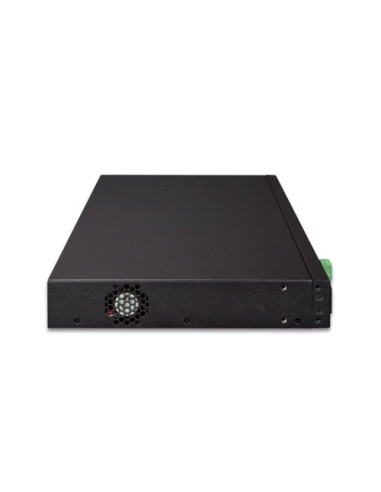

PLANET XGS3-24242 Layer 3 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Stackable Managed Switch
PLANET XGS3-24242 Layer 3 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Stackable Managed Switch
PLANET XGS3-24242 Layer 3 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Stackable Managed Switch
PLANET XGS3-24242 Layer 3 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Stackable Managed Switch
PLANET XGS3-24242 Layer 3 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Stackable Managed Switch
PLANET XGS3-24242 Layer 3 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Stackable Managed Switch
PLANET XGS3-24242 Layer 3 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Stackable Managed Switch
PLANET XGS3-24242 Layer 3 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Stackable Managed Switch

Planet XGS3-24242 Layer 3 24-Port 100/1000X SFP + 16-Port shared TP + 4-Port 10G SFP + Stackable Managed Switch

XGS3-24242
*** Out of stock ATM, Available On Backorder ***
$2,295.70
Tax included

XGS3-24242

Powerful Layer 3 Routing Solution for All Long-Reach Networks

PLANET XGS3-24242 is a Layer 3 Stackable Managed Gigabit Switch that provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First) with 10Gbps uplink and multiple SFP fiber interfaces delivered in a rugged, strong case. The administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the 10G network efficiently. Besides, with 128Gbps switching fabric, the XGS3-24242 can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers for ISP and enterprise VoIP, video streaming, and multicast applications.

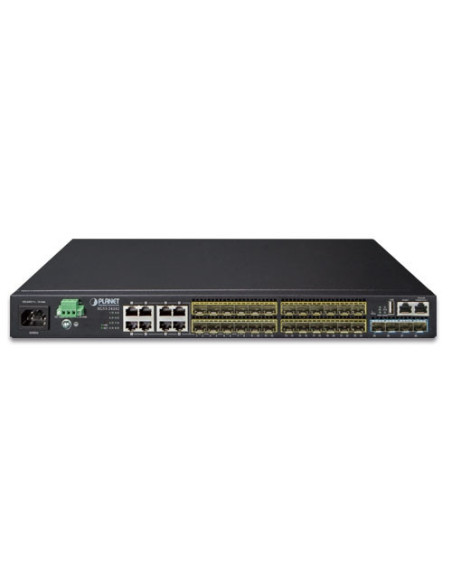

XGS3-24242 - PLANET Layer 3 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Stackable Managed Switch

High Performance 10Gbps Ethernet Capacity

The four SFP+ slots built in the XGS3-24242 supports Dual-speed, 10GBASE-SR/LR or 1000BASE-SX/LX. With 10Gbps uplink interfaces, the XGS3-24242 boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

AC and DC Redundant Power to Ensure Continuous Operation

The XGS3-24242 is equipped with one 100~240V AC power supply unit and one additional 36-75V DC power supply unit for redundant power supply. A redundant power system is also provided to enhance the reliability with either AC or DC power supply unit. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.

IP Stacking Management

The XGS3-24242 supports IP stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. The IP stacking technology groups PLANET XGS3-24242 and SGS-6341 series together to enable centralized management through a single unit, regardless of physical location or switch type, as long as they are connected to the same local network.



High Reliability Hardware Stacking

Two of the 10G SFP+ ports are used to connect several XGS3-24242 units to build a virtually logical facility. The XGS3-24242 gives the enterprises, service providers and telecoms flexible control over port density, uplinks and switch stack performance. The XGS3-24242 can connect as a ring for redundancy and ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

Layer 3 Routing Support

The XGS3-24242 enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, and the RIP or OSPF settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Full IPv6 Support

The XGS3-24242 provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. It thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.

Redundant Ring, Fast Recovery for Critical Network Applications

The XGS3-24242 supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 50ms to quickly bring the network back to normal operation.

Robust Layer 2 Features

The XGS3-24242 can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port aggregation, the XGS3-24242 allows the operation of a high-speed trunk combined with multiple ports.  It enables up to 128 groups for trunking with a maximum of 8 ports for each group.

Excellent Layer 2 to Layer 4 Traffic Control

The XGS3-24242 is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.

Powerful Security

The XGS3-24242 supports ACL policies comprehensively. The traffic can be classified by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic. The XGS3-24242 also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users.



Efficient and Secure Management

For efficient management, the XGS3-24242 is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the XGS3-24242 offers an easy-to-use, platform-independent management and configuration facility. The XGS3-24242 supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software.

For reducing product learning time, the XGS3-24242 offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the XGS3-24242 offers secure remote management by supporting SSH connection which encrypts the packet content at each session.



Intelligent SFP Diagnosis Mechanism

The XGS3-24242 supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

High Availability Mesh Networking Solution for Big Data System

By means of improving the technology of optical fiber Ethernet with highly-flexible, highly-extendable and easy-to-install features, the XGS3-24242 offers up to 128Gbps data exchange speed via optical fiber interface and the transmission distance can be extended to 120km. The XGS3-24242 features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates IEEE 802.1s MSTP (Multiple Spanning Tree Protocol, spanning tree by VLAN) into customer’s automation network to enhance system reliability and uptime. The XGS3-24242 is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.



Excellent Solution to Core/Data Center Security and QoS Switch

The XGS3-24242 performs 128Gbps non-blocking switch fabric, so it can easily provide a local 10Gbps high bandwidth Ethernet network for the backbone of your department. With the four built-in SFP+ ports, the XGS3-24242 provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features.

Layer 3 VLAN Routing

With the built-in robust Layer 3 traffic routing protocols, the XGS3-24242 ensures reliable routing between VLANs and network segments. The routing protocols can be applied via VLAN interface. The XGS3-24242 is certainly a cost-effective and ideal solution for enterprises.

Hardware Specifications
SFP/mini-GBIC Slots 24 100/1000BASE-X SFP interfaces
Compatible with 100BASE-FX SFP transceiver
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-8
SFP+ Slots 4 10GBASE-SR/LR SFP+ interfaces (port-25 to port-28)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture Store-and-forward
Switch Fabric 128Gbps/non-blocking
Switch Throughput 95.23Mpps
Address Table 16K MAC address table with auto learning function
ARP Table 4K
Routing Table IPv4 Routing Entry:13K
IPv6 Routing Entry: 3.2K
ACL Table 3K
Shared Data Buffer 1.5MB
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Jumbo Frame 10KB
LED System:
 PWR/DC/MGMT/SYS
Ports:
 10/100/1000T RJ45 Port: LNK/ACT
 1/10G SFP+ slot: LNK/ACT
Dimensions (W x D x H) 440 x 240 x 43.6 mm, 1U height
Weight 3173g
Power Consumption Max. 51.1 watts/174 BTU (AC input)
Max. 47.6 watts/162 BTU (DC input)
Power Requirements AC 100~240V, 50/60Hz
DC 36V-75V, 2.5A max.
IPv4 Layer 3 Functions
IP Routing Protocol IP Routing Protocol 
Static route
RIPv1/v2
OSPFv2
BGPv4
Policy-based routing (PBR)
LPM routing (MD5 authentication)
Hardware-based Layer 3 routing
Multicast Routing Protocol IGMP v1/v2/v3
DVMRP
PIM-DM/SM
PIM-SSM
Layer 3 Protocol VRRP v1/v3
ARP
ARP Proxy
IGMP Proxy
IPv6 Layer 3 Functions
IP Routing Protocol RIPng
OSPFv3
BGPv4+
IPv6 LPM Routing
IPv6 Policy-based Routing (PBR)
IPv6 VRRPv3
IPv6 URPF
IPv6 RA
Hardware-based Layer 3 routing
Multicast Routing Protocol PIM-SM/DM for IPv6
MLD for IPv6 (v1)
MLDv1/v2
MLD Snooping, 6 to 4 Tunnels
IPv6 Any Cast RP
Multicast receive control
Illegal multicast source detect
Layer 3 Protocol Configured Tunnels
ISATAP
GRE Tunnel
Other ICMPv6,ND,DNSv6
Layer 2 Function
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Bandwidth control on each port
Port loopback detect
Port Status Display each port’s speed duplex mode, link status, flow control status and auto negotiation status
VLAN 802.1Q tagged VLAN, up to 256 VLAN groups
802.1ad Q-in-Q (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE) supported
Protocol-based VLAN
MAC-based VLAN
IP subnet VLAN
Bandwidth Control TX/RX/Both
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 128 trunk groups with 8 ports per trunk group
QoS 8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR
Multicast IGMP v1/v2/v3 snooping
Querier mode support
MLD v1/v2 snooping
Multicast VLAN Register (MVR)
Access Control List Supports Standard and Expanded ACL
IP-based ACL/MAC-based ACL
Time-based ACL
Up to 1K entries
Security Supports MAC + port binding
IPv4/IPv6 + MAC + port binding
IPv4/IPv6 + port binding
Supports MAC filter
ARP scanning prevention
Authentication IEEE 802.1x port-based network access control
AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
Management Function
IP Cluster (Stacking) Compatibility List XGS3-24242v3
XGS3-24042v3
SGS-6341-24T4Xv2
SGS-6341-24P4Xv2
SGS-6341-16S8C4XRv2
SGS-6341-48T4X
Hardware Stacking Compatibility List XGS3-24242v3
System Configuration Console, Telnet, SSH, Web browser, SNMP v1, v2c and v3
Management Supports both IPv4 and IPv6 addressing
Supports the user IP security inspection for IPv4/IPv6 SNMP
Supports MIB and TRAP
Supports IPv4/IPv6 FTP/TFTP
Supports IPv4/IPv6 NTP
Supports RMON 1, 2, 3, 9 four groups
Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password
Supports IPv4/IPv6 SSH
The right configuration for users to adopt RADIUS server’s shell management
Supports CLI, console, Telnet
Supports SNMP v1, v2c and v3
Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area
Supports Syslog server for IPv4 and IPv6
Supports TACACS
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMP v2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMP v3 notify
RFC 2574 SNMP v3 vacm
RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB)
RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB)
Standard Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2
RFC 1058 RIP v1
RFC 2453 RIP v2
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Device Type
Network Switch
Device Features
TAA Compliant
SFP Ports
24 Ports
SFP+ Ports
4
Power Input
AC
DC
SFP
Yes, 10G SFP+
Ports
24 1000X SFP Shared 16 10/100/1000TX + 4 10G SFP + 2 20G QSFP+
Type
Managed
Power Consumption
Max. 53W
Operating Temperature
0 to 50°C
Throughput
154Mpps@64Bytes
Switch Fabric
208Gbps
4711213688539
XGS3-24242
