PLANET XGS-6320-8X8TR Layer 3 8-Port 10GBASE-X SFP+ + 8-Port 10GBASE-T Managed Ethernet Switch
Perfect Managed All-port 10Gbps Switch with L3/L2 Switching and Security
PLANET XGS-6320-8X8TR is a fully-managed all-port 10Gbps Ethernet switch designed for the demand of high bandwidth for advanced network equipment, such as Wi-Fi 6/6E wireless AP, NAS, workstation and those with 10Gbps fiber or copper interfaces. It features 8 10GBASE-T copper ports and 8 10GBASE-X SFP+ fiber ports that are flexibly designed to extend the connection distance.
With such a favorable data link capability, hardware-based Layer 3 routing performance, Layer 2 and Layer 4 switching engine and user-friendly yet advanced IPv6/IPv4 management interfaces, it helps to accelerate the deployment of the next-generation high-bandwidth required network for metro, smart cites and enterprises.
XGS-6320-8X8TR - PLANET Layer 3 8-Port 10GBASE-X SFP+ + 8-Port 10GBASE-T Managed Ethernet Switch
10GBASE-T and 10GBASE-X SFP Dual Media Interfaces for Diversified Bandwidth Applications
PLANET XGS-6320 series has the capability to reach a high speed of 10Gbps over copper or fiber-optic cabling which helps to accelerate the performance of large data transmission. The built-in 10GBASE-T copper interfaces support 5-speed (10G/5G/2.5G/1G/100) auto-negotiation, and 10Gbps data transmission with the existing Cat6A/Cat7 UTP cabling, meaning the speed can be increased without costs. It can definitely give you the speed you demand and its Plug and Play makes installation easy.
The fiber-optic 10GBASE-X SFP+ interfaces support 4 speeds, 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX and 100BASE-FX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.
Redundant Ring, Fast Recovery for Critical Network Applications
The XGS-6320 series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1w RSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 10ms to quickly bring the network back to normal operation.
Cybersecurity Network Solution to Minimize Security Risks
The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

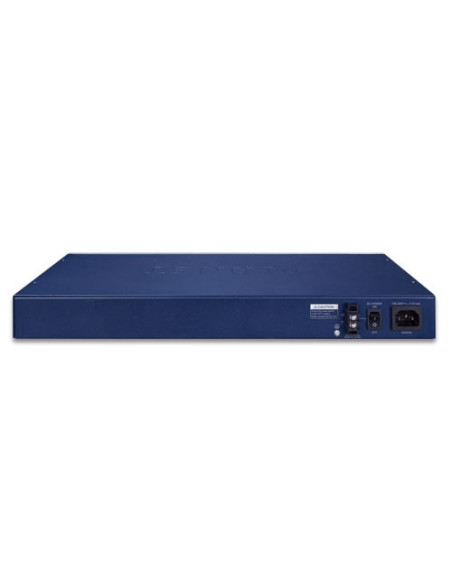

AC and DC Redundant Power to Ensure Continuous Operation
The XGS-6320 series is equipped with one 100~240V AC power supply unit and one additional 36-60V DC power supply unit for redundant power supply. A redundant power system is also provided to enhance the reliability with either AC or DC power supply unit. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.
Solution for IPv6 Networking
With the support for IPv6/IPv4 protocol, and easy and user-friendly management interfaces, the XGS-6320 series is the best choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 edge network.
Layer 3 Routing Support
The XGS-6320 series enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.
The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.
Robust Layer2 Features
The XGS-6320 series can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer2/4 QoS, bandwidth control and IGMP/MLD snooping. It allows the operation of a high-speed trunk combining multiple ports. Supporting 8 trunk groups, it enables a maximum of up to 16 ports per trunk and supports connection fail-over as well.
Powerful Network Security
The XGS-6320 series offers comprehensive layer2 to layer4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.
Advanced IP Network Protection
The XGS-6320 series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.
For efficient management, the XGS-6320 series is equipped with console, Web and SNMP management interfaces.
- With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.
- For text-based management, it can be accessed via Telnet and the console port.
- For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.
Remote Management Solution
PLANET's Universal Network Management System (UNI-NMS) and CloudViewer app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer app, all kinds of businesses can now be speedily and efficiently managed from one platform.
Intelligent SFP Diagnosis Mechanism
The XGS-6320 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
SMTP/SNMP Trap Event Alert
Though most NVR or camera management software offers SMTP email alert function, the XGS-6320 series further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection.
|Copper Ports||8 10GBASE-T RJ45 auto negotiation ports (Ports 9 to 16)
Supports 10G/5G/2.5G/1G/100Mbps data rate
|SFP+ Slots||8 10GBASE-SR/LR SFP+ ports (Ports1 to 8)
Backward compatible with 100BASE-FX, 1000BASE-SX/LX/BX and 2500BASE-X SFP transceivers
|Console||1 x RJ45-to-DB9, RS232 serial port (115200, 8, N, 1)|
|Reset Button|| < 5 sec: System reboot
> 5 sec: Factory default
|Dimensions (W x D x H)||440 x 200 x 44.5mm, 1U height|
|Power Requirements - AC||100~240V AC, 50/60Hz, 2.1A max.|
|Power Requirement - DC||DC 36-60V, 2A|
|Power Consumption||AC Input:
System On: 22W
Full loading: 44W
System on: 25W
Full loading: 45W
|ESD Protection||6KV DC|
|Surge Protection||4KV DC|
|Fan||2 smart fans|
AC (Green), DC (Green), Ring (Green), Ring Owner (Green)
Per 10GBASE-T RJ45 ports:
100/1G/ LNK/ACT (Green)
10G LNK/ACT (Amber)
2.5G/5G LNK/ACT (Green and amber)
Per 10GBASE-X SFP+ ports:
100/1G/ LNK/ACT (Green)
10G LNK/ACT (Amber)
2.5G LNK/ACT (Green and amber)
|Throughput||238.1Mpps@ 64Bytes packet|
|Address Table||32K entries, automatic source address learning and aging|
|Shared Data Buffer||32Mbits|
|Flow Control||IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
|Layer 3 Functions|
|IP Interfaces||Max. 128 VLAN interfaces|
|Routing Table||Max. 512 static route entries
Max. 3072 routing table entries
|Routing Protocols||IPv4 RIPv2
IPv4 hardware static routing
IPv6 hardware static routing
|Layer 2 Functions|
|Port Configuration||Port disable/enable
Flow Control disable/enable
Port link capability control
|Port Status||Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status|
Supports up to 5 sessions
|VLAN||IEEE 802.1Q tag-based VLAN,
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MVR (Multicast VLAN Registration)
Up to 4K VLAN groups, out of 4094 VLAN IDs
|Spanning Tree Protocol||IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Supports 7 MSTP instances
BPDU Guard, BPDU filtering and BPDU transparent
|Link Aggregation||IEEE 802.3ad LACP (static trunk)
Supports 8 trunk groups with 16 ports per trunk
|IGMP Snooping||IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
|MLD Snooping||IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
|Bandwidth Control||Per port bandwidth control
|Ring||Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time <50ms @ 16 nodes
Supports Major ring and sub-ring
|QoS||Traffic classification based, strict priority and WRR
8-level priority for switching
802.1Q VLAN tag
DSCP/TOS field in IP packet
|Access Control List||IP-based ACL/MAC-based ACL
ACL based on:
Up to 512 entries
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries
|Network Access Control||IEEE 802.1x port-based network access control
|Basic Management Interfaces||Console;Telnet; Web browser; SNMP v1, v2c|
|Secure Management Interfaces||SSHv2, TLSv1.2, SNMPv3|
|System Management||Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
PLANET Smart Discovery Utility
PLANET CloudViewer app
|Event Management||Remote Syslog
|SNMP MIBs||RFC1213 MIB-II
RFC 2863 IF-MIB
RFC1643 Ethernet MIB
RFC2863 Interface MIB
RFC2665 Ether-Like MIB
RFC2737 Entity MIB
RFC2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC2618 RADIUS Client MIB
|Regulatory Compliance||FCC Part 15 Class A, CE|
|Standards Compliance||IEEE802.3 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3ae 10Gb/s Ethernet
IEEE802.3x flow control and back pressure
IEEE802.3ad port trunk with LACP
IEEE802.1D Spanning Tree Protocol
IEEE802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE802.1p Class of Service
IEEE802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 5340 OSPF v3
RFC 2453 RIP v2
|Operating||Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|Storage||Temperature: -10 ~ 70degrees C
Relative Humidity:5 ~ 95% (non-condensing)
