10Gbps Fiber Ports and Multiple Triple Speed Fiber Ports Deliver High-speed Networking

PLANET MGSW-28240F L3 24-Port 100/1000BASE-X SFP + 4-Port 10G SFP+ Metro Ethernet Switch is specially designed for service providers and enterprises to deliver high-speed networking over longer distances. Its SFP+ and SFP fiber optic ports can be connected to various fiber and Ethernet cables to extend switching functionality throughout the network.  The MGSW-28240F is capable of providing non-blocking switch fabric and wire-speed throughput as high as 158Gbps in the temperature range from -10 to 60 degrees C without any packet loss and cyclic redundancy check (CRC) error. It greatly simplifies the tasks of upgrading the enterprise LAN for catering to increasing bandwidth demands.

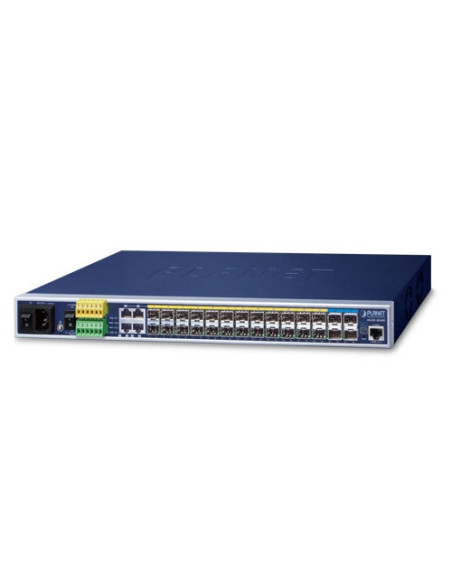

MGSW-28240F - PLANET L3 14-Port 100/1G SFP with 4 shared 10/100/1000T + 10-Port 1G/2.5G SFP + 4-Port 10G SFP+ Metro Ethernet Switch

Flexible and Extendable Fiber Optic Ethernet Solution

10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ ports in the MGSW-28240F supports triple speed, 10GBASE-SR/LR, 2500BASE-X and 1000BASE-SX/LX SFP transceiver modules. With its 4-port, 10Gbps and up to 24-port 1Gbps/2.5Gbps fiber optic Ethernet link capability, the administrator now can flexibly choose the suitable SFP and SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The MGSW-28240F provides broad bandwidth and powerful processing capacity.


Front-access Interface Design

The Metro Ethernet Switch comes with a user-friendly front-access design to help technicians improve wiring and installation efficiency, whereas, in the traditional design, the power socket, console port and even some extension module were always placed on the rear of the product. When technicians are installing or maintaining the older switch model on the rack, they have to be careful with other surrounding online devices as the rear-end of the product cannot be seen clearly. With the front-access design, technicians can avoid messing with other nearby devices.


Layer 3 Routing Support

The MGSW-28240F enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the IPv4 OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.


Network with Cybersecurity Helps Minimize Security Risks

The MGSW-28240F comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks, it supports SSHv2, TLSv1.2 and SNMPv3 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the MGSW-28240F protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.


Redundant Ring, Fast Recovery for Critical Network Applications

The MGSW-28240F supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain, simple Ring network, the recovery time of data link can be as fast as 10ms.


AC and DC Redundant Power to Ensure Continuous Operation

The MGSW-28240F possesses a 100~240V AC power supply and dual 36~60V DC power supply utilized as redundant power supply to ensure its continuous operation. Its redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. Furthermore, with the 36~60V DC power supply implemented, the MGSW-28240F can be applied as the telecom level device and placed in almost any difficult environment.

Digital Input and Digital Output for External Alarm

The MGSW-28240F helps the network administrators efficiently manage the unexpected network situations by providing Digital Input and Digital Output for external alarm device on the front panel. The Digital Input can be used to detect and log the status of the external devices such as door intrusion detector. The Digital Output could be used to send alarm whenever the MGSW-28240F has port link-down or power failure.



IPv6/IPv4 Dual Stack and Layer 2 Capability

Supporting both IPv6 and IPv4 protocols, the MGSW-28240F helps data centers, campuses, telecoms, and more to experience the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.  The MGSW-28240F can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP/MLD Snooping. Via the link aggregation of supporting ports, the MGSW-28240F allows the operation of a high-speed trunk to combine with multiple fiber ports and supports fail-over as well.



Powerful Network Security

The MGSW-28240F offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based and MAC-based user, and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.


Advanced IP Network Protection

The MGSW-28240F also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.


Excellent Traffic Control

The MGSW-28240F is loaded with powerful traffic management and QoS features to enhance connection services by telecoms and ISPs. The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limit that are particularly useful for multi-tenant units, multi-business units, Telco and network service providers’ applications. It also empowers the industrial environment to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.


User-friendly and Efficient Switch Management

For efficient management, the MGSW-28240F is equipped with command line, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port. It offers Cisco-like command that helps users don’t need to learn new command from these switches
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Moreover, the MGSW-28240F offers secure remote management by supporting SSHv2, TLSv1.2 and SNMPv3 connections which encrypt the packet content at each session.




Intelligent SFP Diagnosis Mechanism

The MGSW-28240F supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Excellent Solution to Core/Department Network

The MGSW-28240F is an excellent choice of core layer switch for a Gigabit network. With multi-Gigabit ports, the MGSW-28240F is able to connect up to 24 edge switches in the Ethernet environment. Moreover, it also provides 158 Gigabit per second switch fabric and high bandwidth for backbone connection.

Hardware Specifications
Copper Ports 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-4
SFP Ports 14 100/1000BASE-X SFP interfaces (Port-1 to Port-14)
Compatible with 100BASE-FX SFP transceiver
10 100/1000/2500BASE-X SFP interfaces (Port-15 to Port-24)
Compatible with 100BASE-FX and 2500BASE-X SFP transceiver
SFP+ Ports 4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver
Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H) 440 x 200 x 44.5 mm, 1U height
Weight 2.935kg
Power Consumption AC input: Max. 36.5 watts/125.2 BTU
DC input: Max. 38.7 watts/132.7 BTU
Power Requirements – AC AC 100~240V, 50/60Hz 1A
Power Requirements – DC DC 36~60V, 1.2A
DI and DO 2 digital input (DI):
Level 0: -24~2.1V
Level 1: 2.1~24V
Max. input current: 10mA
2 digital output (DO): Open collector to 24VDC, 100mA
EFT Protection 6KV DC
ESD Protection 6KV DC
LED Indicator System:
 PWR (Green), DC1 (Green), DC2 (Green), Fault (Red)
 Ring (Green), R.O. (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 4):
 1000Mbps LNK/ACT (Green)
 10/100Mbps LNK/ACT (Amber)
100/1Gbps SFP Combo Interfaces (Port 1 to Port 14):
 1000Mbps LNK/ACT (Green)
 100Mbps LNK/ACT (Amber)
100/1G/2.5Gbps SFP Combo Interfaces (Port 15 to Port 24):
 1G/2.5Gbps LNK/ACT (Green)
 100Mbps LNK/ACT (Amber)
1G/2.5G/10Gbps SFP+ Interfaces (Port 25 to Port 28):
 10Gbps LNK/ACT (Green)
 1G/2.5Gbps LNK/ACT (Amber)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 158Gbps/non-blocking
Throughput 117Mpps@64Bytes
Address Table 32K entries, automatic source address learning and aging
Shared Data Buffer 32M bits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10K bytes
Layer 3 Functions
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 128 routing entries
Routing Protocols IPv4 hardware static routing
IPv6 hardware static routing
OSPFv2 dynamic routing
Layer 2 Management Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port Status Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
VLAN IEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 4K VLAN groups, out of 4096 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
14 trunk groups with 16 ports per trunk group
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
QoS Traffic classification based, strict priority and WRR
8-level priority for switching:
 Port number
 802.1p priority
 802.1Q VLAN tag
 DSCP/ToS field in IP packet
IGMP Snooping IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD Snooping MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Bandwidth Control Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
Ring Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms
Synchronization IEEE 1588v2 PTP (Precision Time Protocol)
 Peer-to-peer transparent clock
 End-to-end transparent clock
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
 MAC Address
 IP Address
 Protocol Type
 802.1p Priority
Up to 256 entries
Security Port security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Switch Management
Basic Management Interfaces Local console and Telnet
Web browser
SNMP v1, v2c
Secure Management Interfaces SSHv2
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote syslog
System log
LLDP protocol
PLANET Smart Discovery Utility
PLANET NMS-500 and NMS-1000V hardware-based controller
PLANET CloudViewer app
Event Management Remote syslog
Local system log
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 791 IP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 2328 OSPF v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU G.8032 Ethernet Ring Protection Switching
Operating Temperature: -10 ~ 60 degrees C for AC power input
       -40 ~ 75 degrees C for DC power input
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
