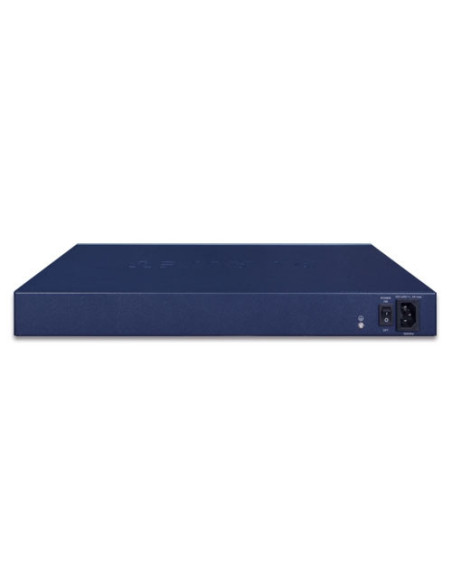

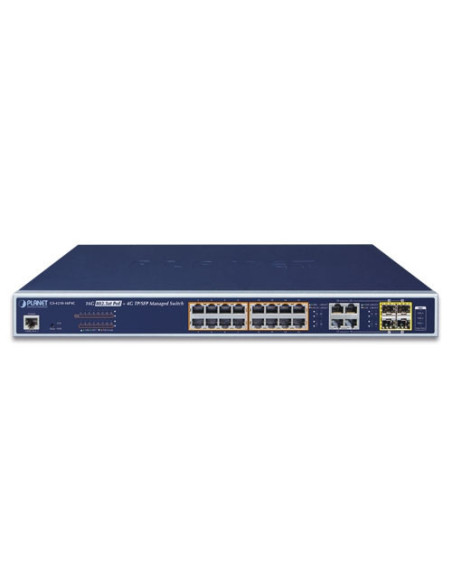

PLANET GS-4210-16P4C 16-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP Combo Managed Switch
GS-4210-16P4C 16-Port 802.3at PoE + 4-Port SFP
A Perfect Managed PoE+ Switch with Advanced L2/L4 Switching and Security
The GS-4210-16P4C is s a cost-optimized, Gigabit PoE+ Managed Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 16 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 4 additional Gigabit TP/SFP combo ports. With a total power budget of up to 220 watts for different kinds of PoE applications, the GS-4210-16P4C provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.
GS-4210-16P4C - PLANET 16-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP Combo Managed Switch
Cybersecurity Network Solution to Minimize Security Risks
The GS-4210-16P4C supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.
Redundant Ring, Fast Recovery for Critical Network Applications
The GS-4210-16P4C supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.
Built-in Unique PoE Functions for Powered Devices Management
As it is the managed PoE switch for surveillance, wireless and VoIP networks, the GS-4210-16P4C features the following special PoE management functions:
- PD Alive Check
- Scheduled Power Recycling
- PoE Schedule
- PoE Usage Monitoring
- PoE Extension
Intelligent Powered Device Alive-Check
The GS-4210-16P4C can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-4210-16P4C will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing the administrator’s management burden.
Scheduled Power Recycling
The GS-4210-16P4C allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.
PoE Schedule for Energy Savings
Under the trend of energy savings worldwide and contributing to environmental protection, the GS-4210-16P4C can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.
PoE Usage Monitoring
Via the power usage chart in the web management interface, the GS-4210-16P4C enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.
802.3at PoE+ Power and Ethernet Data Transmission Distance Extension
In the “Extend” operation mode, the GS-4210-16P4C operates on a per-port basis at 10Mbps duplex operation but can support 36-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GS-4210-16P4C provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.
Environmentally-friendly, Smart Fan Design for Silent Operation
The GS-4210-16P4C features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-4210-16P4C is able to operate reliably, stably and quietly in any environment without affecting its performance.
IPv6/IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the GS-4210-16P4C helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.
Robust Layer 2 Features
The GS-4210-16P4C can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-16P4C allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.
Efficient Traffic Control
The GS-4210-16P4C is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast / multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.
PLANET GS-4210-16P4C offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS and TACACS+ to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port.
Friendly and Secure Management
For efficient management, the GS-4210-16P4C is equipped with web, Telnet and SNMP management interfaces.
- With the built-in Web-based management interface, the GS-4210-16P4C offers an easy-to-use, platform-independent management and configuration facility.
- For text-based management, the switch can be accessed via Telnet and the console port.
- By supporting the standard SNMP, the switch can be managed via any standard management software
Moreover, the GS-4210-16P4C offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.
Flexibility and Long-distance Extension Solution
The GS-4210-16P4C provides 4 extra Gigabit TP interfaces supporting 10/100/1000BASE-T RJ45 copper to connect with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. Or through these dual-speed fiber SFP slots, it can also connect with the 100BASE-FX/1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
Intelligent SFP Diagnosis Mechanism
The GS-4210-16P4C supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
High Scalability and Best Security for Today’s IP Networking and Cyber Security Solution
The GS-4210-16P4C comes with non-blocking design and SFP fiber-optic modules, bringing network infrastructure higher flexibility but lower in cost. Providing sixteen 10/100/1000BASE-T PoE ports and four Gigabit TP/SFP combo ports, the GS-4210-16P4C can easily build a networking security on the cyber security system for the enterprises. For instance, it can work with the router and UTM to perform comprehensive security for today’s businesses.
ITU-T G.8032 ERPS with PoE IP Surveillance System for SMBs/Workgroups
The GS-4210-16P4C features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the GS-4210-16P4C can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The GS-4210-16P4C can easily build a power that can centrally control a wireless AP/IP camera/VoIP system for SMBs and workgroups in the enterprises with high availability network infrastructure.
|Copper Ports||20 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports|
|SFP/mini-GBIC Slots||4 x 100/1000BASE-X SFP interfaces with Port-17 to Port-20.
Supports 100/1000Mbps dual mode and DDM
|PoE Injector Port||16 ports with 802.3at/af PoE injector function with Port-1 to Port-16|
|Console||1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)|
|Reset Button||< 5 sec: System reboot
> 5 sec: Factory default
|Dimensions (W x D x H)||440 x 300 x 44.5 mm, 19-inch, 1U height|
|ESD Protection||Contact Discharge 4KV DC
Air Discharge 8KV DC
|Power Requirements||AC 100~240V, 50/60Hz, auto-sensing|
|Power Consumption / Dissipation||288 watts (max.)/982 BTU|
|Fan||3 smart fans|
SYS x1 (Green)
Per PoE Port (Port 1 to Port 16):
LNK/ACT x1 (Green)
PoE-in-use x1 (Orange)
Per Gigabit RJ45 Port (Port 17 to Port 20):
1000 LNK/ACT x1 (Green)
10/100 LNK/ACT x1 (Orange)
Per Gigabit SFP Port (Port 17 to Port 20):
1000 LNK/ACT x1 (Green)
100 LNK/ACT x1 (Orange)
|Address Table||8K entries|
|Shared Data Buffer||4.1 megabits|
|Flow Control||IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
|Jumbo Frame||10K bytes|
|Power over Ethernet|
|PoE Standard||IEEE 802.3af/802.3at PoE/PSE|
|PoE Power Supply Type||End-span|
|PoE Power Output||Per Port 54V DC, 36 watts (max.)|
|Power Pin Assignment||1/2(+), 3/6(-)|
|PoE Power Budget||220 watts (max.) @ 25 degrees C
190 watts (max.) @ 50 degrees C
|Number of 802.3af PDs||16 units|
|Number of 802.3at PDs||8 units|
|PoE Management||PD Alive Check
Scheduled Power Recycling
PoE Usage Monitoring
|Layer 2 Functions|
Up to 4 sessions
|VLAN||802.1Q tag-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Private VLAN (Protected port)
|Link Aggregation||IEEE 802.3ad LACP/Static Trunk
Supports 2 trunk groups with 4 ports per trunk
|Spanning Tree Protocol||STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
|IGMP Snooping||IPv4 IGMP (v2/v3) Snooping
IPv4 IGMP Querier
Up to 256 multicast groups
|MLD Snooping||IPv6 MLD (v1/v2) Snooping, up to 256 multicast groups|
|QoS||8 mapping ID to 8 level priority queues
802.1Q VLAN tag
DSCP field in IP packet
Traffic classification based, strict priority and WRR
|Ring||Supports ERPS, and complies with ITU-T G.8032|
|Access Control List||IPv4/IPv6 IP-based ACL/MAC-based ACL|
|Port Security||IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
|MAC Security||IP-MAC port binding
Static MAC address
|Enhanced Security||DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
IP source guard
|Basic Management Interfaces||RS232 to RJ45 Console
SNMP v1, v2c
|Secure Management Interfaces||SSHv2, TLS v1.2, SNMPv3|
|System Management||Firmware upgrade by HTTP/TFTP protocol through Ethernet network
PLANET Smart Discovery Utility
PLANET NMS System
|SNMP MIBs||RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB
|Regulatory Compliance||FCC Part 15 Class A, CE|
|Standards Compliance||IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring
|Operating||Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|Storage||Temperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
