TP-SW5G-VERSABT 5 Port Gigabit Versatile Output PoE Switch 1x(90W) bt 3x(30W) at 1x(12W) 24V PoE

Last items in stock
Tax included


Tycon Gigabit PoE Switch with 44-58V WireTerm In, 1 90W 4pair High PoE. 3 802.3at. 1 24V 12W passive PoE ports. Pinout 4pr:1,2,4,5V+;3,6,7,8V-, 2pr:4,5V+;7,8V-, Shield/Surge, DIN Mount


TP-SW5G-VERSABT 5 Port Gigabit Versatile Output PoE Switch 1x(90W) bt 3x(30W) at 1x(12W) 24V PoE

The Tycon Systems TP-SW5G-VERSABT Power over Ethernet (PoE) 5 Port Gigabit switch offered by Tycon® is a fully automatic high speed Layer 2 Ethernet switches with multiple function ports. Port 1 is a 90W 4pair 802.3bt PoE port; Port 2,3,4 are 48V 30W 802.3at compatible ports; Port 5 is a 24V 12W Passive PoE port. This allows a customer to power up multiple PoE devices with different power requirements. The switch requires a 44-57VDC (4A) power input.

The units are compatible with Category 5 or higher Ethernet cables. The RJ45 connectors are shielded and grounded to the common “FG” (Frame Ground) connection. The units have 15kV surge protection on all Ethernet wires and are conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial applications.


  • One (90W) 802.3bt PoE, Three (30W) 802.3at PoE and one (12W) 24V Passive PoE port
  • Gigabit Compatible
  • Built-in Surge Protection
  • Automatic MDI/MDI-X Crossover
  • Automatic Speed and Duplex Sensing
  • Low Self Power and High Temperature Operation

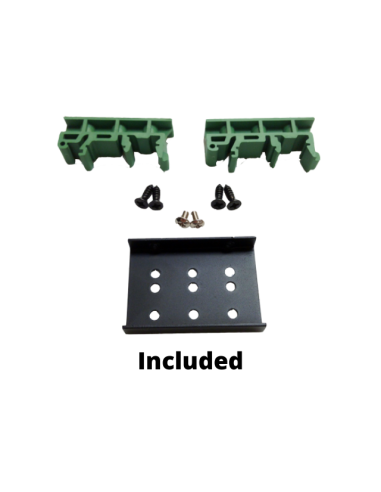

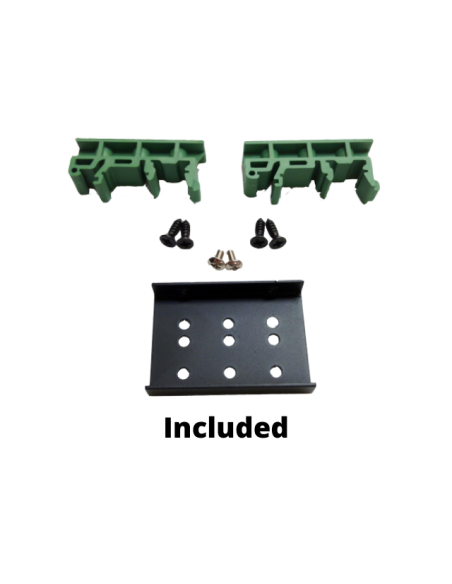

  • DIN Rail Adapters included


  • Power different PoE devices from a single 48V supply
  • Cameras and Wireless Radios
  • PoE Lighting Applications




Port 1: 90W 4Pair 801.3bt PoE ;  1,2,4,5( V+), 3,6,7,8 (V-)

Port 2,3,4: 48V 30W 802.3at Mode B

Port 5: 24V 12W Passive PoE ; 4,5 (V+), 7,8 (V-)

Transmission Speed

1000 Mbps (Gigabit) / 100 Mbps /10 Mbps Auto-negotiation


Shielded RJ45, Grounded to FG connection

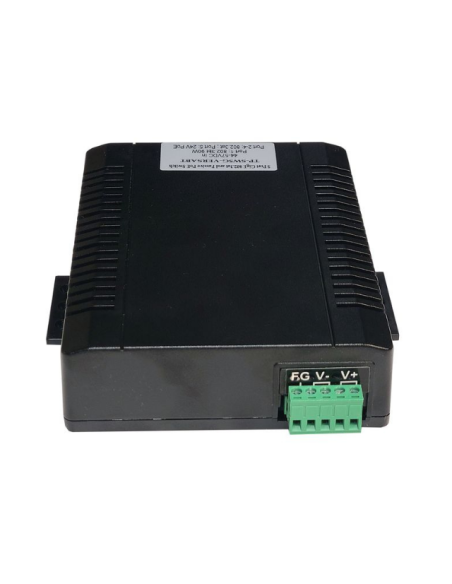

Vin 44VDC to 57VDC on Wire Terminal


Right Hand LED: Gigabit Link  (Green On),  Activity  (Green Blinking)

10/100Mb/s Link  (Yellow On),  Activity  (Yellow Blinking)

Left Hand LEDPoE Power ON  (Yellow On)

PoE Protections

Over Temperature, Over Current, Short Circuit

Surge Protection

IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

IEC61000-4-4 (EFT) 40A (5/50ns)

Self Consumption

< 3 Watt Typical

Switch Technology

Store and Forward



Flow Control

IEEE802.3x(full-duplex), Back Pressure(half-duplex)

Data Transmission Rate

1488000pps , 148800pps, 14880pps

Address Table

1K MAC, self-learning

Operating Temp

-30 to +70°C   (-22 to 158°F)

Operating Humidity (RH)

5% - 90% (non condensing)

Storage Temperature

-40 to +85°C  (-40 to +185°F)

Dimensions (LxWxH)

159 x 118 x 40mm (6.3 x 4.6 x 1.6”)


318g (11oz)

Device Type
Network Switch
Power Over Ethernet
POE Ports
Power Input
Power Over Ethernet
24V Passive PoE
48V 30W 802.3at
48V 60W 802.3at
Ethernet Ports
