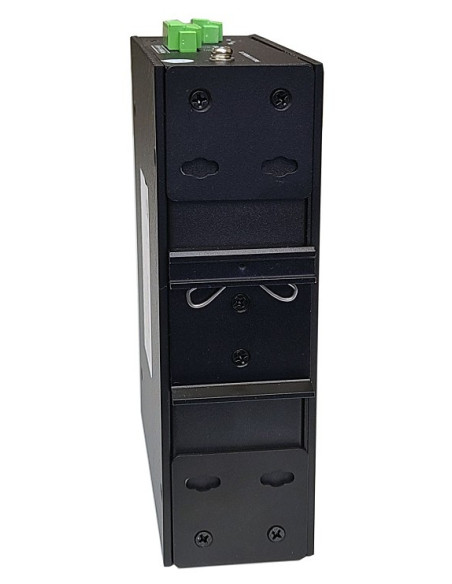

TP-SW8GAT/24-SFP Managed Gigabit 8 Port PoE Switch with AT-24V-SFP Ports

TP-SW8GAT/24-SFP

Ports

Ports 1-8:Configurable as 802.3af/at or 24V Passive PoE, 30W

Ports 9-10:SFP Fiber Transceivers

Console Port (38400 Baud, 8 Bit, N parity, 1 stop bit, N flow control)

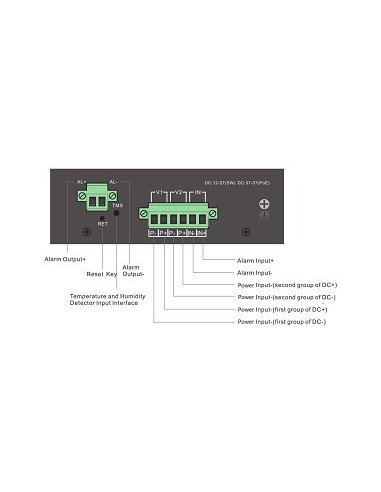

Alarm Input (5-57VDC 0.5mA)

Alarm Relay Output (up to 60V 3A Switching)

Temperature/Humidity Probe Input

Ethernet Transmission Speed

1000 Mbps (Gigabit) / 100 Mbps /10 Mbps Auto-negotiation

Fiber Transceiver Compatibility

1GMulti Mode or Single Mode

Connections

Shielded RJ45, Shielded SFP/LC, Grounded to Case

Power Input

Vin 37VDC to 57VDC on Dual Input Wire Terminal (Max wire size 12AWG)

Self Consumption

< 3 watts typical

LED’s – Normal State

PoE Port 1-8:(Green=48V; Orange=24V)

Port 9-10: (SFP LED)

Link port:(Green=Link LED)

PWR:( Power/system LED),Flashing means Normal Power

V1: (Master power LED)

V2: (Slave power LED)

HW:(Ring network ON LED)

PoE Protections

Over Voltage, Over Current, Short Circuit

PoE Pinout

802.3af/at Ports = 1/2 V+ ; 3/6 V-

24V Passive PoE = 4/5 V+ ; 7/8 V-

Surge Protection

6KV Normal Mode, 2KV Differential Mode

ESD Protection

15KV Air, 8KV Touch

Management Methods

WEB, CLI, TELNET, SSH, SNMP

VLANS

Supports up to 4094 active VLANs simultaneously (out of 4096 VLAN IDs);

Port-based VLAN; 802.1Q tag-based VLAN; 802.1ad Q-in-Q Tunneling, Private Vlan (Protected Port), GARP/GVRP

Port Management

PoE enable/disable, PoE Mode control, Soft Re-boot PoE Port, Total PoE Power budget control, PoE Port priority, PoE port power limitation, PD Classification Detect, PD alive check, PoE scheduling

STP

Standard Spanning Tree (STP) 802.1d,Rapid Spanning Tree (RSTP) 802.1w

Multiple Spanning Tree (MSTP) 802.1s

Loop guard, TC-BPDU Guard, BPDU Guard, BPDU Filter

Ring Network Protocol

ERPS (Ethernet Ring Protection Switching), <20ms G.8032 ERPS Ring

Link Aggregation

Static/Manual Aggregation, LACP Dynamic Convergence, Algorithm based on source/destination IP or MAC

IGMP v1/v2/v3 snooping

IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups, MLD snooping, Multicast VLAN

MAC Management

Add/Delete, MAC Address learning limit, Dynamic Aging Time Setting

Layer 3 Switching Functions

Virtual VLAN Interface, ARP, Static Router

ACL (Access Control List)

Based on source MAC, destination MAC, prototcol type, source IP, destination IP, L4 port number.

Supports time-range time management.

QOS (Quality of Service)

802.1p(COS), DSCP Classification, Source IP/Destination IP/Port Number Classification.

Supports SP/WRR/DRR Scheduling Strategy and Traffic Speed Limit (CAR).

Anti-Attack Support

DOS Defense,CPU Protection, limit message send rate

ARP Binding (IP, MAC, PORT)

Other Functions

LLDP, Add/Delete Users, Log user login/operation/status/events, Port security (Dying Gasp/SNMP Trap), Device Reset, Configuration save/restore, NTP time setting, Upgrade Management.

Jumbo Frame Support

9216 Bytes

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88Mpps @ 64 Bytes

Forwarding Mode

Store and Forward

Package Cache

4.1M

RAM / Flash

1 Gb / 128MB

Address Table

8K MAC, self-learning

Network Protocols and Standards Summary

IEEE 802.3i 10BASET, 802.3u 100BASET, 802.3z 1000BASET

802.3x Flow Control

802.3ab Gigabit Media Independent Interface (GMII)

802.1q VLANs,802.1p (QOS)

802.3ad Link Aggregation Control Protocol (LACP)

802.3af /at (PoE)

IEEE G.8032 Ethernet ring protection (<20ms)

(STP) 802.1d,(RSTP) 802.1w, (MSTP) 802.1s

Other Industry Standards

EMI: FCC Part 15, CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT), EN-61000-4-5 (Surge)

Shock: IEC 60068-2-27, Free Fall: IEC 60068-2-32, Vibration: IEC 60068-2-6

Environmental Protection

IP40

Operating Temp

-40 to +75°C(-40 to 167°F)

Operating Humidity (RH)

5% - 95% (non condensing)

Storage Temperature

-40 to +85°C(-40 to +185°F)

MTBF

50,000 hours

Certifications

CE, FCC, RoHS

Dimensions (LxWxH)

165*145*53.5(mm) (6.5 x 5.7 x 2.1”)

Weight

0.9kg (2lb)
