ASRock Rack 1U12E-GENOA/2L2T 1U Rackmount Storage Server Barebone AMD Single Socket SP5 AMD EPYC 9004 12xNVMe 2x10GbE 2x1GbE

1U12E-GENOA/2L2T
Last items in stock
$5,498.90
Tax included

1U12E-GENOA/2L2T

  • 1U Rackmount with 1+1, 80-PLUS Platinum, 1000W Slim PSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
  • 24 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
  • 2 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote Management (IPMI)

Related Products & Accessories



1U12E-GENOA/2L2T - ASRock Rack 1U Rackmount Storage Server Barebone AMD Single Socket SP5 AMD EPYC 9004 12xNVMe 2x10GbE 2x1GbE

Specifications

 System
Form Factor 1U Rackmount
Dimensions 676.5 x 438 x 43.4 mm (26.6'' x 17.2'' x 1.7'')
Support MB GENOAD24QM3-2L2T/BCM
 Front Panel
Buttons Power, Reset, ID buttons
LEDs Power, LAN 1/2, System Event, ID LEDs
I/O Ports 1 Type-A (USB3.2 Gen1)
 External Drive Bay / Storage
Front Side Drive Bay 12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
Front Side Backplane 12-port NVMe/SATA/SAS* passive backplanes *SAS drive is only supported with additional RAID/HBA cards
Internal Side 2 M-key (PCIe5.0 x4); support 22110/2280/2260 form factor
 Power Supply
Type 1+1 Slim PSU
Output Watts 1000W
Efficiency 80-PLUS Platinum
AC Input 100-240V, 60/50Hz
 System Fan
Fan 6 PWM hot-swap 40 x 56 mm fans
 Processor System
CPU Supports AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
Socket Single Socket SP5 (LGA 6096)
Thermal Design Power Up to 300W
Chipset System on Chip
 System Memory
Supported DIMM Quantity 24 DIMM slots (2DPC)
Supported Type Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM RDIMM: 96GB (2R)
RDIMM-3DS: 512GB (2S8Rx4)
Max. DIMM Frequency RDIMM: 4800 MHz (1DPC)
RDIMM 1R: 4000 MHz (2DPC)
RDIMM 2R: 3600 MHz (2DPC)
RDIMM-3DS: 4800 MHz (1DPC); 3600 MHz (2DPC)
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 Rear: 2 FHHL PCIe5.0 x16
 Ethernet
Additional GbE Controller Broadcom BCM57416: 2 RJ45 (10GbE)
Intel® i210: 2 RJ45 (1GbE)
OCP slot 1 OCP NIC 3.0 (PCIe5.0 x16)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600
VRAM DDR4 512MB

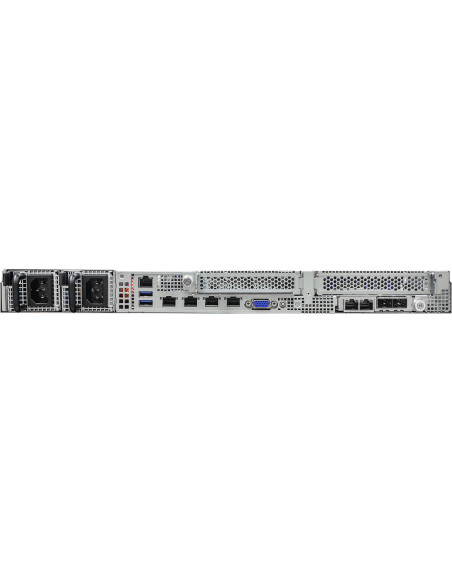

 Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
2 RJ45 (1GbE)
1 dedicated IPMI
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature CPU, MB, Card side, TR1 Temperature sensing
Fan Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage VDDCR_CPU,VDDCR_SOC, VDDIO, VDD_18_S5, VDD_33_S5, VDD_11_S3, +3V, +5V, +12V, +BAT, +1V8SB, 3VSB, 5VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)

Form Factor
1U
Ethernet Ports
2 Ports 10/100
2 Ports 10/100/1000
