| System | |
|---|---|

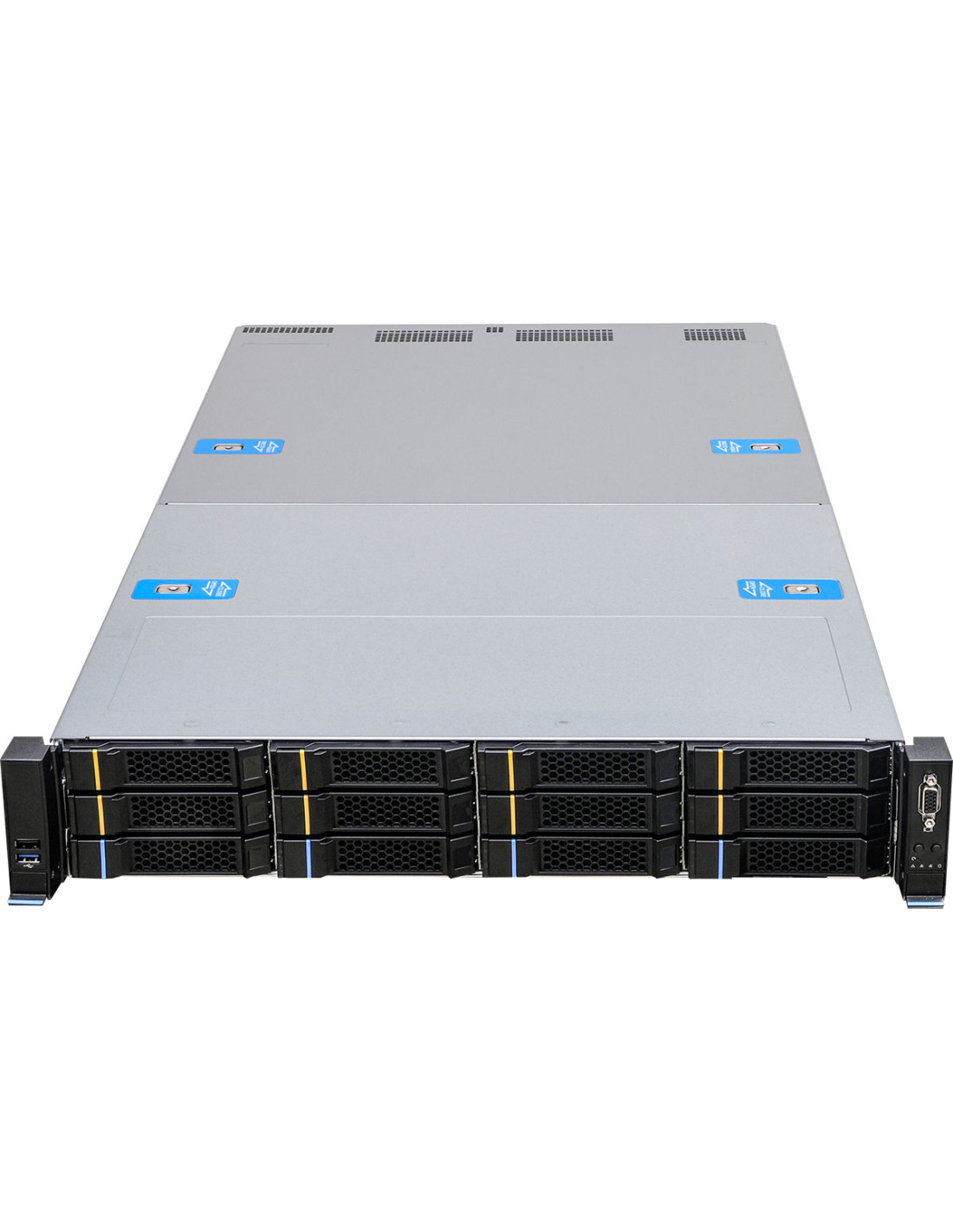

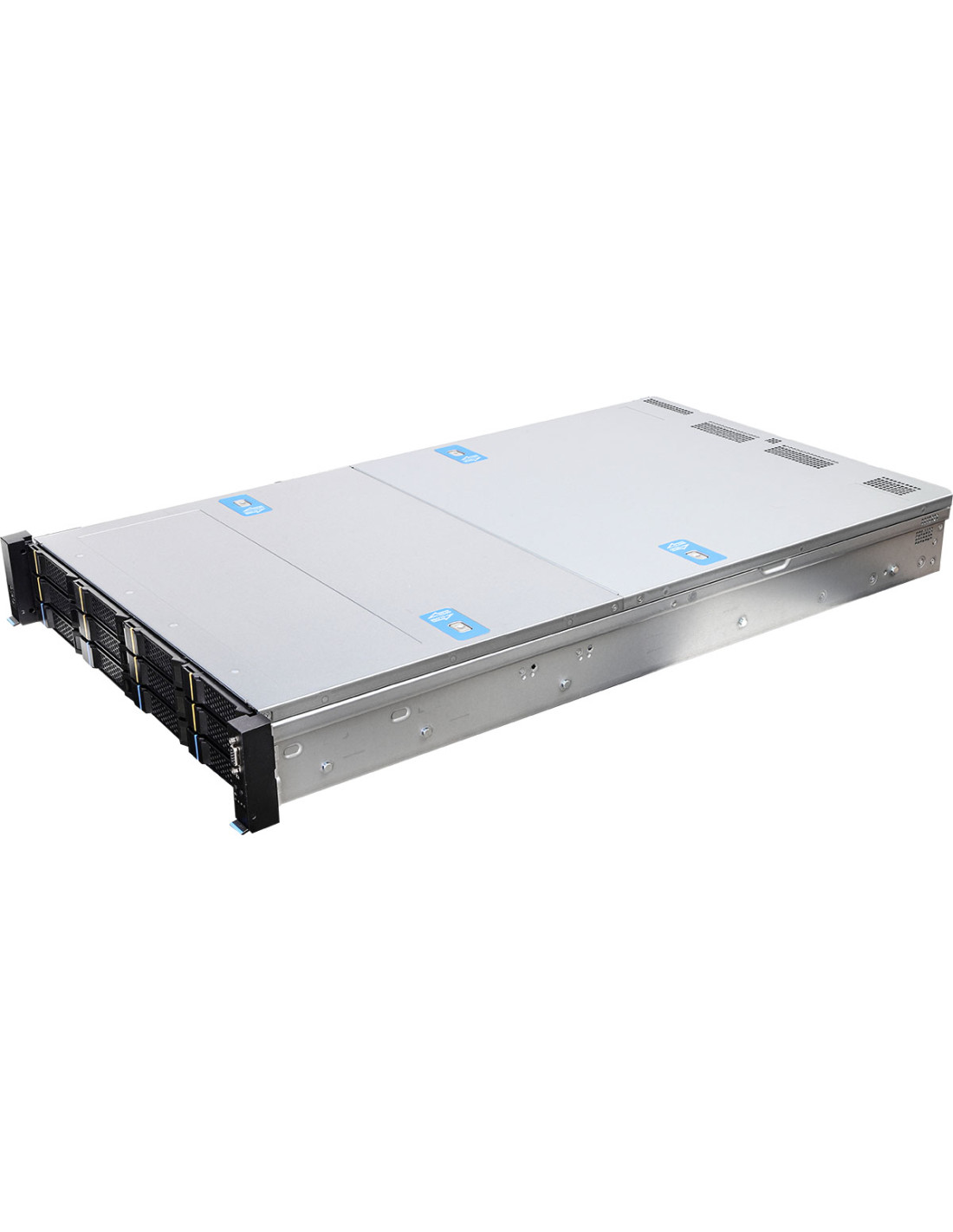

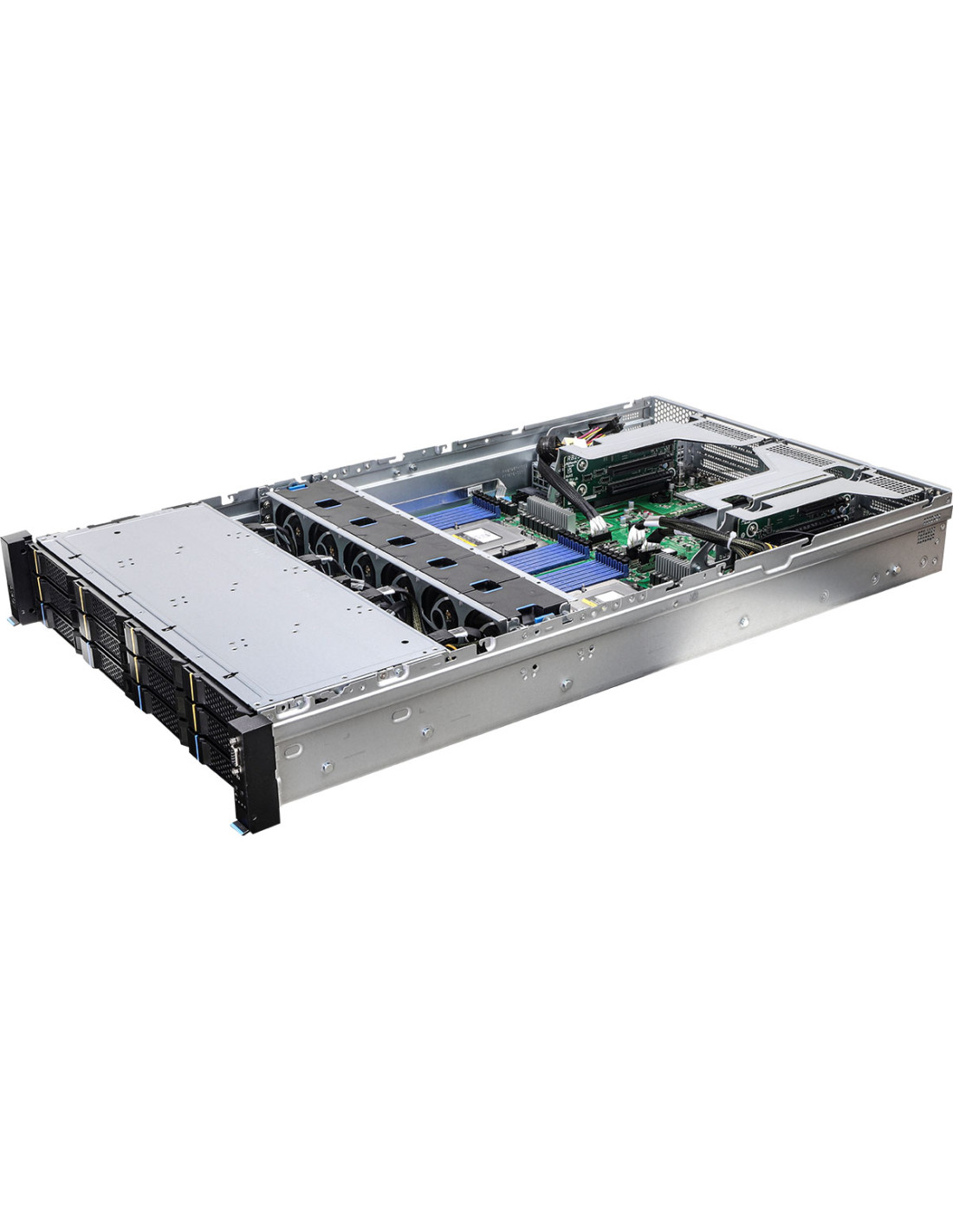

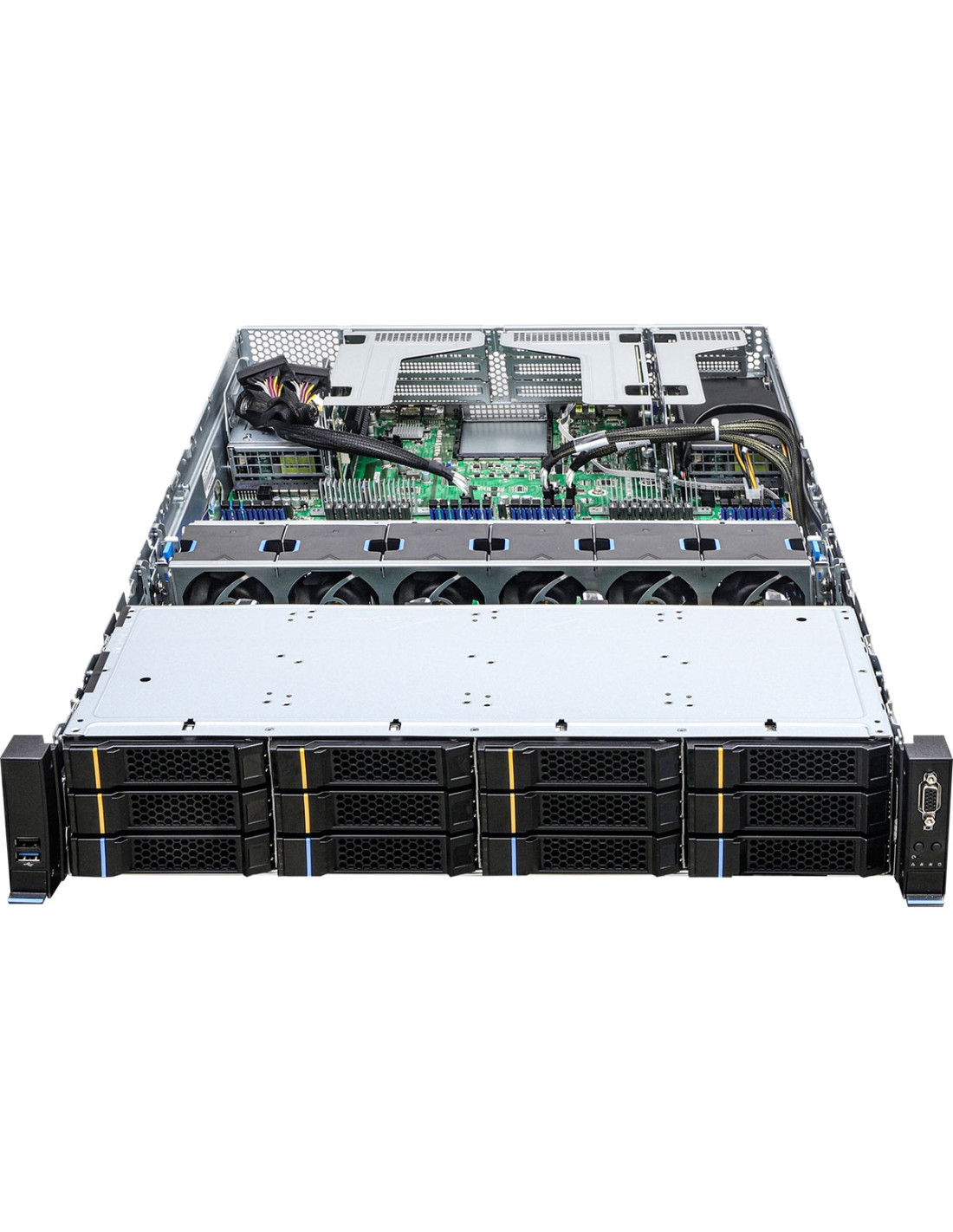

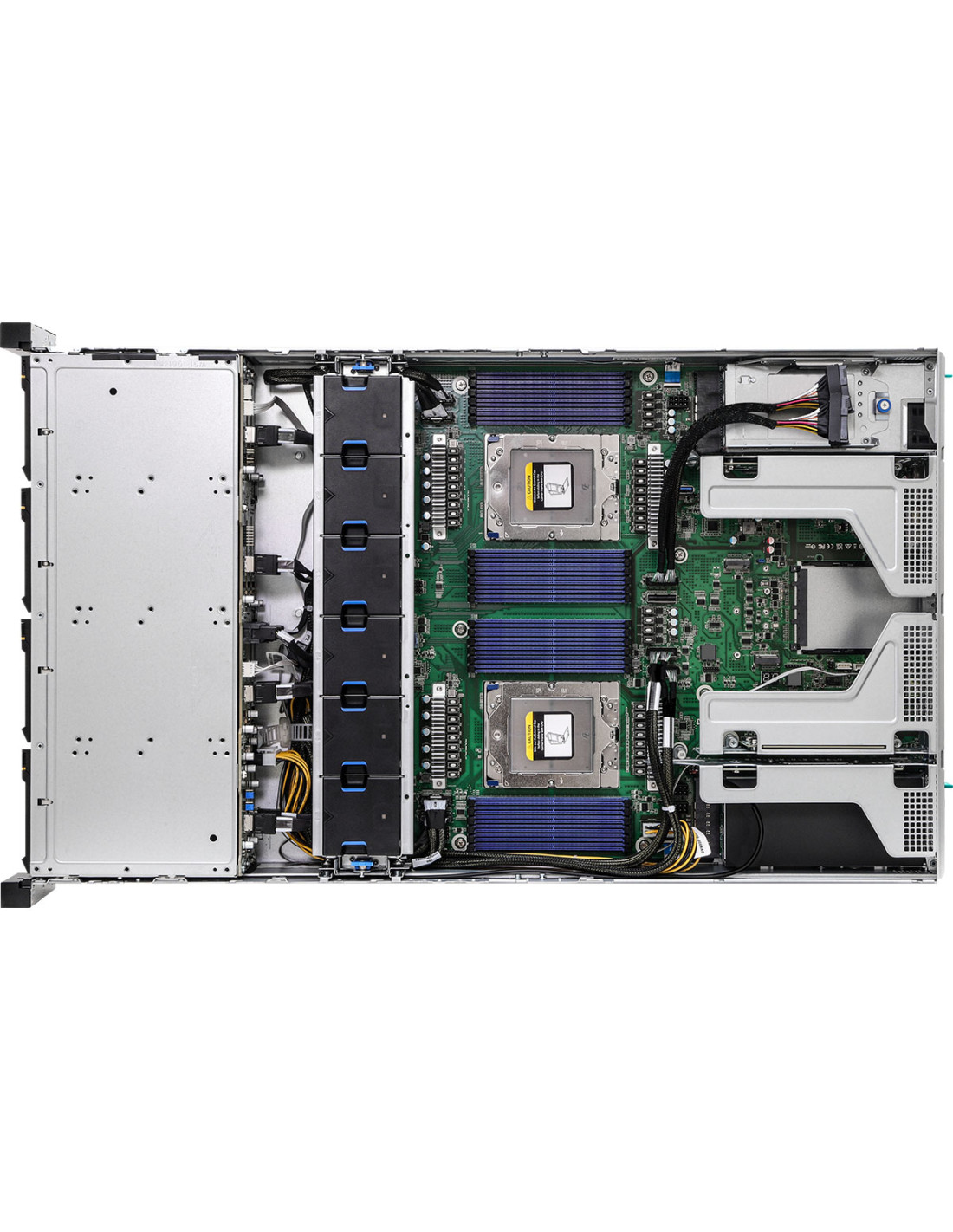

| Form Factor | 2U Rackmount |
| Dimensions | 770.0 X 438.0 X 86.4 mm (30.3'' x 17.2'' x 3.4'') |
| Support MB | GENOA2D24TM3-2L+/2U |

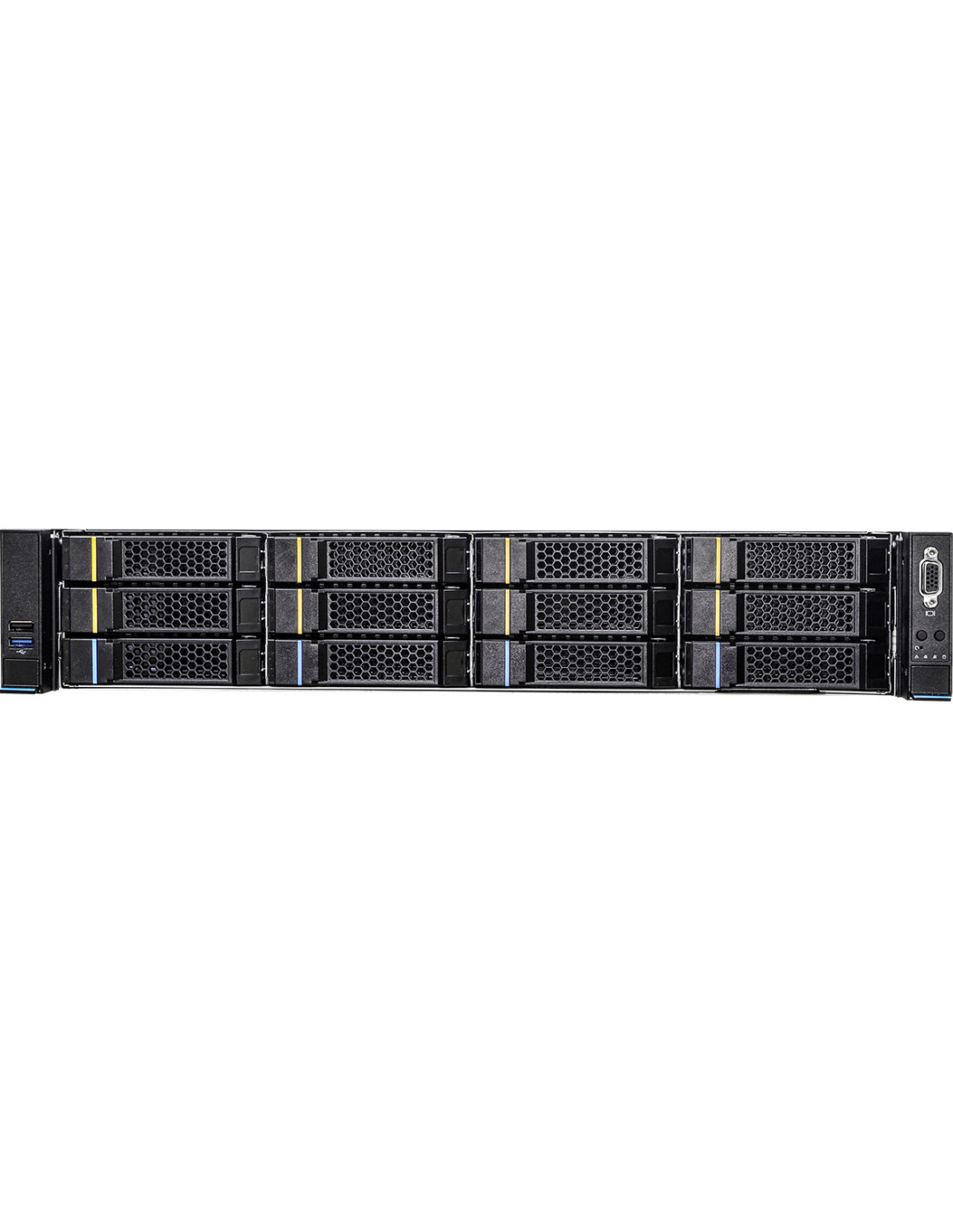

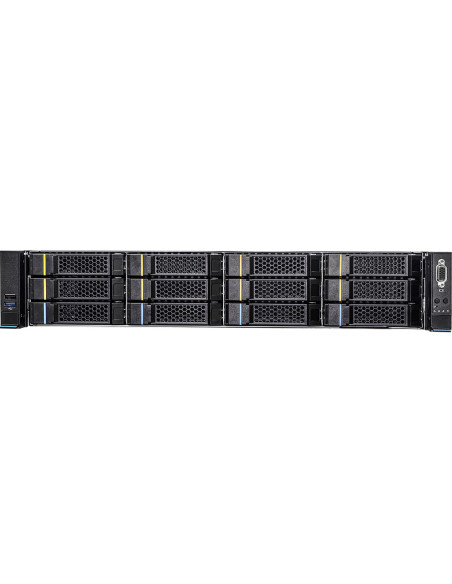

| Front Panel | |
| Buttons | Power, Reset, UID |
| LEDs | Power, LAN 1/2, HDD Activity, System status |
| I/O Ports | 1 Type-A (USB3.2 Gen1), 1 Type-A (USB2.0), 1 DB15 (VGA) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 8 hot-swap 3.5"/2.5" NVMe (PCIe4.0 x4)/SATA 4 hot-swap 3.5"/2.5" SATA |
| Front Side Backplane | 12-port NVMe/SATA/SAS passive backplanes *SAS requires additional RAID/HBA cards |
| Internal Side | 2 fixed 2.5" NVMe (PCIe5.0 x4) drive bays 1 M-key (PCIe3.0 x4) [CPU0] 1 M-key (PCIe3.0 x4) [CPU1] |
| Power Supply | |
| Type | 1+1 CRPS |
| Output Watts | 2000W |
| Efficiency | 80-PLUS Platinum |
| System Fan | |
| Fan | 6 PWM hot-swap 60x38 mm fans |
| Processor System | |
| CPU | AMD EPYC™ 9005*/9004 and 97x4 series *BIOS update required for 9005 series |
| Socket | Dual Socket SP5 (LGA 6096) |
| Thermal Design Power | Up to 360W* *Over 210W supported conditionally |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 12+12 DIMM slots (1DPC) |
| Supported Type | DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 128GB (2Rx4), RDIMM-3DS: 512GB (2Rx4) |
| Max. DIMM Frequency | 4800 MHz |
| Voltage | 1.1V |
| PCIe Expansion Slots | |
| PCIe x16 | Rear: 2 FHHL PCIe5.0 x16 or 1 FHHL x16 + 2 FHHL x8 1 HHHL x16 or 2 HHHL x8 |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| OCP Slot | 1 OCP NIC 3.0 (PCIe5.0 x16) [CPU1] |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |

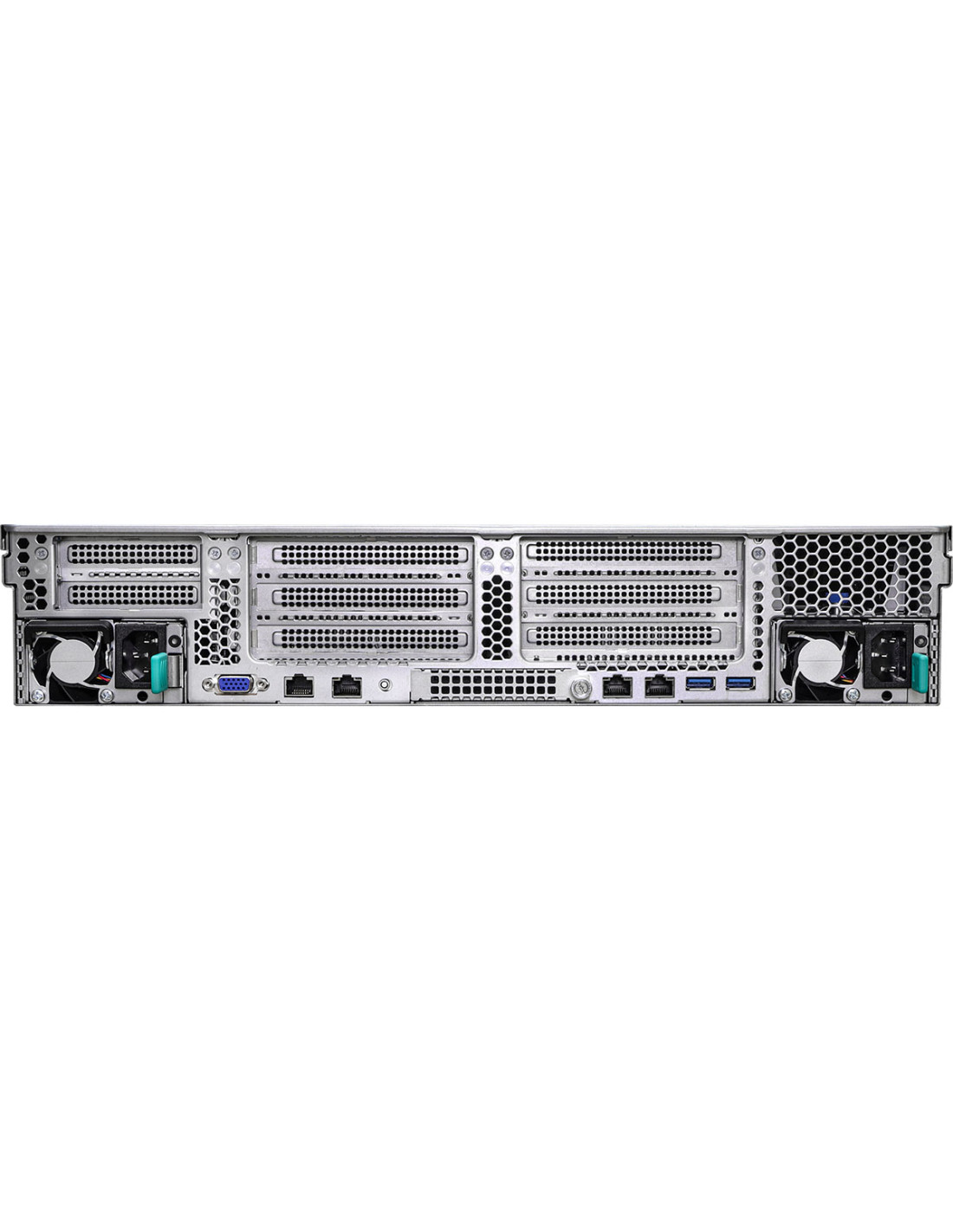

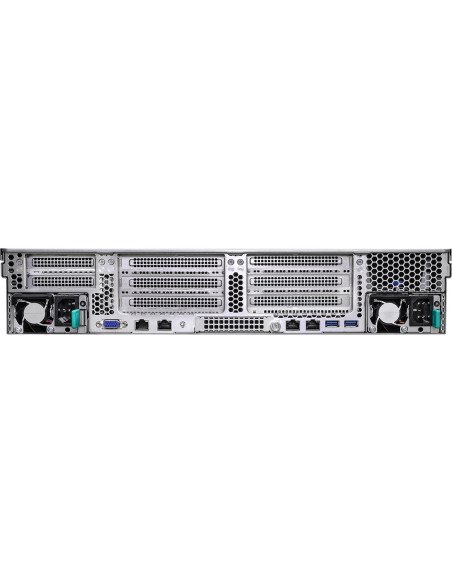

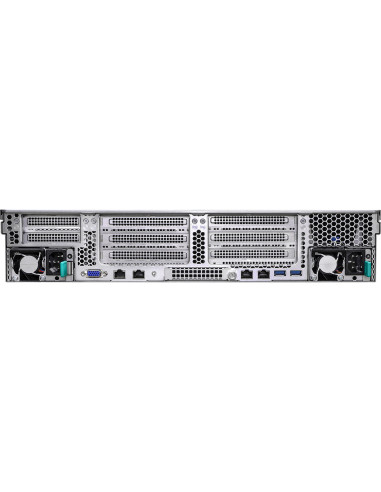

| Rear I/O | |
| UID Button/LED | 1 UID button with LED |
| Video Port | 1 DB15 (VGA) |
| Serial Port | 1 RJ45 (COM) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE), 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | Instant Flash, ACPI 6.4+, SMBIOS 3.5.0+, Plug and Play (PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachometer, CPU Quiet Fan, Fan Multi-Speed Control |
| Voltage | P0_VDDCR_CPU0/1, SOC, etc. P1_VDDCR_CPU0/1, SOC, etc. +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operating: 10°C ~ 35°C / Non-operating: -40°C ~ 70°C |
| Humidity | Non-operating: 20% ~ 90% (Non-condensing) |
