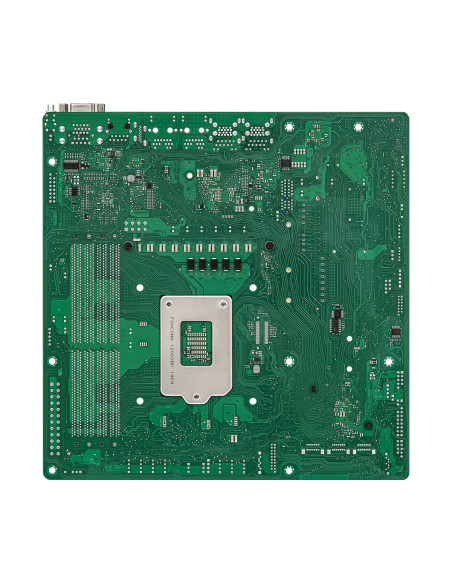

E3C252D4U
*** Out of stock ATM, Available On Backorder ***
$583.06
Tax included

E3C252D4U

ASRock Rack E3C252D4U Key Features

  • Micro-ATX (9.6" x 9.6")
  • Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors
  • 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
  • 1 PCIe4.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
  • Supports 1 M.2 (PCIe3.0 x2 or SATA 6Gb/s)
  • 6 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel® i210
  • VGA, HDMI
  • Remote Management (IPMI)

Related Products & Accessories



E3C252D4U - ASRock Rack Intel Xeon E-2300 mATX 4 DIMM PCIe M.2 Server Motherboard

Specifications

 Physical Status
Form Factor Micro-ATX
Dimensions 9.6'' x 9.6'' (244 mm x244 mm)
 Processor System
CPU Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors
Socket Single Socket H5 (LGA1200)
Chipset Intel® C252
 System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type Supports DDR4 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM ECC/non-ECC UDIMM: up to 32GB
DIMM Frequency ECC/non-ECC UDIMM: max. 3200*MHz
*Up to DDR4 2666MHz when installing 10th Gen Intel® Pentium® Series Processors
Voltage 1.2V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe4.0* x16 [CPU]
*When installing 10th Gen Intel® Pentium® Series Processors, SLOT6 supports PCIe3.0 only and SLOT4 will not function
PCIe x 4 SLOT4: PCIe4.0* x4 [CPU]
PCIe x 1 SLOT7: PCIe3.0 x1 [PCH]
 Other PCIe Expansion Connectors
M.2 slot 1 M-key* (PCIe3.0 x2 or SATA 6Gb/s); support 22110/2280/2260 form factor [PCH]
*SATA0 will be disabled when M2_1 populated with SATA device
 SATA/SAS Storage
PCH Built-in Storage Intel® C252 (6 SATA 6Gb/s; RAID 0/1/5/10):
5 SATA 7-pin, 1 SATA DOM or 1 M.2
 Ethernet
Additional GbE Controller Intel® i210: 2 RJ45 (1GbE)
 Server Management
BMC Controller ASPEED AST2500
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN
 Graphics
Controller ASPEED AST2500
VRAM DDR4 256MB

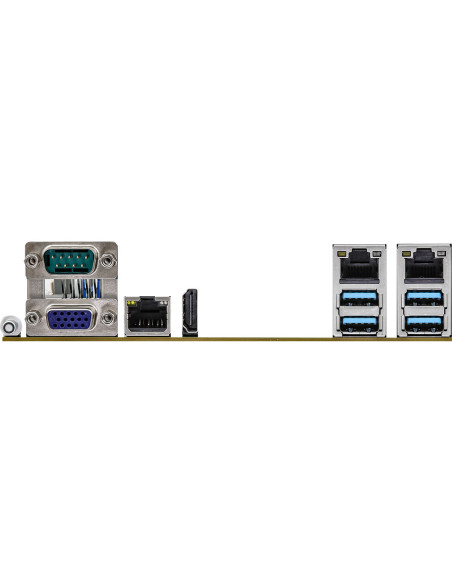

 Rear I/O
UID Button/LED 1 button w/ LED
VGA Port 1 DB15
Serial Port 1 DB9
USB 3.2 Gen1 Port 4 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (1GbE)
Dedicate LAN 1 dedicated IPMI LAN port
HDMI 1 HDMI
 Internal Connector/Headers
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Video output 1
Speaker Header 1
Buzzer 1
Fan Header 7 (4-pin)
Thermal Sensor Header 1
TPM Header 1 (13-pin, SPI)
SGPIO Header 1
SMBus header 1
PMB header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
USB 3.2 (Gen1) Header 1 (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header 1 (9-pin, 2 USB2.0)
NMI Header 1
Power Connector 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V)
ME/SPS Recovery 1
 LED Indicators
Standby PWR LED 5vsb 1
80 Debug Port LED 1
Fan Fail LED 7
BMC heartbeat LED 1
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features Plug and Play, ACPI 6.2 compliance wake up events, SMBIOS 3.3, ASRock Rack instant flash
 Hardware Monitor
Temperature CPU, MB, Card side, TR1
Fan Fan Tachomete, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), Multi-Speed Control
Voltage +12V, +5V, +3.3V, CPU Vcore, DRAM,V1.0M,+BAT, 3VSB, 5VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)

Device Features
HDMI Output
Form Factor
mATX
Ethernet Ports
2
4710483935756
E3C252D4U
No reviews

Related Products & Accessories

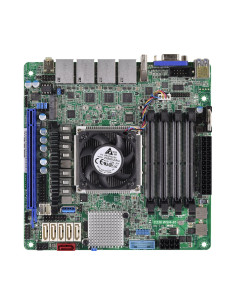

ASRock Rack C236 WSI4-85 mITX Server Motherboard
Out Of Stock
Servers & Motherboards

ASRock Rack C236 WSI4-85 mITX Server Motherboard

ASRock Rack
C236 WSI4-8
$1,321.54
 Asrock C236 WSI4-85 Motherboard Intel Xeon E3-1500 v5 Series Processors BGA Supports Dual channel DDR4 2133/1866 ECC/Non-ECC UDIMM max 64 GB Support 6 SATA3 by C236 Supports 1x PCIe 3.0 x16 Supports Intel i210*3+Intel
View

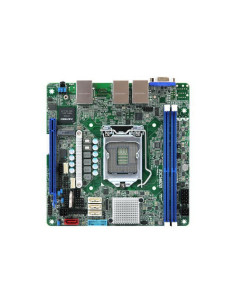

ASRock Rack Intel Xeon E-2100/E-2200 mITX Server Motherboard
Out Of Stock
Servers & Motherboards

ASRock Rack Intel Xeon E-2100/E-2200 mITX Server Motherboard

ASRock Rack
E3C246D2I
$489.54
E3C246D2I ASRock Rack E3C246D2I Key Features Supports Intel Xeon E-2100/E-2200 Processors Supports Dual channel DDR4 2666/2400 ECC and non-ECC U DIMM max 32 GB 4 SATA3 (1 SATA DOM included), 1 OCuLink connector with 4 SATA ports* Supports 1x PCIe 3.0 x16, 1 x M.2 Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E) Supports Intel I210& Intel...
View

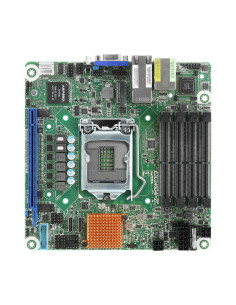

E3C246D4I-2T ASRock Rack Intel Xeon E-2100 mITX Server Motherboard
