E3C246D4I-2T ASRock Rack Intel Xeon E-2100 mITX Server Motherboard
E3C246D4I-2T
Out Of Stock
$862.46
Tax included
E3C246D4I-2T
ASRock Rack E3C246D4I-2T Key Features
- Supports Intel Xeon E-2100 Processors
- Supports Dual Channel DDR4 2666/2400/2133 ECC SO-DIMM max 128 GB
- Support 8x SATA3 by C246 (from 2 OCulink)
- Supports 1x PCIe 3.0 x16
- Integrated IPMI 2.0 with KVM and Dedicated LAN
- Supports Intel X550, 2 x10GLAN
- Supports Quick Sync Video (IGFX needs to be enabled in BIOS)
E3C246D4I-2T ASRock Rack Intel Xeon E-2100 mITX Server Motherboard
International buyers, please email us for shipping quote
| Â MB Physical Status | |
| Form Factor | - mini-ITX |
| Dimensions | - 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
| Â Processor System | |
| CPU | - Supports Intel® Xeon® E-2100 Processors (Max. 95W) |
| Chipset | - Intel® C246 |
| Â System Memory | |
| Capacity | - 4 x DDR4 SO-DIMM slots |
| Type | - Dual Channel DDR4 memory technology, 2 DIMM per Channel - Supports DDR4 2666/2400/2133 ECC/non-ECC SO-DIMM Max. capactiry of system memory:32GBx4 |
| Voltage | - 1.2V |
| Â Expansion Slot | |
| PCIe 3.0 x 16 | - SLOT7: Gen3 x16 link |
| Â Storage | |
| SATA Controller | - C246: 8x SATA3 6Gb/s (SATA 0-3 by OCulink1, SATA 4-7 by Oculink2) + 1 x M.2 (NGFF 2280, PCI-E Gen3 x4 link or SATA signal) |
| Â Ethernet | |
| Interface | - 10000/1000 /100 /10 Mbps |
| LAN Controller | - 2 x RJ45 10GLAN by IntelX550 - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function(TBD) - Supports PXE |
| Â Management | |
| BMC Controller | - ASPEED AST2500 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog - NMI |
| Â Graphics | |
| Controller | - ASPEED AST2500 |
| VRAM | - DDR4 512Mb |

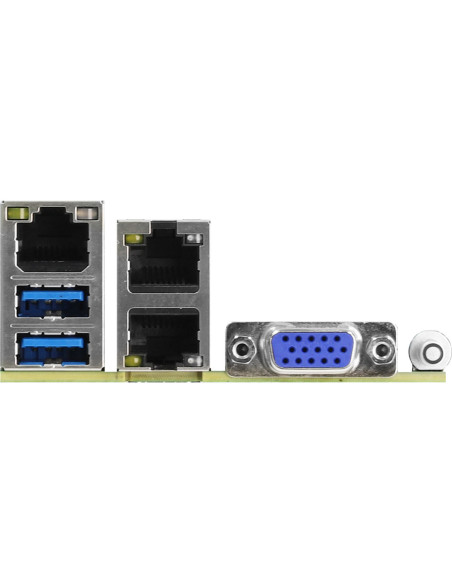

| Â Rear Panel I/O | |
| VGA Port | - 1 x D-Sub |
| USB 3.1 Gen1 Port | - 2 |
| Lan Port | - RJ45:2 10GLAN+1(IPMI) LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| UID Button/UID LED | - 1 |
| Â Internal Connector | |
| M.2 | - 1 x M.2 (NGFF 2280, PCI-E Gen3 x4 link or SATA signal) |
| OCuLink | - 2 ports (support SATA x4ports or PCIEx4 ) |
| Auxiliary Panel Header | - 1 (include chassis intrusion, location button & LED, front LAN LED, event log LED) |
| TR1 Header | - 1 |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| Buzzer | - N/A |
| Fan Header | - 3(1CPU/1Front/1Rear) |
| ATX Power | - 1x (4-pin) + 1x (8-pin) support 12V DC-IN (DC-IN mode power budget is up to 432W) |
| USB 3.1 (Gen2) Header | - 1 (support 2 USB 3.0) |
| PWR SMB Header | - 1 |
| Front Panel | - 1 (RST, HDLED, PLED, PERBTN) |
| SATA Power Connector | - 1 x 4-pin |
| Speaker Header | - N/A |
| SGPIO Header | - 2 |
| COM from BMC | - 1 |
| SMBUS from BMC | - 1 |
| Clear CMOS | - 1 |
| NC-SI | - 1 |
| BIOS_PH | - 1 |
| BMC_PH | - 1 |
| Debug1 | - 1 |
| MFG_1 | - 1 |
| X550_DEBUG1 | - 1 |
| SEC_OR1 | - 1 |
| Â Onboard LED | |
| Fan Fail LED | - 3 |
| Â System BIOS | |
| BIOS Type | - 256Mb AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8.0 Support - ASRock Rack Instant Flash |
| Â Hardware Monitor | |
| Temperature | - CPU Temperature Sensing - System Temperature Sensing - System Inlet Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCM, VCCIO, VCCSA, VCCST_SFR, V1.0M, 3VSB, 5VSB, VBAT |
| Â Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
- Form Factor
- mini-ITX
- Ethernet Ports
- 3
