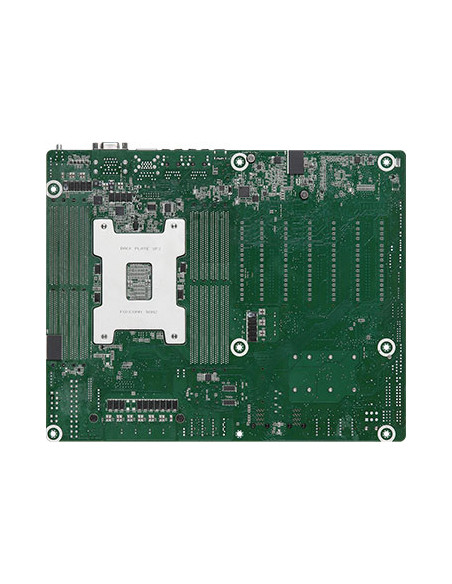

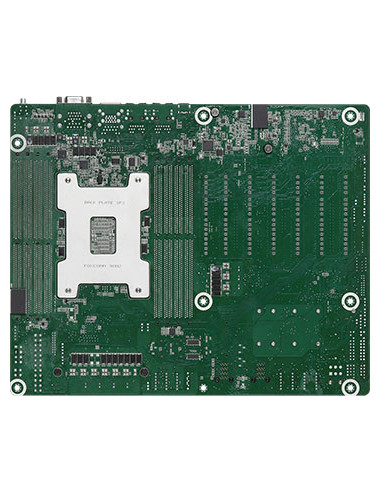

ASRock Rack AMD ROMED8-2T ATX Server Motherboard
ASRock Rack AMD ROMED8-2T ATX Server Motherboard 2x 10G LAN
ASRock Rack AMD ROMED8-2T ATX Server Motherboard 2x 10G LAN
ASRock Rack AMD ROMED8-2T ATX Server Motherboard 2x 10G LAN
ASRock Rack AMD ROMED8-2T ATX Server Motherboard
ASRock Rack AMD ROMED8-2T ATX Server Motherboard 2x 10G LAN
ASRock Rack AMD ROMED8-2T ATX Server Motherboard 2x 10G LAN
ASRock Rack AMD ROMED8-2T ATX Server Motherboard 2x 10G LAN

ASRock Rack AMD ROMED8-2T ATX Server Motherboard 2x 10G LAN

ROMED8-2T
In Stock
$1,125.00
Tax included

ASRock Rack AMD ROMED8-2T Key Features:

  1. ATX 12'' x 9.6''
  2. Single Socket SP3 (LGA4094) support AMD EPYC™ 7002/7001 series processor family
  3. Supports 8 Channels DDR4 3200/2933/2666/2400 RDIMM,LRDIMM/NV DIMM 8 x DIMM slots
  4. Supports 8x SATA3 6.0 Gb/s (from 2x mini SAS HD), 1x SATA DOM(BOM option), and 2 x M.2
  5. Supports 2 X 10G LAN by Intel X550 -AT2
  6. Supports 7 PCIe 4.0x 16
  7. Supports 2 OCulink(share with PCIE2 by Jumper)



ASRock Rack AMD ROMED8-2T ATX Server Motherboard 2x 10G LAN

International buyers, please email us for shipping quote

Specifications of Romed8-2T

 MB Physical Status
Form Factor - ATX
Dimensions - 12'' x 9.6'' (30.5 cm x 24.4 cm)
 Processor System
CPU - AMD EPYC™ 7002/7001 series processor family
- max 225W
Socket - Single Socket SP3 (LGA4094)
 System Memory
Capacity - 8 DIMM slots
Type - Eight Channel DDR4 memory technology
- Supports DDR4 RDIMM and LRDIMM
DIMM Size Per DIMM - RDIMM: 64GB*,32GB, 16GB, 8GB*
- LRDIMM: 256GB*,128GB, 64GB**
- NV DIMM:32GB***

*64GB wait device to validate
**256GB wait device to validate
***wait device to validate
DIMM Frequency - RDIMM: 3200/2933/2666/2400MHz
- LRDIMM: 3200/2933/2666/2400MHz
- NV DIMM: 3200/2666/2400MHz*

*wait device to validate
Voltage - 1.2V
 Expansion Slot
PCIe 4.0 x 16 - PCIE1: Gen4 x16 link
- PCIE2: Gen4 x16 link or Gen4x8 link+2x M.2+2x miniSASHD or no PCIE slot +2x OCulink+2xM.2+2x miniSASHD(by jumper)
- PCIE3: Gen4 x16 link
- PCIE4: Gen4 x16 link
- PCIE5: Gen4 x16 link
- PCIE6: Gen4 x16 link
- PCIE7: Gen4 x16 link
 Storage
SATA Controller - 8 x SATA3 6.0 Gb/s (SATA_0_3:by miniSASHD.SATA_3 share with SATA_8(by BOM option), SATA_4_7: by miniSASHD,share with PCIE2 by Jumper)
OCuLink for U.2 - 2( OCU1 & OCU2, share with PCIE2 by Jumper)
 Ethernet
Interface - 10000/1000 /100 Mbps by Intel® X550-AT2
LAN Controller - 2 x RJ45 10G base-T by Intel® X550-AT2
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy E_cient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI
 Management
BMC Controller - ASPEED AST2500
IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
- NMI
 Graphics
Controller - ASPEED AST2500
VRAM - DDR4 512MB

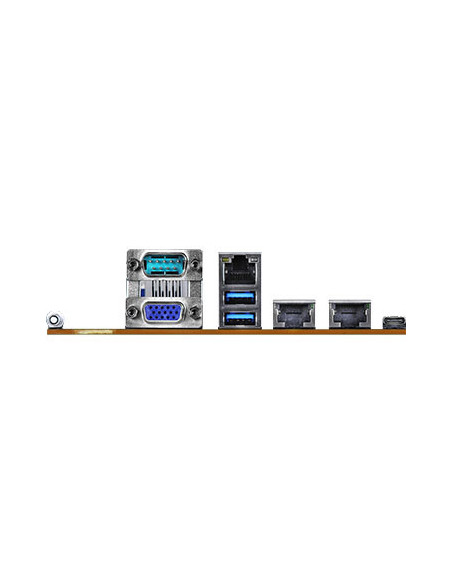

 Rear Panel I/O
VGA Port - 1 x D-Sub
USB 3.1 Gen1 Port - 2
USB 3.1 Gen2 Port - 1(Type C)
Lan Port - 2+1 RJ45 Gigabit Ethernet LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port - 1 x COM port
UID Button/UID LED - 1
 Internal Connector
SATA DOM - 1(BOM option)
M.2 - 2(M2_1(share with PCIE2 by Jumper): 2230/2242/2260/2280, SATA/PCIE Gen4(X4); M2_2:2230/2242/2260/2280/22110, SATA/PCIE(X4))
Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, and front LAN LED)
TR1 Header - 1
TPM Header - 1
IPMB Header - 1
Fan Header - 7 Fans x 6-pin (1CPU/4Front/2Rear)
ATX Power - 1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot)
USB 3.1 (Gen1) Header - 1 (supports 2 USB 3.0 ports)
USB 3.1 (Gen2) Header - 1 (supports 2 USB 3.0 ports)
NMI Button - 1
Front Panel - 1(rst, pwrbtn, hddled, pwrled)
Speaker Header - 1(4pin)
BMC_SMB Header - 1
Clear CMOS - 1
PSU SMB Header - 1
 Onboard LED
Fan Fail LED - 7
 System BIOS
BIOS Type - 32MB AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
 Hardware Monitor
Temperature - CPU Temperature Sensing
- MB/TR1/Card side Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage - Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.



Form Factor
ATX
Ethernet Ports
3, 3
No reviews

CPU Support List

Socket Family Model Core Frequency Cache Power Since BIOS
SP3 EPYC 7002 7542(100-000000075) Rome 3.20GHz 225W All
SP3 EPYC 7001 7551(PS7551BDVIHAF) Naples 2.00 GHz n/a 180W All
SP3 EPYC 7001 7551P(PS755PBDVIHAF) Naples 2.00 GHz n/a 180W All
SP3 EPYC 7001 7401P(PS740PBEVHCAF) Naples 2.00 GHz n/a 155W All
SP3 EPYC 7001 7251(PS7251BFV8SAF) Naples 2.10 GHz n/a 120W All
SP3 EPYC 7001 7351P(PS735PBEVGPAF) Naples 2.40 GH n/a 155W All
SP3 EPYC 7002 7452(100-000000057) Rome 3.20GHz 155W All
SP3 EPYC 7002 7502(100-000000054) Rome 2.50GHz 180W All
SP3 EPYC 7002 7702P(100-000000047) Rome 3.20GHz 200W All
SP3 EPYC 7001 7601(PS7601BDVIHAF) Naples 2.20GHz n/a 180W All
SP3 EPYC 7002 7352(100-000000077) Rome 3.20GHz 155W All
SP3 EPYC 7002 7742(100-000000053) Rome 3.20GHz 225W All
SP3 EPYC 7002 7702(100-000000037) Rome 3.20GHz 200W All
SP3 EPYC 7002 7302P(100-000000049) Rome 3.20GHz 155W All
SP3 EPYC 7002 7552(100-000000076) Rome 3.20GHz 200W All
SP3 EPYC 7002 7282(100-000000078) Rome 2.80GHz 120W All
SP3 EPYC 7002 7252(100-000000080) Rome 3.10GHz 120W All
SP3 EPYC 7002 7642(100-000000074) Rome 2.30GHz 225W All
SP3 EPYC 7002 7402(100-000000046) Rome 2.80GHz 180W All
SP3 EPYC 7002 7502P(100-000000045) Rome 3.20GHz 180W All

Memory QVL

Type Speed DIMM Size Vendor Module Part No Cell
DDR4 3200 RDIMM 8GB Samsung M393A1K43DB2-CWECQ K4A8G0B5WD BCWE Sec
DDR4 3200 RDIMM 8GB Samsung M393A1K43DB2-CWEGQ K4A8G0B5WD BCWE Sec
DDR4 3200 RDIMM 32GB Crucial CT32G4RFD432A.36FE2 9CE75D9WFK Micron
DDR4 3200 RDIMM 32GB Kingston KSM32RD4/32MEI 9TE75D9WFK Micron
DDR4 3200 RDIMM 16GB Crucial CT16G4RFD832A.18FE1 8TE75D9WFL Micron
DDR4 3200 RDIMM 16GB Kingston KSM32RD8/16MEI 9PE77D9WFL Micron
DDR4 3200 RDIMM 16GB Samsung M393A2K40DB3-CWECQ KWA8G045WD BCWE Sec
DDR4 3200 RDIMM 16GB Samsung M393A2K40DB3-CWEGQ KWA8G045WD BCWE Sec
DDR4 2933 RDIMM 16GB Crucial CT16G4RFD8293.18FE1 8BE75D9WFL Micron
DDR4 2933 RDIMM 16GB Crucial CT16G4RFS4293.18FE1 8PE77D9WFK Micron
DDR4 2933 RDIMM 16GB Kingston KSM29RD8/16MEI 8SE77D9WFL Micron
DDR4 2666 RDIMM 32GB Crucial CT32G4RFD4266-2G6H1.001 7LH75D9VHM Micron
DDR4 2666 RDIMM 32GB Samsung M393A4K40BB2-CTD6Q K4A8G04 5WB BCTD Sec
DDR4 2666 RDIMM 16GB Samsung M393A2G40EB2-CTD6Q K4A4G04 5WE BCTD Sec
DDR4 2400 LRDIMM 32GB Crucial CT32G4LFD424A.36FB1 6AB47D9TNT Micron
DDR4 2400 RDIMM 16GB Kingston KVR24R17D4/16 H5AN4G4NAFR Hynix
DDR4 2400 RDIMM 16GB Samsung M393A2K40BB1-CRC0Q M K4A8G045WB BCRC Sec
