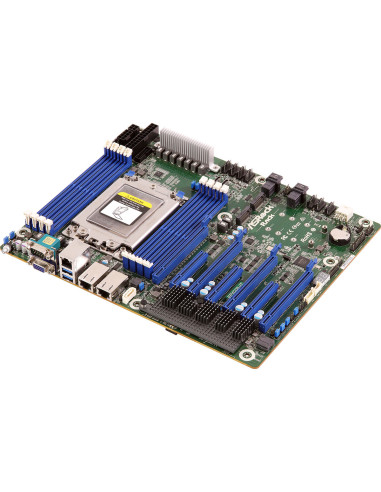

ASRock Rack AMD EPYCD8-2T ATX Server Motherboard 2x 10G LAN

EPYCD8-2T
Last items in stock
$1,001.00
Tax included

ASRock Rack AMD EPYCD8-2T Key Features:

  1. ATX 12'' x 9.6''
  2. Single Socket SP3(LGA4094) support AMD EPYC 7002/7001 series processor family
  3. Supports 8 Channels DDR4 3200/2933/2666/2400 RDIMM, LRDIMM 8 x DIMM slots
  4. Supports 8x SATA3 6.0 Gb/s (from 2x mini SAS HD), 1x SATA DOM and 2 x M.2
  5. Supports 2 X 10G LAN by Intel X550
  6. Supports 4 PCIe3.0x 16, 3 PCIe 3.0x8
  7. Supports 2 OCulink

Specifications

 MB Physical Status
Form Factor - ATX
Dimensions - 12'' x 9.6'' (30.5 cm x 24.4 cm)
 Processor System
CPU - AMD EPYC™ 7002/7001 series processor family
Socket - Single Socket SP3 (LGA4094)
 System Memory
Capacity - 8 DIMM slots
Type - Eight Channel DDR4 memory technology
- Supports DDR4 RDIMM and LRDIMM
DIMM Size Per DIMM - RDIMM: 32GB, 16GB, 8GB
- LRDIMM: 128GB, 32GB
DIMM Frequency - RDIMM: 3200/2933/2666/2400MHz
- LRDIMM: 3200/2933/2666/2400MHz
Voltage - 1.2V
 Expansion Slot
PCIe 3.0 x 16 - PCIE1: Gen3 x16 link
- PCIE3: Gen3 x16 link
- PCIE5: Gen3 x16 link
- PCIE7: Gen3 x16 link
PCIe 3.0 x 8 - PCIE2: Gen3 x8 link
- PCIE4: Gen3 x8 link
- PCIE6: Gen3 x8 link
 Storage
SATA Controller - 9 x SATA3 6.0 Gb/s (from 2x mini SAS HD and 1x SATA DOM port)
OCuLink for U.2 - 2
 Ethernet
Interface - 10000/1000 /100 /10 Mbps by Intel® X550
LAN Controller - 2 x RJ45 10G base-T by Intel® X550
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy E_cient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI
 Management
BMC Controller - ASPEED AST2500
IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
- NMI
 Graphics
Controller - ASPEED AST2500
VRAM - DDR4 128Mb

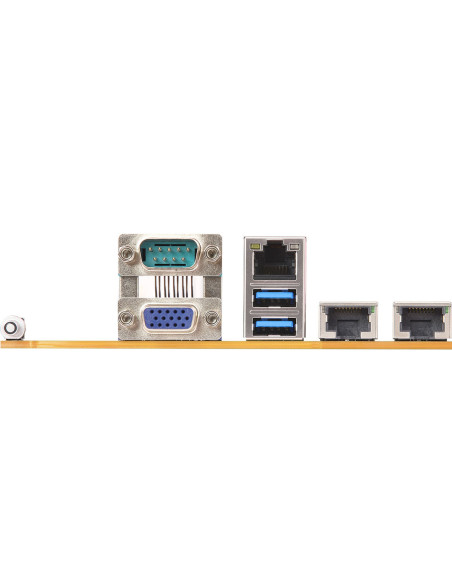

 Rear Panel I/O
VGA Port - 1 x D-Sub
USB 3.1 Gen1 Port - 2
Lan Port - 2+1 RJ45 Gigabit Ethernet LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port - 1 x COM port
UID Button/UID LED - 1
 Internal Connector
SATA DOM - 1
M.2 - 2(M2_1: 2230/2242/2260/2280, SATA/PCIE(X4); M2_2:2230/2242/2260/2280/22110, SATA/PCIE(X4))
Front LED - 1
Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, and front LAN LED)
TR1 Header - 1
TPM Header - 1
IPMB Header - 1
Fan Header - 7 Fans x 6-pin (1CPU/4Front/2Rear)
ATX Power - 1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot)
USB 3.1 (Gen1) Header - 1 (supports 2 USB 3.0 ports)
USB 2.0 Header - 1
Speaker Header - 1
BMC_SMB Header - 1
Clear CMOS - 1
PSU SMB Header - 1
 Onboard LED
80 Debug Port LED - 1
Fan Fail LED - 1 (only Fan Fail LED)
 System BIOS
BIOS Type - 32MB AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
 Hardware Monitor
Temperature - CPU Temperature Sensing
- MB/TR1/Card side Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage - Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB
 Support OS
OS Microsoft® Windows®
- Server 2012 R2 (64 bit)
- Server 2016 (64 bit)

Linux
- RedHat Enterprise Linux Server 6.9 (64 bit) / 7.3 (64 bit)
- CentOS 6.9 (64 bit) / 7. 3 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP2 (64 bit)
- Ubuntu 16.04 (64 bit) / 17.04 (64 bit)
- CITRIX XenServer 7.5

Virtual:
- VMWare® ESXi 6.5 u1
- vSphere 6.5 u1

* Please refer to our website for the latest OS support list.
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

Ethernet Ports
3
No reviews

CPU Support List

Socket Family Model Core Frequency Cache Power Since BIOS
SP3 EPYC 7002 7302P(100-000000049) Rome 3.20GHz 155W P2.30
SP3 EPYC 7001 7551(PS7551BDVIHAF) Naples 2.00 GHz n/a 180W All
SP3 EPYC 7001 7551P(PS755PBDVIHAF) Naples 2.00 GHz n/a 180W All
SP3 EPYC 7001 7401P(PS740PBEVHCAF) Naples 2.00 GHz n/a 155W All
SP3 EPYC 7001 7251(PS7251BFV8SAF) Naples 2.10 GHz n/a 120W All
SP3 EPYC 7001 7351P(PS735PBEVGPAF) Naples 2.40 GH n/a 155W All
SP3 EPYC 7002 7452(100-000000057) Rome 3.20GHz 155W P2.30
SP3 EPYC 7002 7502(100-000000054) Rome 2.50GHz 180W P2.30
SP3 EPYC 7002 7702P(100-000000047) Rome 3.20GHz 200W P2.30
SP3 EPYC 7002 7502P(100-000000045) Rome 3.20GHz 180W P2.30
SP3 EPYC 7002 7352(100-000000077) Rome 3.20GHz 155W P2.30
SP3 EPYC 7002 7542(100-000000075) Rome 3.20GHz 225W P2.30
SP3 EPYC 7001 7601(PS7601BDVIHAF) Naples 2.20GHz n/a 180W All
SP3 EPYC 7002 7702(100-000000037) Rome 3.20GHz 200W P2.30
SP3 EPYC 7002 7H12(100-000000055) Rome 2.60 GHz 280W P2.50
SP3 EPYC 7002 7552(100-000000076) Rome 3.20GHz 200W P2.30
SP3 EPYC 7002 7282(100-000000078) Rome 2.80GHz 120W P2.30
SP3 EPYC 7002 7252(100-000000080) Rome 3.10GHz 120W P2.30
SP3 EPYC 7002 7642(100-000000074) Rome 2.30GHz 225W P2.30
SP3 EPYC 7002 7402(100-000000046) Rome 2.80GHz 180W P2.30
SP3 EPYC 7002 7302(100-000000043) Rome 3.00 GHz 155W P2.30
SP3 EPYC 7002 7402P(100-000000048) Rome 2.80GHz 180W P2.50
SP3 EPYC 7002 7532(100-000000136) Rome 2.40GHz 200W P2.50
SP3 EPYC 7002 7662(100-000000137) Rome 2.00GHz 225W P2.50
SP3 EPYC 7002 7F32(100-000000139) Rome 3.70 GHz 180W P2.50
SP3 EPYC 7002 7F52(100-000000140) Rome 3.50 GHz 240W P2.50
SP3 EPYC 7002 7F72(100-000000141) Rome 3.20 GHz 240W P2.50
SP3 EPYC 7002 7742(100-000000053) Rome 3.20GHz 225W P2.30
