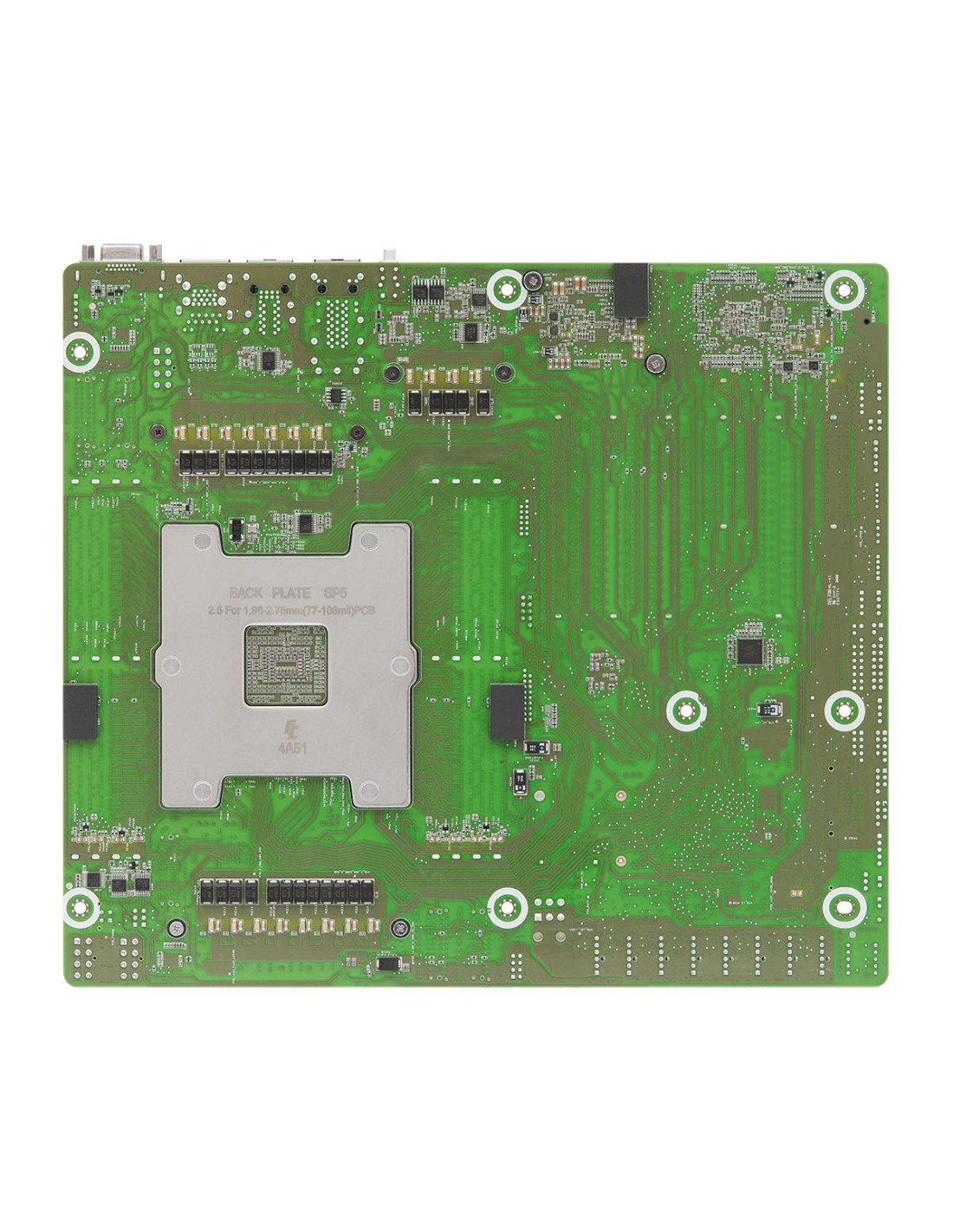

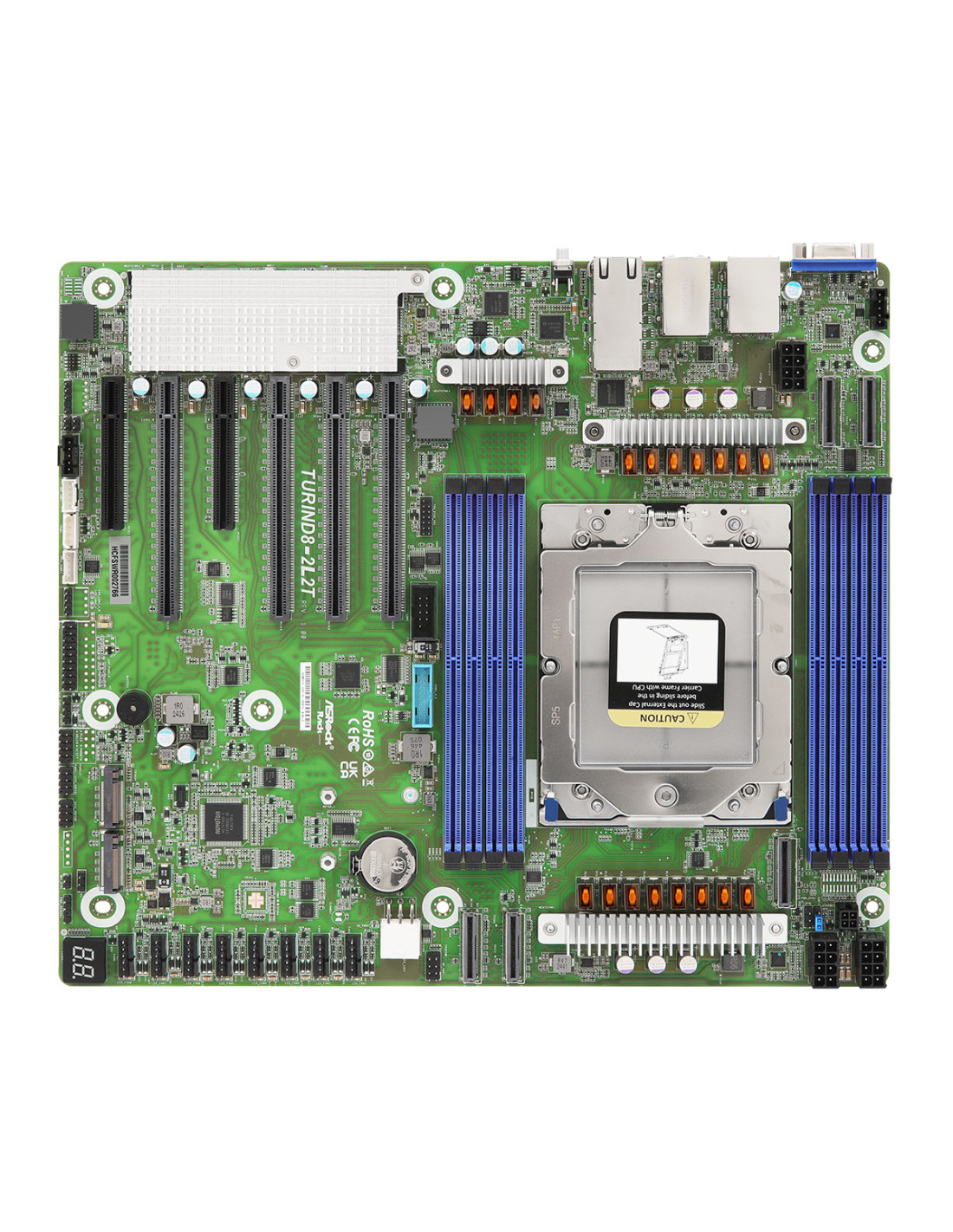

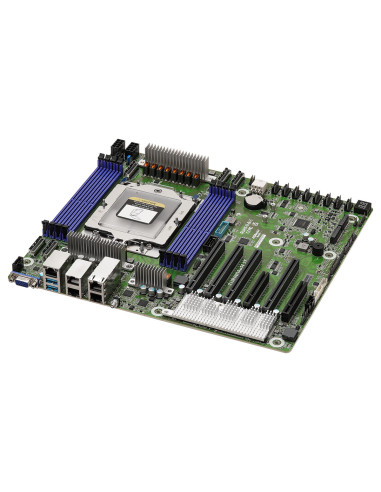

| Physical Status | |
| Form Factor | CEB |
| Dimensions | 12" x 10.5" |
| Processor System | |
| CPU | Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
| Socket | Single Socket SP5 (LGA 6096) |
| Thermal Design Power | Up to 400W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 128GB (2Rx4) RDIMM-3DS: 512GB (2Rx4) |
| Max. DIMM Frequency | 6400 MHz |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT6: PCIe5.0 / CXL2.0* x16 SLOT5: PCIe5.0 x16 SLOT4: PCIe5.0 x16 SLOT2: PCIe5.0 / CXL2.0* x16 |
| PCIe x 8 | SLOT3: PCIe5.0 / CXL2.0* x8 SLOT1: PCIe5.0 / CXL2.0* x8 *Supports CXL1.1 while installing AMD EPYC 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe5.0 x4 or SATA 6Gb/s), supports 2280 form factor 1 M-key (PCIe5.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor |
| Others | 1 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s) 4 MCIO (PCIe5.0 x8) |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD EPYC 9005/9004 (10 SATA 6Gb/s): 1 MCIO, 2 M.2 |
| Ethernet | |
| Additional GbE Controller | Intel® X710-AT2: 2 RJ45 (10GbE) Intel® i210: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |

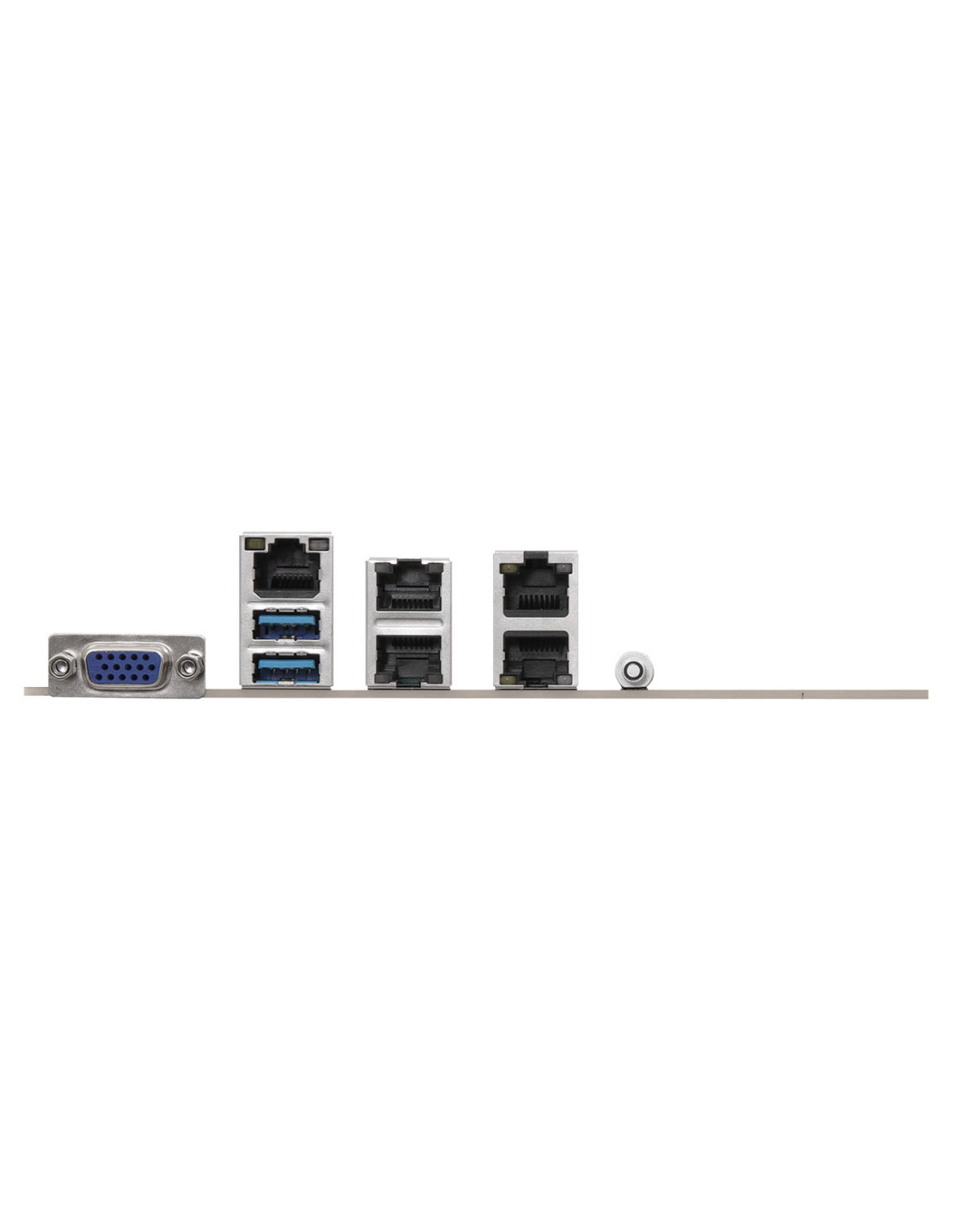

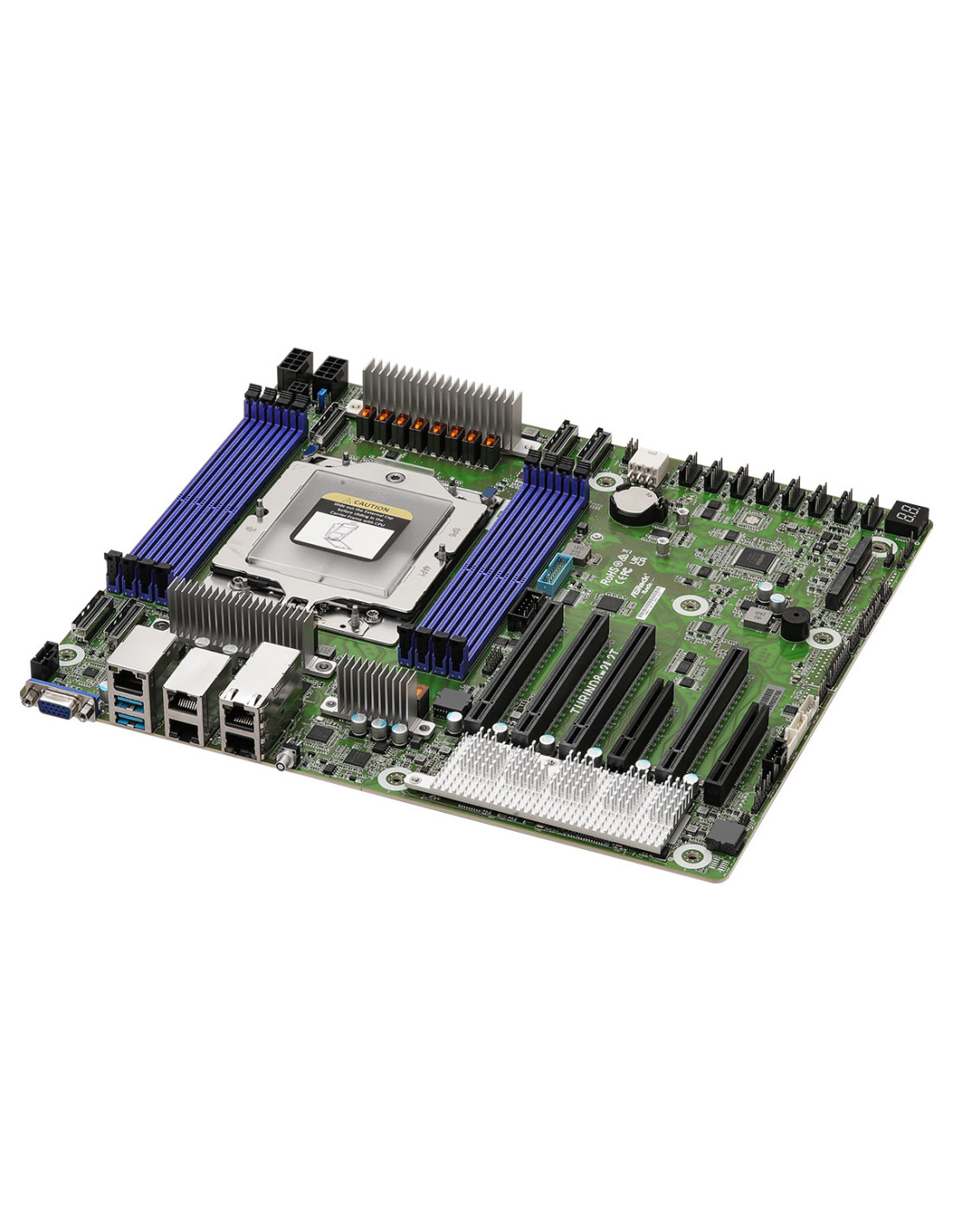

| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) 2 RJ45 (1GbE) 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| Speaker Header | 1 (4-pin) |
| Fan Header | 8 (6-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Front Lan LED Connector | 1 |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 8 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, TR1 Temperature sensing |
| Fan | Fan Tachometer Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | VCORE0, VCORE1,VDDIO,VCCD,3V, 5V, 12V,BAT, 3.3VSB, 5VSB,VSOC, VDD_11,VDD_33,VDD_18,1P88V,1P0V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
