ASRock Rack GENOAD8UD-2T/X550 SP5 8 DIMM slots 4 PCIe5.0 2MCIO M.2 Up to 16 SATA 6Gbs 2 RJ45 IPMI ATX PSU/12V Server Motherboard

GENOAD8UD-2T/X550
In Stock
$1,899.00
Tax included

GENOAD8UD-2T/X550

  • 10.4" x 10.5"
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 PCIe5.0 / CXL1.1 x16
  • 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8), 1 MCIO (PCIe5.0 x4)
  • Supports 2 M.2 (PCIe4.0 x4)
  • Up to 16 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote Management (IPMI)
  • Support ATX PSU or 12V DC-IN

Related Products & Accessories



GENOAD8UD-2T/X550 - ASRock Rack Single Socket SP5 8 DIMM slots 4 PCIe5.0 2 MCIO M.2 Up to 16 SATA 6Gb/s 2 RJ45 IPMI ATX PSU/12V

Specifications

Dimensions 10.4" x 10.5"
 Processor System
CPU Supports AMD EPYC 9004 series processors
Socket Single Socket SP5 (LGA 6096)
Chipset System on Chip
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM RDIMM: 64GB (2R)
RDIMM-3DS: 512GB (2S8Rx4)
Max. DIMM Frequency 4800 MHz
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe5.0 / CXL1.1 x16
SLOT5: PCIe5.0 / CXL1.1 x16
SLOT4: PCIe5.0 / CXL1.1 x16
SLOT3: PCIe5.0 / CXL1.1 x16
 Other PCIe Expansion Connectors
M.2 slot 2 M-key (PCIe4.0 x4); support 2280/2260/2242/2230 form factor
Others 2 MCIO (PCIe5.0 x8)
2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
1 MCIO (PCIe5.0 x4)
 SATA/SAS Storage
PCH Built-in Storage AMD EPYC 9004 (16 SATA 6Gb/s):
2 MCIO
 Ethernet
Additional GbE Controller Intel X550-AT2: 2 RJ45 (10GbE)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600
VRAM DDR4 512MB

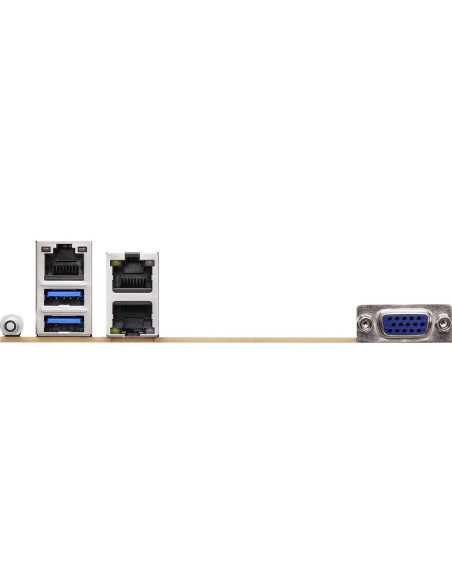

 Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
1 dedicated IPMI
 Internal Connector/Headers
Power Connector 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors 1 (6-pin) for HDD power
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header 1
Speaker Header 1 (4-pin)
Fan Header 6 (6-pin)
Thermal Sensor Header 1
TPM Header 1 (13-pin, SPI)
SGPIO Header 2
HSBP 1
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
USB 3.2 (Gen1) Header 1 (19-pin, 2 USB3.2 Gen1)
NMI Header 1
 LED Indicators
Standby PWR LED 5vsb 1 (5VSB)
Fan Fail LED 6
BMC heartbeat LED 1
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4 and abouve compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature CPU, MB, TR1 Temperature sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage VCORE,VCCSA,VCCM,3V, 5V, 12V, +BAT, 3VSB, 5VSB,VCCIO,+2.5V_VPP
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
Form Factor
M.2 - 2280 "M Key"
Ethernet Ports
2
4711430520056
GENOAD8UD-2T/X550
