| Brand | AsRock Rack |
|---|---|
| Model | SPC621D8 |
| CPU Socket Type | Socket P+ |
|---|---|
| CPU Type | Supports 3rd Gen Intel Xeon Scalable processors |
| North Bridge | Intel C621A |
|---|
| Number of DDR4 Slots | 8 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| PCI Express 4.0 x16 | SLOT7: PCIe4.0 x16* SLOT5: PCIe4.0 x16* SLOT3: PCIe4.0 x16* SLOT1: PCIe4.0 x16 * SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied |
|---|---|
| PCI Express x8 | SLOT6: PCIe4.0 x8 SLOT4: PCIe4.0 x8 SLOT2: PCIe4.0 x8 |
| SATA | 13 x SATA 6.0Gb/s |
|---|---|
| M.2 | 1 M-key (PCIe3.0 x4), supports 22110/2280/2242 form factor 1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 10/100/1000Mbps |

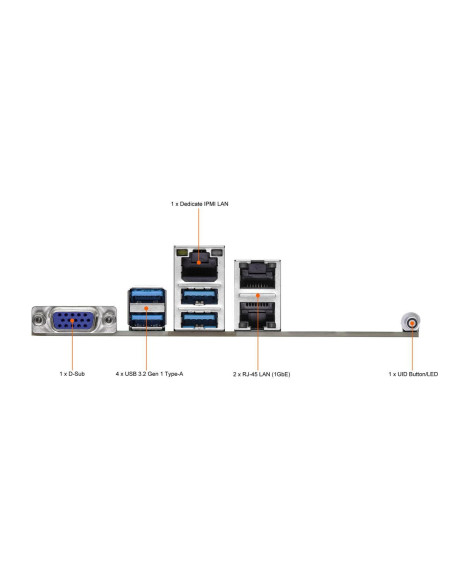

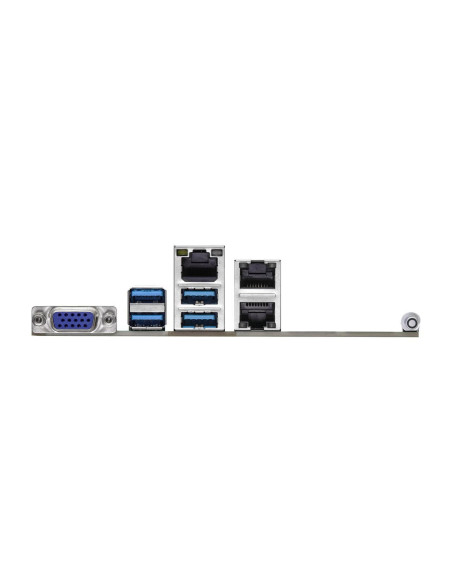

| Back I/O Ports | 1 x D-Sub / 2 x LAN (RJ45) / 4 x USB 3.2 Gen 1 Type-A |
|---|
| Other Connectors | COM Header: 1 Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus TPM Header: 17-pin (LPC) or 13-pin (SPI) Thermal Sensor Header: 1 IPMB Header: 1 VGA Header: 1 PMBus CONN: 1 Buzzer: 1 Fan Header: 5 (6-pin) USB 3.2 (Gen1) Header: 1 USB 2.0 Header: 1 Type A USB 3.2 (Gen1) Port: 1 NMI Header: 1 System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header: 1 BMC_SMB Header: 1 SGPIO Header: 1 VROC KEY: 1 Power Connector: 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V) ME/SPS Recovery: 1 Clear CMOS: 1 (contact pads) NC-SI: 1 |
|---|

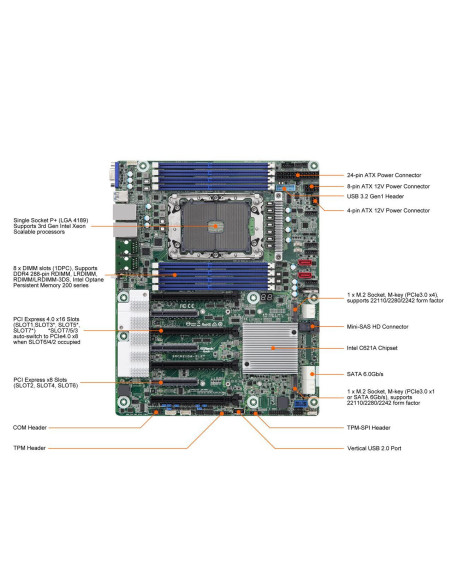

| Features | ATX (12" x 9.6") Supports 3rd Gen Intel Xeon Scalable Processors 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, and Intel Optane Persistent Memory 4 PCIe4.0 x16, 3 PCIe4.0 x8 1 M.2 (PCIe3.0 x4), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s) 13 SATA 6Gb/s (including 1 port from M.2) 2 RJ45 (1GbE) by Intel i210 Remote management (IPMI) |
|---|
| Form Factor | ATX |
|---|---|

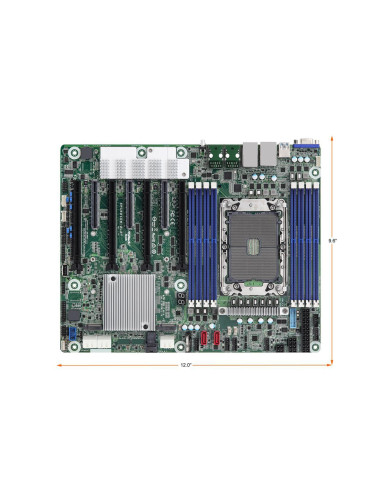

| Dimensions (W x L) | 304.80 mm x 243.84 mm |
Please note that this motherboard come in bulk packaging, just motherboard back plate, there is no carton box.
