ASRock Rack 1U4LW-C262/2L2T RPSU 1U Xeon E-2400/Pentium Gold Server with DDR5 ECC 10GbE NVMe and Redundant 450W PSU

ASRock Rack 1U4LW-C262/2L2T RPSU 1U Xeon E-2400/Pentium Gold Server with DDR5 ECC 10GbE NVMe and Redundant 450W PSU

Name: ASRock Rack 1U4LW-C262/2L2T RPSU 1U Xeon E-2400/Pentium Gold Server with DDR5 ECC 10GbE NVMe and Redundant 450W PSU
Brand: ASRock Rack
SKU: 1U4LW-C262/2L2T RPSU
Price: 2337.5 AUD
Availability: BackOrder

Reference 1U4LW-C262/2L2T RPSU

*** Out of stock ATM, Available On Backorder ***

$2,337.50

Tax included

1U4LW-C262/2L2T RPSU

1U Rackmount with 1+1, 80-PLUS Platinum, 450W RPSU
Single Socket V1 (LGA 1700), supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors
4 DIMM slots, supports DDR5 ECC UDIMM
4 Hot-swap 3.5" SATA drive bays
2 fixed 2.5" NVMe (PCIe4.0 x4) drive bays
1 FHHL PCIe5.0 x16
Supports 1 M.2 (PCIe4.0 x4)
2 RJ45 (10GbE) by Intel® X710
2 RJ45 (1GbE) by Intel® i210
Remote management (IPMI)

RAM

	OWC4E8D51R816GB 16GB PC38400 DDR5 ECC 4800MHz DIMM Memory Module for Workstations, Servers & NAS Sys $352.00
	OWC4E8D51R8032P 32GB (2x16GB) PC38400 DDR5 ECC 4800MHz DIMM Memory Module for Workstations, Servers $887.50

Description
Product Details

1U4LW-C262/2L2T RPSU ASRock Rack RPSU 1U Xeon E-2400/Pentium Gold Server with DDR5 ECC 10GbE NVMe and Redundant 450W PSU

Specifications

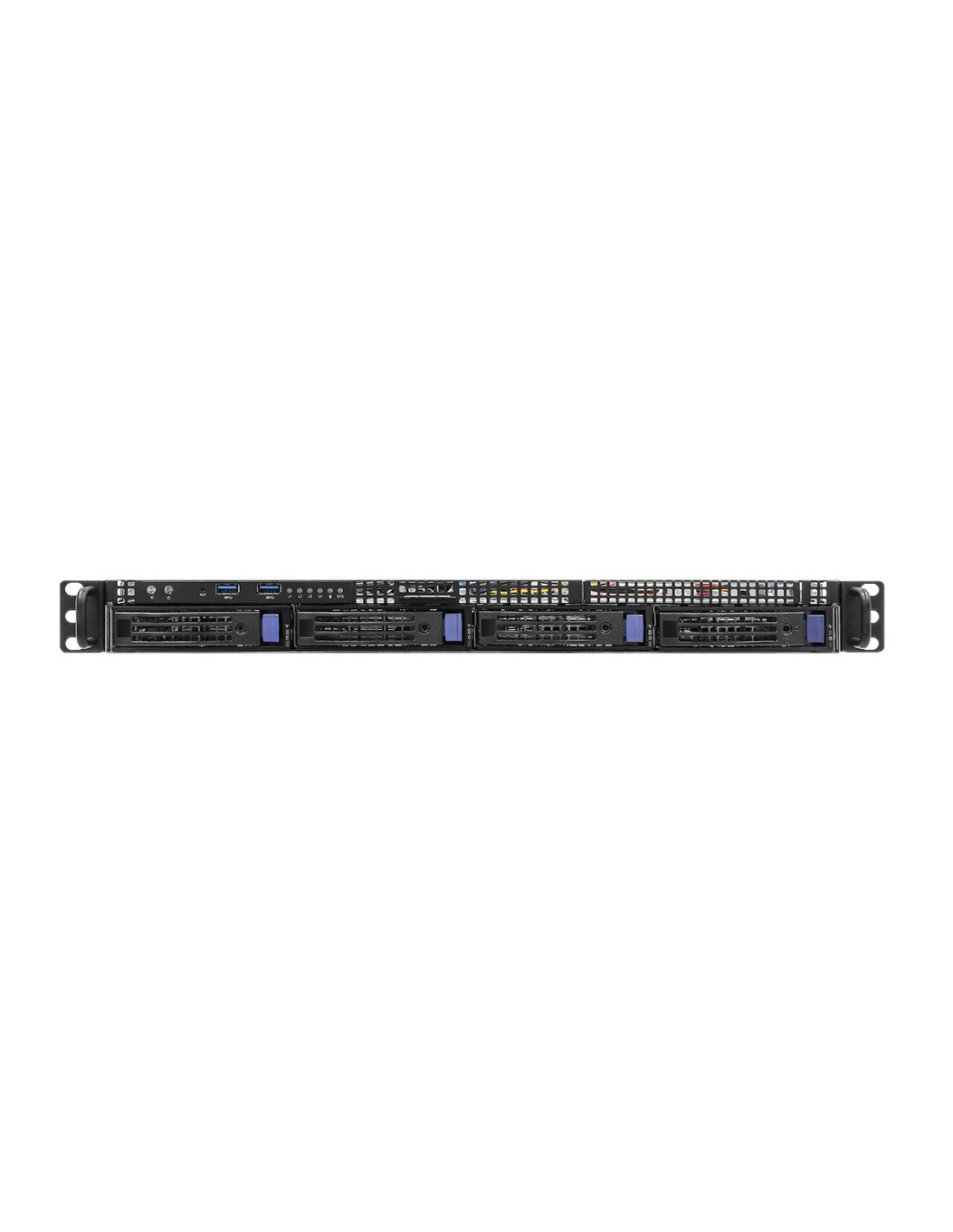

Front Panel
Form Factor	1U Rackmount
Dimensions	534.35 x 430 x 43.3 mm (21” x 16.9” x 1.7”)
Support MB	EC262D4U-2L2T
Buttons	Power Switch, ID Switch, System Reset, NMI
LEDs	Power Status, HDD, LANs, System Fail Activity LEDs
I/O Ports	2 Type-A (USB3.2 Gen1)
External Drive Bay / Storage
Front Side Drive Bay	4 Hot-swap 3.5" SATA drive bays
Front Side Backplane	4-port 6Gbps passive backplane
Internal Side	2 fixed 2.5" NVMe (PCIe4.0 x4) drive bay 1 M-key (PCIe4.0 x4); support 2280/2260/2242/2230 form factor [PCH]
Power Supply
Type	1+1 Hot-swap RPSU
Output Watts	450W @ 100-240Vac input
Efficiency	80-PLUS Platinum
AC Input	AC 100-240V/6-3A, 50-60 Hz
System Fan
Fan	5 PWM Easy-swap 40x28 mm fans
Processor System
CPU	Supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T
Socket	Single Socket V1 (LGA 1700)
Thermal Design Power	max. up to 95W (TDP)
Chipset	Intel® C262
System Memory
Supported DIMM Quantity	4 DIMM slots (2DPC)
Supported Type	Supports DDR5 288-pin ECC UDIMM
Max. Capacity per DIMM	32GB
Max. DIMM Frequency	4400MT/s (2SPC - 1DIMM) / 4000MT/s (2SPC - 2DIMM 1R) / 3600MT/s (2SPC - 2DIMM 2R)
Voltage	1.1V
PCIe Expansion Slots
PCIe x16	1 FHHL PCIe5.0 x16 via RB1UX16R_G5
TPM
TPM Support	1 (13-pin, SPI)
Ethernet
Additional GbE Controller	2 RJ45 (10GbE) by Intel® X710 2 RJ45 (1GbE) by Intel® i210
Server Management
BMC Controller	ASPEED AST2600: iKVM, vMedia support
IPMI Dedicated GLAN	1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
Graphics
Controller	ASPEED AST2600: 1 DB15 (VGA)

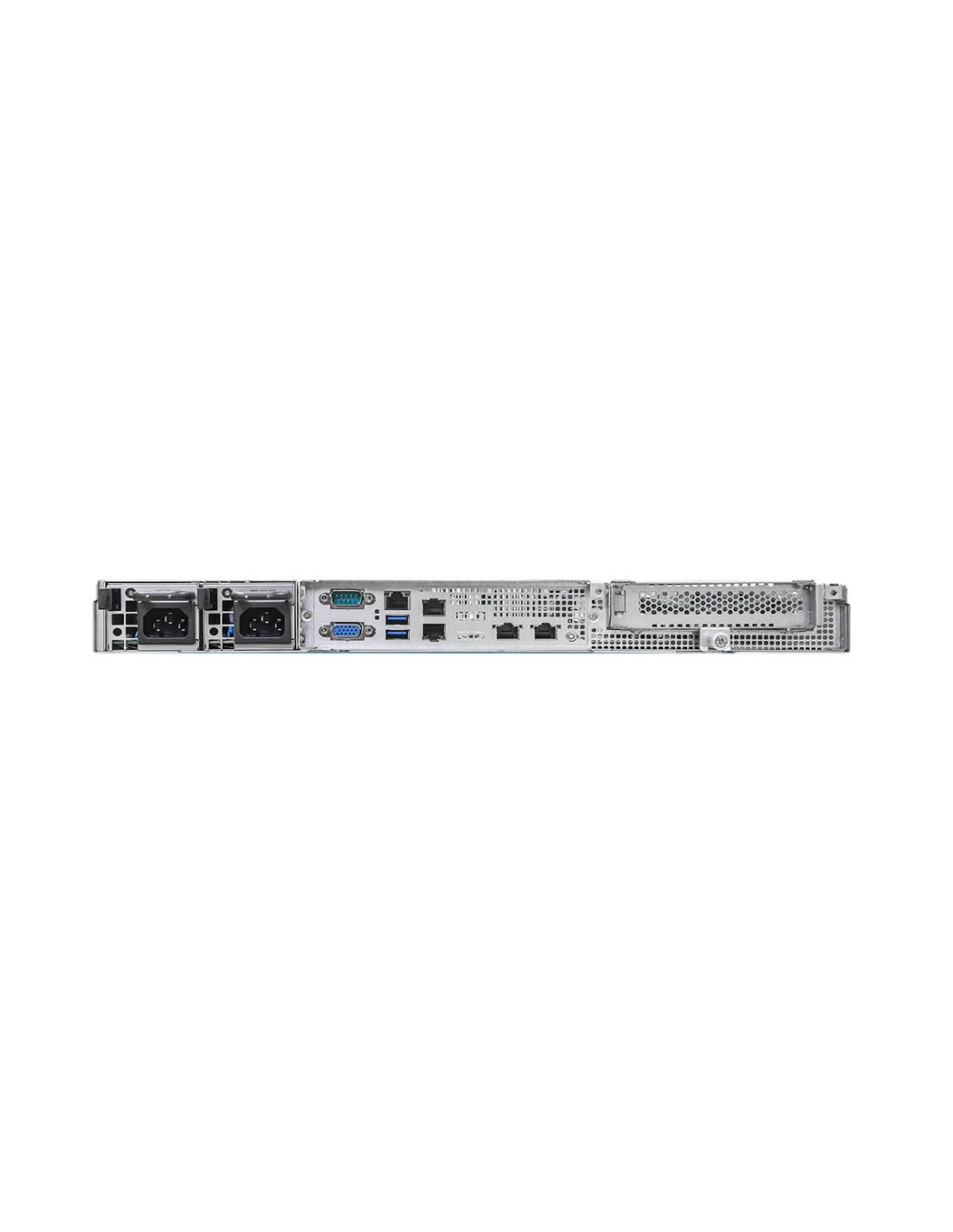

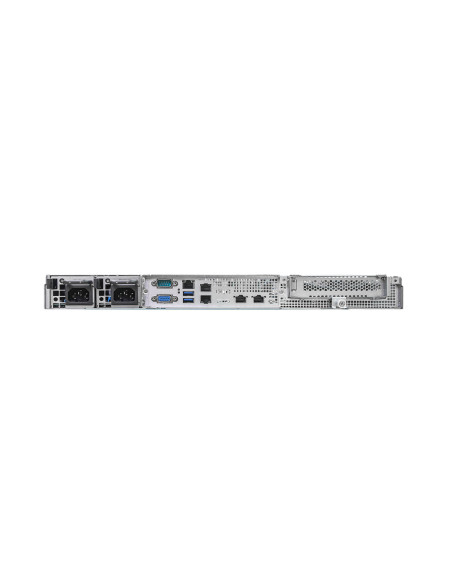

Rear I/O
UID Button/LED	1 UID button w/ LED
Video Port	1 DB15 (VGA)
Serial Port	1 DB9 (COM)
USB 3.2 Gen1 Port	2 Type-A (USB3.2 Gen1)
RJ45	2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI
System BIOS
BIOS Type	AMI 256Mb SPI Flash ROM
BIOS Features	Plug and Play, ACPI 6.4+, wake events, SMBIOS 2.8+, ASRock Rack Instant Flash
Hardware Monitor
Temperature	CPU, MB, Card side, VR, DDR5, PCH, M.2, X710, TR1 Temperature sensing
Fan	Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control
Voltage	3VSB, 5VSB, CPU_VCORE, VCCIN_AUX, VDD2, 1.05V_PCH, 0V82SB_PCH, 1V8SB, VCCSA, BAT, 3V, 5V, 12V
Environment
Temperature	Operating: 10°C ~ 35°C Non-operating: -40°C ~ 70°C
Humidity	Non-operating: 20% ~ 90% (Non-condensing)

Device Features: Rackmount
Power Input: AC
Form Factor: 1U
Ethernet Ports: 4
Installation Type: Rack-mount

MPN 1U4LW-C262/2L2T RPSU
