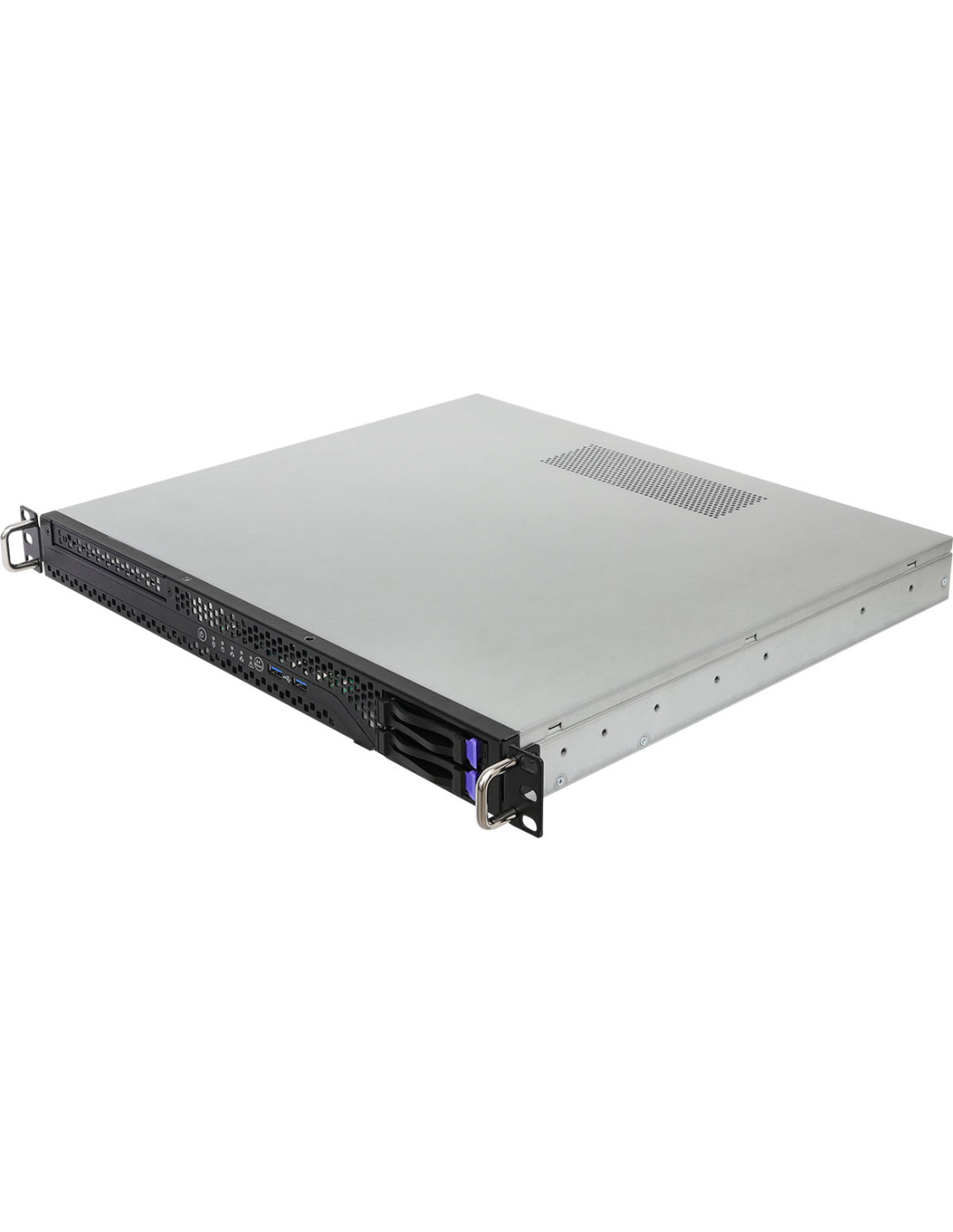

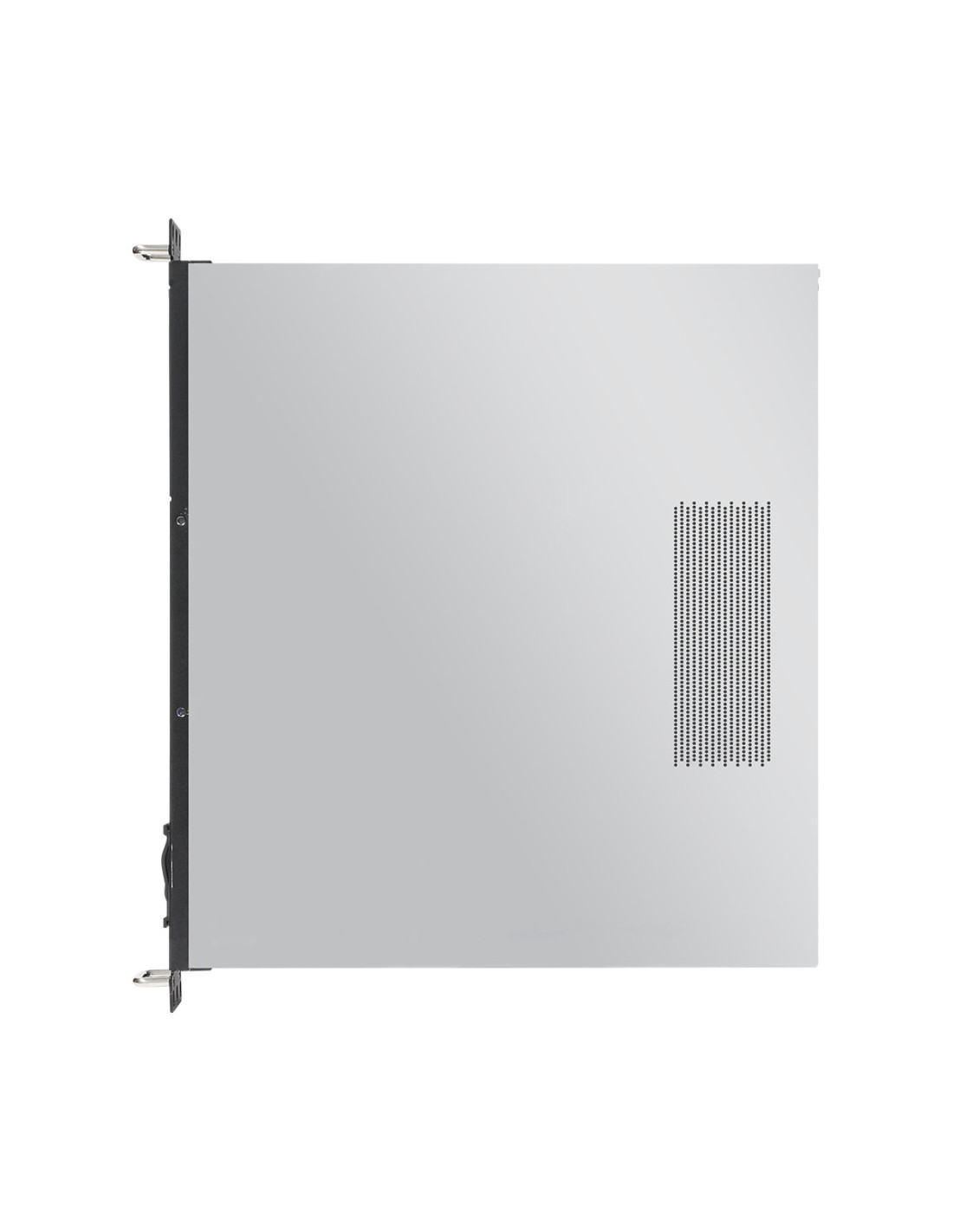

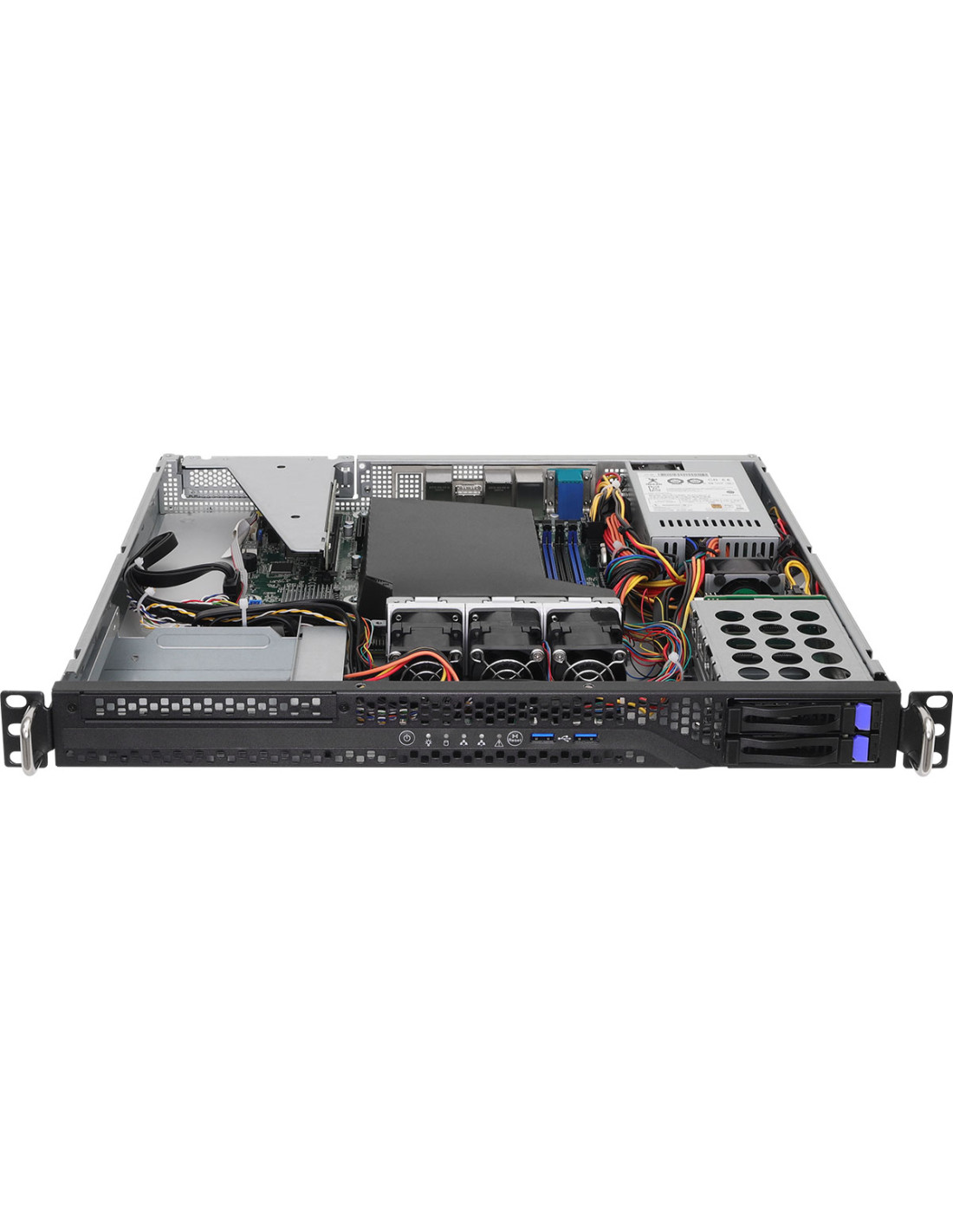

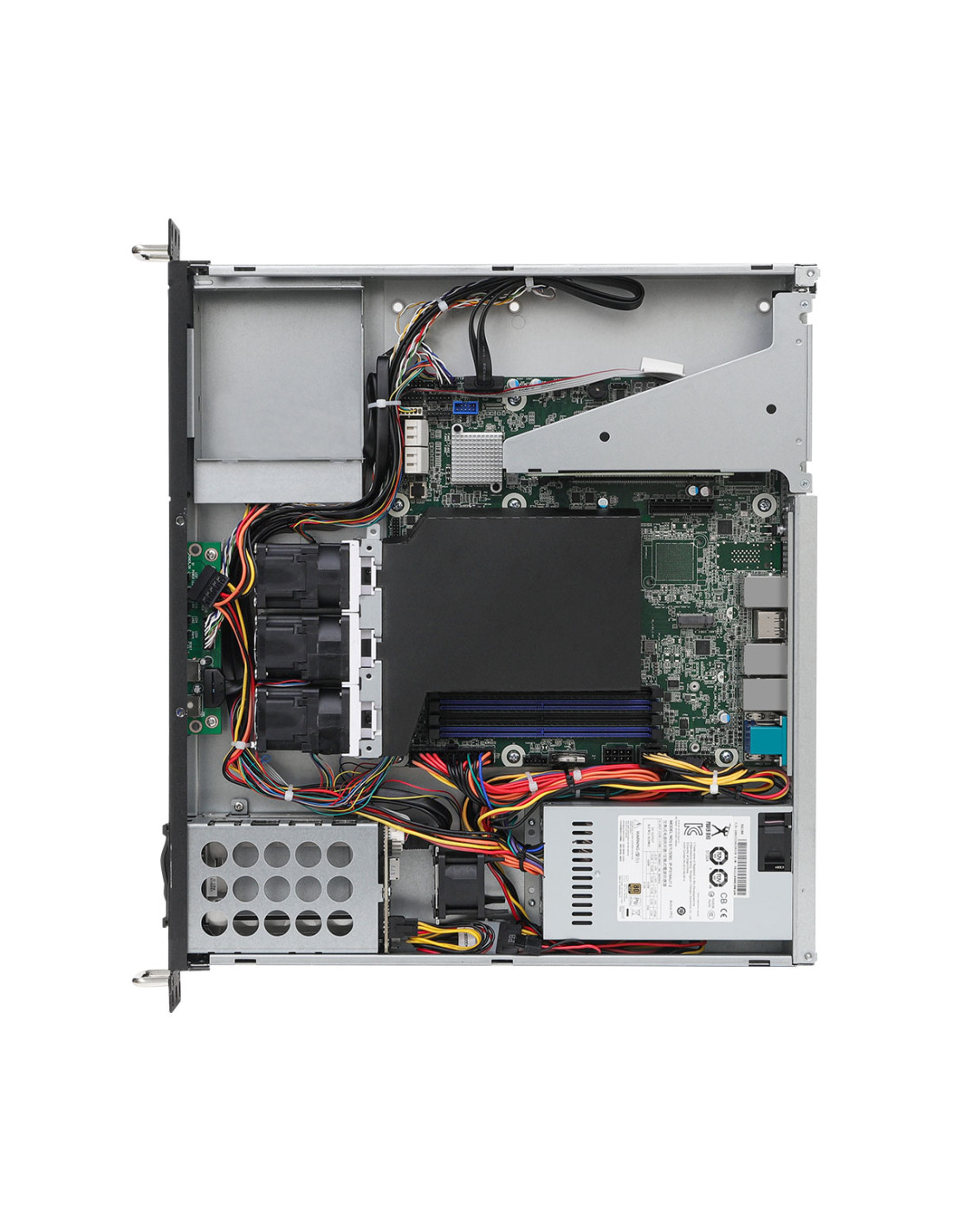

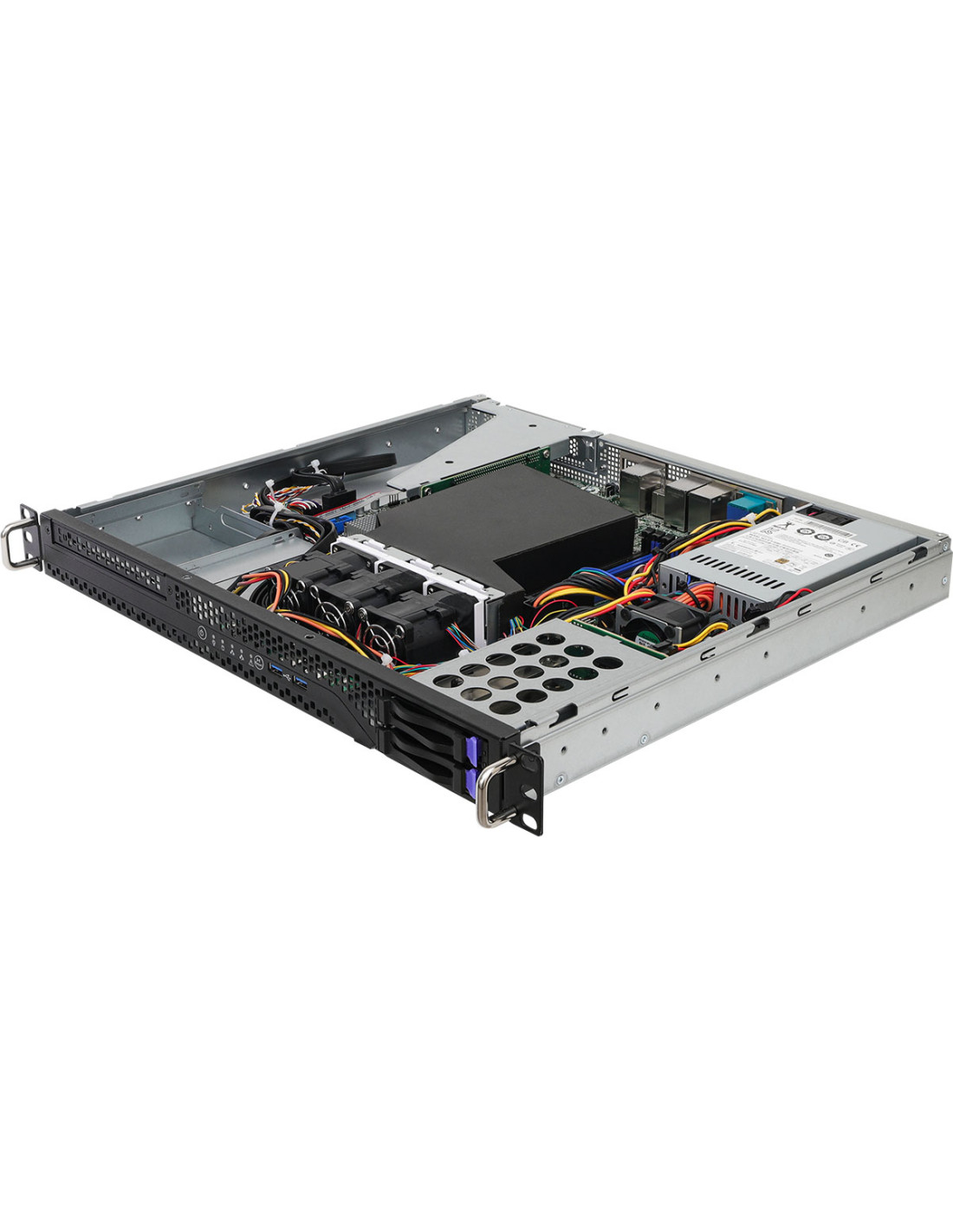

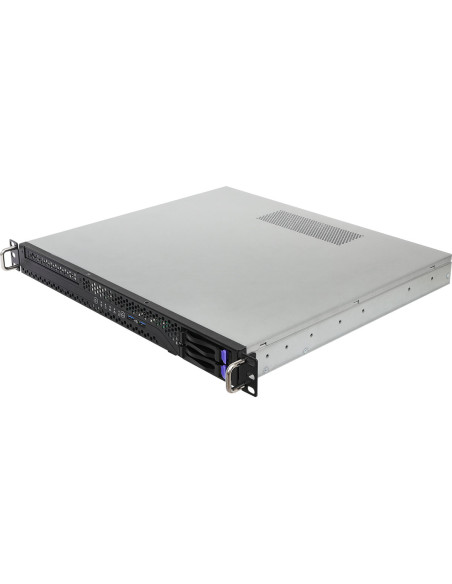

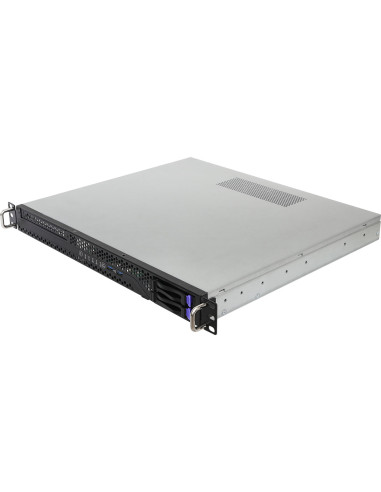

ASRock Rack 1U2S-B650 High-Density 1U Rackmount Server with AMD AM5 Platform Support and Dual Hot-Swap Drive Bays

Name: ASRock Rack 1U2S-B650 High-Density 1U Rackmount Server with AMD AM5 Platform Support and Dual Hot-Swap Drive Bays
Brand: ASRock Rack
SKU: 1U2S-B650
Price: 1694 AUD
Availability: BackOrder

Reference 1U2S-B650

ETA end of August

$1,694.00

Tax included

1U2S-B650

1U Rackmount with 1, 80-PLUS Gold, 315W PSU
Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
2 hot-swap 2.5" SATA drive bays
1 fixed 3.5" SATA drive bay or 1 Slim ODD
1 FHHL PCIe4.0 x16
Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
2 RJ45 (1GbE) by Intel® i210
1 HDMI, 1 DisplayPort
Remote Management (IPMI)

1U2S-B650 High-Density 1U Rackmount Server with AMD AM5 Platform Support and Dual Hot-Swap Drive Bays

Specifications

System
Form Factor	1U Rackmount
Dimensions	393.2 x 430 x 43.5 mm (15.5'' x 16.93'' x 1.71'')
Support MB	B650D4U

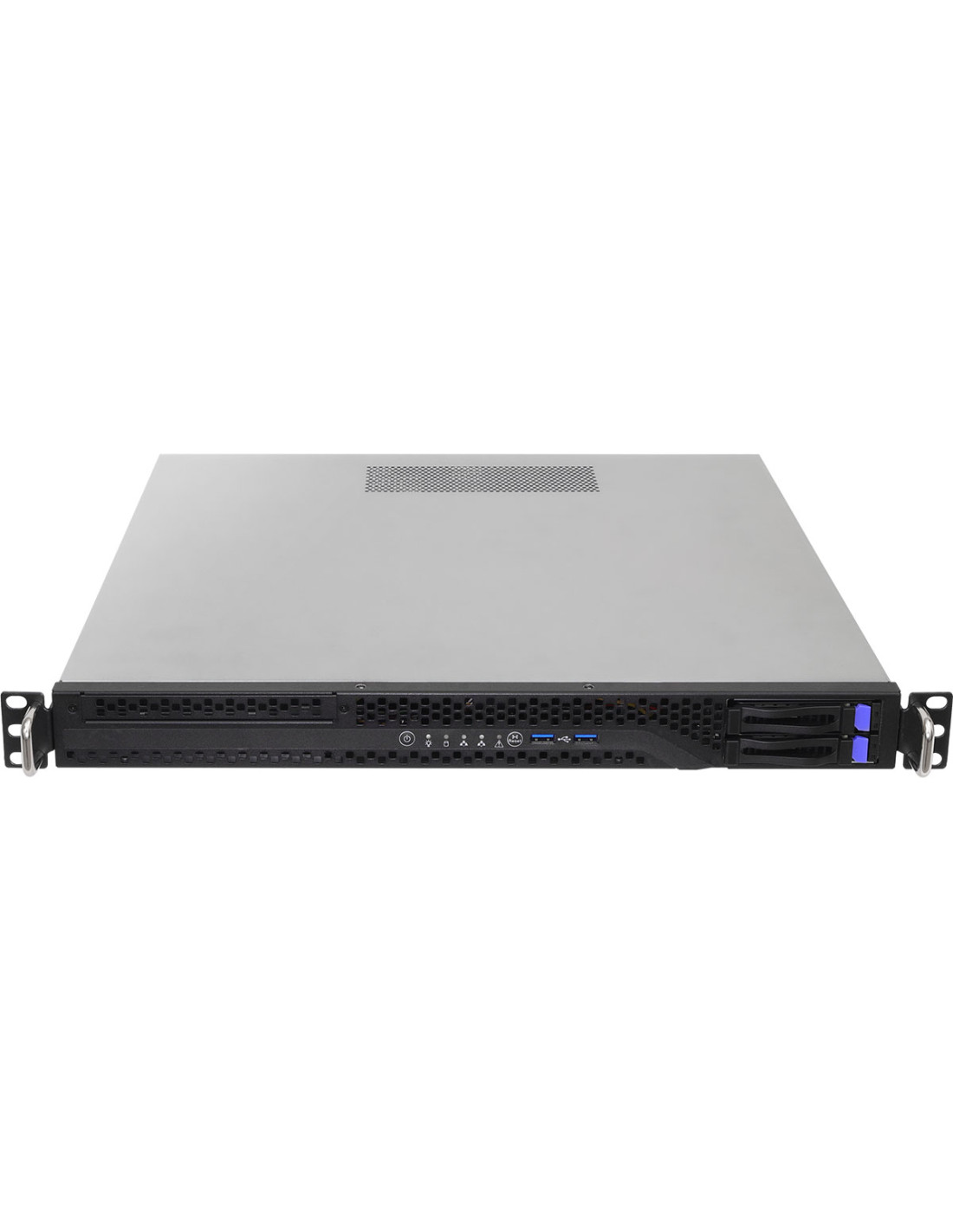

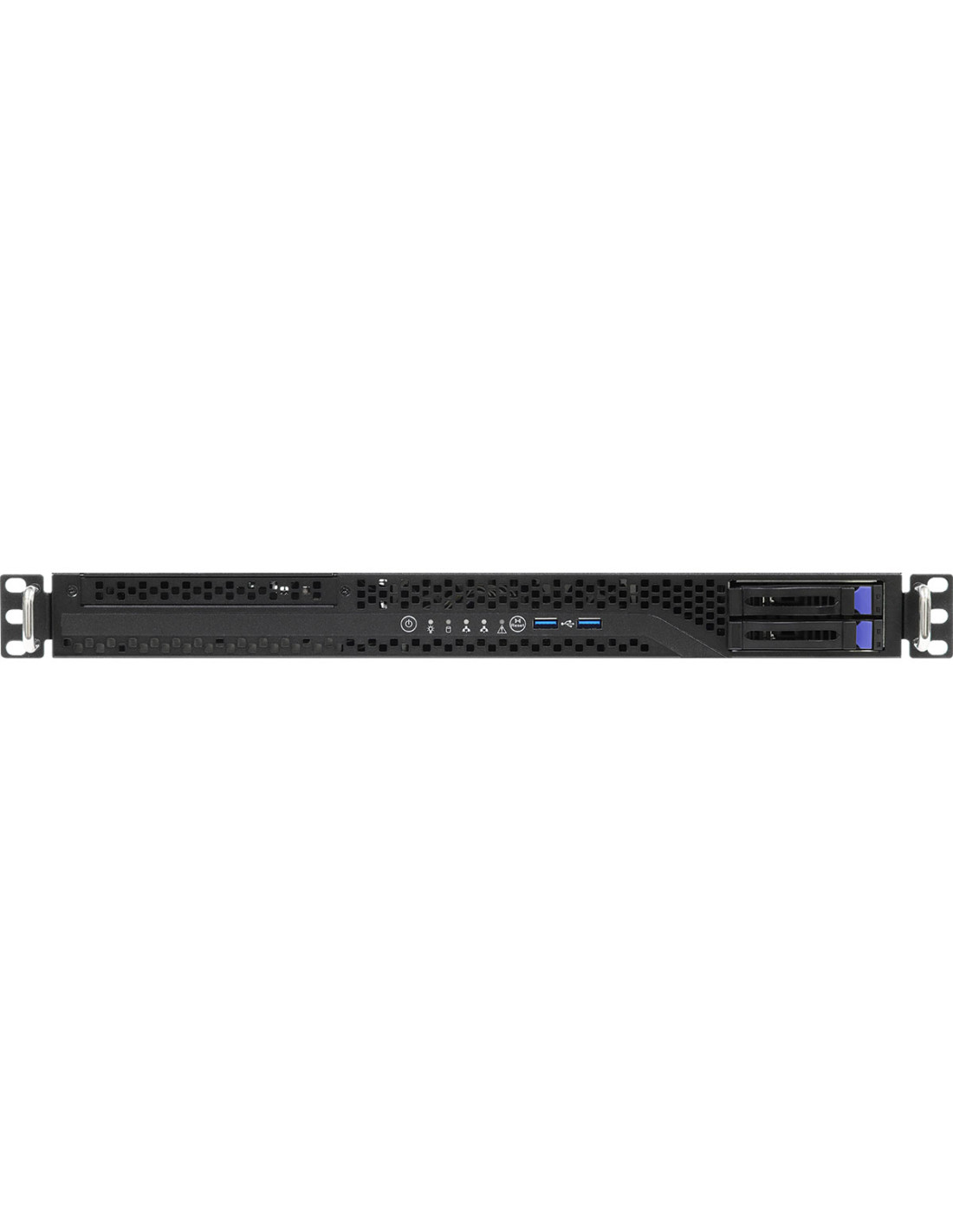

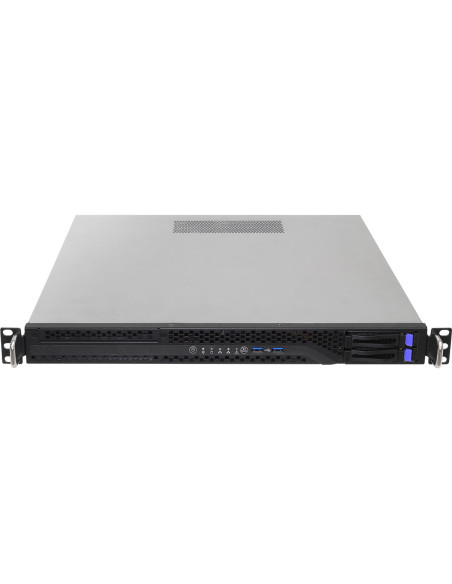

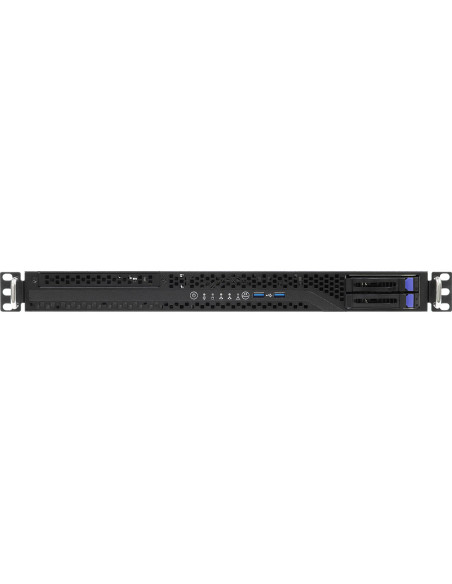

Front Panel
Buttons	Power, System Reset
LEDs	Power, HDD Activity, LANs, System Event
I/O Ports	2 Type-A (USB3.2 Gen1)
External Drive Bay / Storage
Front Side Drive Bay	External: 2 hot-swap 2.5" SATA drive bays Internal: 1 fixed 3.5'' SATA drive bay or 1 Slim ODD
Internal Side	1 M-key (PCIe5.0 x4), supports 2280/2242 [CPU] 1 M-key (PCIe4.0 x4), supports 2280/2242 [FCH]
Power Supply
Type	Single PSU
Output Watts	315W
Efficiency	80-PLUS Gold
System Fan
Fan	3 PWM Hot-swap 40x56 mm fans, 1 PWM Hot-swap 40x28 mm fans
Processor System
CPU	Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series
Socket	Single Socket AM5 (LGA 1718)
Thermal Design Power	Up to 120W
Chipset	AMD B650
System Memory
Supported DIMM Quantity	4 DIMM slots (2DPC)
Supported Type	DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM	48GB
Max. DIMM Frequency	5600 MHz (1DPC); 3600 MHz (2DPC)
Voltage	1.1V
PCIe Expansion Slots
PCIe x 16	Rear: 1 FHHL PCIe4.0 x16 via RB1UX16_G4
Ethernet
Additional GbE Controller	Intel® i210: 2 RJ45 (1GbE)
Server Management
BMC Controller	ASPEED AST2600
IPMI Dedicated GLAN	1 Realtek RTL8211F for dedicated management GLAN
Graphics
Controller	ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header AMD Processors with Graphics: 1 HDMI, 1 DisplayPort

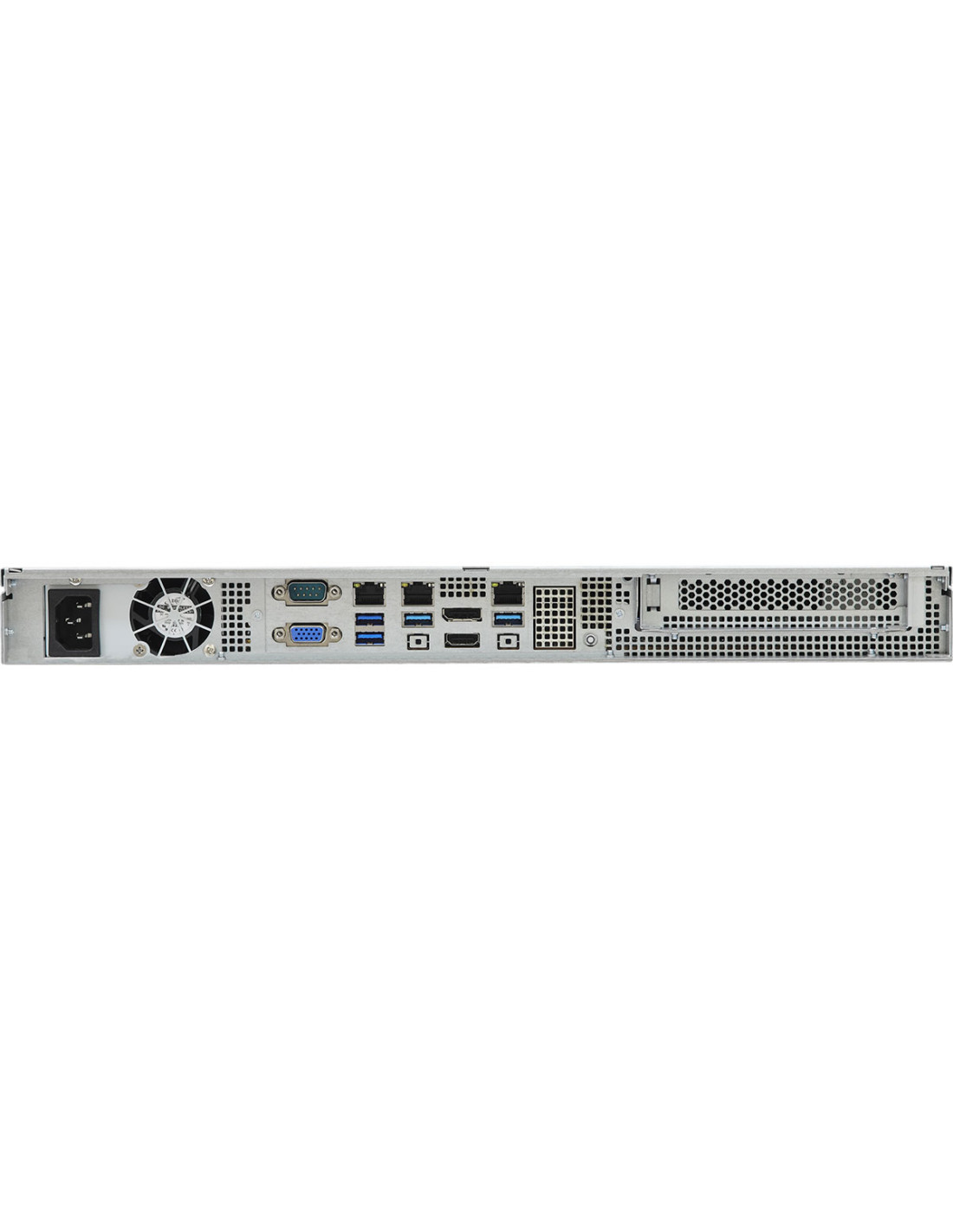

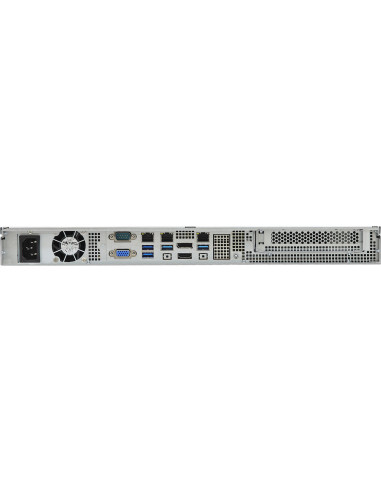

Rear I/O
UID Button/LED	1 UID button w/ LED
Video Port	1 DB15 (VGA), 1 DisplayPort, 1 HDMI
Serial Port	1 DB9 (COM)
USB 3.2 Gen1 Port	4 Type-A (USB3.2 Gen1)
RJ45	2 RJ45 (1GbE), 1 dedicated IPMI
System BIOS
BIOS Type	AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
BIOS Features	Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5
Hardware Monitor
Temperature	CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot
Fan	Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Auto chassis fan speed adjust)
Voltage	VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT_VMEM, VOLT_VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V
Environment
Temperature	Operating: 10°C ~ 35°C / Non-operating: -40°C ~ 70°C
Humidity	Non-operating: 20% ~ 90% (Non-condensing)

Device Features: Rackmount
I/O Ports: 2 Type-A (USB3.2 Gen1)

MPN 1U2S-B650
