ASRock Rack PAUL low-profile PCIe IPMI Card

PAUL
In Stock
$312.40
Tax included

PAUL

A reliable IPMI Card produced under ASRock Rack’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock Rack’s  commitment to quality and endurance.

low-profile PCIe IPMI card

- This card adds IPMI (Intelligent Platform Management Interface - HTML5) access on any normal Desktop motherboard.



Asrock Rack PAUL low-profile PCIe IPMI Card

International buyers, please email us for a shipping quote

Product Features

• KVM Mouse

• LAN interface (supports RMCP+)

• Serial Over LAN

• Universal Series Bus(USB)

• IPMI Serial Interface

• Field Replaceable Unit (FRU)

• IPMI Sensor

• IPMI Event Log

• Power control

• FAN Control

• Remote Control

• iKVM

• ADC Device Support (Customizable)

• GPIO Device Support (Customizable)

Installation

This is a Proprietary form factor (6.7-in x 2.2-in, 16.85 cm x 5.62 cm) IPMI Card. Before you install the IPMI Card, study the configuration of your chassis to ensure that the card is compatible with your system.

Web-based User Interface

The web-based user interface allows you to easily monitor the client device’s hardware information including temperatures, fan rotations, voltages, and power. By opening the GUI in a browser you can manage the client device remotely, even when there is no OS installed on the client device. This application also lets you instantly power on/off or reset the remote device.

Dashboard

The dashboard gives you a quick overview of the system status, quick control options, poweron hours, power redundancy, sensors, messages, and logs. Click or hover your mouse over an item to see more details. Scroll down to view more items.

Specifications

Controller ASPEED AST2500
Feature Base Board Management Controller (IPMI2.0 with iKVM support)
VGA (1920x1200@60Hz 32bpp)
Memory 2 SPI flash ROM 32MB
1 DDR4 SDRAM 4Gb
 Physical Status
Form Factor Low profile PCIe add-in-card
Dimensions 168.45 x 68.9 mm
 I/O
Upstream interface PCI Express2.0 x1

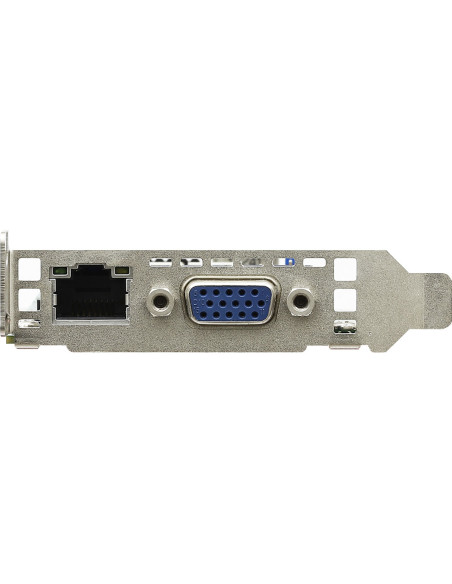

External 1 RJ45 via Realtek RTL8211E for dedicated IPMI LAN (10/100/1000 Mbps), 1 DB-15 (VGA)
Internal connectors 2 SMBus header
1 PMBus header
1 IPMB header
1 BMC reset
1 BMC debug header
1 V BIOS or system BIOS ROM
2 BMC ROM
1 Dual ROM select header
1 TPM (13-pin, LPC)
1 LPC header (13-pin)
2 Fan header
1 USB2.0 (5-pin): KVM and standby power
1 header (18-pin): GPIO, NCSI
1 header (18-pin): case open, system fail, GPIO, SMBus, PECI, voltage monitoring
1 COM port (9-pin)
1 micro-SD connector
1 USB Type-A (USB 2.0)
 Power
Power consumption 7.54W
Input 1 USB2.0 header (5-pin, 5VSB) Goldfinger (+12V)
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Paul card quick installation quide
