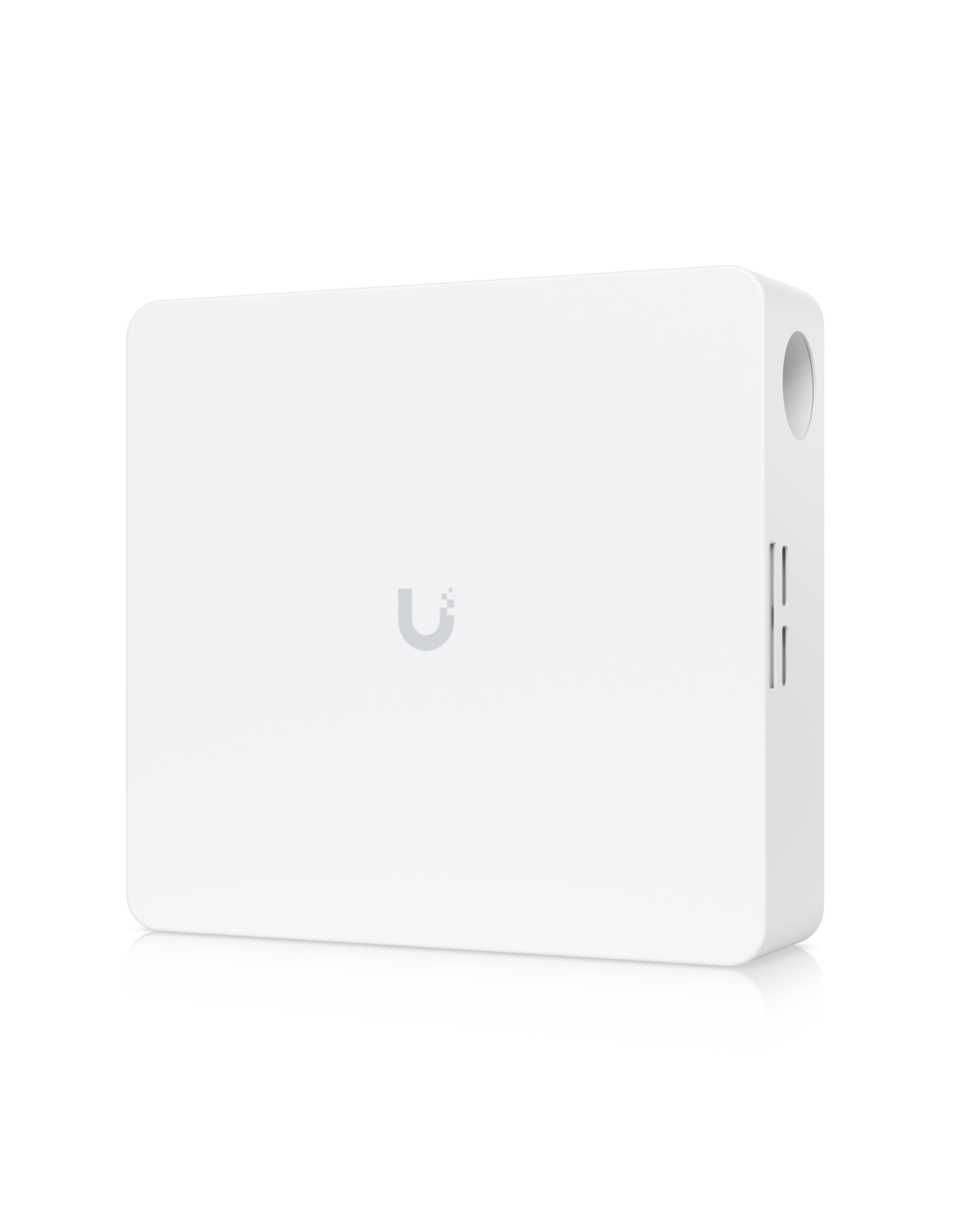

Ubiquiti UP-AlarmHub-Kit 32 Input Zone PoE++ Alarm Control Hub Kit with Optional Battery Backup

Ubiquiti UP-AlarmHub-Kit | Ubiquiti UP-AlarmHub-Kit 32 Input Zone PoE++ Alarm Control Hub Kit with Optional Battery Backup | WIS

Ubiquiti UP-AlarmHub-Kit 32 Input Zone PoE++ Alarm Control Hub Kit with Optional Battery Backup

Name: Ubiquiti UP-AlarmHub-Kit 32 Input Zone PoE++ Alarm Control Hub Kit with Optional Battery Backup
Brand: Ubiquiti
SKU: UP-AlarmHub-Kit
Price: 858 AUD
Availability: InStock

Reference UP-AlarmHub-Kit

In Stock

$858.00

Tax included

Ubiquiti Alarm Hub Kit

The Ubiquiti UP-AlarmHub-Kit is a professional 32-input alarm control hub that brings traditional hardwired intrusion detection systems into the UniFi Protect ecosystem. Designed for commercial, enterprise, and large residential deployments, it enables organisations to centrally manage alarm sensors alongside video surveillance and other UniFi security devices through a unified management platform. Powered by PoE++ with support for an optional 12V SLA battery backup, the Alarm Hub simplifies deployment while providing reliable operation during power interruptions. It is well suited for offices, retail stores, schools, warehouses, and other facilities seeking to modernise existing wired alarm infrastructure without replacing compatible intrusion sensors.

Key Features

✓Supports Up to 32 Hardwired Alarm Zones with EOL Resistor Compatibility
✓Native UniFi Protect Integration for Centralised Security Management
✓PoE++ Powered with Optional 12V SLA Battery Backup Support
✓Dual Configurable Wet/Dry Output Relays for Alarm Automation
✓Auxiliary 12V DC Sensor Power Outputs for Simplified Installation
✓Enables Modernisation of Existing Wired Intrusion Alarm Systems

*Note: The 5-year UI Care service must be applied before the product is opened and activated. FOR NEW SALES ONLY!

Cables & Adapters

	U-PoE++, Ubiquiti UniFi PoE++ Adapter (60W) $58.63
	Ubiquiti UACC-PoE+++-10G 10G PoE+++ Adapter (90W) $99.00

Accessories

Ubiquiti UI Care Five-Year Extended Replacement Protection, For NEW Sales Only

$190.00

Description
Product Details

Ubiquiti UP-AlarmHub-Kit 32 Input Zone PoE++ Alarm Control Hub Kit with Optional Battery Backup

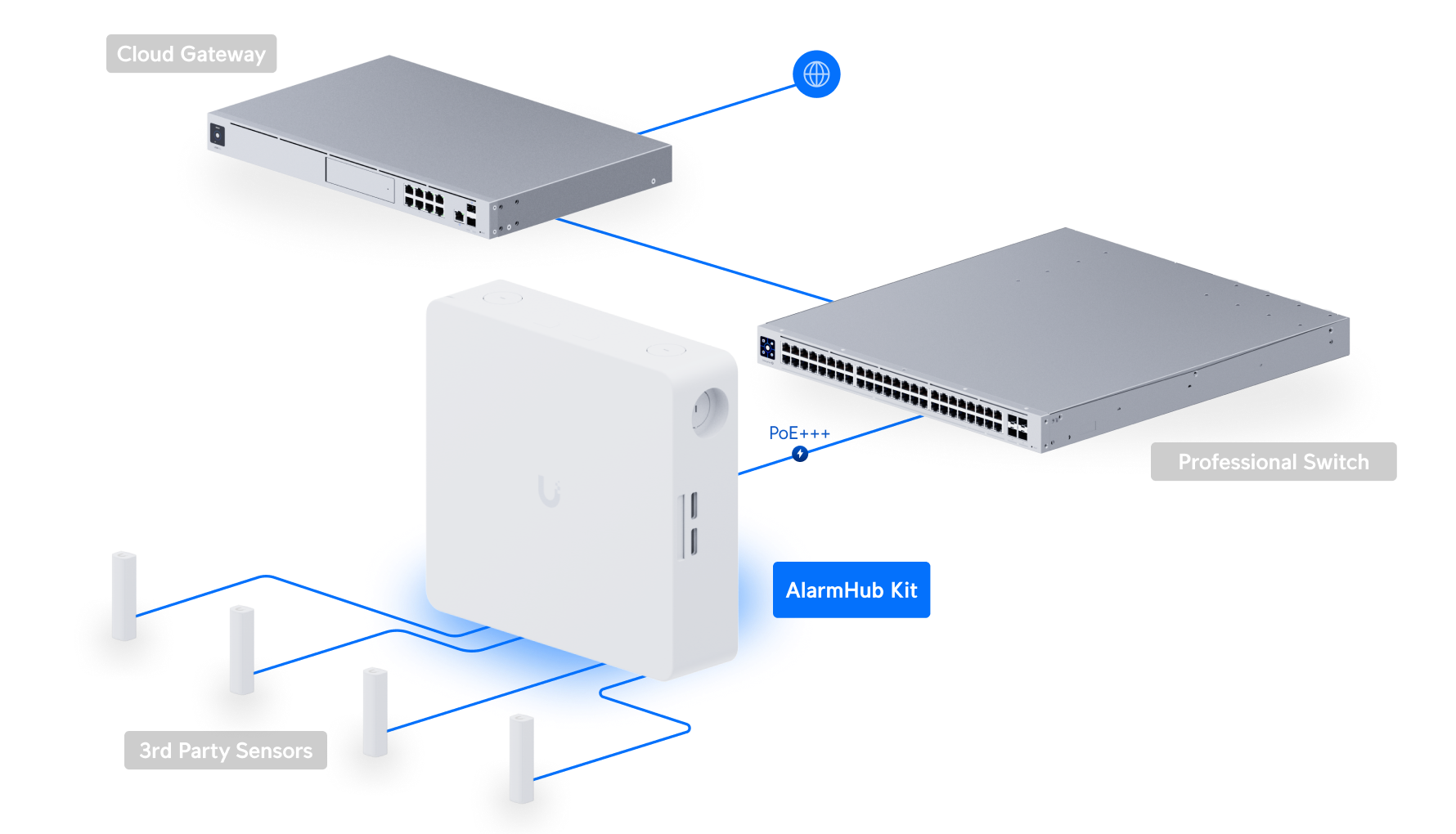

The Ubiquiti UP-AlarmHub-Kit extends the capabilities of the UniFi Protect platform by integrating traditional hardwired intrusion detection into a modern, centrally managed physical security solution. Rather than replacing existing alarm infrastructure, organisations can connect compatible wired sensors to the Alarm Hub and manage intrusion events alongside surveillance cameras and other UniFi Protect devices through a single interface.

This unified approach simplifies day-to-day security operations by reducing the need for separate alarm management systems while improving visibility across multiple security technologies. Administrators can respond more efficiently to incidents by correlating alarm events with video footage and other system activity within the UniFi Protect ecosystem.

Designed for commercial buildings, educational facilities, healthcare environments, retail stores, warehouses, and larger residential properties, the Alarm Hub provides a practical upgrade path for organisations seeking to modernise existing alarm installations without replacing compatible field devices. PoE++ connectivity simplifies deployment by delivering power and network connectivity over a single cable, while optional battery backup support helps maintain operation during power interruptions. Combined with flexible sensor integration and seamless UniFi Protect management, the UP-AlarmHub-Kit provides a scalable foundation for enterprise-grade intrusion monitoring and physical security.

Technical Specifications

Specification	Value

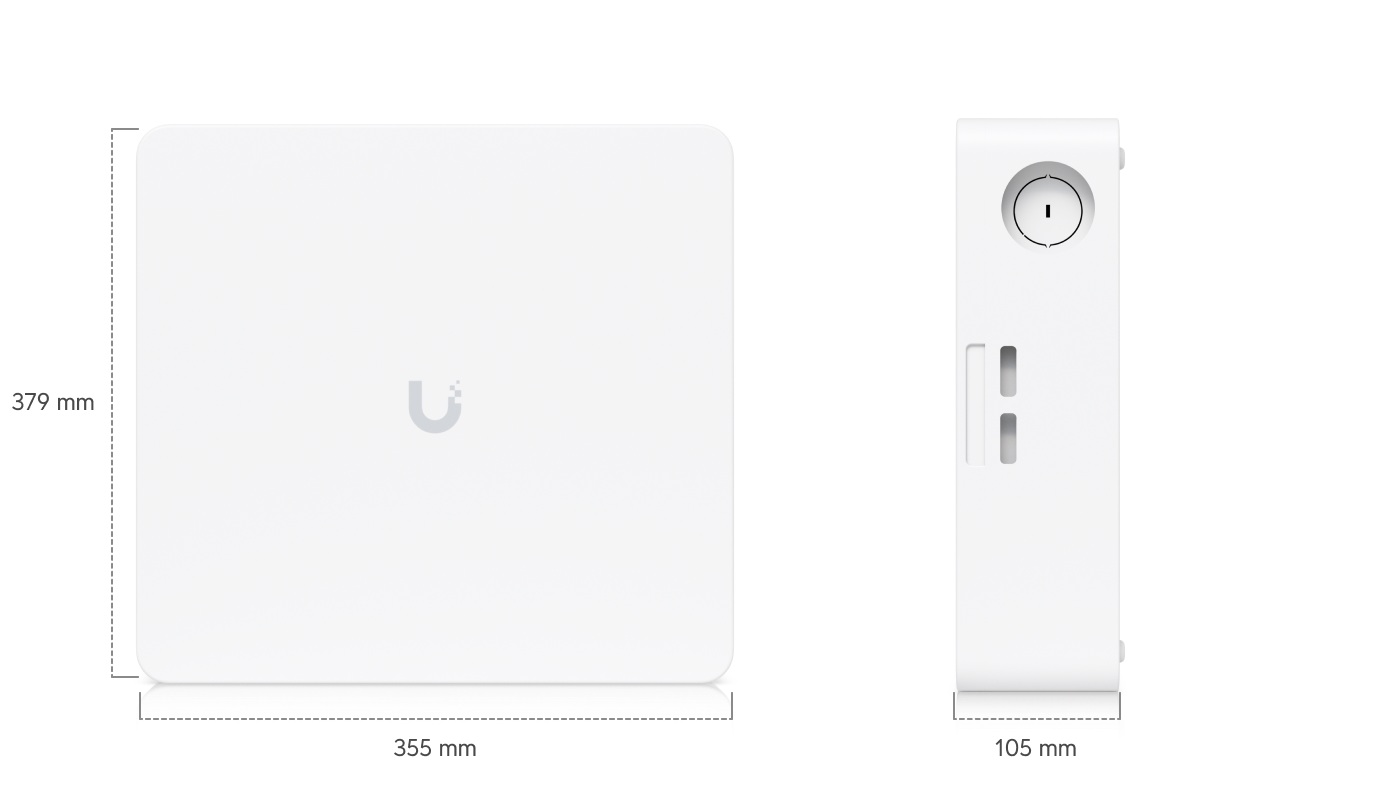

Dimensions	379 x 355 x 105 mm (15 x 14 x 4.1")

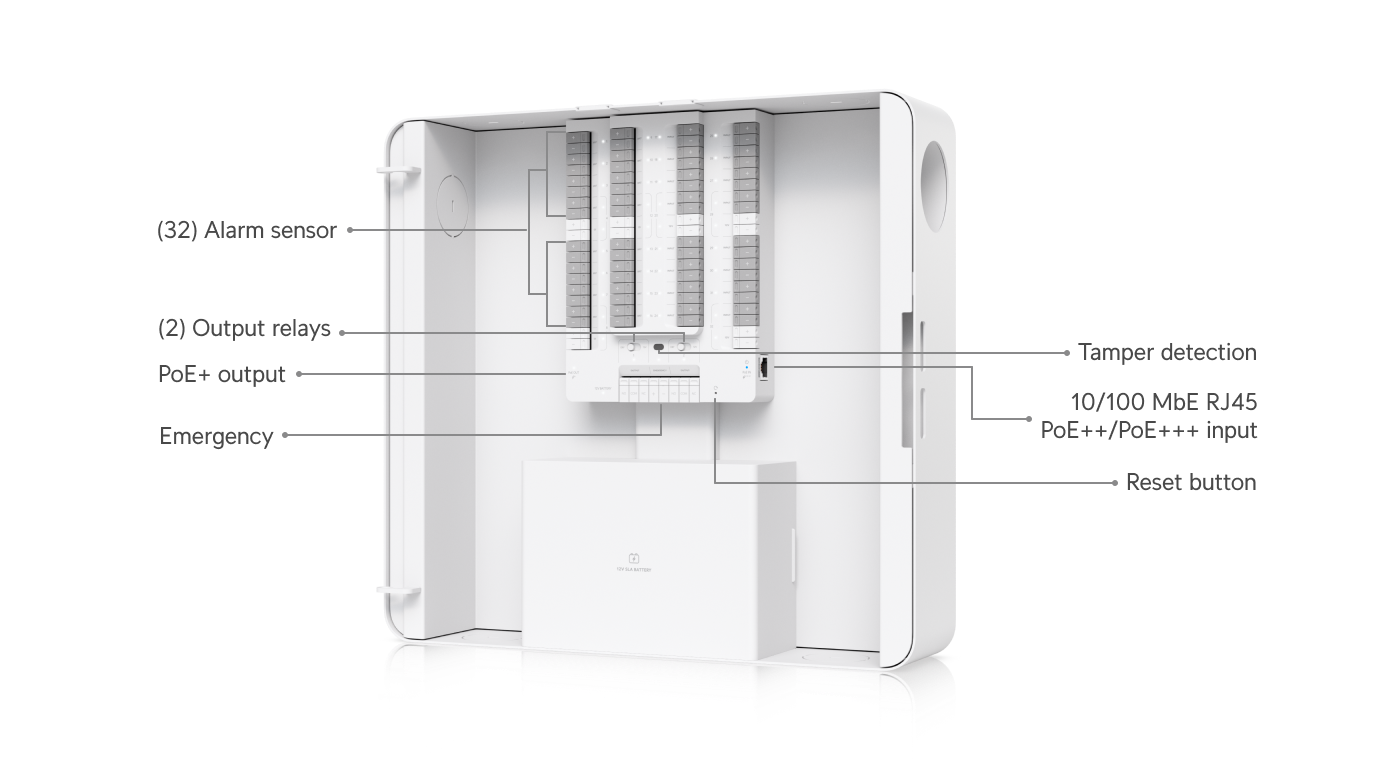

Input Terminals	(32) Alarm sensor (1) Emergency
Power Method	PoE++ / PoE+++ 12V SLA battery
Power Output Availability	PoE+++ input: 68W PoE++ input: 42W
NDAA Compliant	✓
Weight	Device: 8.3 kg (18.3 lb) Mount: 624 g (1.4 lb)
Enclosure Material	SGCC steel housing with polycarbonate cover
Mount Material	SGCC steel
Mounting	Wall
Digital Input	(32) Inputs for alarm sensor (Compatible with EOL resistors: 1–5.6kΩ, 1kΩ included) (1) Emergency
Output Relay	(2) Wet/Dry Wet: 12V DC, 1A Dry: 30V DC, 1A
Aux Power Output	For sensor: (3) 12V DC, 1A right side total (3) 12V DC, 1A left side total
Indoor and Outdoor Use	Indoor only
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Networking Interface	(1) 10/100 MbE RJ45 port
PoE Interface	(1) PoE++/PoE+++ input, 54V DC, 60W/90W (1) PoE+ output, 54V DC, 30W
Max. Power Consumption	90W
Battery Charge	SLA backup battery, 12V, 0.3A
LEDs	W/B
Buttons	(1) Factory reset (2) Dry/Wet switch
Certifications	CE, FCC, IC
Application Requirements	UniFi Protect Version 7.0.88 and later
Mobile App	UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later

MPN UP-AlarmHub-Kit
