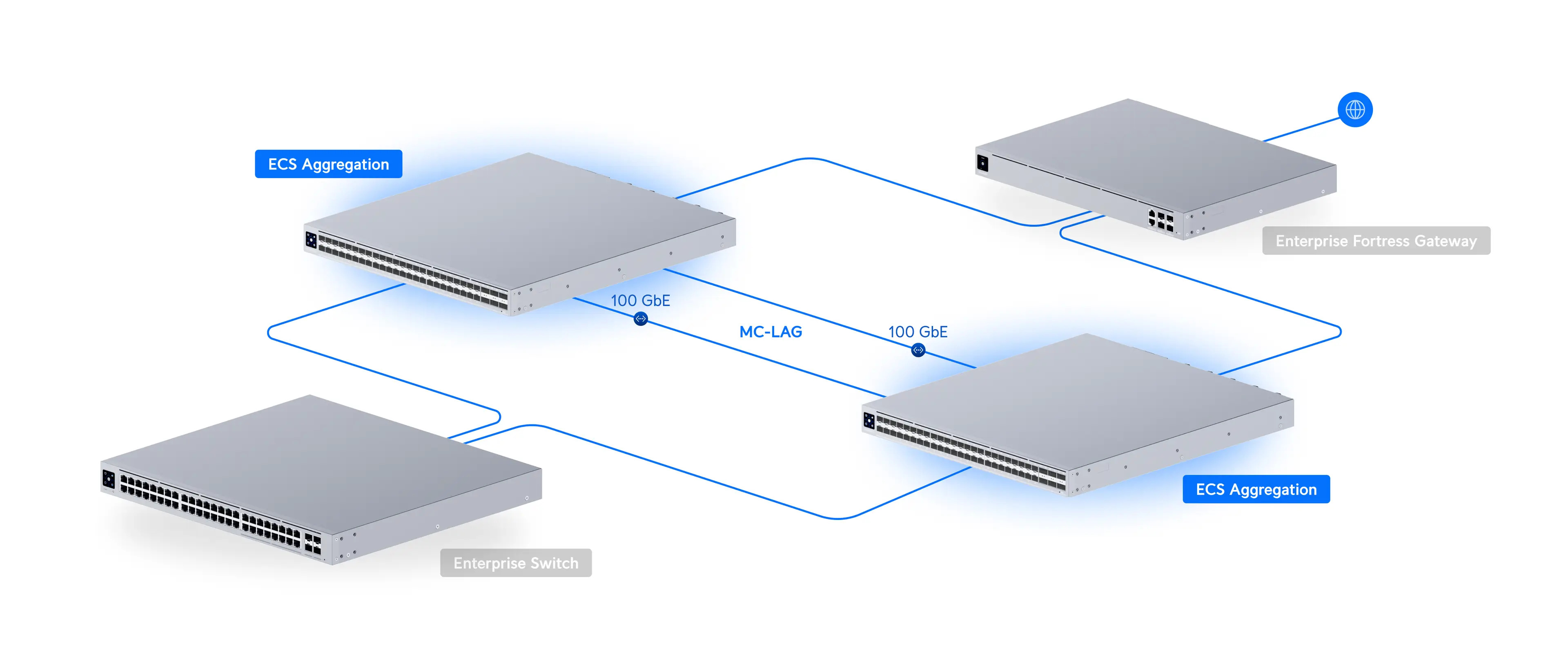

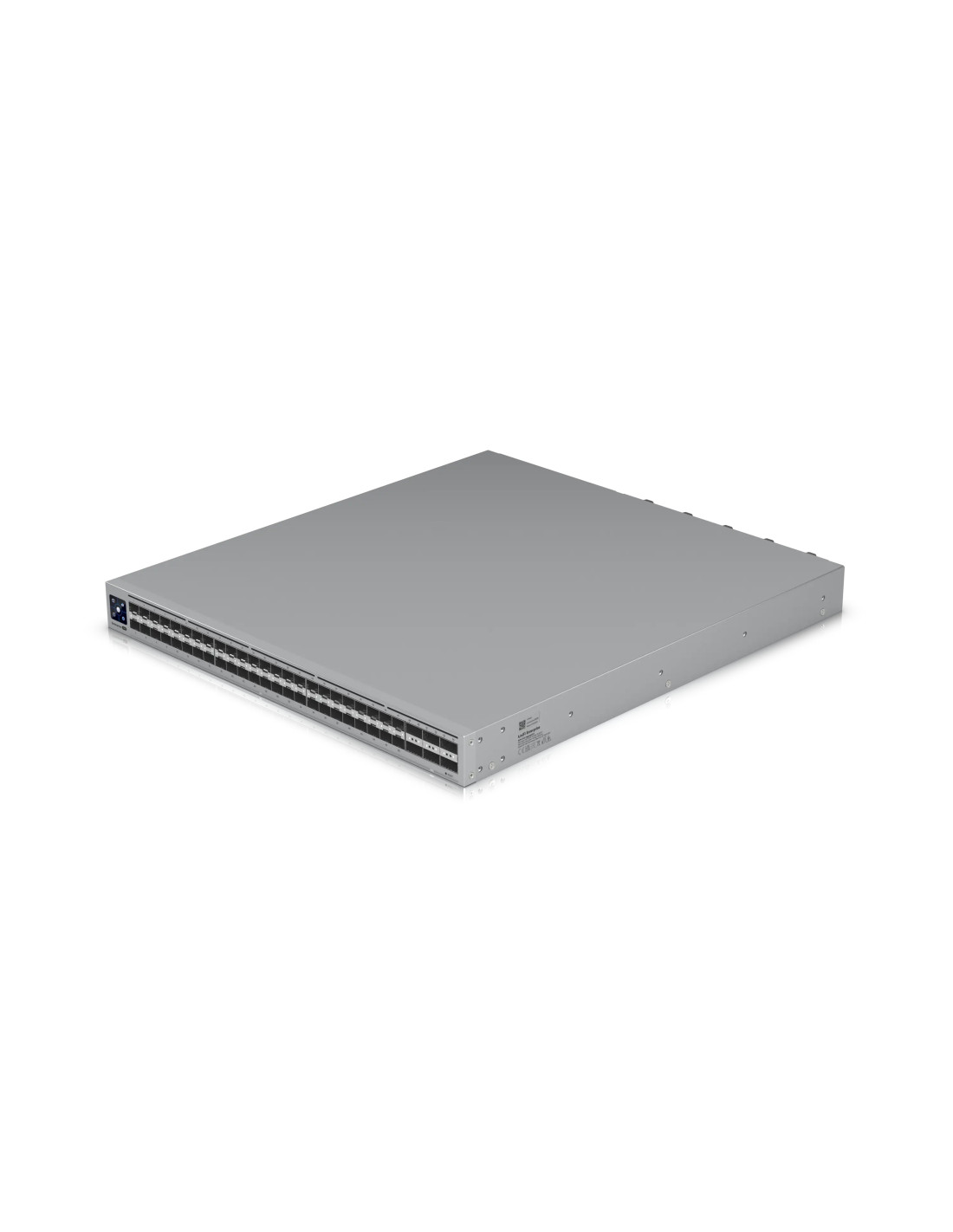

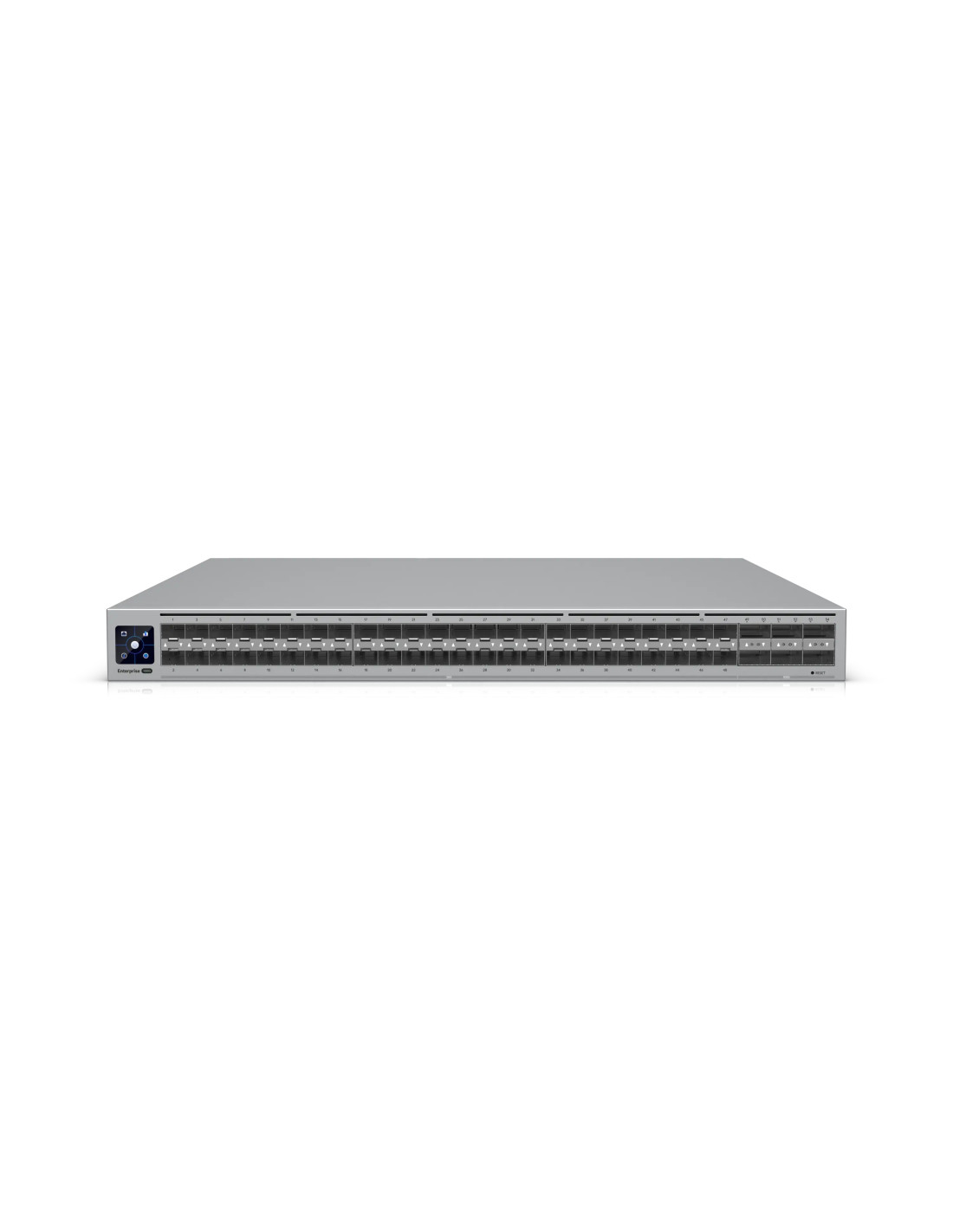

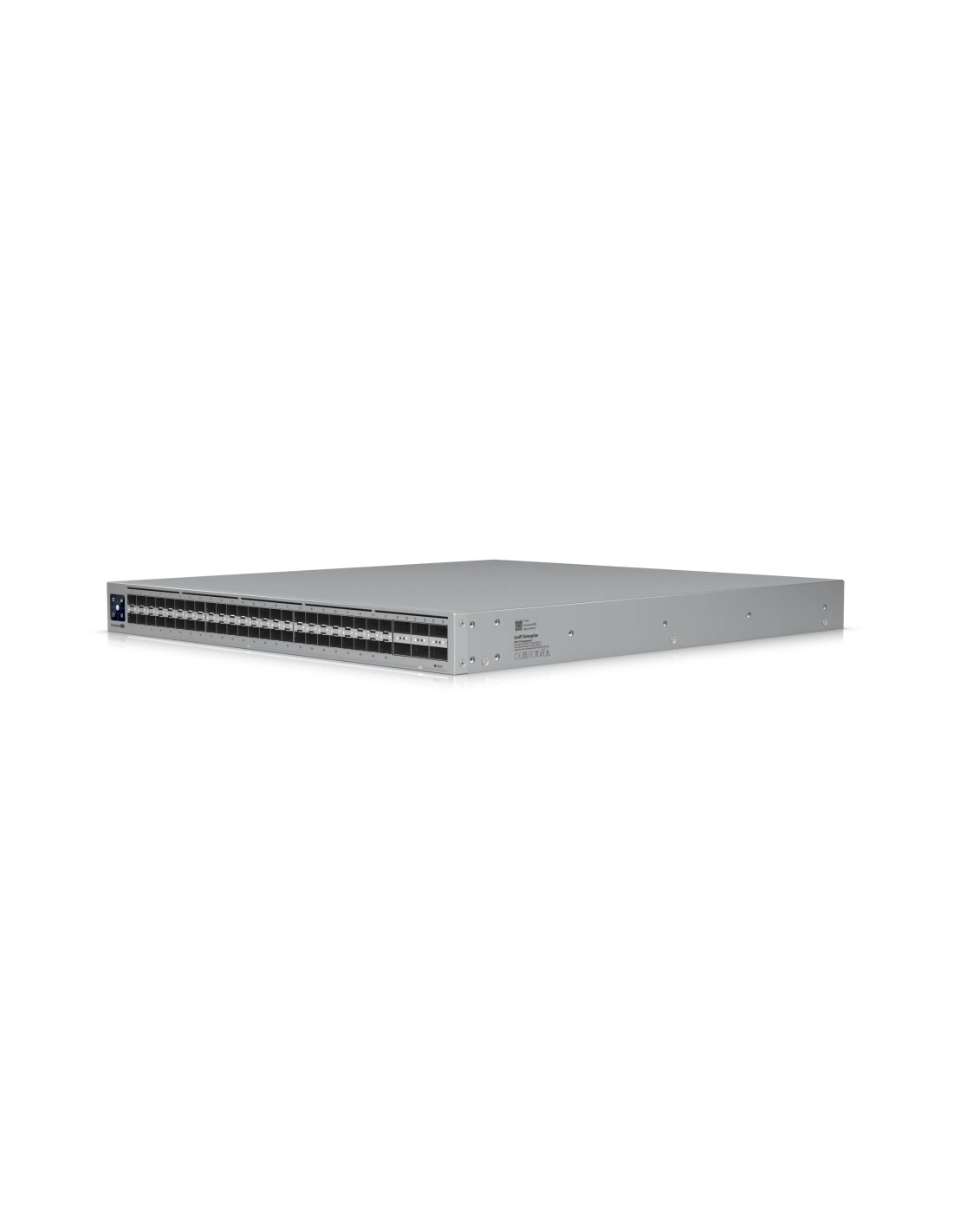

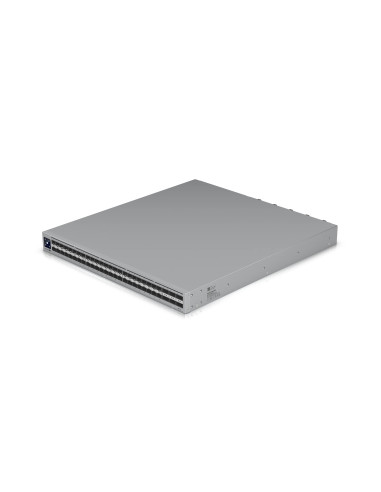

1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.

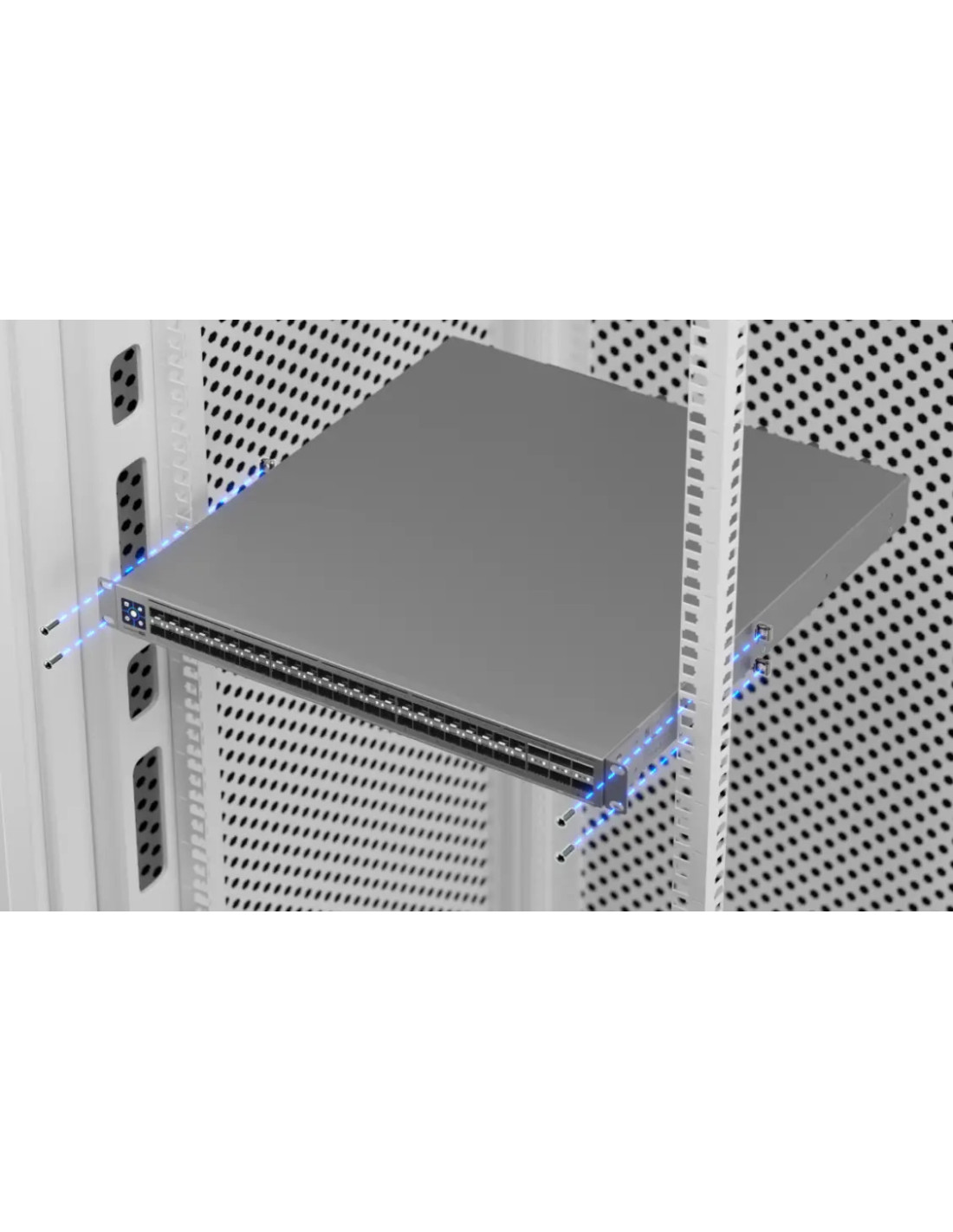

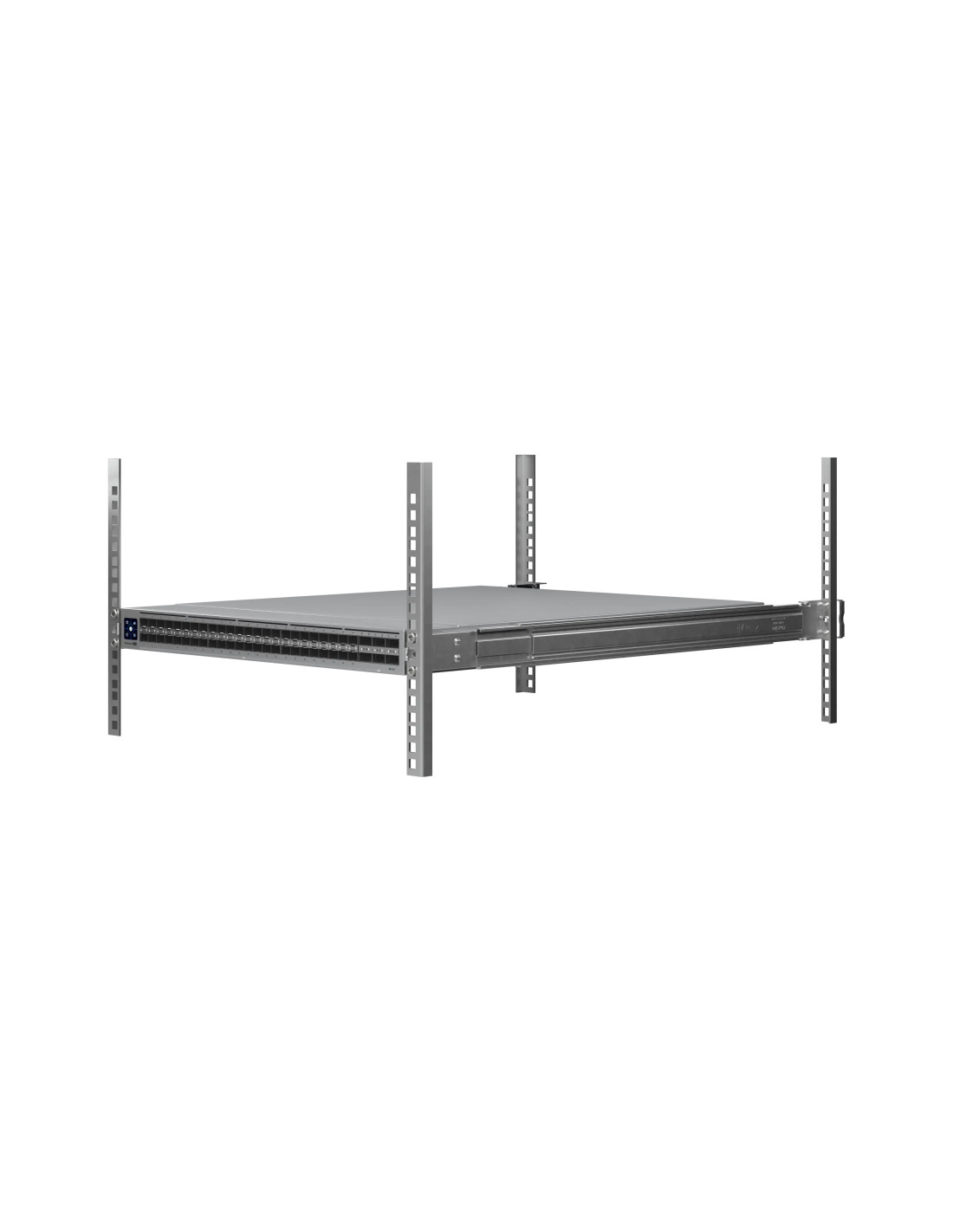

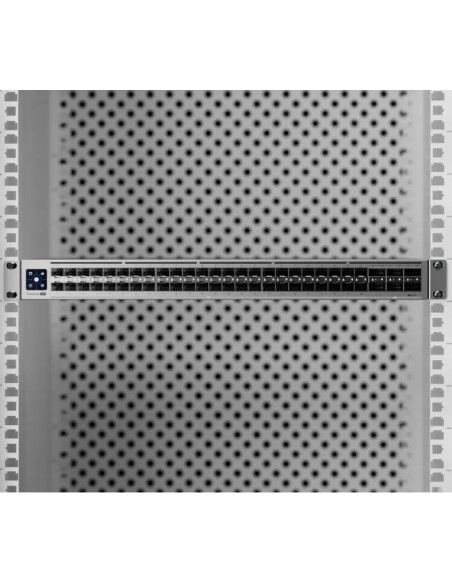

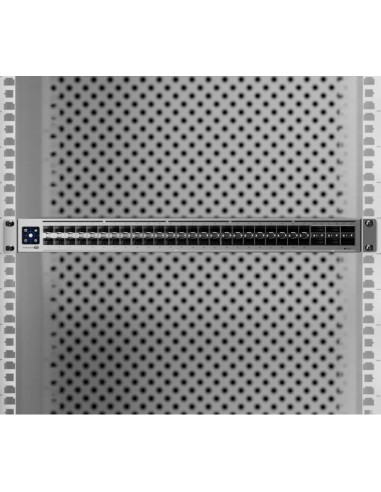

Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
Layer 3 automatic failover (VRRP) and OSPF support is scheduled for an upcoming UniFi Network Application release.
Features:
Related Products & Accessories
Product Features
| Overview | |
|---|---|

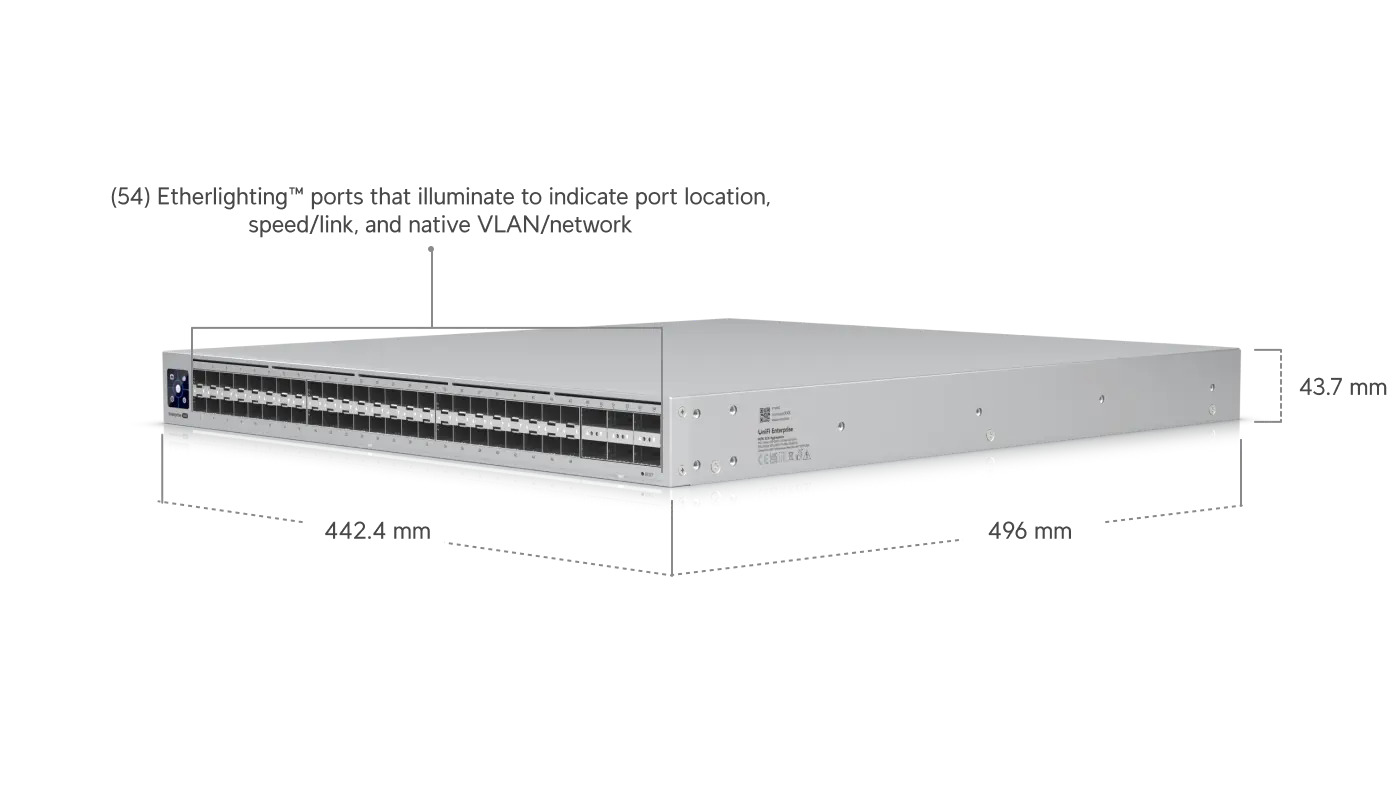

| Dimensions | 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5") |

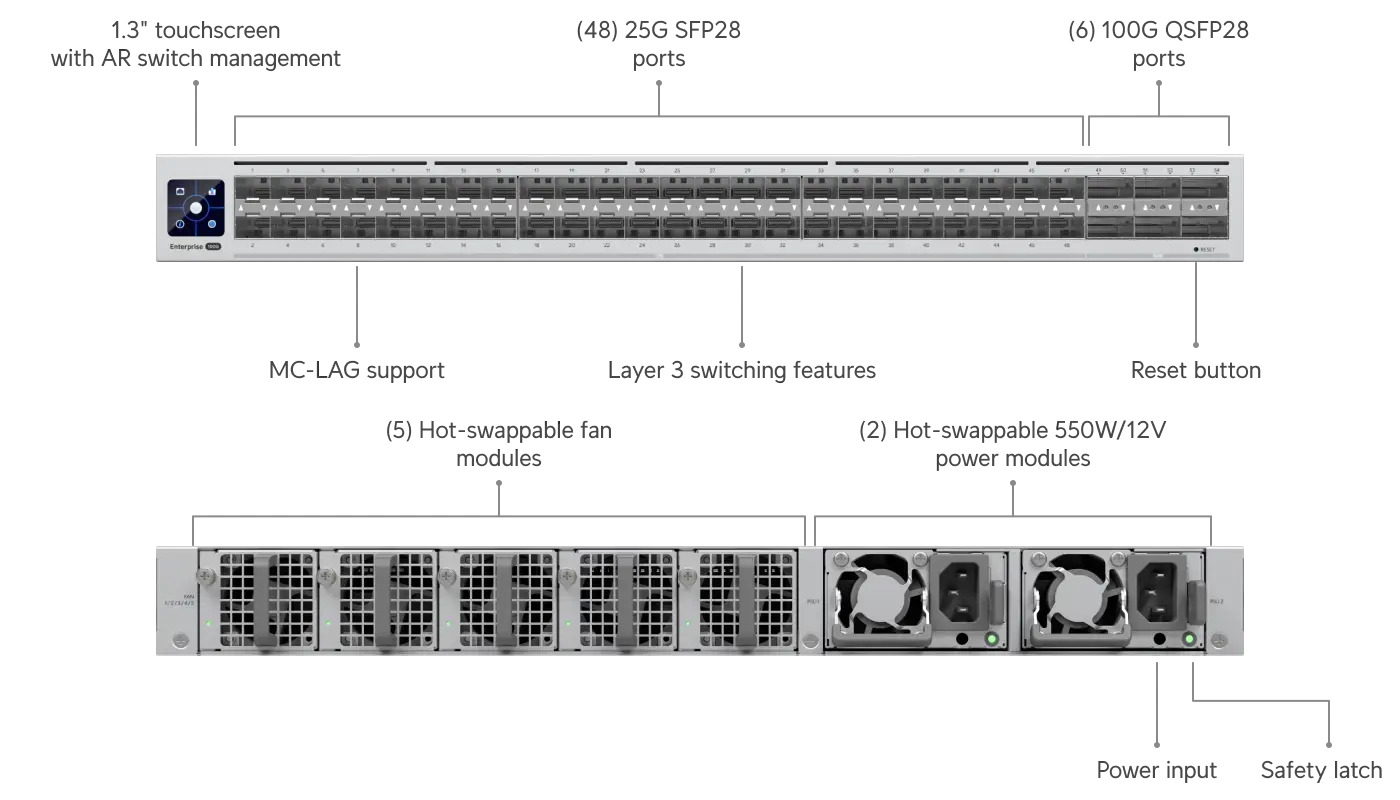

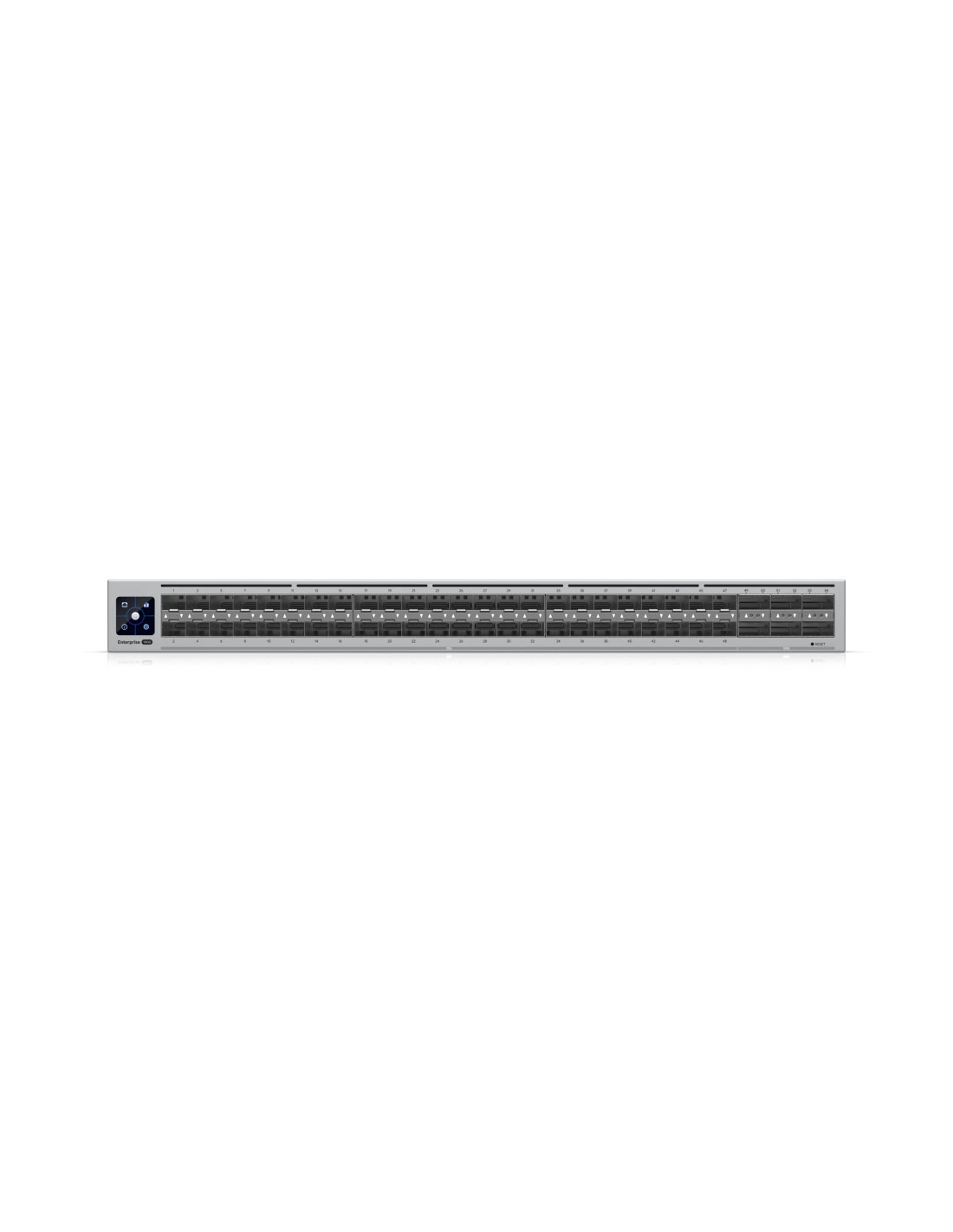

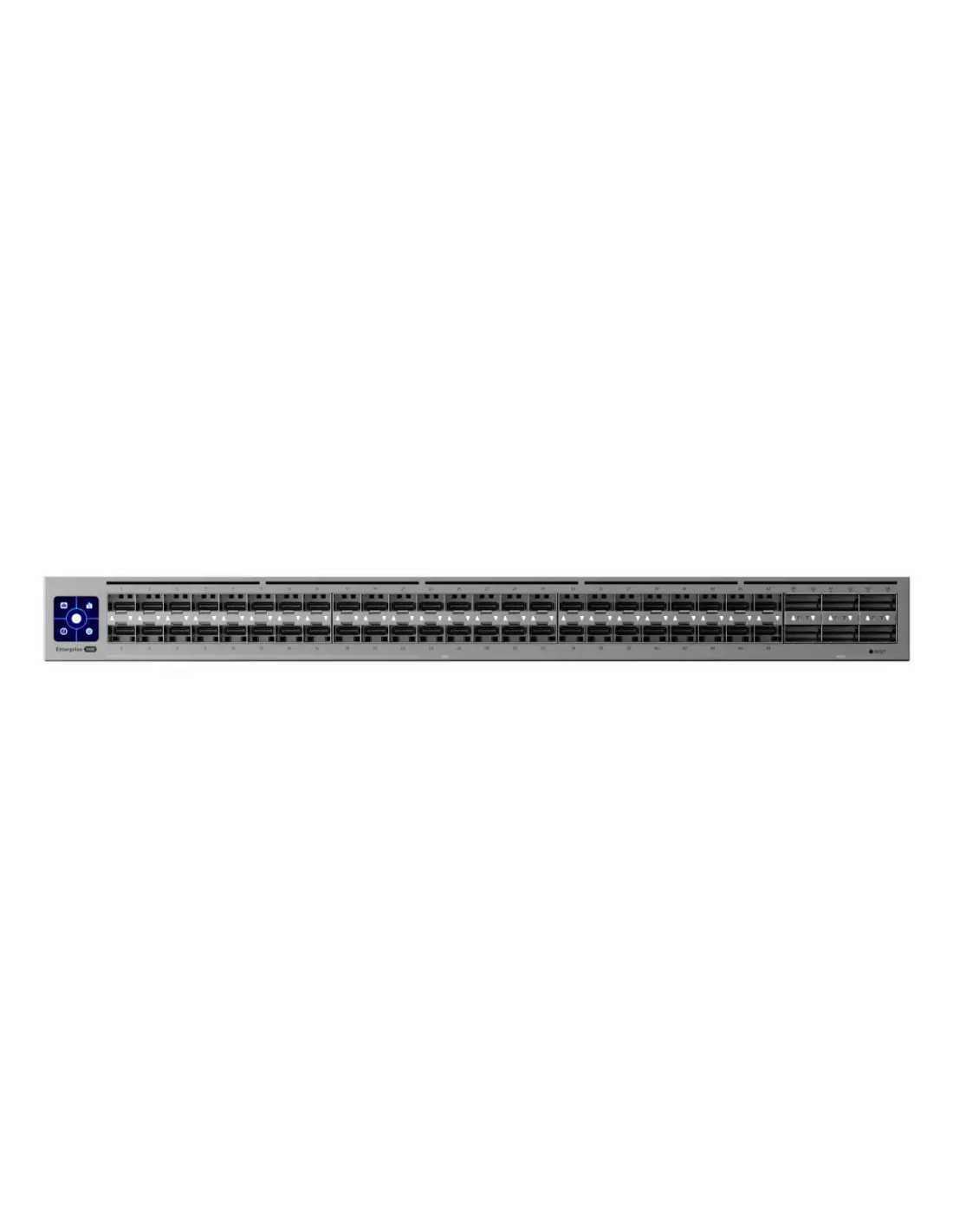

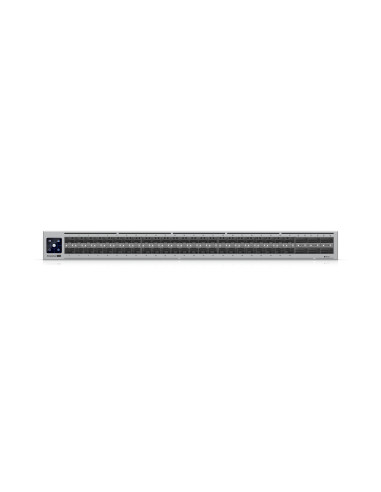

| Port Layout | 25G SFP28: 48 (25G/10G) 100G QSFP28: 6 (100G/40G) |

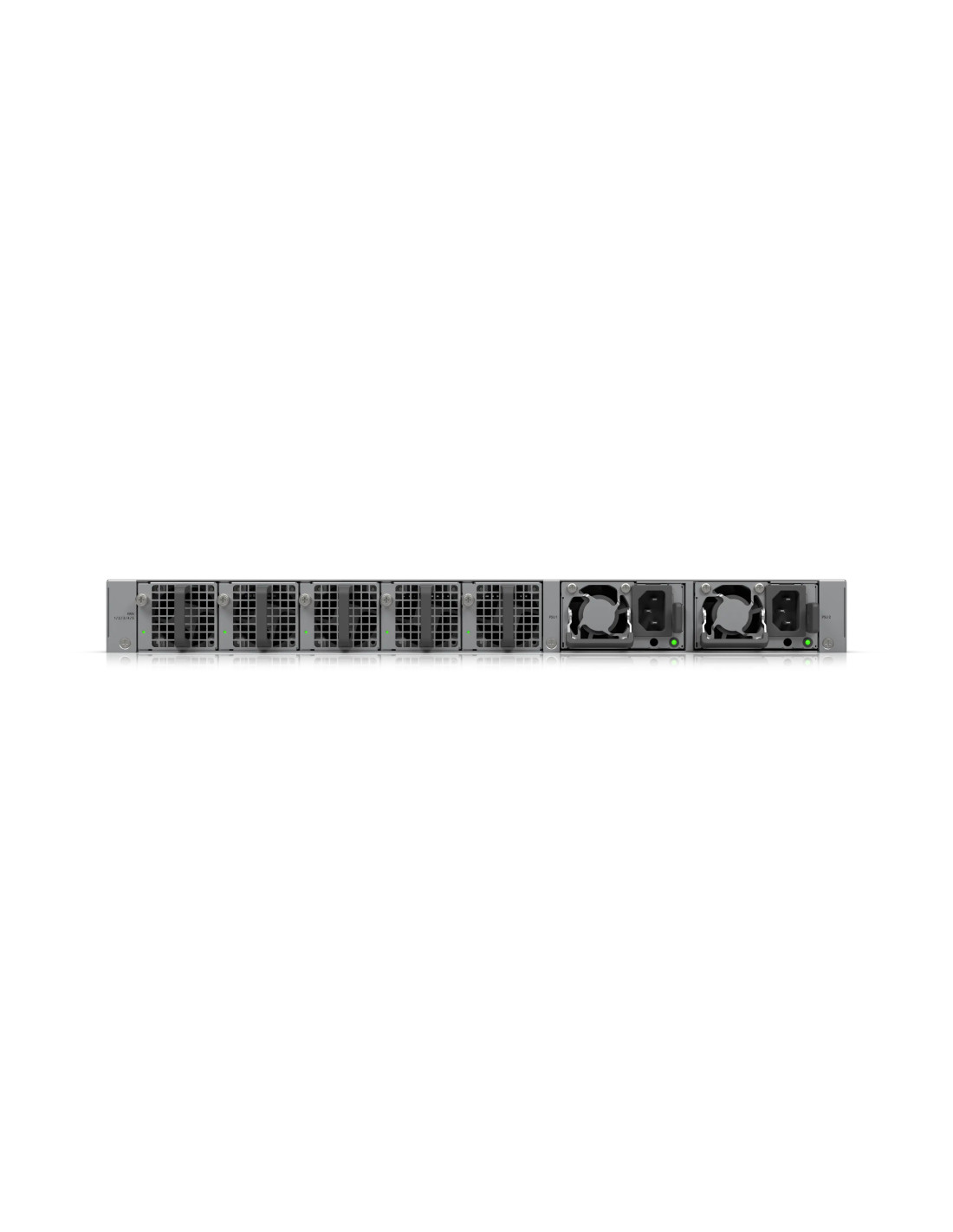

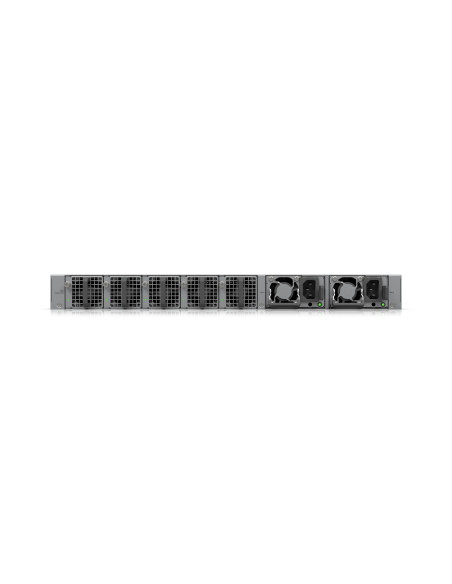

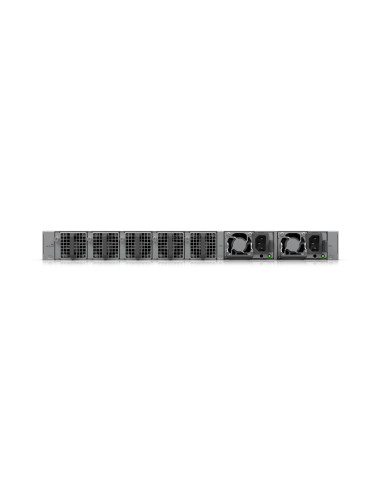

| Redundancy | Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U, Full-Depth) |
| Etherlighting™ | ✓ |
| Performance | |
| Switching Capacity | 3.6 Tbps |
| Total Non-Blocking Throughput | 1.8 Tbps |
| Forwarding Rate | 2.4 Bpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| L3 Table Size | ARP Entries: 96,000 IPv4 Routes: 288,000 |
| Packet Buffer Size | 24 MB |
| Access Lists | IPv4: 512 MAC: 512 |
| Layer 3 Features | |
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| MC-LAG | ✓ |
| STP & RSTP | ✓ |
| Advanced IGMP Configuration | Querier, Fast Leave, Router Port ✓ |
| IGMP Snooping | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Hardware | |
| Max. Power Consumption | 340W |
| Power Method | (2) Universal input, 100—240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Supported Voltage Range | 100—240V AC |
| Management Ethernet | AR |
| Heat Dissipation | 1160.08 BTU/hr (Excluding PoE Output) |
| Weight | Without brackets: 9.9 kg (21.8 lb) With brackets: 10 kg (22.04 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

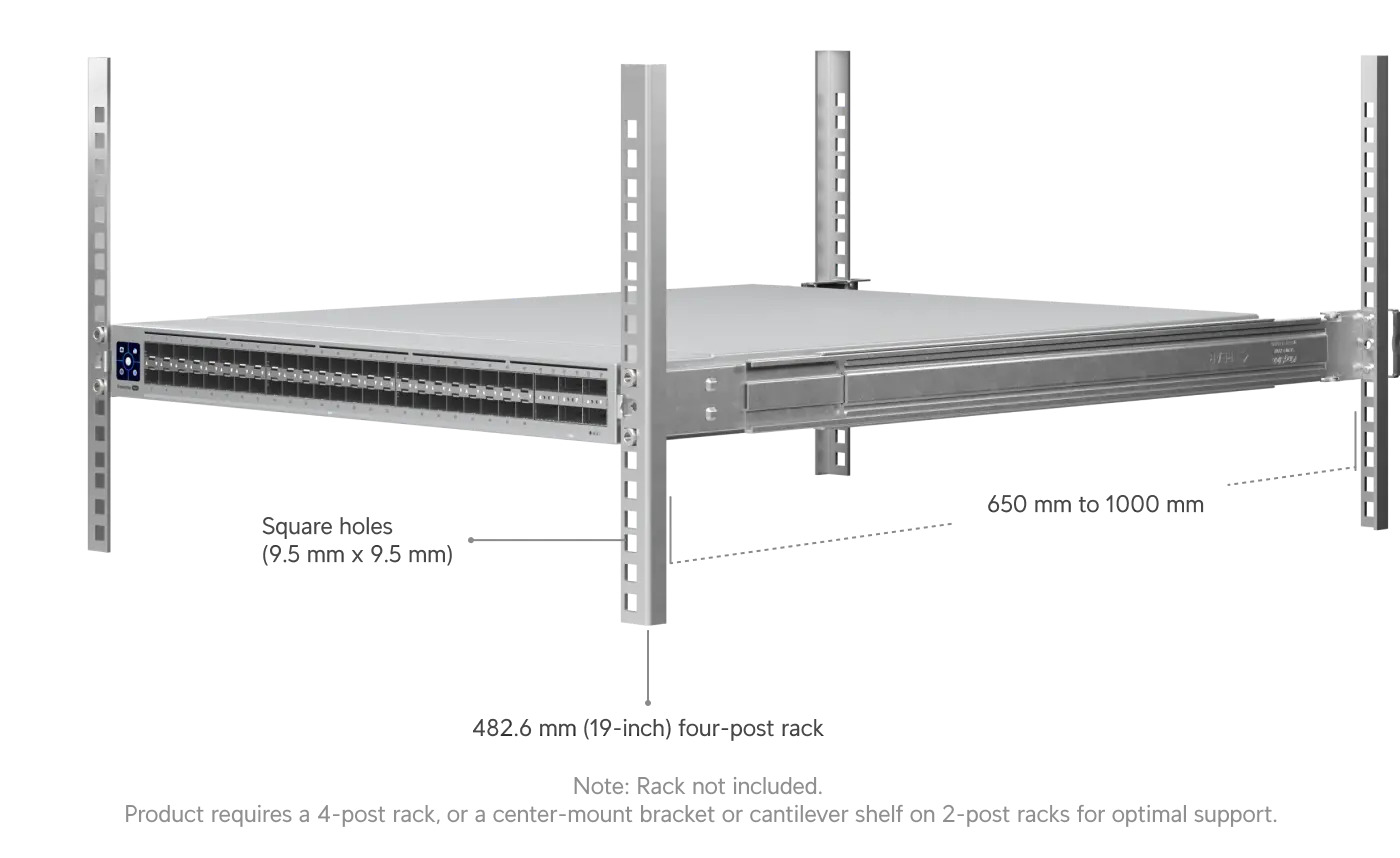

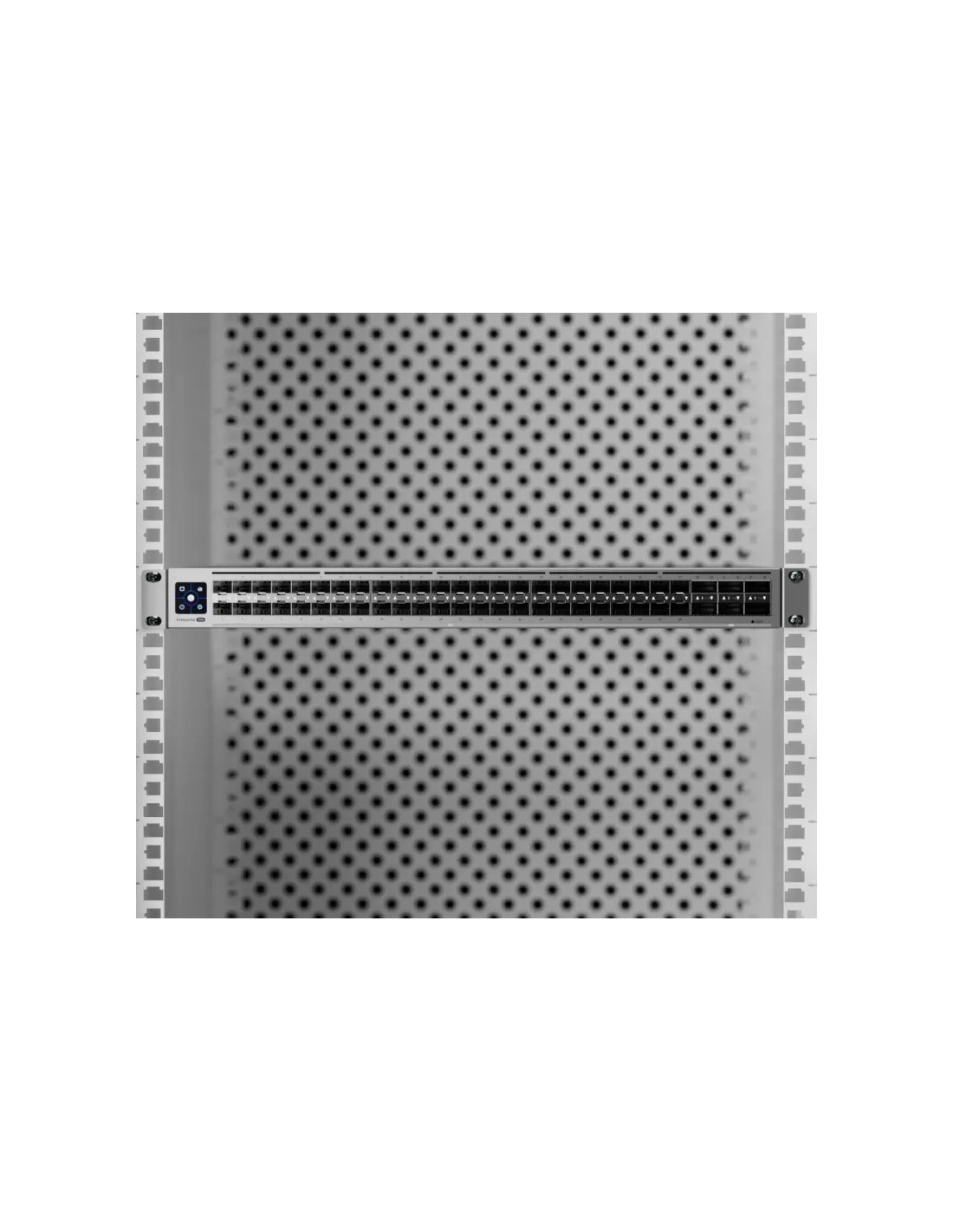

| Supported Rack Depth | 482.6 mm (19") four-post racks Posts: 650–1000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ±12kV, Contact: ±8kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Etherlighting™ | SFP+: ✓ SFP28: ✓ QSFP28: ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| Application Requirements | UniFi Network Version 8.5.6 and later |
