USW-Pro-HD-24-PoE
Last items in stock
$1,780.90
Tax included

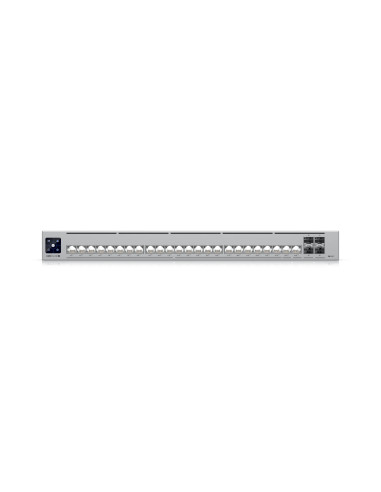

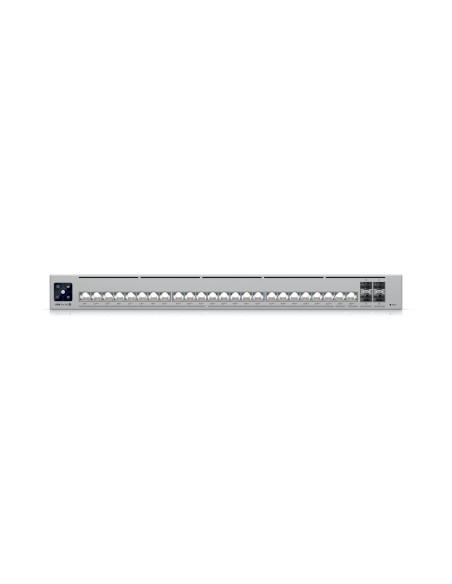

USW-Pro-HD-24-PoE

Professional-grade, Layer 3 Etherlightingâ„¢ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports..

Key Features

  • 24-port Layer 3 switch with 22x 2.5 GbE and 2x 10 GbE ports
  • 4x 10G SFP+ ports for high-speed uplinks
  • Supports PoE++ with 600W total power budget
  • Advanced Layer 3 routing and switching capabilities
  • 19-inch rackmount design with active cooling
  • Managed via UniFi Network Controller for centralized control
  • Supports VLAN, Link Aggregation, and QoS
  • CE, FCC, IC, and Anatel certified for compliance
  • Ideal for enterprise networks, IP cameras, APs, and VoIP phones
  • Etherlightingâ„¢ support for high-performance Ethernet connectivity

*Note: The 5-year UI Care service must be applied before the product is opened and activated. FOR NEW SALES ONLY!

Related Products & Accessories



USW-Pro-HD-24-PoE Compact 8-Port 10G Layer 3 PoE++ Switch with Etherlighting

The USW-Pro-HD-24-PoE is a high-performance switch designed for professional environments, offering advanced connectivity and high PoE power capacity for devices such as IP cameras, access points, and VoIP phones.

Product Specifications:

Feature Value

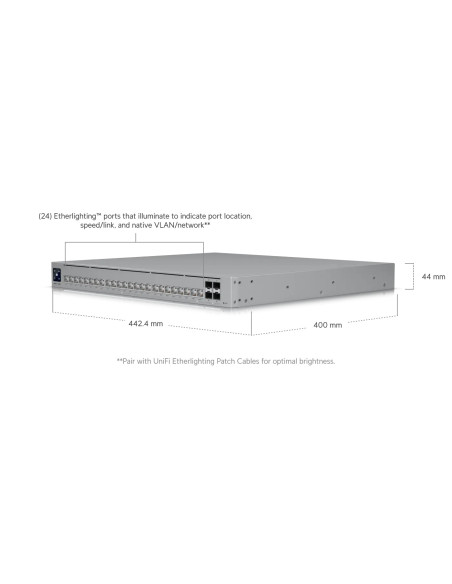

Dimensions 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")

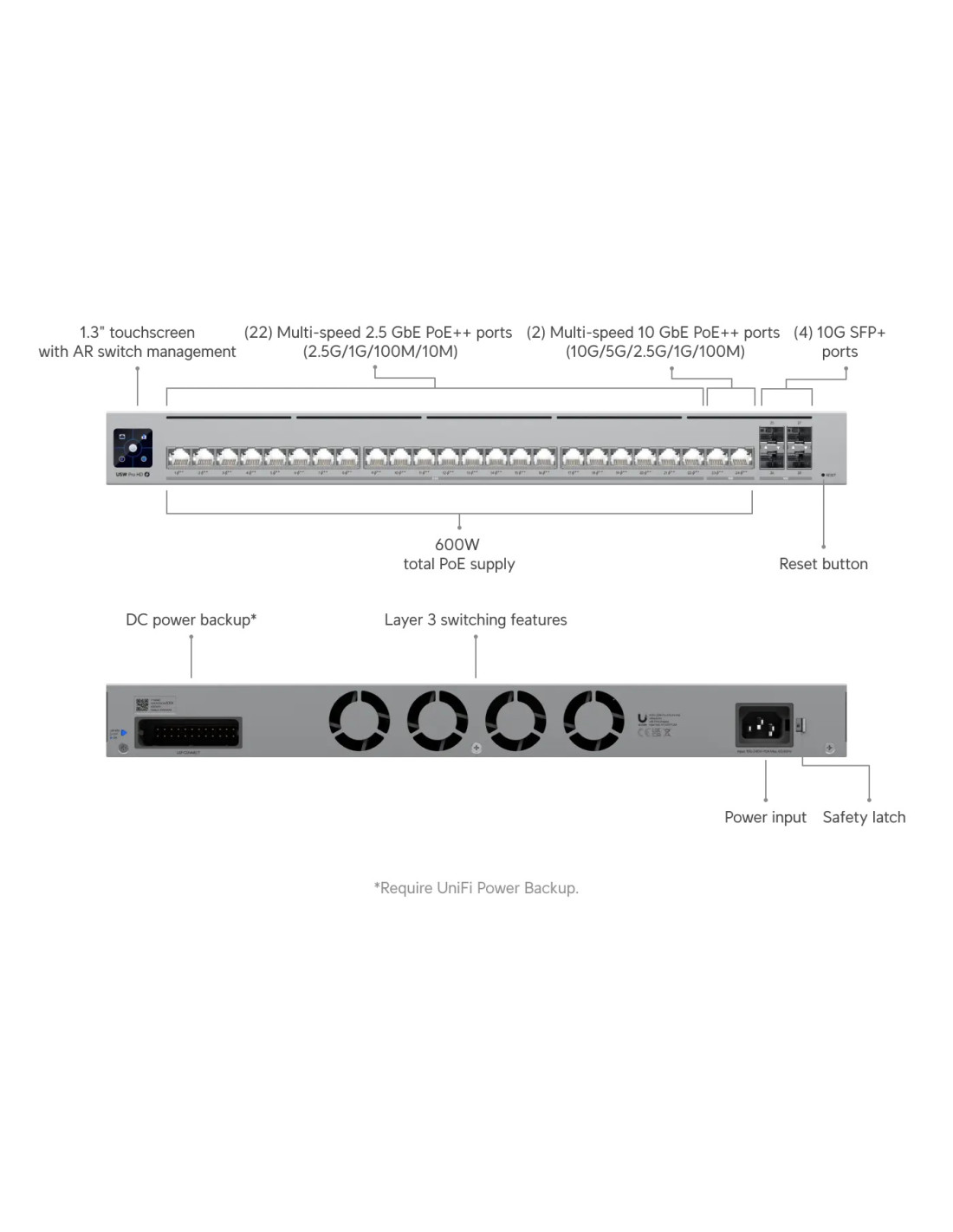

Port Layout - 2.5 GbE RJ45 22 (All PoE++) (2.5G/1G/100M/10M)
Port Layout - 10 GbE RJ45 2 (All PoE++) (10G/5G/2.5G/1G/100M)
Port Layout - 10G SFP+ 4 (10G/1G)
Max. PoE Output Up to PoE++
Total PoE Availability 600W
Redundancy DC Power Backup
Layer 3 ✓
Form Factor Rack mount (1U)
Etherlighting™ ✓
Switching Capacity 230 Gbps
Total Non-Blocking Throughput 115 Gbps
Forwarding Rate 171 Mpps
Supported VLANs 1,000
MAC Address Table Size 32,000
L3 Table Size
ARP Entries 12,000
IPv4 Routes 12,000
Packet Buffer Size 2 MB
Access Lists - IPv4 128
Access Lists - MAC 128
DHCP Server (Local Networks) ✓
DHCP Relay ✓
Inter-VLAN Routing (Local Networks) ✓
Static Routing (Local Networks) ✓
LACP Port Aggregation ✓
STP & RSTP ✓
QoS (DSCP) ✓
Pro AV Profiles ✓
Advanced IGMP Configuration ✓
IGMP Snooping ✓
802.1X Control ✓
MAC-Based ACLs & Device Isolation ✓
DHCP Snooping & Guarding ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
MAC Address Blocking ✓
IP-Based ACLs & Network Isolation ✓
MAC-Based Port Restriction ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
LLDP-MED ✓
Voice VLAN ✓
Loop Protection ✓
PoE Ports - PoE++ 24
PoE Ports - PoE 15.4W
PoE Ports - PoE+ 30W
PoE Ports - PoE++ 64W
Max. Power Consumption 60W (Excluding PoE Output), 660W (Including PoE Output)
Power Method (1) Universal input, 100—240V AC, 50/60 Hz; (1) USP RPS DC input
Power Input Method AC input
Power Supply AC/DC, internal, 660W
Supported Voltage Range 100—240V AC
Management Ethernet AR
Weight Without mounting brackets: 6.2 kg (13.7 lb); With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 600 - 1,200 mm (23.6- 47.2")
LCM Display 1.3" touchscreen
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
Etherlightingâ„¢
Ethernet ✓
SFP+ ✓
NDAA Compliant ✓
Certifications CE, FCC, IC
UniFi Network Version 9.0.114 and later
Device Type
Network Switch
Power Over Ethernet
SFP+ Ports
4
Power Input
AC
DC
Ethernet Ports
24
Layer
Layer 3
