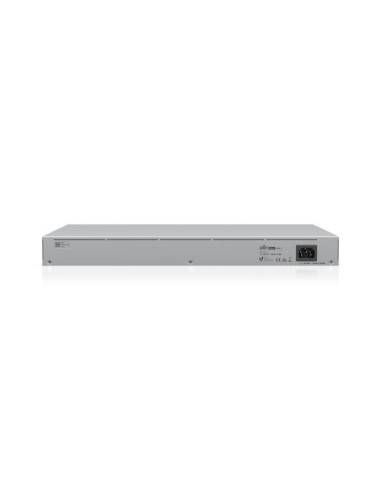

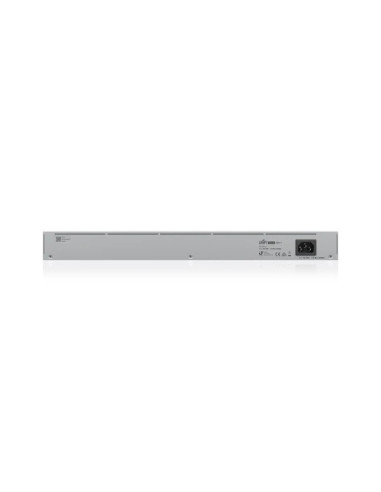

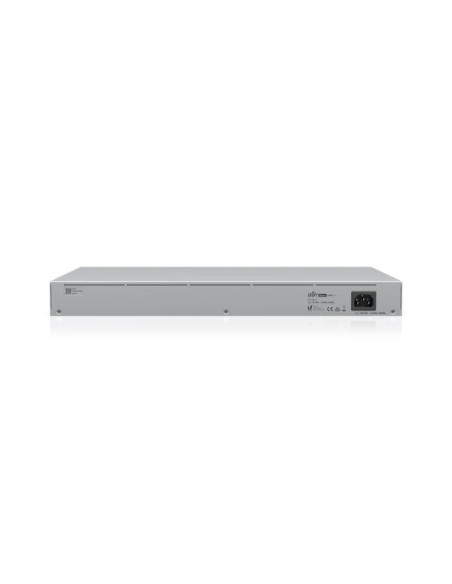

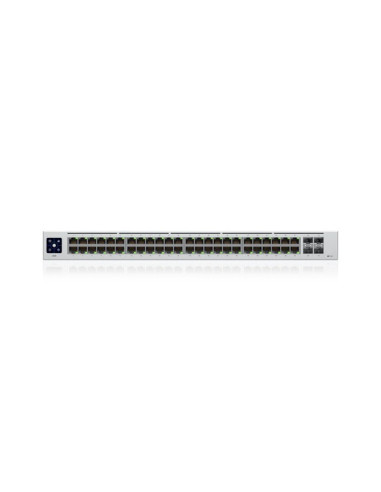

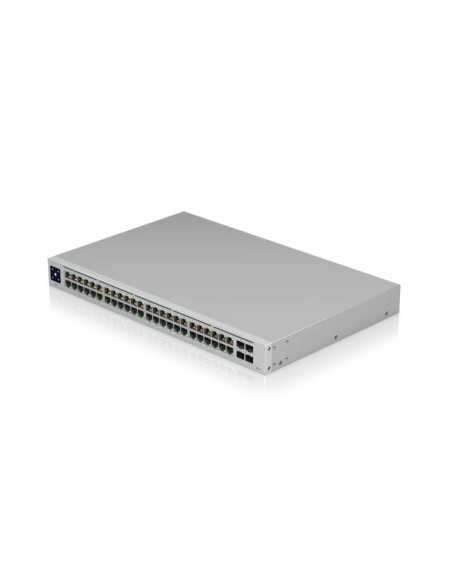

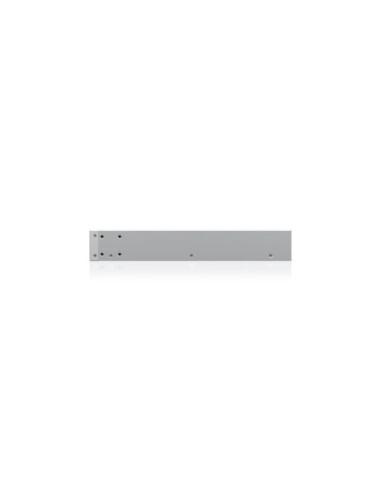

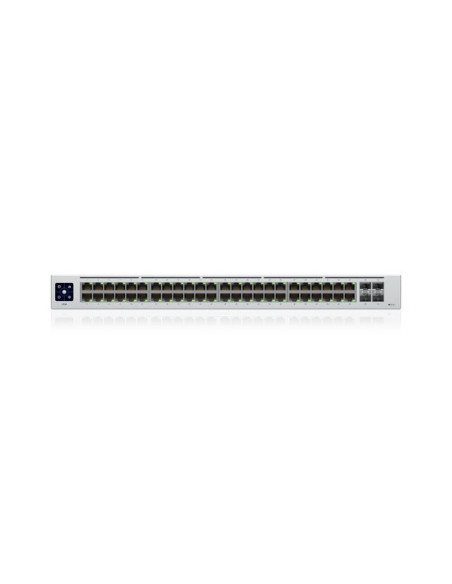

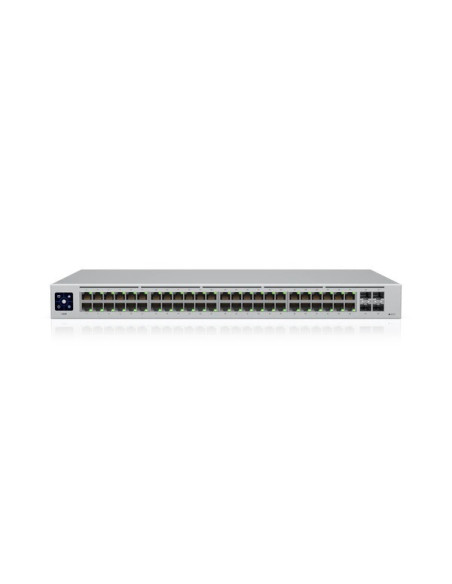

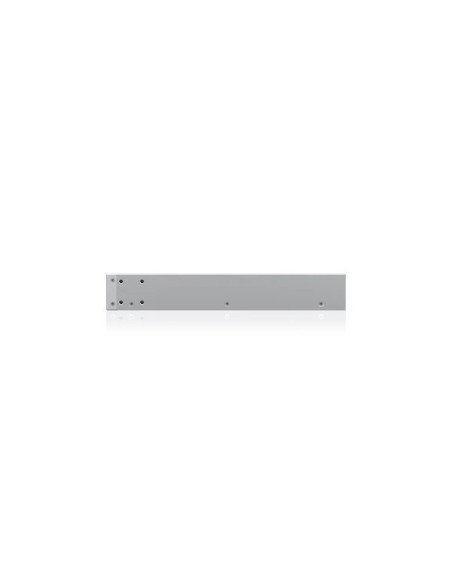

USW-48
Last items in stock
$764.50
Tax included

USW-48

Layer 2 switch with (48) GbE RJ45 ports and (4) 1G SFP ports.

The Switch 48 (USW 48) is a fully managed, fanless switch with (48) GbE RJ45 ports and (4) 1G SFP ports. The versatile USW 48 provides Gigabit links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Related Products & Accessories



USW-48 - Ubiquiti UniFi L2 48 Port Gigabit Switch with SFP

Product Features:

  • (1) 1.3" LCM color touchscreen with AR switch management
  • (48) GbE RJ45 ports
  • (4) 1G SFP ports
  • Fanless, silent cooling

Works with the UniFi Network Application

  • Centrally manage multiple networks from an intuitive interface
  • Enjoy real-time device insights and deep configuration options
  • Upgrade device firmware remotely
  • Manage network users and guests with ease
  • Personalize the design, architecture, and privacy of guest hotspots
  • Set up devices quickly and manage them on the go with a powerful mobile app

Mechanical
Dimensions

442.4 x 285 x 43.7  mm (17.42 x 11.22 x 1.72")
Weight

Without Mount: 3.9 kg (8.6 lb)

With Mount: 3.99 kg (8.8 lb)
Enclosure Characteristics

SGCC Steel
Hardware
Total Non-Blocking Line Rate

52 Gbps
Max. Power Consumption

40W
Forwarding Rate

77.376 Mpps
Power Method

Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply

AC/DC, Internal, 60W
Supported Voltage Range

100 - 240VAC
Networking Interfaces

(48) 10/100/1000 Mbps Ethernet RJ45 Ports

(4) 1 Gbps SFP Ports
Management Interface

Ethernet In-Band
Modes

SMB Layer 2 Gigabit Ethernet Switch
Operating Temperature

-15 to 40° C (5 to 104° F)
Operating Humidity

10 - 90% Noncondensing
Certifications

CE, FCC, IC
LEDs
System

(1) Bootup Animation: Bootup in Progress

Firmware Upgrade Icon: Firmware Upgrading

Steady White: Factory Defaults, Awaiting Adoption

Steady Blue: Device is Adopted
Ethernet

Green: 1G, Amber: 10/100 Mbps
SFP

Green: 1G

Device Type
Network Switch
SFP Ports
4 Ports
Ethernet Ports
48
810010072481
USW-48
