Tycon Systems TP-SW5G-VERSA 5 Port Gigabit Versatile Output PoE Switch, 1 (60W), 3 (30W) at, 1 (12W) 24V PoE

TP-SW5G-VERSA
Last items in stock
$580.00
Tax included

TP-SW5G-VERSA

The TP-SW5G-VERSA Power over Ethernet (PoE) 5 Port Gigabit switch offered by Tycon is a fully automatic high speed Layer 2 Ethernet switches with multiple function ports. Port 1 is a 60W 4pair High PoE port; Port 2,3,4 are 48V 30W 802.3at compatible ports; Port 5 is a 24V 12W Passive PoE port. This allows a customer to power up multiple PoE devices with different power requirements. The switch requires a 44-57VDC power input.

Key Features:
• One (60W) High PoE, Three (30W) 802.3at
PoE and one (12W) 24V Passive PoE port
• Gigabit Compatible
• Built-in Surge Protection
• Automatic MDI/MDI-X Crossover
• Automatic Speed and Duplex Sensing
• Low Self Power and High Temperature
Operation

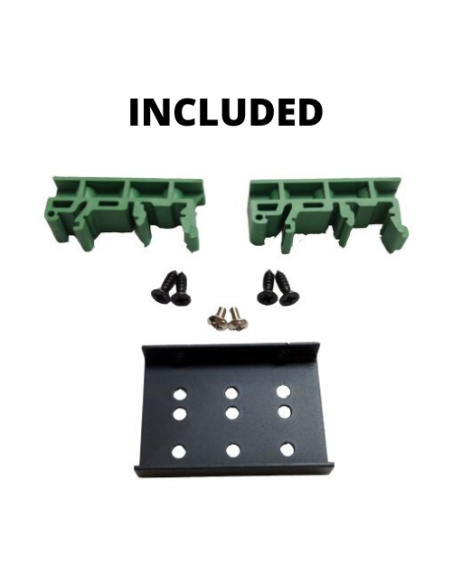

• DIN Rail Adapters included

Quantity Unit price You Save
5 $562.60 $87.00

Related Products & Accessories



TP-SW5G-VERSA

The TP-SW5G-VERSA is compatible with Category 5 or higher Ethernet cables. The RJ45 connectors are shielded and grounded to the common “FG” (Frame Ground) connection. The units have 15kV surge protection on all Ethernet wires and are conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial applications. A 4A power supply is recommended, similar to the PSDIN-48-240W.

Applications
• Power different devices from a single 48V supply
• Cameras and Wireless Radios
• PoE Lighting Applications

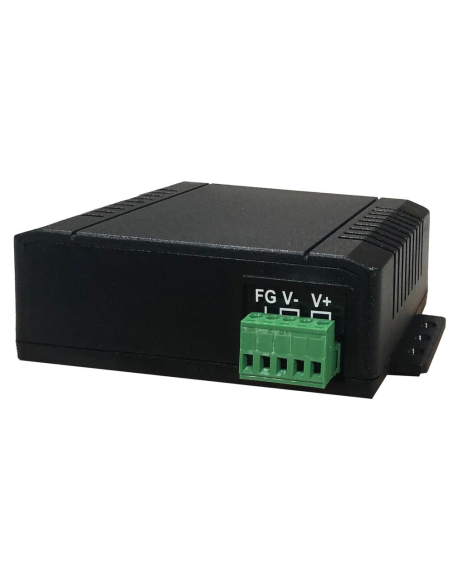

TP-SW5G-VERSA Power Inputs

Product Specifications

Details
Ports
  • Port 1: 60W 4Pair High PoE; 1,2,4,5 (V+), 3,6,7,8 (V-)
  • Port 2,3,4: 48V 30W 802.3AT Mode B
  • Port 5: 24V 12W Passive PoE; 4,5 (V+), 7,8 (V-)
Transmission Speed 1000 Mbps (Gigabit) / 100 Mbps / 10 Mbps Auto-negotiation
Connections Shielded RJ45, Grounded to FG connection
Input Voltage 44VDC to 57VDC on Wire Terminal
LED Indicators
  • Right Hand LED: Gigabit Link (Green On), Activity (Green Blinking); 10/100Mb/s Link (Yellow On), Activity (Yellow Blinking)
  • Left Hand LED: PoE Power ON (Yellow On)
PoE Protections Over Temperature, Over Current, Short Circuit
Surge Protection
  • IEC61000-4-2 (ESD): ±15kV (air), ±8kV (contact)
  • IEC61000-4-4 (EFT): 40A (5/50ns)
Self Consumption < 3 Watt Typical
Switch Technology Store and Forward
Protocol CSMA/CD
Flow Control IEEE802.3x (full-duplex), Back Pressure (half-duplex)
Data Transmission Rate 1488000pps, 148800pps, 14880pps
Address Table 1K MAC, self-learning
Operating Temperature -30 to +70°C (-22 to 158°F)
Operating Humidity 5% - 90% (non-condensing)
Storage Temperature -40 to +85°C (-40 to +185°F)
Dimensions (LxWxH) 159 x 118 x 40mm (6.3 x 4.6 x 1.6”)
Weight 318g (11oz)
Warranty 3 Years
Device Type
Network Switch
Power Over Ethernet
Power Over Ethernet
48V 30W 802.3at
Ethernet Ports
5
