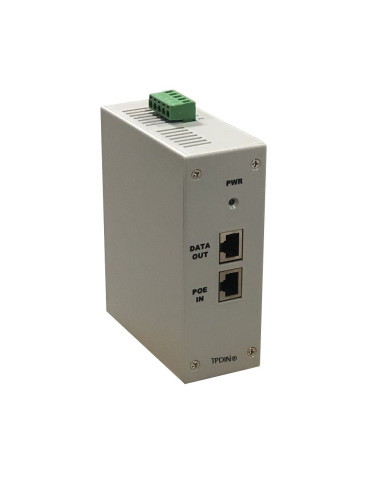

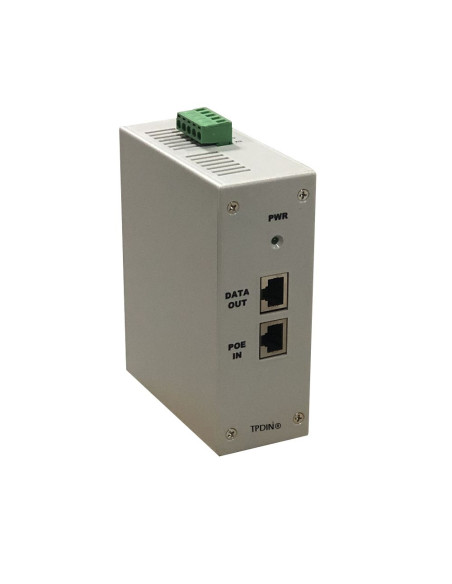

The TPDIN-POE-RELAY is a unique device that provides a way to control up to 10A of current from a managed PoE Switch or other PoE device. When PoE is applied to the TPDIN-POE-RELAY, the relay closes and the LED turns ON. When PoE power is removed, the relay turns off and the LED turns OFF. There are two connections, a normally closed and a normally open, so that both relay logic states can be utilized.
Key Features
• PoE Powered, No Other External Power Required
• Accepts 802.3af/at/bt Class 0 PoE or 24V Passive PoE

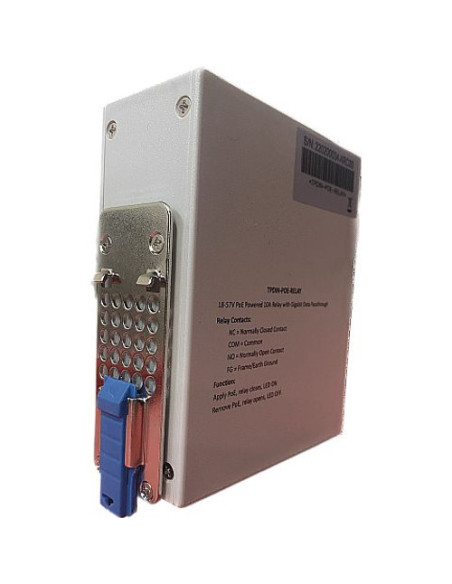

• Normally Open and Normally Closed 10A Relay Connections
• Gigabit Data Passthru with Surge Protection
• Wide Operating Voltage Range: -40C to +70C
• DIN Rail Mounting
Related Products & Accessories
Many modern PoE switches allow an operator to enable or disable the PoE on a particular port. This PoE switch function can be used to control the relay.
The unit features a Gigabit Data Passthrough with surge protection to protect the data connection up to 30KV.
It mounts to a standard DIN Rail commonly used in industrial installations
This device can be used in an endless amount of applications.
Typical applications include:
| Parameter | Details |
|---|---|
| Relay Type | NO & NC 10A 30VDC/250VAC |
| Relay Function | PoE ON - Relay Closed, LED ON PoE OFF - Relay Open, LED OFF |
| Data PassThrough | 10/100/1000Mbps |
| Data Protection | Pin to Pin (1-2, 3-6, 4-5, 7-8) Clamp Voltage: 3.3V ESD, IEC61000-4-2: +/- 30KV contact and air EFT, IEC61000-4-4: 40A (5/50us) Lightning, IEC61000-4-5: 15A (8/20us) |
| PoE Input Requirements | 802.3af/at/bt Class 0 PoE or 24V Passive PoE |
| Self Consumption Power | <1W |
| Connections | Removable Wire Terminal |
| Wire Size | 12AWG Max |
| Mounting | DIN Rail |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Humidity (RH) | 0% - 90% |
| Dimensions (LxWxH) | 125 x 102 x 46mm (4.9” x 4” x 1.8”) |
| Weight | 260g (9.2 oz) |
| Warranty | 3 Years |
