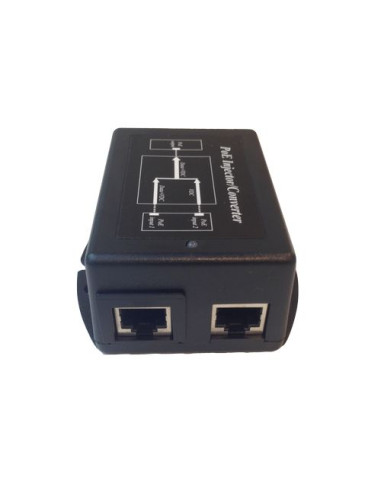

Tycon Power POE-CONV-2AT-60, Gigabit PoE Converter, 2x 802.3at to 1x 4Pair 60W Passive PoE

POE-CONV-2AT-60
In Stock
$153.00
Tax included

POE-CONV-2AT-60, Gigabit PoE Converter two 802.3at PoE Input to 48VDC 60W output

The POE-CONV-2AT-60 provide Gigabit PoE conversion, accepting two 802.3at inputs and providing a single 4 Pair 60W Passive PoE output which is compatible with High PoE devices like Ubiquiti airFiber™


Key Features:

• Very Compact Size
• Converts two 802.3af 16W ports to one 802.3at 30W port
• Convert two 802.3at 35W ports to one 4 Pair PoE 60W port
• Allows use of standard PoE switches to power higher power devices
• I.T.E. Power Supply, UL Listed

Quantity Unit price You Save
5 $148.41 $22.95


POE-CONV-2AT-60, Gigabit PoE Converter two 802.3at PoE Input to 48VDC 60W output

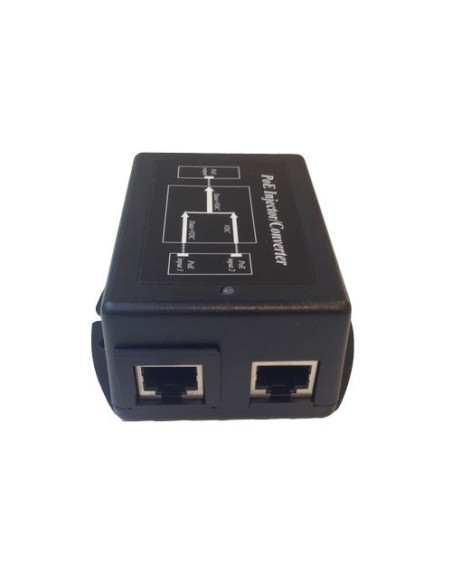

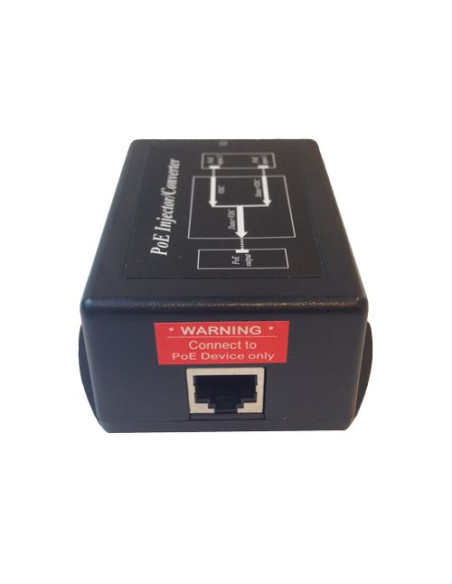

The POE-CONV-2AT-60 have two RJ45 socket for input and one RJ45 socket for the output. One input accepts Data and Power, the second input accepts only Power. The design is isolated so input and output are isolated. The devices include protections for short circuit and overload.

Note: If the inputs come from the same PoE switch then the output power is full power. If the inputs come from different PoE sources, then the output power may be ½

RJ-45 Input 1 ( Data and Power)

Pin Symbol Description
1 RX+, VAin +/- Data Pair A+, Feeding power A+/-
2 RX-, VAin +/- Data Pair A-, Feeding power A+/-
3 TX+, VAin +/- Data Pair B+, Feeding power A+/-
4 Data, VBin +/- Data Pair C+ Feeding power B+/-
5 Data, VBin +/- Data Pair C- Feeding power B+/-
6 TX-, VAin +/- Data Pair B-, Feeding power A+/-
7 Data, VBin +/- Data Pair D+ Feeding power B+/-
8 Data, VBin +/- Data Pair D- Feeding power B+/-

RJ-45 Input 2 ( Power)

Pin Symbol Description
1 VAin +/- Feeding power A+/-
2 VAin +/- Feeding power A+/-
3 VAin +/- Feeding power B+/-
4 VBin +/- Feeding power B+/-
5 VBin +/- Feeding power B+/-
6 VAin +/- Feeding power A+/-
7 VBin +/- Feeding power B+/-
8 VBin +/- Feeding power B+/-

RJ-45  ( Out )

Pin Symbol Description
1 DA+, Vdc- Data Pair A+, Feeding power (-)
2 DA-, Vdc- Data Pair A-, Feeding power (-)
3 DB+, Vdc+ Data Pair B+, Feeding power (+)
4 DC+, Vdc+ Data Pair C+, Feeding power (+)
5 DC-, Vdc+ Data Pair C-, Feeding power (+)
6 DB-, Vdc+ Data Pair B-, Feeding power (+)
7 DD+, Vdc- Data Pair D+, Feeding power (-)
8 DD-, Vdc- Data Pair D-, Feeding power (-)

Product SpecificationsProduct

Details
Input Qty 2 802.3at Mode A or 48V Passive PoE
Output 60W Passive PoE, 4 Pair High PoE
Input Ports Shielded RJ45 Socket x 2
Output Ports Shielded RJ45 Socket
Load Regulation 5%
Line Regulation, Ripple, Noise 1%
Ethernet Speed 10/100/1000MB, GigE, Gigabit
LED Indicators Blinking Red: Only 1 input powering
Solid Red: Two Inputs Powering
Solid Green: Output is active with device plugged in
Efficiency 90% Min
EMC Standards FCC Class B, NE55022 Class B
Isolation Voltage 1500VDC
Isolation Resistance 100M Ohms Minimum
Operating Temperature -30 to +60°C (-22 to +140°F)
Operating Humidity 5% - 90% non-condensing
Storage Temperature -40 to +85°C (-40 to +176°F)
Dimensions (L x W x H) 85 x 75 x 36mm (3.3 x 3 x 1.4”)
Weight 80g (2.8oz)

Operating Temperature
-30 to +60°C
Input connector
Shielded RJ45 Socket x 2
Output connector
Shielded RJ45 Socket
