TP-DCDC-2448G-HP
Last items in stock
$128.49
Tax included

TP-DCDC-2448G-HP

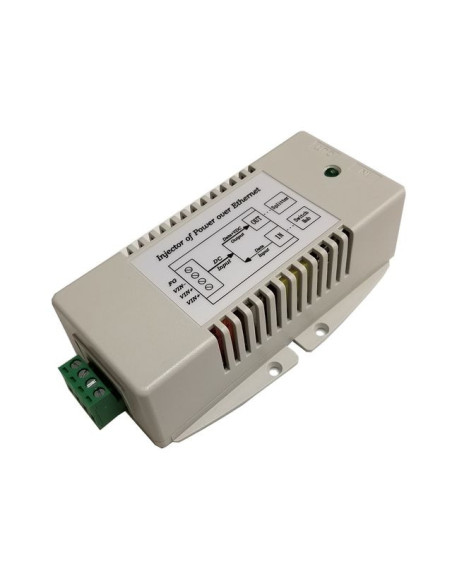

The TP-DCDC-2448G-HP offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications. 802.3af/at models available.


They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W.

Quantity Unit price You Save
5 $124.64 $19.27


TP-DCDC-2448G-HP - TYCON 18-36V In 56V 50W GigE Passive PoE inserter

Product Features
• Input Voltage 12VDC -36V
• Passive PoE Output
• Dual Inputs for Connecting 2 Power Sources
• Integrated 10/100/1000MB PoE Inserter
• High power up to 50W
• Low Self Consumption Power
• Short Circuit, Over Current and Reverse/Over Voltage Protect
• High Temperature Operation
• Compact Size - Maximize Available Space

Applications
• 12V / 24V / 48C Battery Systems, Vehicle Applications
• Wireless Access Points, and Client Devices
• IP Phone and Security Camera Systems

Product Specifications

  • DC Input Voltage: 18VDC - 36VDC
  • DC Output Voltage: 56V (Passive) Data in & Data/POE Output Connector: RJ45 (shielded)
  • Output Current (max): 0.9A
  • Supplying power on the Ethernet pins 4,5(V+) and 7,8(V-).
  • Output Power (max): 50W
  • Self Consumption Power: 1W
  • Efficiency (min): 75%
  • Operating Temp: -30 to +60deg C
  • Operating Humidity: 5% - 90%
  • Dimensions: 125 x 75 x 38 mm (4.9 x 3 x 1.5 in)
  • Weight: 300g
Power Over Ethernet
56VDC 802.3af/at PoE Output
810017121533
TP-DCDC-2448G-HP
