TPDIN-1256GD-BT High power DCDC converter and up to 5Gbps PoE injector.

The TPDIN-1256GD-BT is a high power DC to DC converter and up to 5Gbps PoE injector with a wide voltage input range (11-60VDC) and a wide operating temperature range of -40 to +70°C. Therefore, it is ideal for a variety of demanding applications, making it a versatile choice for many users.

Key Features:

  • DC to DC Converter
  • 11-60VDC Input, 802.3bt 90W Output
  • Industrial Temperature Range: -40 to +70C
  • Up to 5Gigabit Data Passthru with Surge Protection
  • DIN Rail Mounting

Applications:

  • 12VDC and 24VDC Remote Power Systems
  • 48VDC or -48VDC Remote Power Systems
  • IEEE802.3bt Industry Standard Device Power from Batteries

Quantity Unit price You Save
5 $528.17 $81.68

Related Products & Accessories



TPDIN-1256GD-BT High power DCDC converter and up to 5Gbps PoE injector.

The TPDIN-1256GD-BT is a high power DCDC converter and up to 5Gbps PoE injector with a wide voltage input range (11-60VDC), a wide operating temperature range (-40 to +70C) and a high power 802.3bt 90W output.
The unit has dual DC inputs for primary and backup power sources. The input to output is isolated so the unit can accept -48VDC Input, making it compatible with legacy telecom systems. The green DC connector is a locking type that accepts wires up to 12AWG. The “FG” input is used to provide chassis or earth ground.
The device is fan-less and uses natural air flow for cooling. It mounts to a standard DIN Rail commonly used in industrial installations.

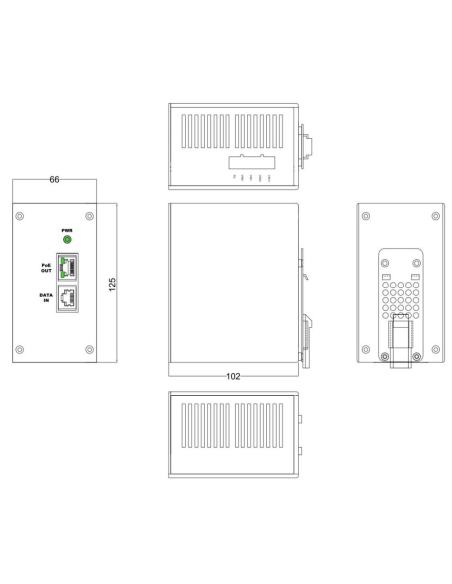

Device Pinouts

Technical Information
Ship Weight 0.9 lbs
Ship Dimensions 6 × 5 × 2 in
Input Voltage 10-60 VDC
Output Voltage/Type 48V 802.3bt Passive PoE
Output Power 90W
Network Speed 5 Gigabit
Temperature Range -40°C to +70°C
TPDIN-1256GD-BT

Related Products & Accessories

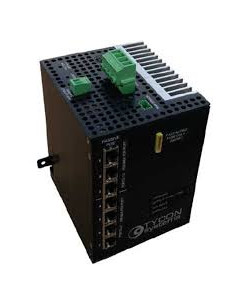

TPDIN-SC48-20 Tycon MPTT Passive PoE Solar Controller
