Grandstream GWN7661 GWN Wi-Fi 6 ,802.11ax In-Wall Access Point

GWN7661
*** Out of stock ATM, Available On Backorder ***
$159.00
Tax included

GWN7661

The GWN7661 is an in-wall 802.11ax Wi-Fi 6 access point that provides three Gigabit network ports to provide IP phones, computers and similar devices with Ethernet while also providing and uplink Gigabit
network port with PoE/PoE+

features:

  • 1.77 Gbps wireless throughput and 4x Gigabit wireline ports
  • Dual-band 2×2:2 MU-MIMO with DL/UL OFDMA technology
  • Supports up to 500+ concurrent Wi-Fi client devices
  • Self power adaptation upon auto detection of PoE or PoE+
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Related Products & Accessories



GWN7664E High-Performance AX6000 Wi-Fi 6 Access Point

The GWN7661 is an in-wall 802.11ax Wi-Fi 6 access point designed for small-to-medium sized businesses, offices,residential and commercial locations, hotels and more. It offers dual-band 2x2:2 MU-MIMO technology as well as a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. Wi-Fi 6
technology supports the modern generation of dense environments where many users and many devices require consistent and reliable Wi-Fi connections at higher speeds. The GWN7661 provides three Gigabit network ports to provide IP phones, IPTV, computers and similar devices with Ethernet while also providing and uplink Gigabit network
port with PoE/PoE+. It supports the access of wired terminals and also meet wireless coverage requirements. As an in-wall access point, it provides a clean and professional installation that blends into the surrounding environment.
To ensure easy installation and management, the GWN7661 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface The GWN7661 is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. It is the
ideal Wi-Fi AP for voice-over- Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and 500+ concurrent clients per AP, the GWN7661 is an ideal Wi-Fi access point for medium wireless network deployments with medium user density

Specifications

Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
Antennas 4 single band internal antennas
2.4GHz x 2, gain 3.30dBi, gain 3.51dBi
5GHz x 2: gain 4.79dBi, gain 5.37dBi
Wi-Fi Data Rates 5G:
IEEE 802.11ax: 7.3 Mbps to 4804 Mbps
IEEE 802.11ac: 6.5 Mbps to 3467 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices,
radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4GHz Radio: 2400 - 2483.5 MHz
5GHz Radio: 5150 - 5895 MHz
*Not all frequency bands can be used in all regions
Channel Bandwidth 2.4G: 20 and 40 MHz
5G: 20, 40, 80 and 80 MHz (x4)
Wi-Fi System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control
lockdown via digital signatures, unique security certificate and random default password per device
MIMO 2×2:2 2.4GHz
2×2:2 5GHz
Coverage Range Up to 100 meters
*coverage range can vary based on environment
Maximum TX Power 2.4G: 24dBm
5G: 27dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity

5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @MCS11


2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11
SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients up to 500+

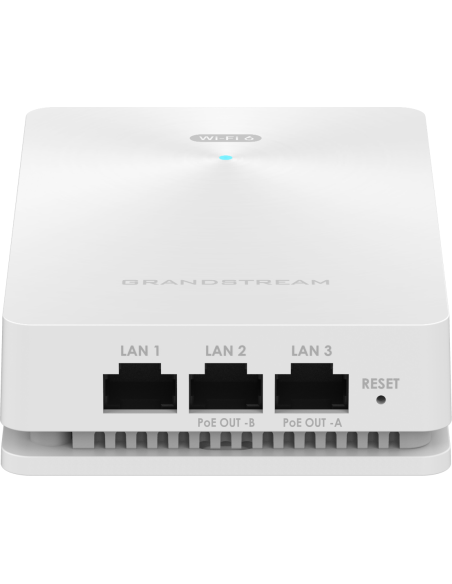

Network Interfaces 1x 10/100/1000M uplink Ethernet port with PoE/PoE+
2x 10/100/1000M Ethernet ports with PSE
1x 10/100/1000M Ethernet port
Auxiliary Ports 1x Reset Pinhole

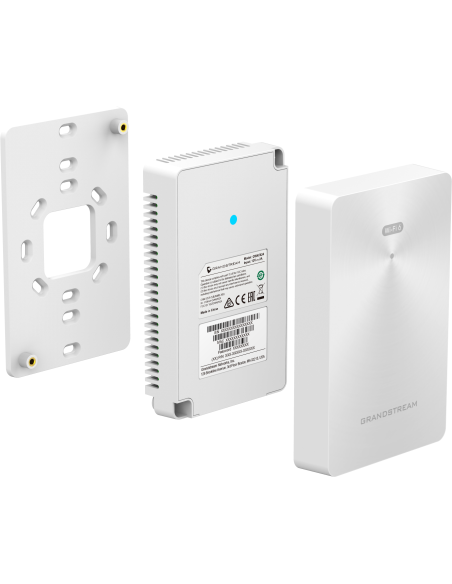

Mounting In-wall mountable
LEDs 1 tri-color LED for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency PoE 802.3at;
Maximum Power Consumption: 24W
Environmental Operation:-30°Cto 60°C
Storage: -30°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical Unit Dimension: 135mm(L)x86mm(W)x38.5mm(H); Unit Weight: 185g
Entire Package Dimension: 176mm(L)x118.5mm(W)x65mm(H); Entire Package Weight: 400g
Package Content GWN7661 Wi-Fi 6 In-Wall Wireless AP, Mounting Kits , Quick Installation Guide
Device Type
Access Point
MIMO
4x4
Wireless System
2.4GHz
5GHz
Wi-Fi 6
Ethernet Ports
4
6947273704478
GWN7661
